Grandstream SIP GSC-3570 HD Interkom- und Zugangskontrollstation
Manufacturer: GRANDSTREAM
ID: GSC3570
12090€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Specifications
Description
Store availability
Delivery
Price development
Technical details | |
Colour | ![]() |
Certification | FCC, CE, RCM, IC |
Built-in microphone | ![]() |
Connectivity technology | Wired & Wireless |
Frequency band | 2.4 & 5 |
Speakerphone | ![]() |
Display | |
Display diagonal | 17.8 cm (7") |
Display resolution | 1024 x 600 pixels |
Touchscreen | ![]() |
Video formats supported | H.264, H.264 BP |
Touchscreen type | Capacitive |
Display technology | TFT |
Audio | |
Voice codecs | AGC, AJB, CNG, G.711, G.722, G.726-32, G.729A, G.729B, OPUS, PLC, VAD, iLBC |
Built-in speaker(s) | ![]() |
Number of speakers | 2 |
Weight & dimensions | |
Weight | 517 g |
Height | 36.5 mm |
Width | 224.5 mm |
Depth | 149.5 mm |
Energy management | |
AC adapter output voltage | 12 V |
AC adapter output current | 1 A |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | -10 - 50 °C |
Networking | |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Supported network protocols | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, 802.1x, TLS, SRTP, IPv6 |
Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af |
Power over Ethernet (PoE) | ![]() |
Wi-Fi | ![]() |
Ethernet LAN data rates | 10,100 Mbit/s |
Ethernet interface type | Fast Ethernet |
Storage | |
Compatible memory cards | MicroSD (TransFlash) |
Maximum memory card size | 256 GB |
Memory card slot | ![]() |
Packaging data | |
Package weight | 880 g |
Package depth | 180 mm |
Package height | 54 mm |
Package width | 265 mm |
Indoor unit included | ![]() |
Outdoor unit included | ![]() |
Operating system/software | |
Operating system installed | Linux |
Design | |
Product colour | White |
Placement supported | Vertical |
On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Portuguese, Russian |
Logistics data | |
Harmonized System (HS) code | 85176920 |
EAN | 6947273702948 |
Source: Icecat.biz |

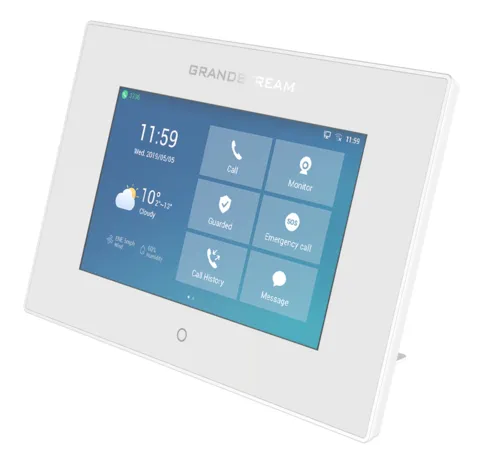

The GSC3570 is a powerful intercom and facility control station designed to provide businesses with a dedicated device to manage facility communications, door access, physical security and more. This device can be wall-mounted or placed on a desktop as a solution for easy door control, intercom and paging communication, security camera management and facility-wide UC integration. The GSC3570 features a 7-inch touch screen LCD and full duplex 2-way HD audio. It offers a flexible network connectivity through 100Mbps network port with PoE or integrated dual-band Wi-Fi support. This SIP intercom and facility control station is designed to seamlessly integrate with Grandstream’s entire range of products, including the GDS series of Door Access devices, GSC series intercom and paging devices, security cameras and more. The GSC3570 is ideal for any deployment scenario where facility access, communications and security need to be centrally monitored and controlled.
