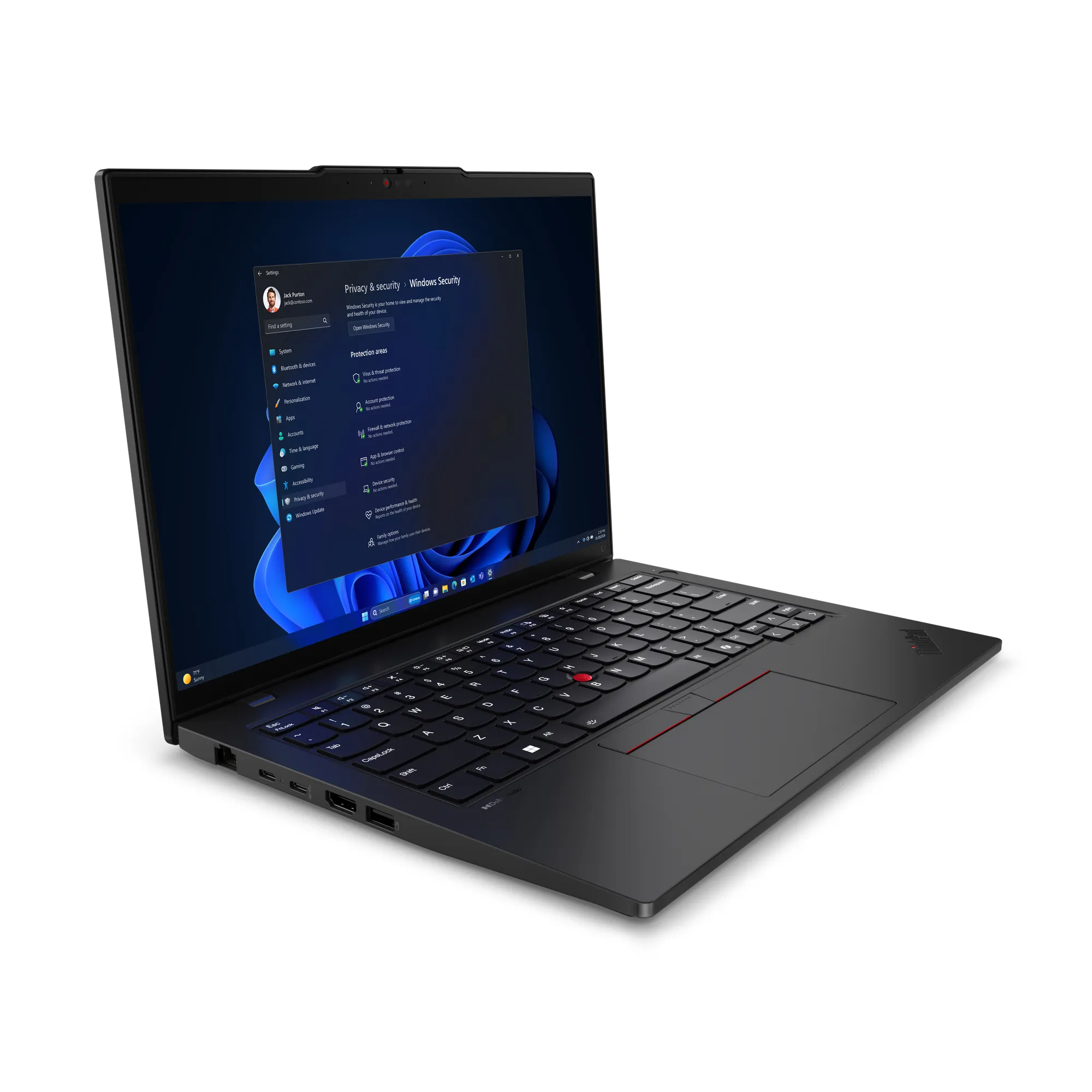

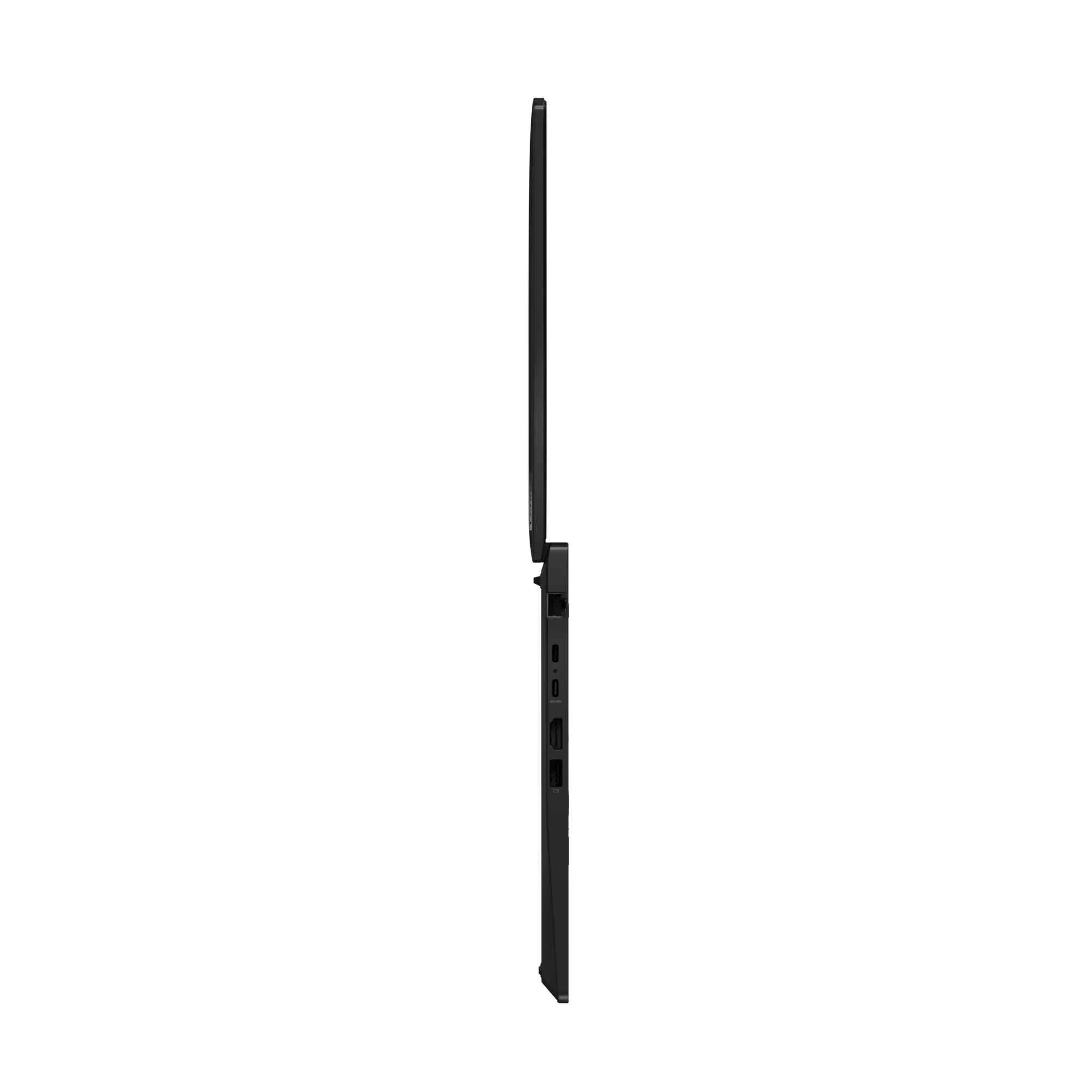

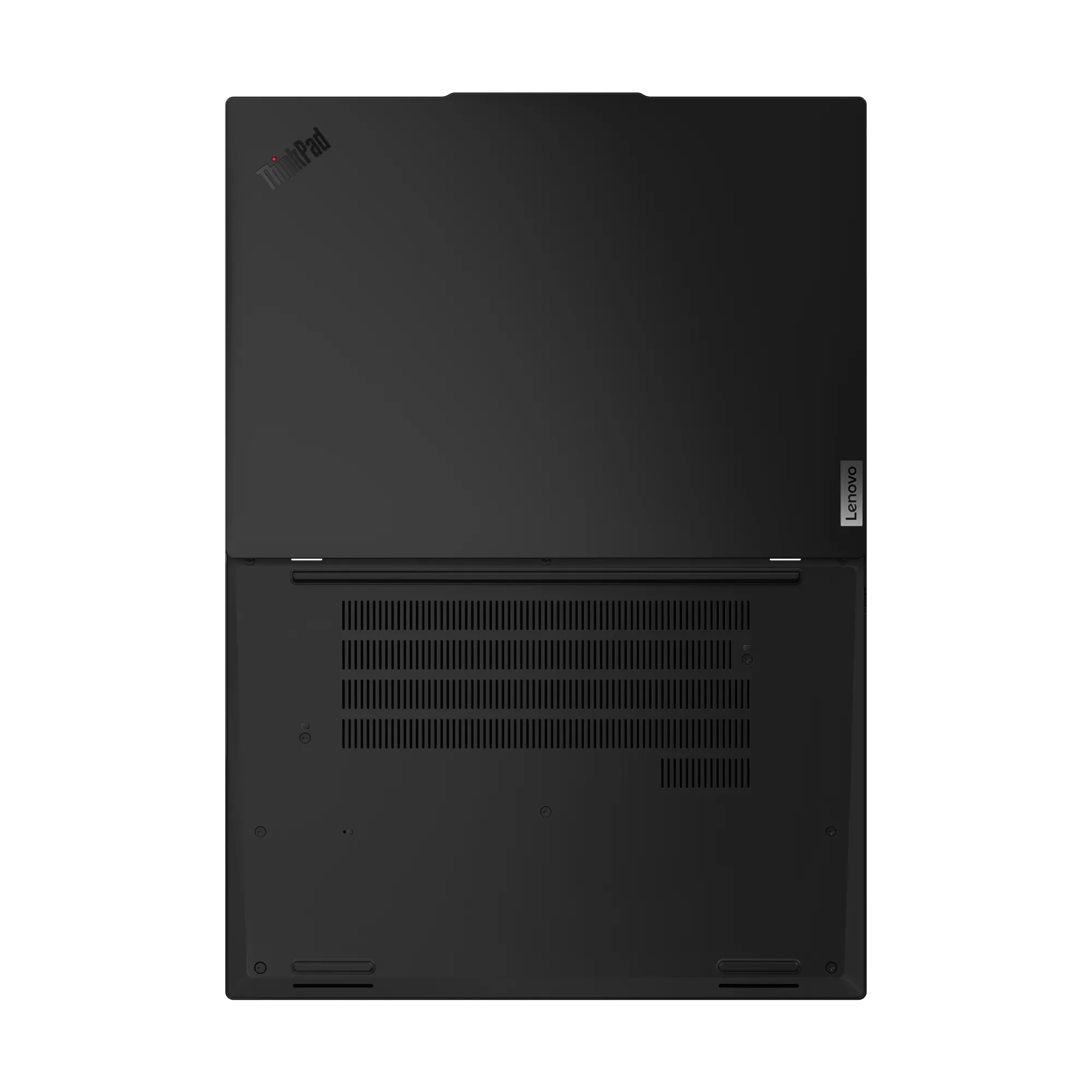

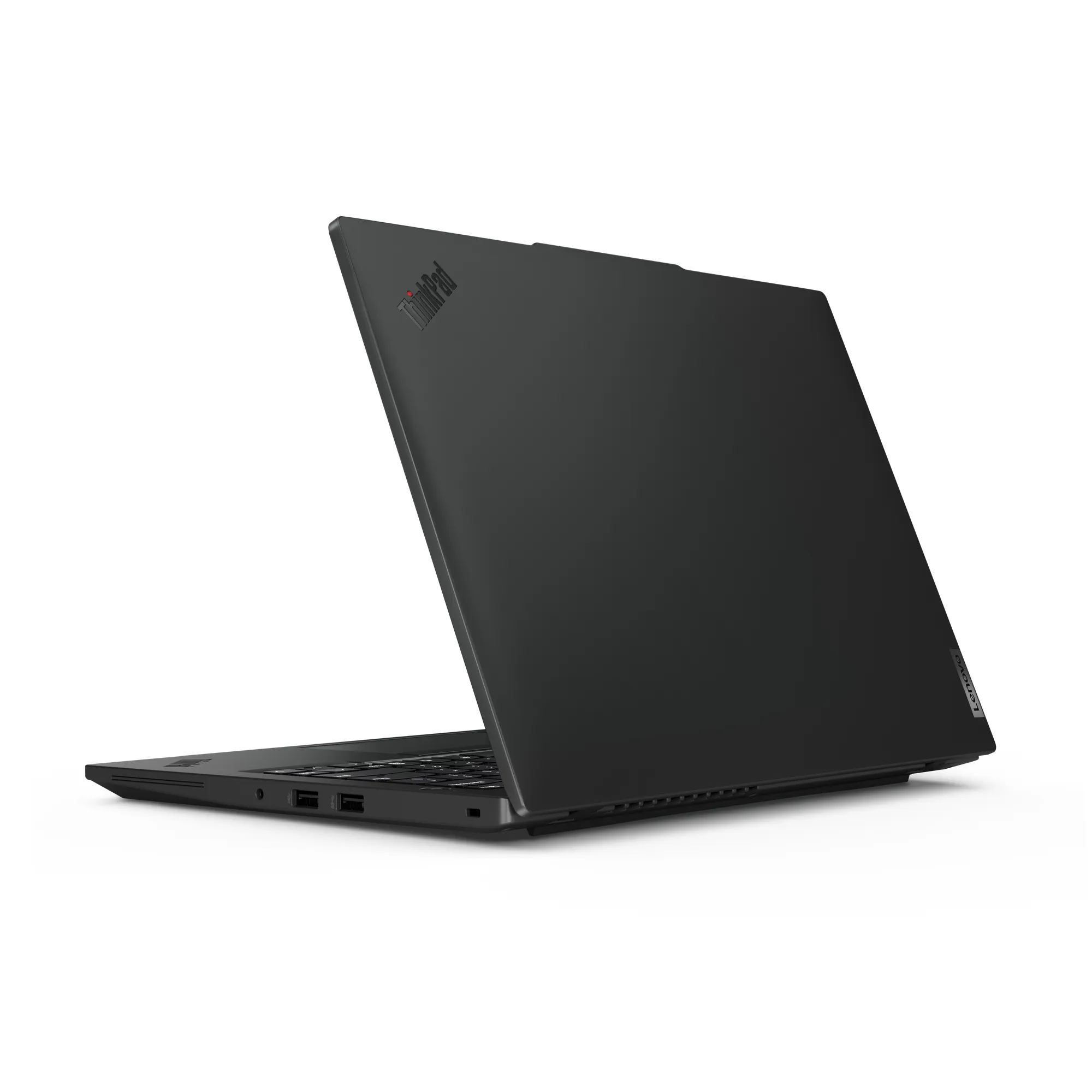

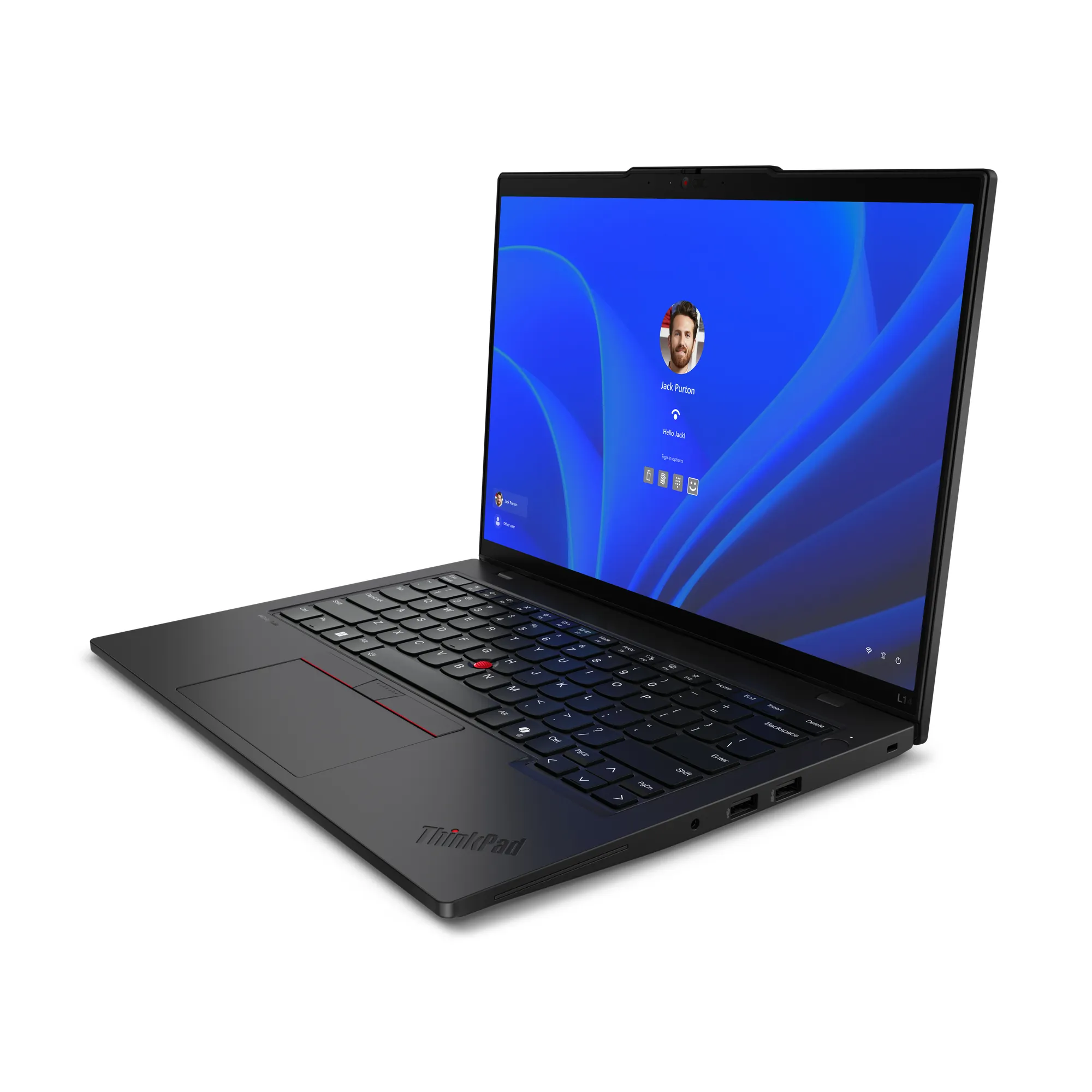

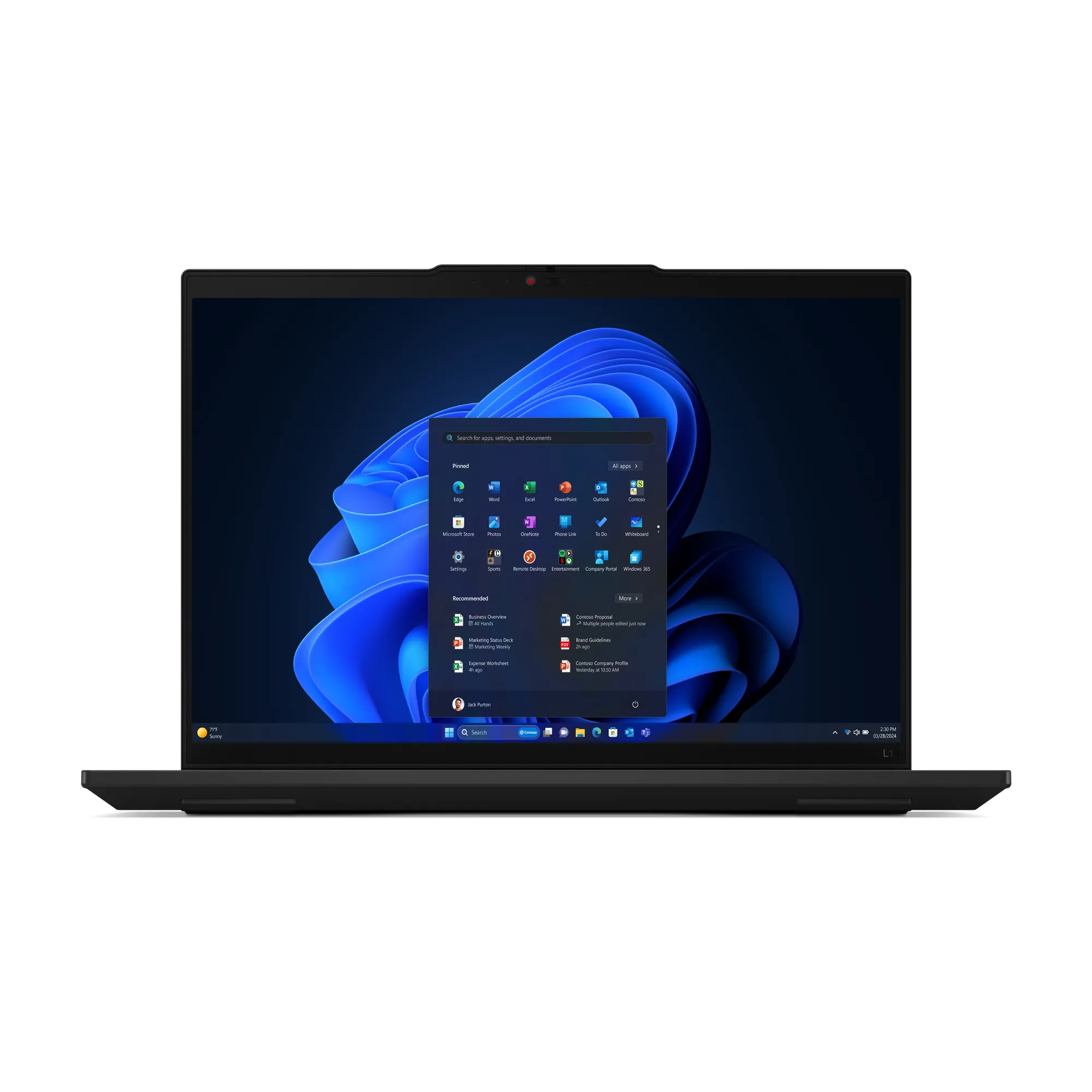

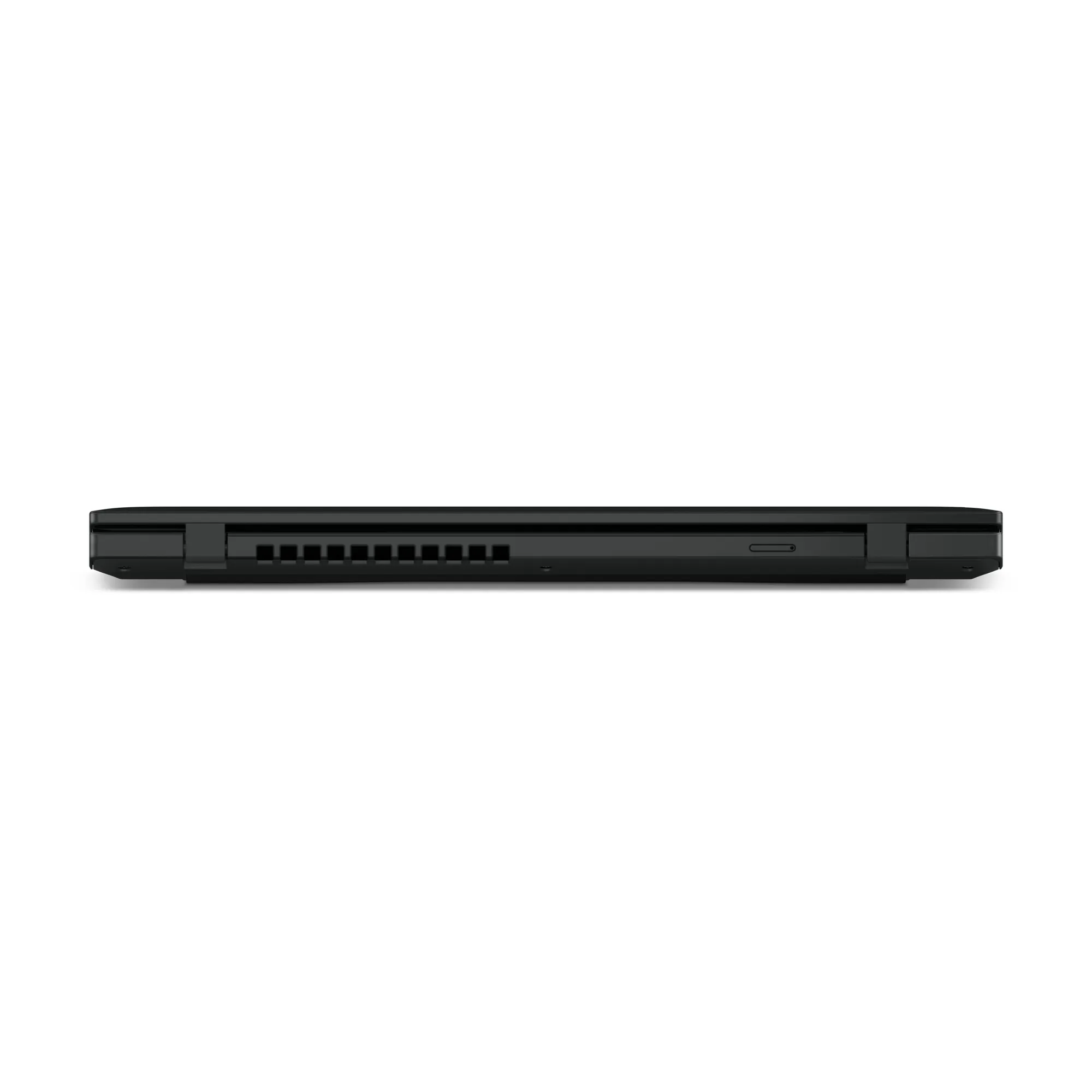

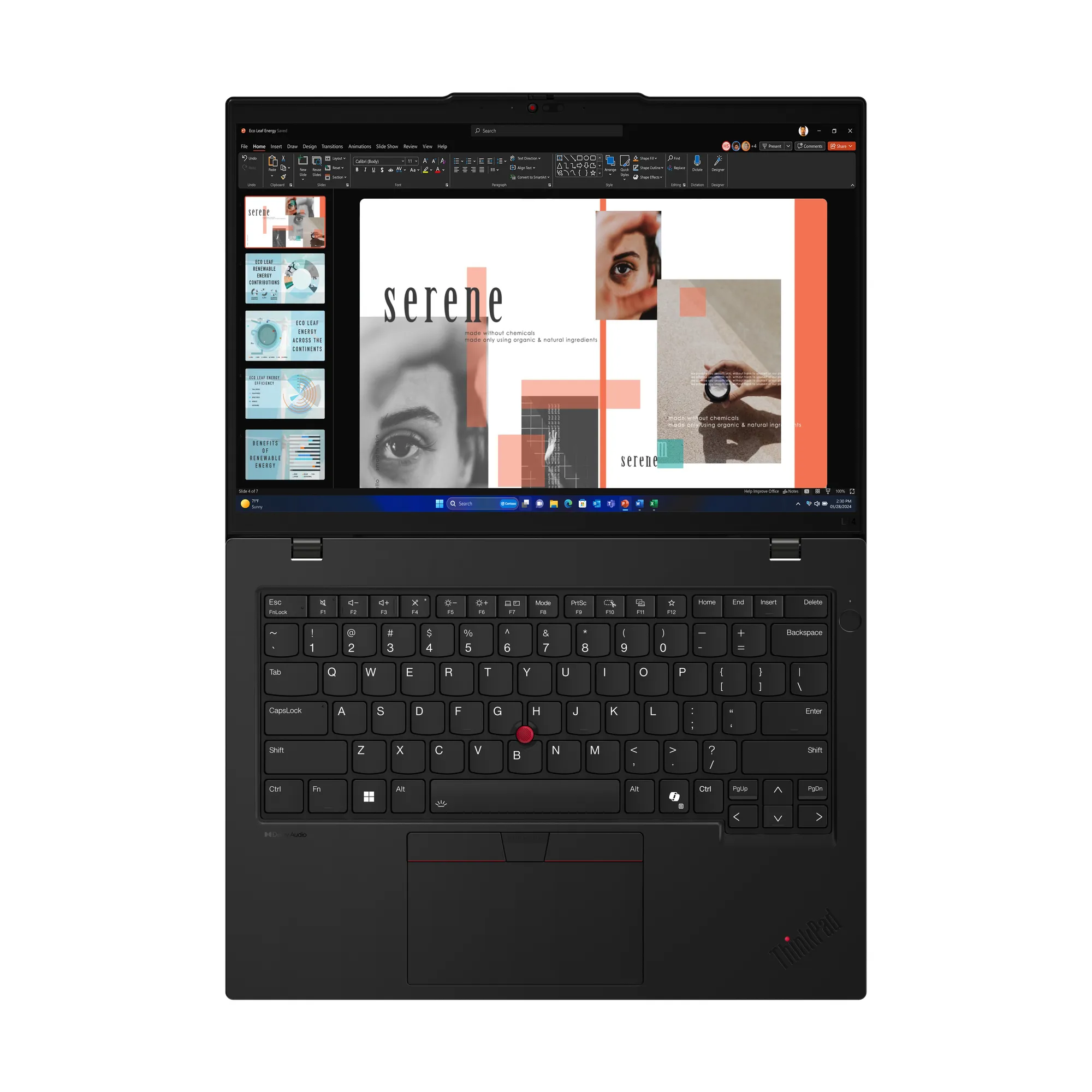

Lenovo ThinkPad L14 Gen 5 14.0" Ryzen 5 PRO 7535U, 16GB, 512GB, Win 11 Pro - Notebook, Black

Technical details
Device type	SSD
Processor
Processor model	7535U
Processor manufacturer	AMD
Processor family	AMD Ryzen 5 PRO
Processor cores	6
Processor threads	12
Processor boost frequency	4.55 GHz
Processor cache	16 MB
Processor frequency	2.9 GHz
Processor cache type	L3
Processor base power	28 W
Processor generation	AMD Ryzen PRO 7000 Series
Hard drive
Total storage capacity	512 GB
Memory
Internal memory type	DDR5-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory channels	Dual-channel
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Display
Contrast ratio (typical)	1000:1
Aspect ratio	16:10
Display diagonal	35.6 cm (14")
Display brightness	400 cd/m²
Display resolution	1920 x 1200 pixels
Touchscreen
LED backlight
Maximum refresh rate	60 Hz
Anti-glare screen
Native aspect ratio	16:10
HD type	WUXGA
Colour gamut	45%
Panel type	IPS
RGB colour space	NTSC
Audio
Audio system	Dolby Audio
Built-in microphone
Speaker power	2 W
Number of built-in speakers	2
Number of microphones	2
Audio chip	Realtek ALC3287

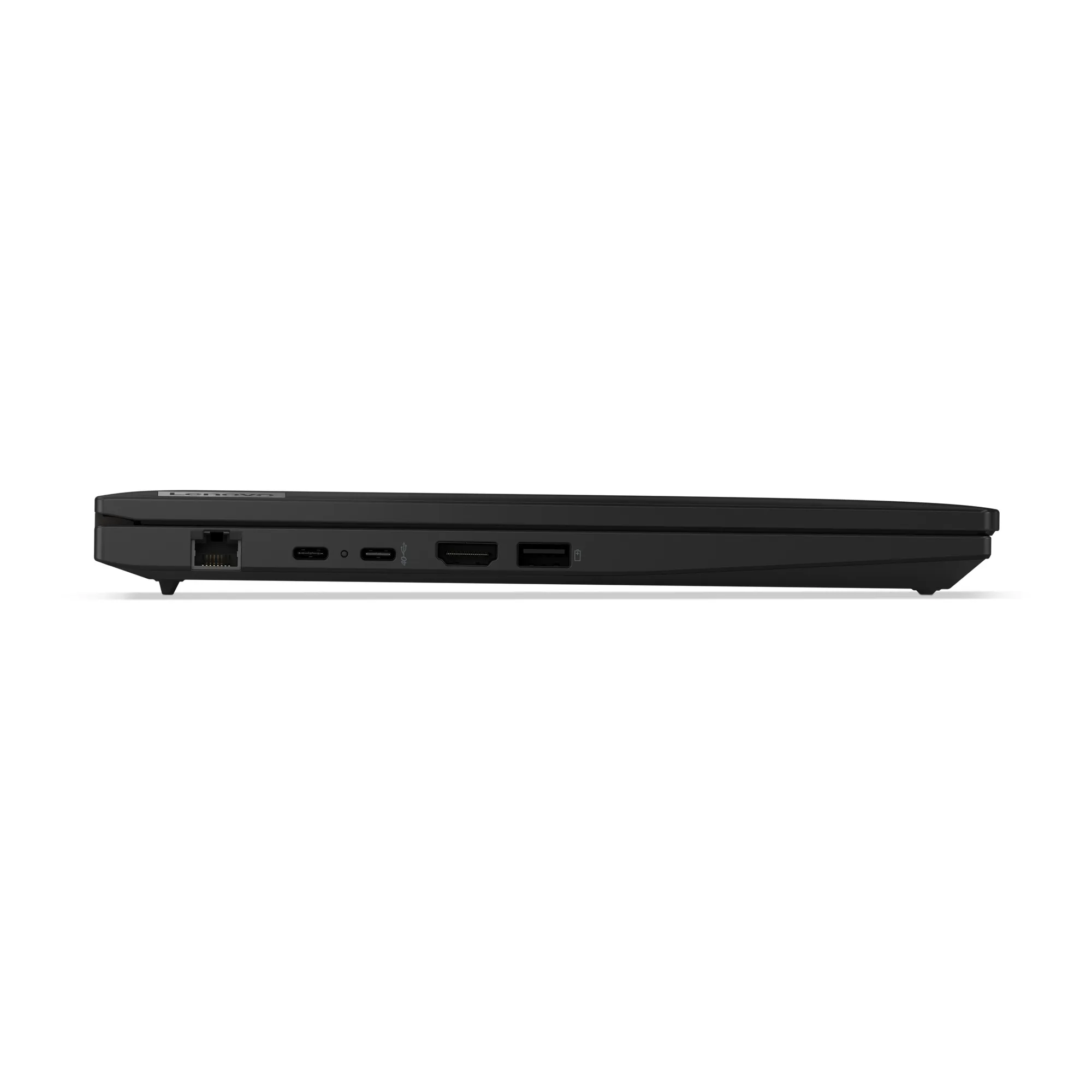

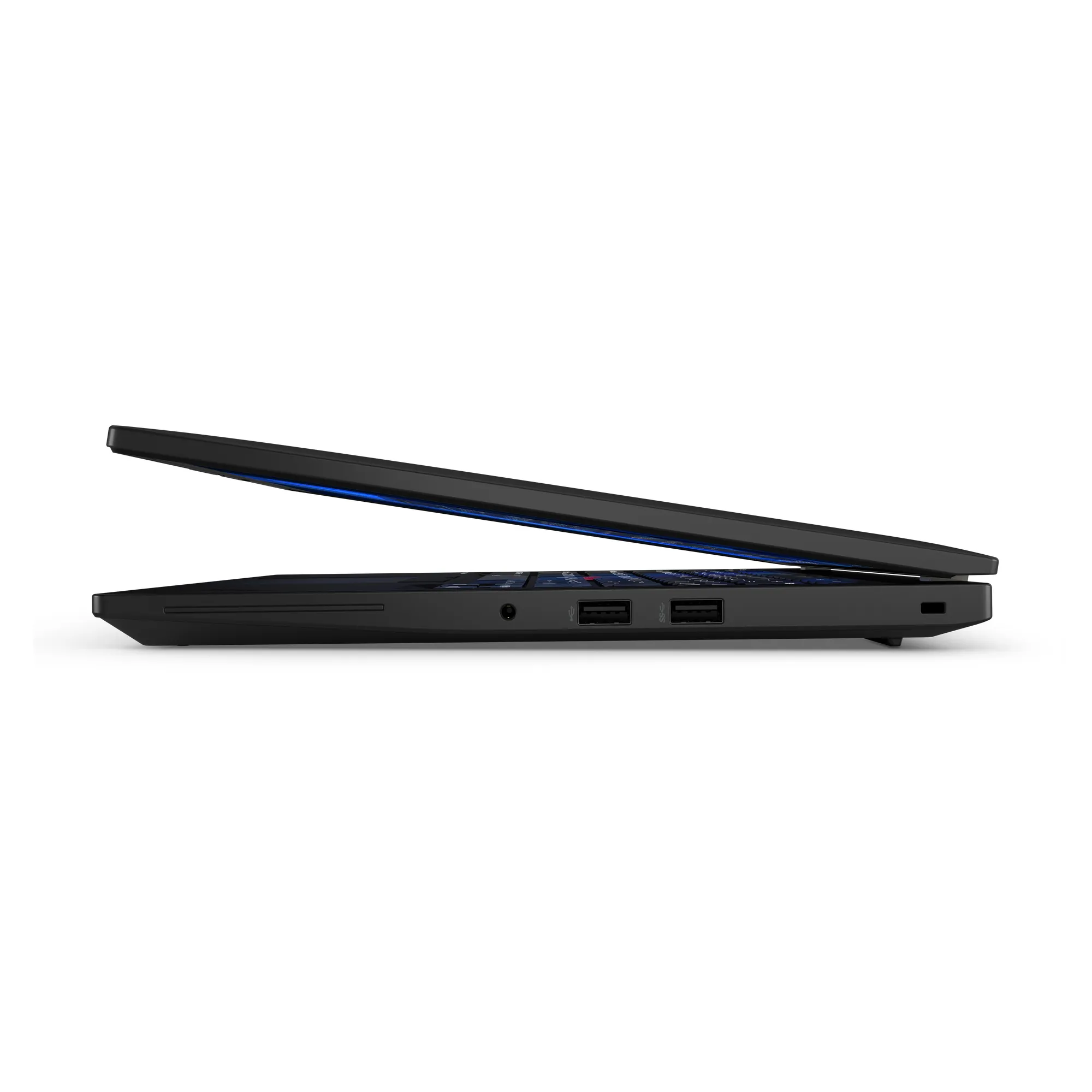

Ports & interfaces
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port
USB Sleep-and-Charge
USB Sleep-and-Charge ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB Type-C DisplayPort Alternate Mode
USB4 Gen 3x2 ports quantity	1
Weight & dimensions
Weight	1.41 kg
Height	18.9 mm
Width	313.7 mm
Depth	226 mm
Energy management
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter power	65 W

USB Type-C charging port
Operational conditions
Operating relative humidity (H-H)	8 - 95%
Storage temperature (T-T)	5 - 43 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95%
Maximum shipping altitude	3048 m
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad
Spill-resistant keyboard
Keyboard language	Nordic
Keyboard backlit
Networking
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Ethernet LAN
Antenna type	2x2
Bluetooth
Wi-Fi
Ethernet LAN data rates	100,1000 Mbit/s
WWAN	Upgradable
Near Field Communication (NFC)
Mobile network connection
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller model	Qualcomm NFA725A
WLAN controller manufacturer	Qualcomm
Storage
Drive capacity	512 GB
Optical drive type	No
Total storage capacity	512 GB
Card reader integrated
SSD interface	PCI Express 4.0
Number of SSDs installed	1
Storage media	SSD
SSD form factor	M.2
NVMe
Total SSDs capacity	512 GB
Security
Cable lock slot
Trusted Platform Module (TPM)
Fingerprint reader
Password protection type	BIOS, Power on, SSD, Supervisor
Trusted Platform Module (TPM) version	2.0
Cable lock slot type	Kensington
Password protection
Smart card reader
Windows Hello
Certificates
Certification	ENERGY STAR® 8.0 EPEAT™ Gold Registered[3] ErP Lot 6 ErP Lot 26 RoHS compliant TCO Certified 9.0
Compliance certificates	RoHS
Operating system/software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	Danish, English, Finnish, Norwegian, Swedish
Camera
Front camera
Front camera resolution (numeric)	5 MP
Privacy camera
Privacy type	Privacy shutter
Infrared (IR) camera
Packaging content
AC adapter included
Battery
Battery technology	Lithium Polymer (LiPo)
Fast charging
Battery capacity	57 Wh
Design
Form factor	Clamshell
Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Product type	Laptop
Colour name	Black
Graphics
On-board graphics card model	AMD Radeon 660M
Discrete graphics card model	Not available
On-board graphics card
Discrete graphics card
On-board graphics card family	AMD Radeon
On-board GPU manufacturer	AMD
Performance
Motherboard chipset	AMD SoC
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold, ErP, TCO
EAN	0197530819469
Warranty	3 years

The Lenovo ThinkPad L14 Gen 5 is a business notebook configured for professional use. It is equipped with a 6-core AMD Ryzen 5 PRO 7535U processor and 16GB of DDR5 RAM, a combination designed to handle multitasking and productivity applications. A 512GB solid-state drive is installed for data storage and retrieval. This model operates on Windows 11 Pro, which includes a range of management and security functionalities suited for enterprise environments.

The notebook features a 14-inch WUXGA IPS display with a 1920x1200 resolution and a 16:10 aspect ratio, providing more vertical screen area for documents and web pages. Its chassis is constructed from ABS/PC composites and weighs 1.41 kg, making it a portable option for users who travel. For connectivity, it includes Wi-Fi 6E, Bluetooth 5.3, an Ethernet port, HDMI, and multiple USB ports. The device also incorporates a backlit keyboard and an integrated fingerprint reader for secure login.
