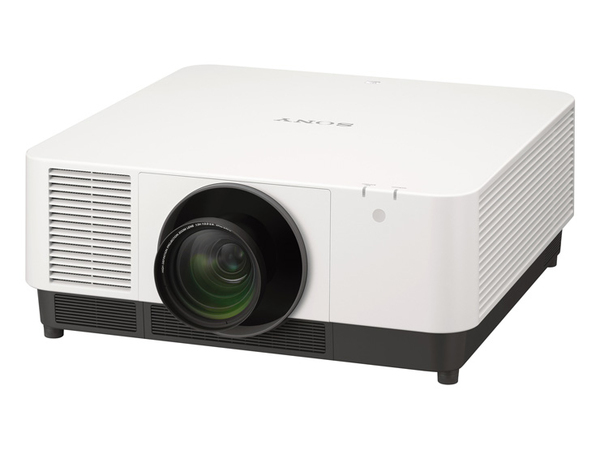

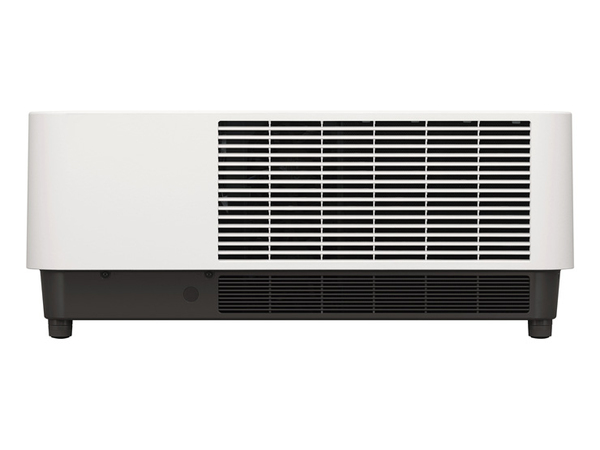

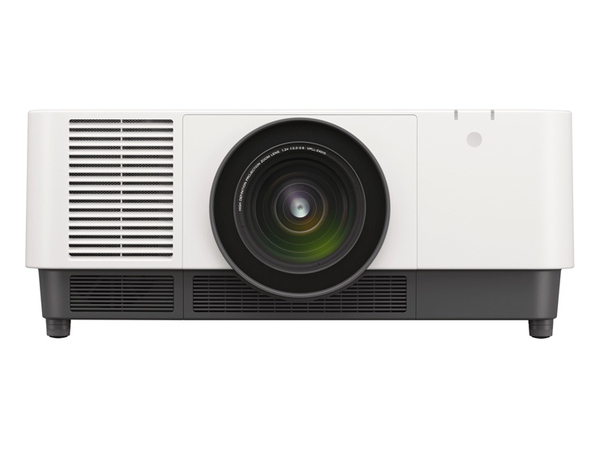

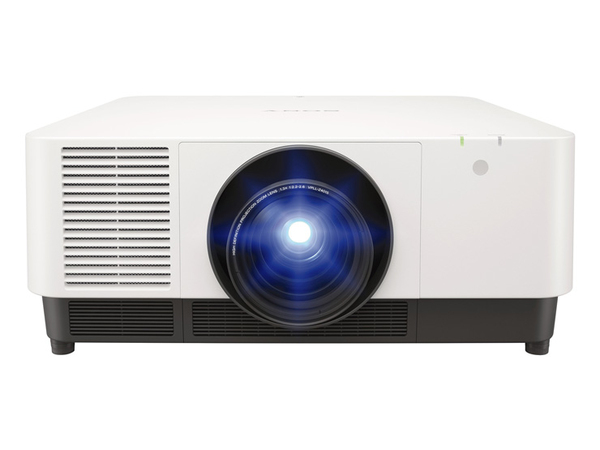

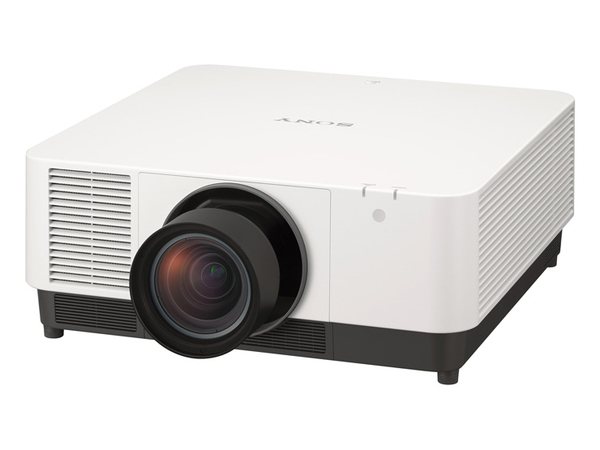

WUXGA 10.000lm White projector+Lens

Manufacturer: SONY
ID: VPL-FHZ101/1
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Display
Built-in displaycross

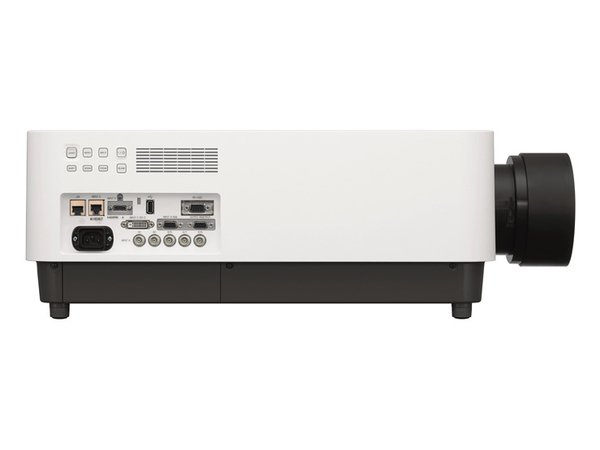

Ports & interfaces
Serial interface typeRS-232C
USB 2.0 ports quantity1
DVI portcheckmark
VGA (D-Sub) ports quantity2
S-Video inputs quantity0
Composite video in0
Audio (L/R) in0
Component video (YPbPr/YCbCr) in0
AC (power) incheckmark
HDMI ports quantity1
BNC input ports5
Mobile High-Definition Link (MHL)cross
HDMI connector typeFull-size
HDBaseT portcheckmark
USB 2.0 Type-B ports quantity1
Lens system
Zoom capabilitycheckmark
Aperture range (F-F)1.75 - 2.34
FocusAuto
Throw ratio1:30:1 - 1:96:1
Zoom typeAuto
Horizontal lens shift range-51 - 51%
Vertical lens shift range-99 - 99%
Number of optional lenses supported7
Weight & dimensions
Weight26 kg
Height205 mm
Width544 mm
Depth564 mm
Energy management
Power consumption (typical)814 W
Power sourceAC
Power consumption (standby)0.5 W
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Operational conditions
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-10 - 60 °C
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)20 - 80%
Networking
Ethernet LANcheckmark
Ethernet LAN (RJ-45) ports1
Wi-Ficross
Ethernet LAN data rates10,100,1000 Mbit/s
Smart TVcross
Projector
Horizontal scan range15 - 92 kHz
Vertical scan range48 - 92 Hz
Projection technology3LCD
Projector brightness10000 ANSI lumens
Heat dissipation2777 BTU/h
Screen size compatibility1524 - 15240 mm (60 - 600")
Keystone correction, vertical-30 - 30°
Keystone correction, horizontal-30 - 30°
Projector brightness (economic mode)7700 ANSI lumens
Native aspect ratio16:10
Projector native resolutionWUXGA (1920x1200)
Video
Full HDcheckmark
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Storage
Card reader integratedcross
Packaging content
Remote control includedcheckmark
Cables includedAC
Manualcheckmark
Batteries includedcheckmark
Design
Product colourWhite
PlacementDesktop, Ceiling
Market positioningPresentation
Product typeLarge venue projector
Features
Noise level39 dB
HDCPcheckmark
Multimedia
Built-in speaker(s)cross
Logistics data
Quantity per pack1 pc(s)
Harmonized System (HS) code85286200
Light source
Light source typeLaser
Service life of light source10000 h
EAN5013493491212
Warranty5 years
Source: Icecat.biz
Combining spectacular image quality with easy set-up and minimal maintenance needs, these high-brightness 3LCD laser projectors are ideal for installation in larger spaces.

Brighter images in bigger venues
Captivate your audience in conference halls, lecture theatres, galleries, museums, visitor attractions and other large spaces. Very high light output (13,000 lumens VPL-FHZ131L, 10,000 lumens VPL-FHZ101L, 9,000 lumens VPL-FHZ91L) ensures big-screen presentations with extra presence, even in brightly lit rooms.

Get closer to reality
Impressive picture quality is boosted by Sony’s unique super resolution Reality Creation technology. This uses a powerful pattern-matching database to optimise lower-resolution images, enhancing clarity without increasing digital picture noise.

Faster, fuss-free set-up
Save time with Sony’s Intelligent Setting function that simplifies installation with pre-sets to optimise brightness, cooling, colour and other projector settings. You’ll be rewarded with great pictures in any environment – including meeting/classrooms, museums, entertainment venues and multi-screen setups.

For more flexible installation
Don’t restrict your thinking. You’ll appreciate an industry-leading lens shift adjustment range and a wide choice of interchangeable lenses, giving more options to install the projector in any space, including classrooms and halls with high ceilings. For extra flexibility the VPLL-Z4107 short throw lens is ideal when positioning the projector close to the screen to avoid ceiling-mounted obstructions.

With normal lens shift
The projector requires a mounting bracket, which obscures the audience’s view.

With wide lens shift
Lens shift gives greater installation flexibility, even in rooms with high ceilings.

Reduced maintenance
The laser light source offers up to 20,000 hours* operation without lamp exchange, reducing maintenance needs compared with traditional projectors.
* Depending on usage environment.

Consistent brightness
Experience consistent image brightness throughout the laser light source’s 20,000 hours recommended lifespan.

Networked control and monitoring
Ideal for integration in AV environments with leading control, monitoring and management systems such as Crestron Connected and Extron XTP Systems.*
* Extron and XTP Systems are trademarks of RGB Systems Inc.

Easy edge blending
Seamlessly join colour-matched images from multiple projectors for stunning super-size displays in corporate and education environments.

Versatile lens options
There’s a wide range of lens options to suit virtually any size of room and throw requirements. Quick-release bayonet mount simplifies lens exchange.

Generous lens shift range
Enjoy greater flexibility to position the projector in restricted spaces, ensuring that audience and presenters aren’t distracted by the light source.

Lens position memory
Memorise and recall up to six settings for projected image size, position and aspect ratio, saving time in different environments. (Requires optional VPLL-Z4111 lens)

Stylish blend-in design
The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted.
