CORSAIR iCUE LINK 6500X Midi-Tower Case with RGB lighting, Black
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Technical details | |
| Warranty period | 2 year(s) |
| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 4 |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Weight & dimensions | |
| Weight | 17.2 kg |
| Height | 496 mm |
| Width | 328 mm |
| Depth | 481 mm |
| Storage | |
| Card reader integrated | ![]() |
| Number of HDDs supported | 2 |
| Supported HDD sizes | 2.5,3.5" |
| Number of storage drives supported | 4 |
| Supported storage drive types | HDD, SSD |
| HDD/SSD combo cage | ![]() |
| SSD form factor | 2.5" |
| Packaging data | |
| LED controller | ![]() |
| Cooling | |
| Cooling | ![]() |
| Number of side fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Number of bottom fans supported (max) | 3 |
| Liquid cooling capability | ![]() |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Fan speed control | ![]() |
| Other features | |
| Power LED | ![]() |
| On/off switch | ![]() |
| Screws included | ![]() |
| Design | |
| Type | PC |
| Rack mounting | ![]() |
| Form factor | Midi Tower |
| Cable lock slot | ![]() |
| Product colour | Black |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | ATX |
| Anti-dust filter | ![]() |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 3 |
| Transport wheels | ![]() |
| Side window | ![]() |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 11 |
| Number of 2.5" bays | 3 |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| RGB control button | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply included | ![]() |
| Supported power supply form factors | ATX |
| Features | |
| Product type | PC Case |
| EAN | 0840006675242 |
| Warranty | 2 years |

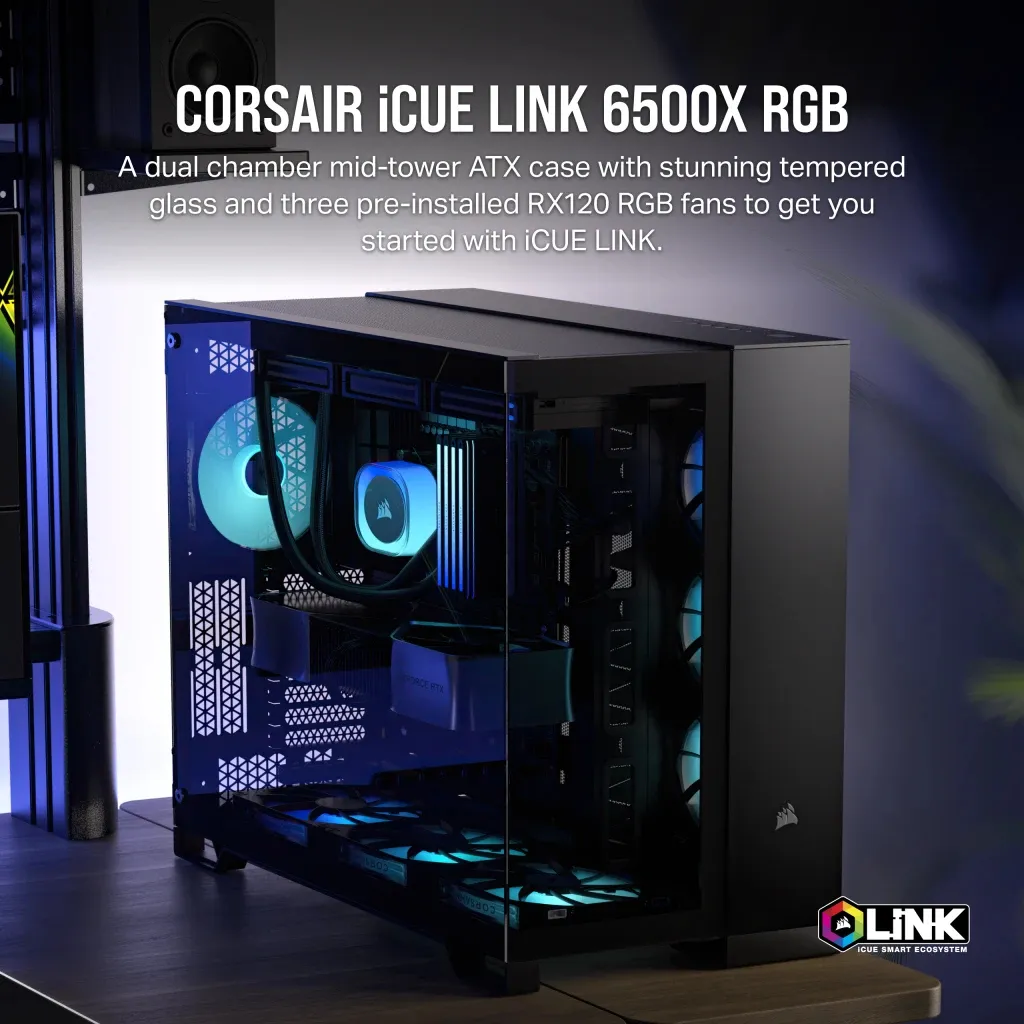

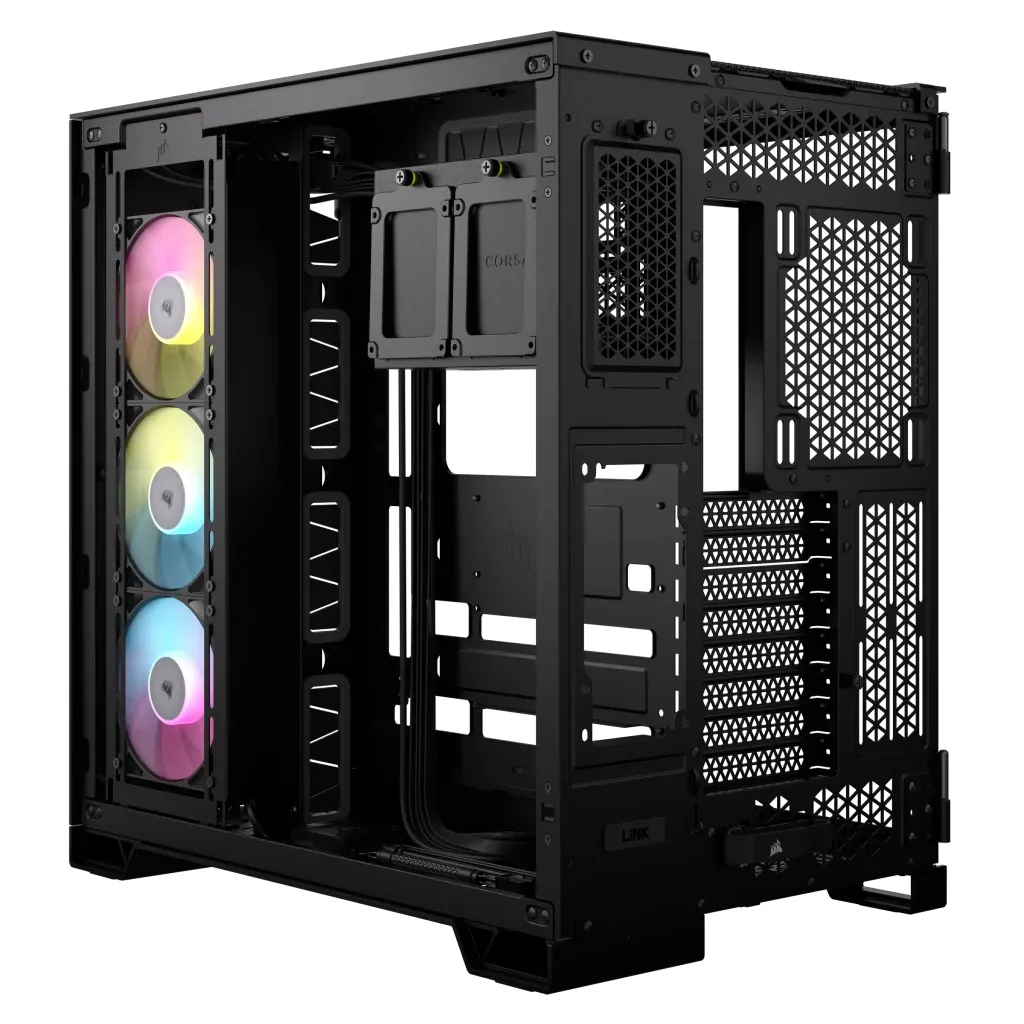

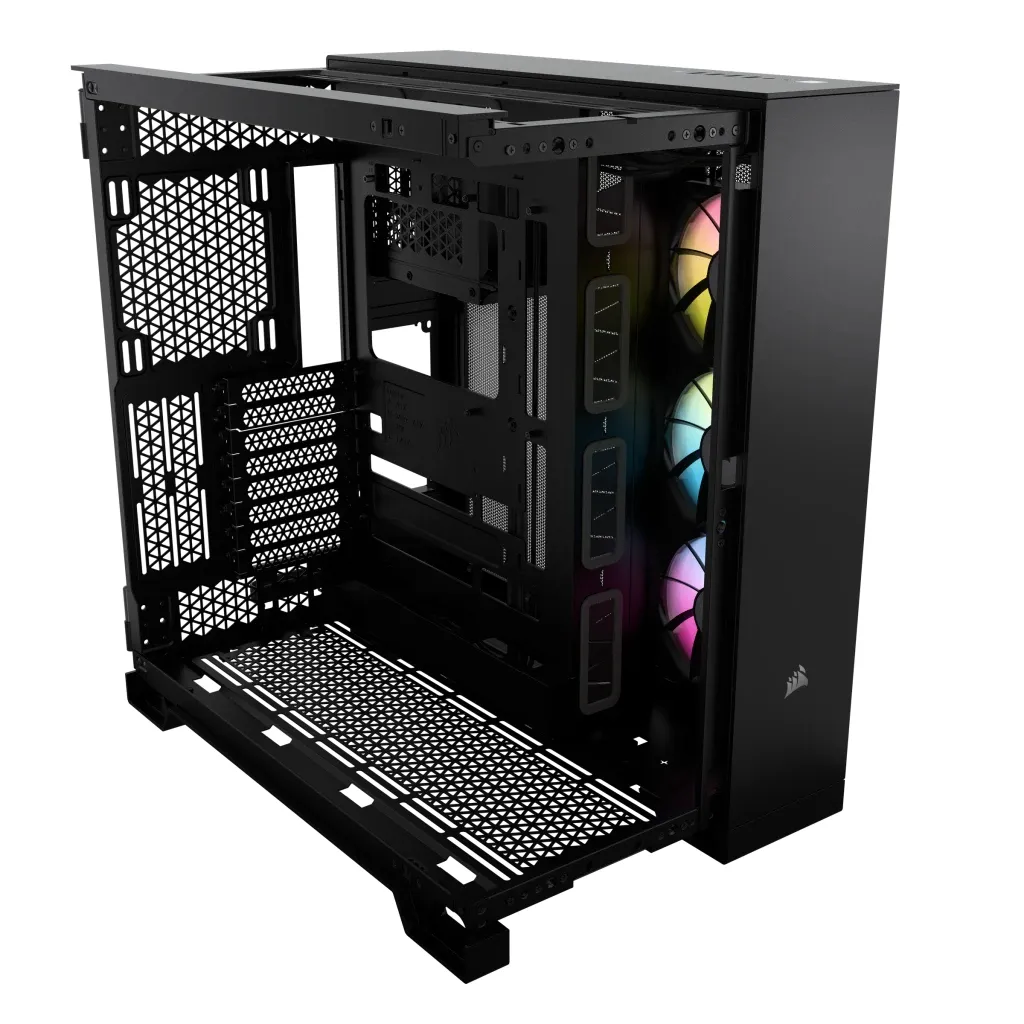

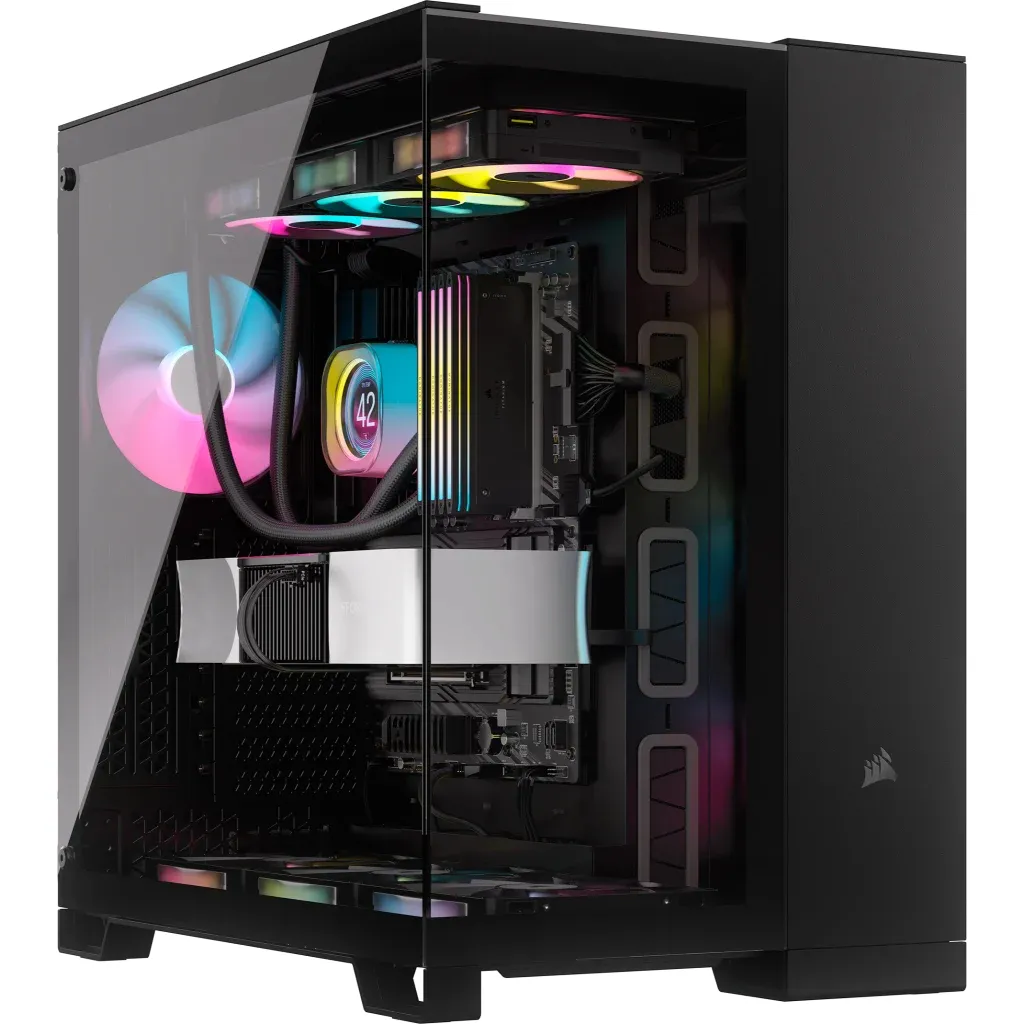

The CORSAIR iCUE LINK 6500X is a mid-tower PC case with a dual-chamber layout designed to separate the main components from the power supply and storage drives. This configuration aids in thermal management and provides a clean interior aesthetic. The chassis is constructed from steel and features two tempered glass panels on the front and side, offering a comprehensive view of the hardware. It is compatible with reverse-connector motherboards, which allows for minimal cable visibility within the primary chamber. This design facilitates an organized and accessible building process.

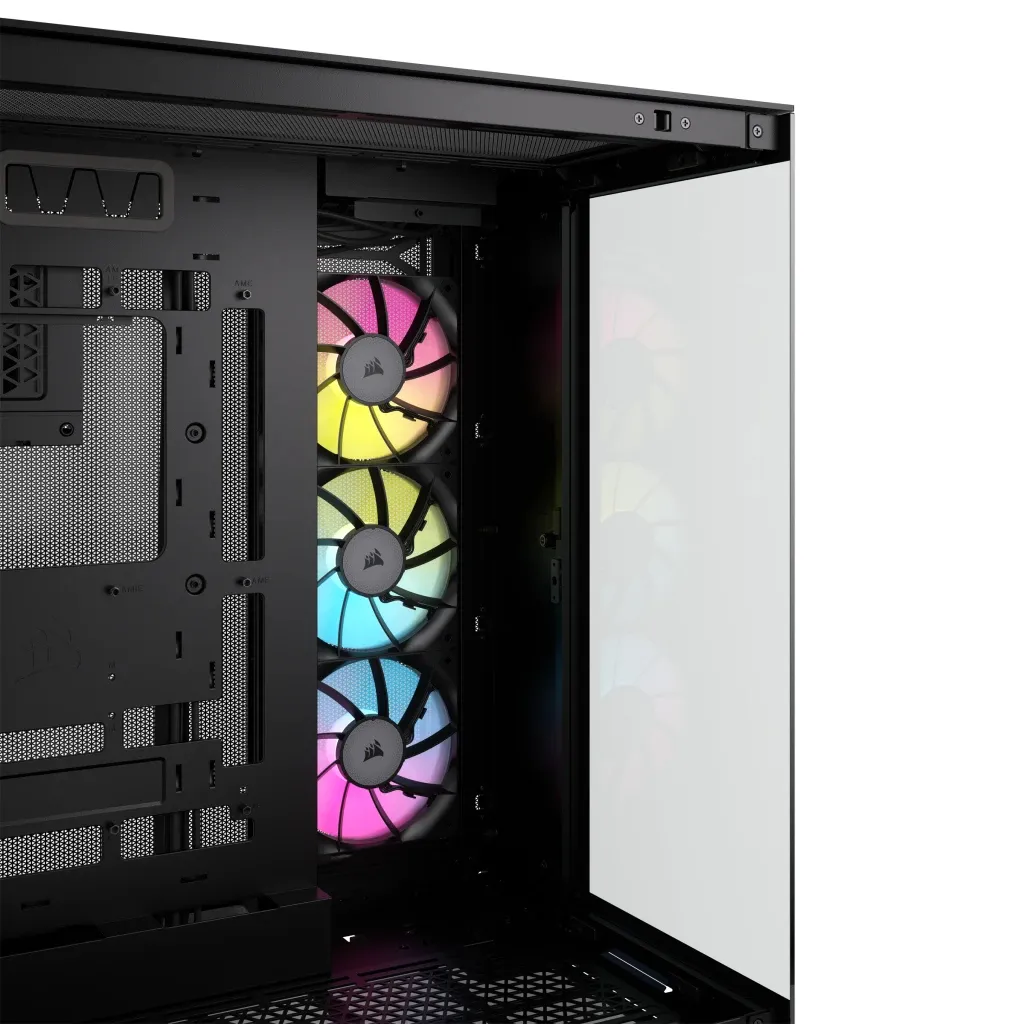

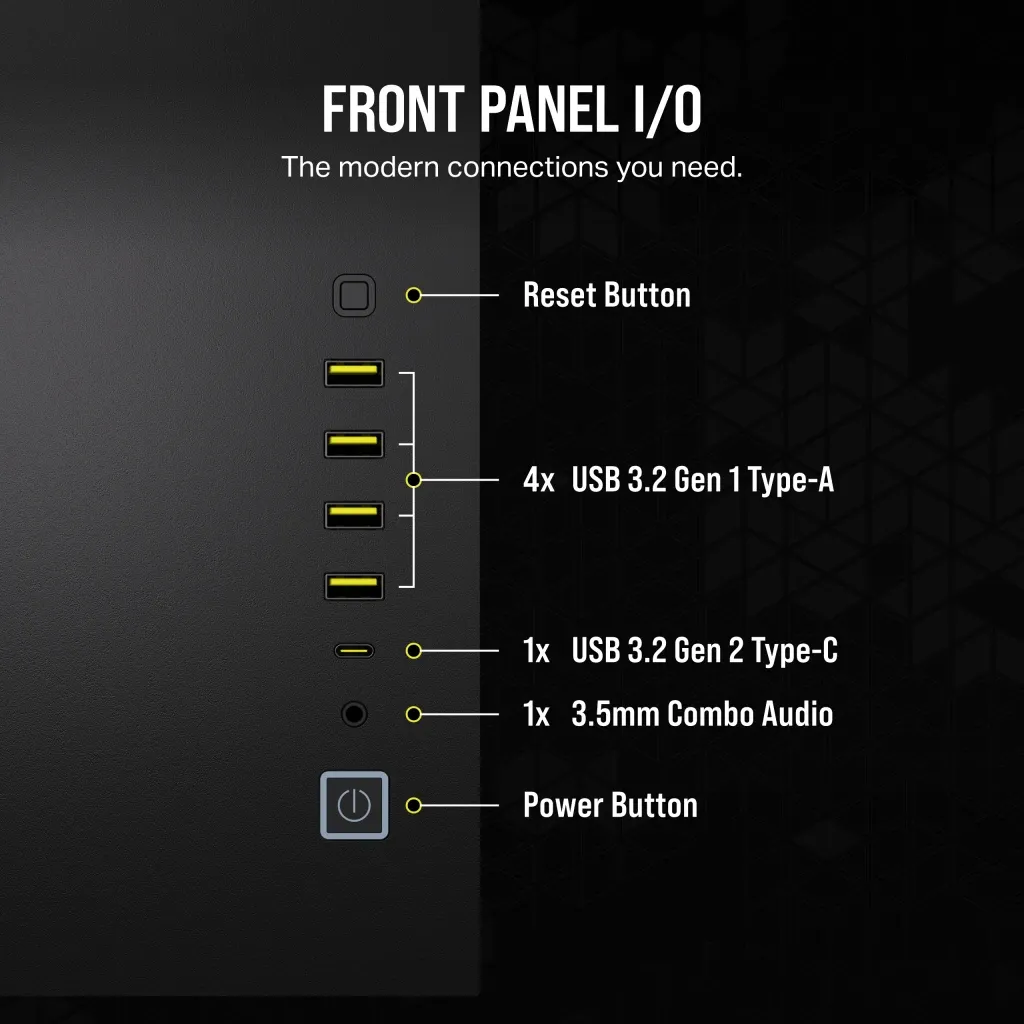

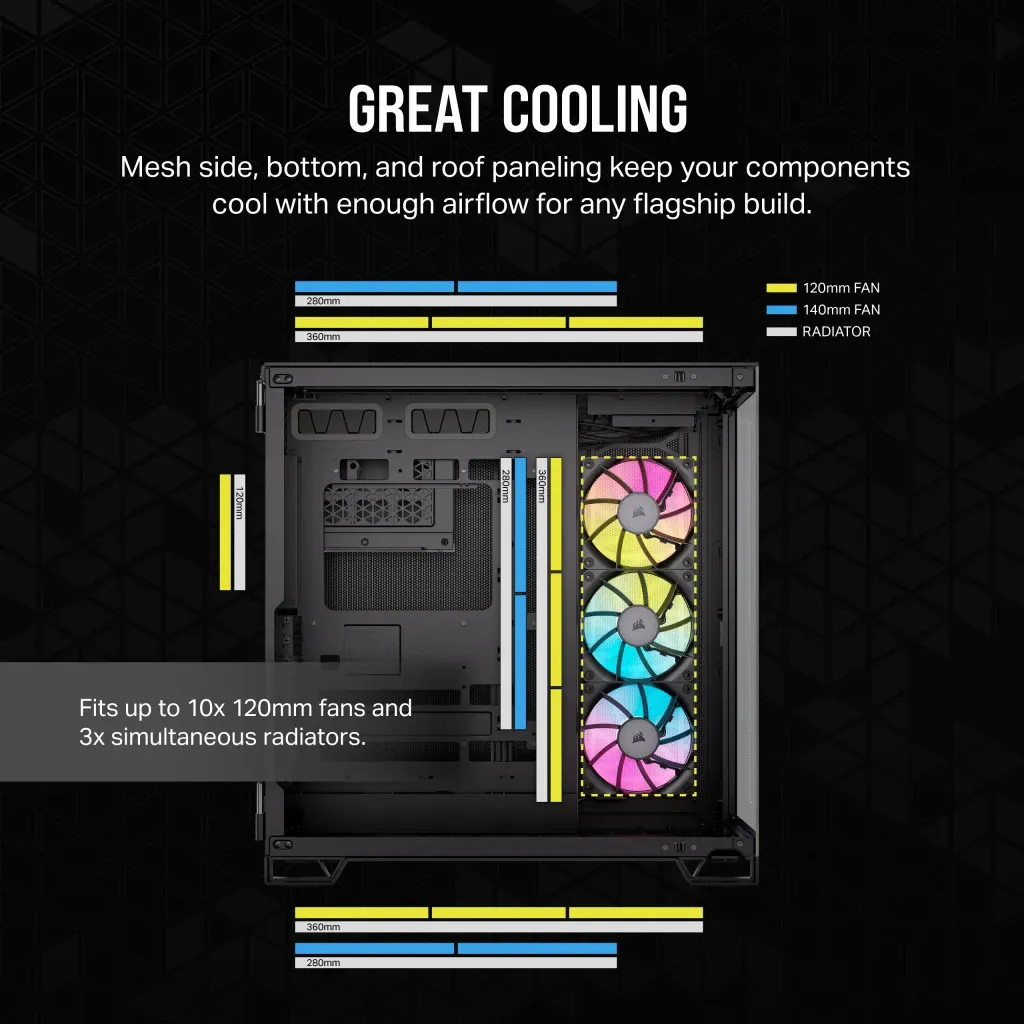

Cooling capacity is a primary focus, with multiple mounting locations for fans and radiators. The case supports up to a 360mm radiator on the top, side, and bottom panels. Three pre-installed RX120 RGB fans are included, which connect to the provided iCUE LINK System Hub to streamline cable management and lighting synchronization. The front I/O panel provides access to four USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 2 Type-C port. Generous internal clearances accommodate CPU coolers up to 190mm in height and ATX power supplies up to 225mm in length.
Key Features:- Supports ATX, Micro-ATX, Mini-ITX, and E-ATX motherboards
- Dual-chamber design separates components for direct airflow

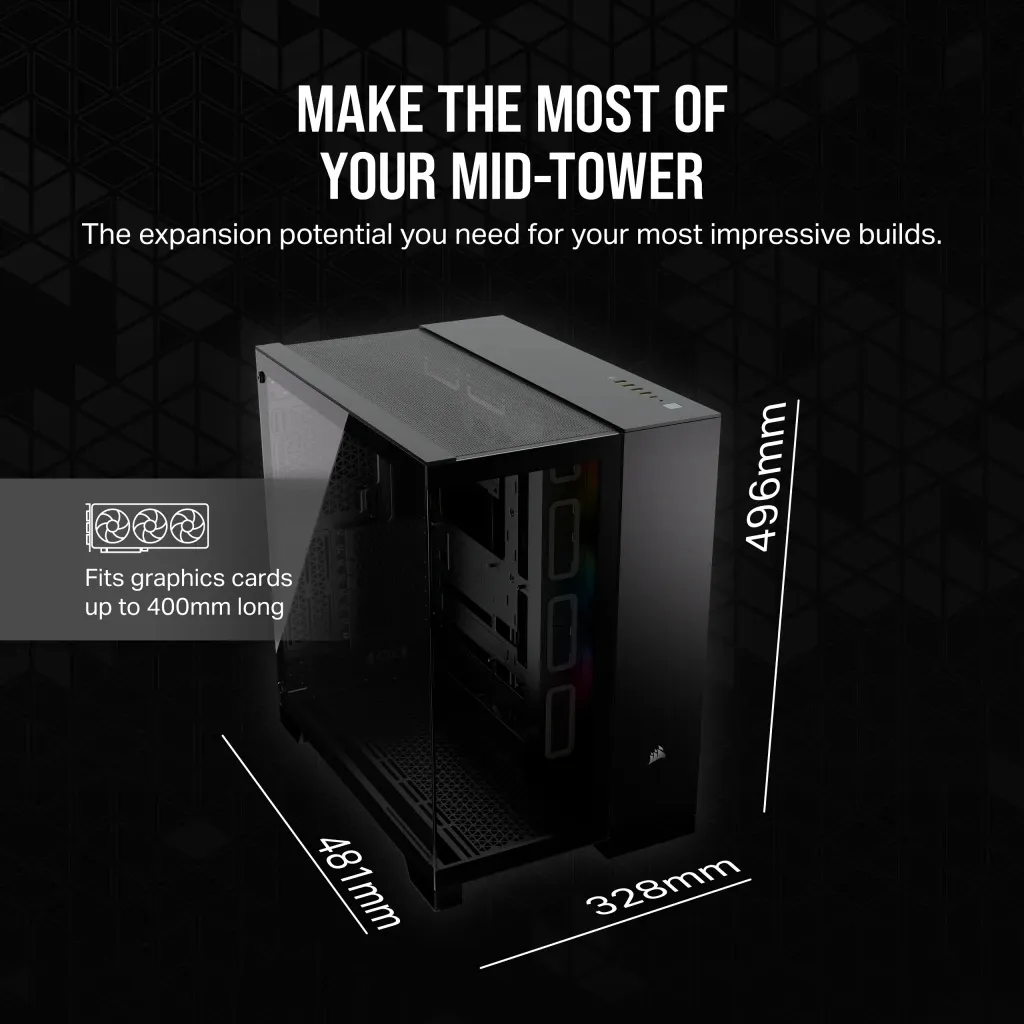

- Measures 481mm x 328mm x 496mm (D x W x H)

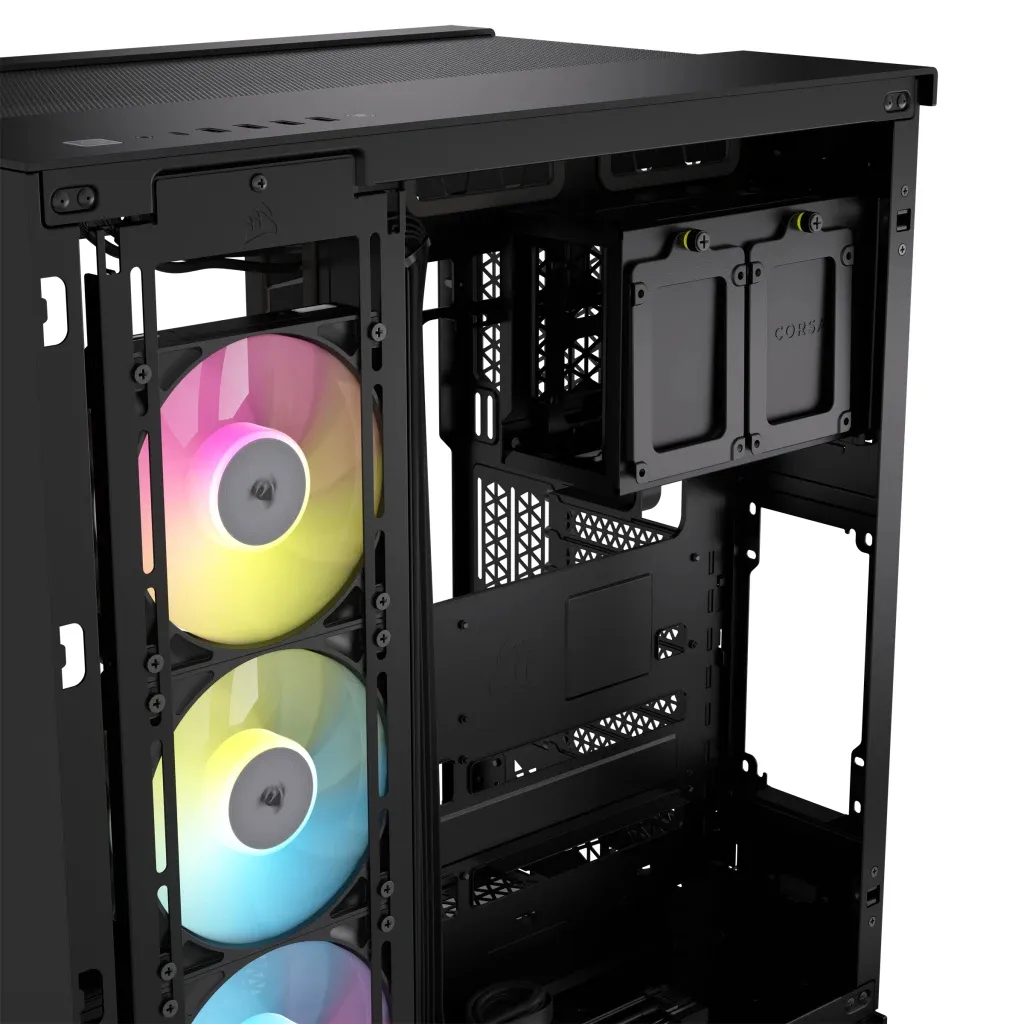

- Accommodates up to two 3.5-inch and two 2.5-inch storage drives
- Provides 8 horizontal expansion slots
- Includes three RX120 RGB fans and an iCUE LINK System Hub
- Fits radiators up to 360mm on the top, side, and bottom
- Features removable dust filters for simplified maintenance
