Chieftec Pro Mini AZ-01B-OP Mini-Tower Case, Black

The CHIEFTEC Pro Mini AZ-01B-OP is a Mini Tower case designed for Micro-ATX and Mini-ITX motherboards. Its construction features 0.6mm SPCC steel with sound-dampening material applied to the front and side panels to minimize operational noise. The chassis has a compact footprint, measuring 212 x 420 x 360 mm, suitable for builds where space is a consideration. A solid panel design contributes to its focus on acoustic performance rather than visual components.

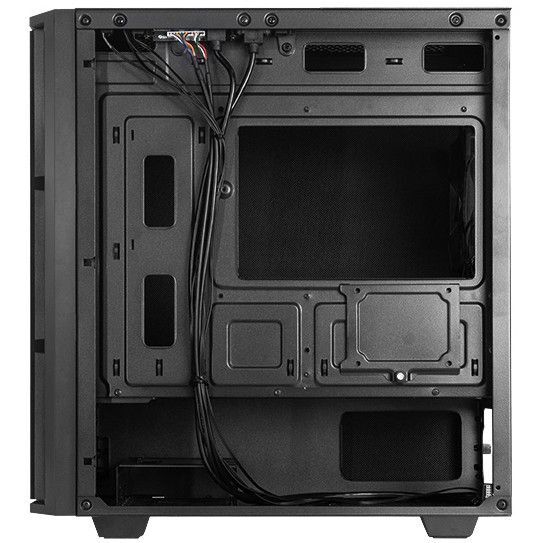

Internally, the case offers a flexible cooling layout with support for air and liquid cooling systems. It accommodates up to eight fan mounts and has clearance for radiators up to 360mm in the front and 280mm on top. A single 120mm PWM fan is pre-installed at the rear for exhaust. The layout provides space for CPU coolers up to 165mm in height and standard ATX power supplies up to 180mm in length, which are concealed by a PSU shroud.

For storage, the case includes one 3.5-inch bay and two 2.5-inch bays. The front I/O panel is equipped with a USB-C port, a USB 3.2 Gen 1 Type-A port, a USB 2.0 port, and separate microphone and audio-out jacks. The case has four expansion slots for peripheral cards and includes removable dust filters to simplify maintenance and help protect internal components from particle buildup.

• Mini Tower chassis supports Micro-ATX and Mini-ITX motherboards
• Sound-dampening material on front and side panels reduces noise
• Accommodates CPU coolers up to 165mm and PSUs up to 180mm
• Supports one 3.5-inch drive and two 2.5-inch drives
• Front I/O with USB-C, USB 3.2 Gen 1, and USB 2.0 ports
• Compatible with up to 360mm front and 280mm top radiators
• Includes one pre-installed 120mm PWM rear fan
• Features four rear expansion slots
