Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Serial ports quantity | 1 |
| Video out | HDMI |
| Ethernet LAN (RJ-45) ports | 4 |
| Video port type | HDMI |
| Video ports quantity | 2 |
| Consumer Electronics Control (CEC) support |  |
| Weight & dimensions | |
| Weight | 3.95 kg |
| Height | 44 mm |
| Width | 261.1 mm |
| Depth | 432.4 mm |
| Energy management | |
| Power consumption (typical) | 18.2 W |
| AC input voltage | 110/220 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Networking | |
| Cable types supported | Cat5, Cat6, Cat6a |
| Packaging data | |
| Package weight | 5.08 kg |
| Package depth | 515 mm |
| Package height | 155 mm |
| Package width | 338 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC |
| Manual | |
| Features | |
| Rack mounting | |
| LED indicators | |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Maximum operating distance | 100 m |
| Housing material | Metal |
| Bandwidth | 340 MHz |
| HDCP | |
| Maximum refresh rate | 60 Hz |
| 3D | |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| HDCP version | 1.4 |
| HD type | 4K Ultra HD |
| Logistics data | |
| Master (outer) case height | 155 mm |
| Master (outer) case width | 338 mm |
| Master (outer) case gross weight | 5.08 kg |
| Master (outer) case length | 515 mm |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case net weight | 3.95 kg |
| Harmonized System (HS) code | 85176990 |
| EAN | 4719264641343 |
| Warranty | 2 years |
| Source: Icecat.biz | |

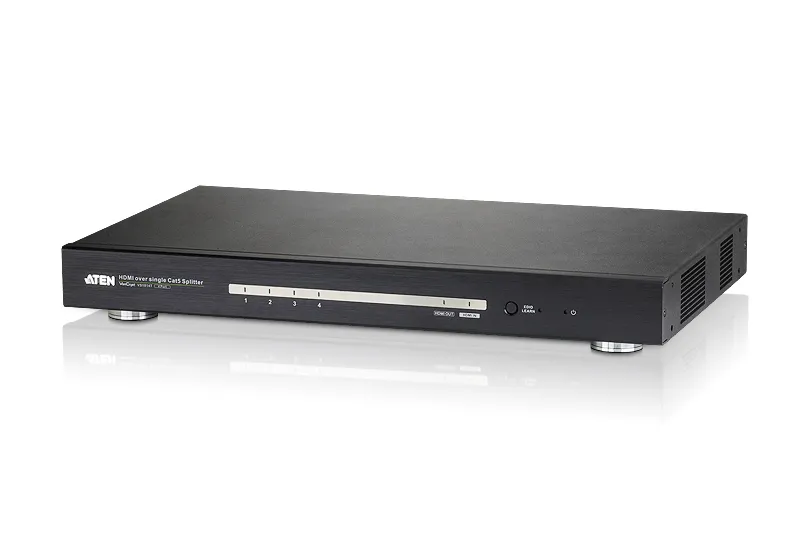

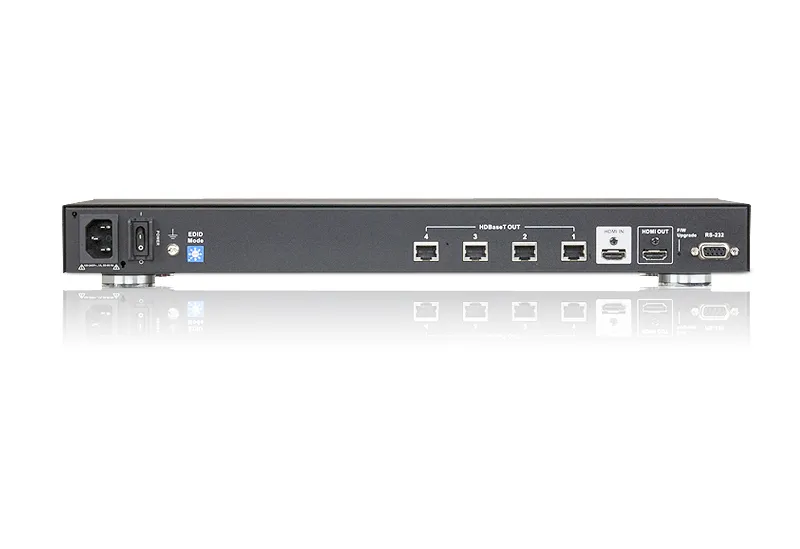

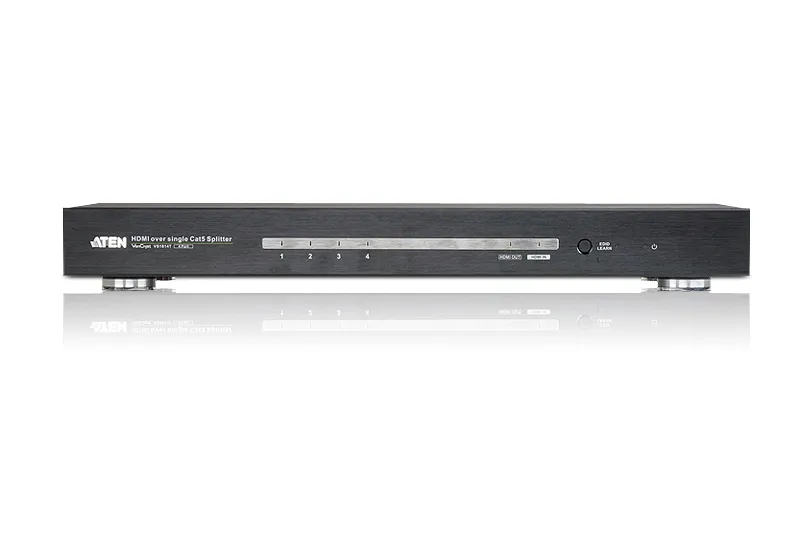

The VS1814T 4-Port HDMI HDBaseT Splitter provides a fast and efficient way of switching high definition video from one input source to 4 displays. Incorporating suggested HDBaseT receivers*, the VS1814T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.
* Suggested Compatible Receiver Units: VE812R HDMI Over Single Cat 5 Receiver
The solution implements HDBaseT extension technology to connect the VS1814T to receiver units over one single Cat 6/6a cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.
The VS1814T solution is perfect for a wide range of applications:
- In-store or tradeshow digital signage
- Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
- Sporting events
- Theater and lecture overview rooms
- Classroom and company training facilities
