Thermalright Grand Vision 360mm ARGB Liquid Cooler, Black
Manufacturer: THERMALRIGHT
ID: GRAND VISION 360 ARGB BLACK
15290€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Weight & dimensions | |
| Radiator width | 12 cm |
| Radiator depth | 40.3 cm |
| Radiator height | 2.7 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 28 mm |
| Pump width | 7.75 cm |
| Pump depth | 7.05 cm |
| Pump height | 7.25 cm |
| Energy management | |
| Fan voltage | 5 V |
| Rated voltage | 12 V |
| LED voltage | 5 V |
| Packaging content | |
| Mounting kit |  |
| CPU socket spacer(s) | |
| CPU bracket(s) | |
| RGB controller included | |
| Other features | |
| Built-in display |  |
| Number of fans supported | 3 |
| Design | |
| Product colour | Black |
| Brightness adjustment | |
| Number of fans | 3 fan(s) |
| Illumination colour | Blue, Green, Red |
| Base plate material | Copper |
| Water block material | Copper |
| Fan connector | 4-pin |
| Radiator material | Aluminum |
| Illumination LED | |
| Fan controller | |
| LED connector type | 3-pin |
| Performance | |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Suitable location | Processor |
| Maximum airflow | 80.45 cfm |
| Maximum air pressure | 2.65 mmH2O |
| Noise level (high speed) | 29.4 dB |
| Pump motor speed (max) | 2150 RPM |
| Pump motor speed | 6400 RPM |
| Fan speed (max) | 2150 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan noise level (max) | 29.4 dB |
| Pulse-width modulation (PWM) support | |
| EAN | 0814256018494 |

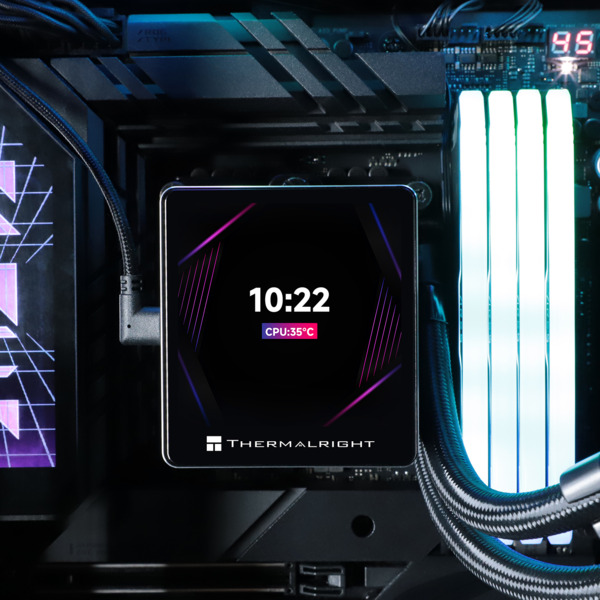

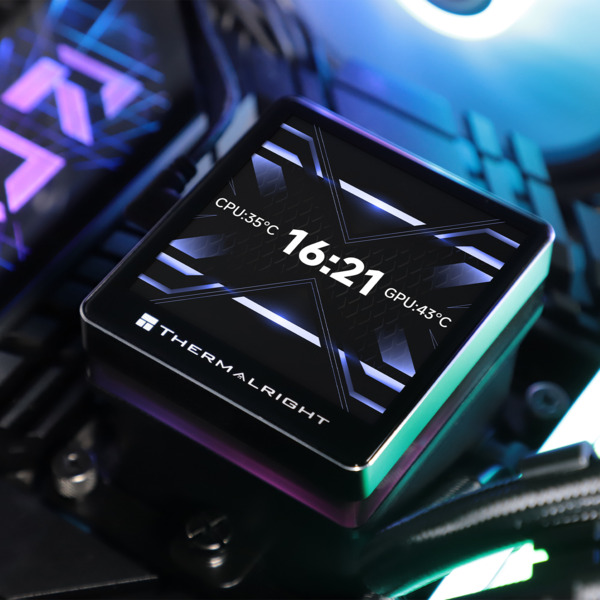

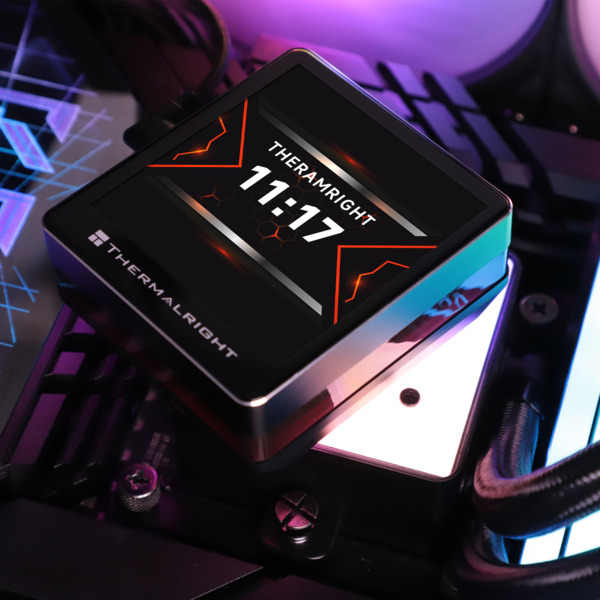

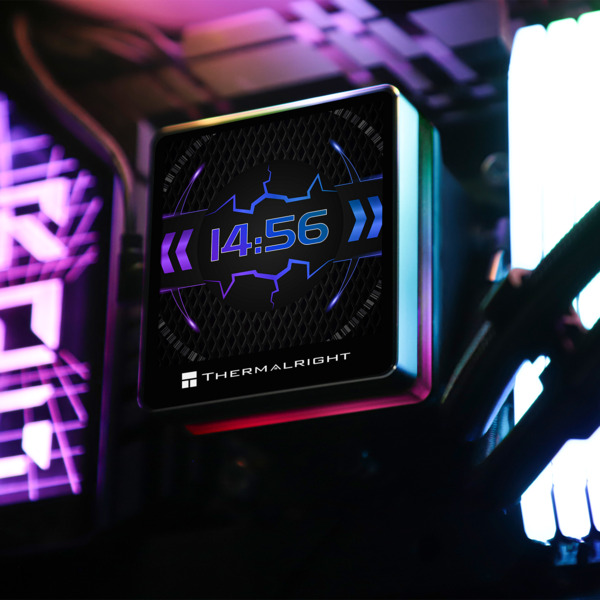

The Thermalright Grand Vision 360 is an all-in-one liquid cooling solution engineered for the thermal management of high-performance processors. It combines a 360mm aluminum radiator with three 120mm fans to provide substantial surface area for heat dissipation. The system utilizes a pump capable of speeds up to 6400 RPM to maintain consistent coolant circulation. This design is intended to sustain optimal CPU temperatures during intensive operations, including gaming and professional workloads.
Each of the three 120mm fans features PWM control, with a maximum rotational speed of 2150 RPM, delivering up to 80.45 CFM of airflow and 2.65 mmH₂O of static pressure. The cooler provides broad socket compatibility for modern Intel and AMD platforms, including LGA1700, LGA1851, AM4, and AM5. Addressable RGB illumination on the fans and waterblock is controlled via a standard 3-pin 5V header, allowing for synchronization with motherboard lighting software.
Key Features:- Compatible with Intel LGA1700/1851/1200/20XX/115X and AMD AM5/AM4

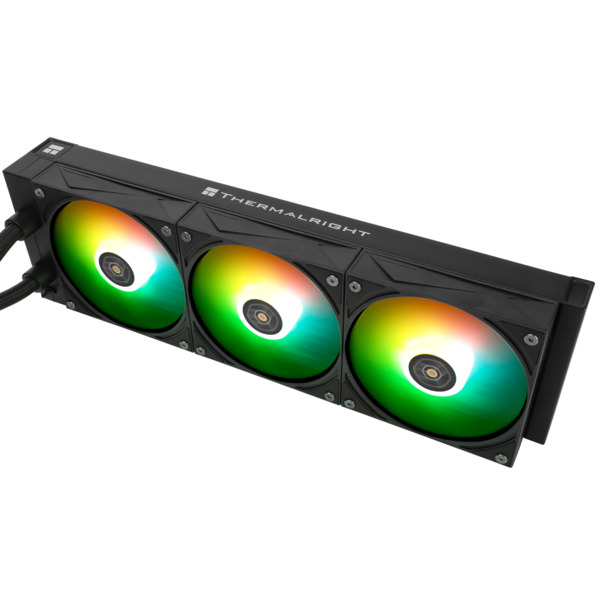

- 360mm aluminum radiator with dimensions of 403 x 120 x 27 mm
- Copper CPU base plate for thermal transfer
- Three 120 mm fans featuring S-FDB V2 bearings
- 4-pin PWM connectors for independent fan and pump speed control
- 400 mm tube length for flexible installation and routing
- Standard 3-pin 5V addressable RGB connector for lighting sync
- Includes mounting hardware for all supported sockets
