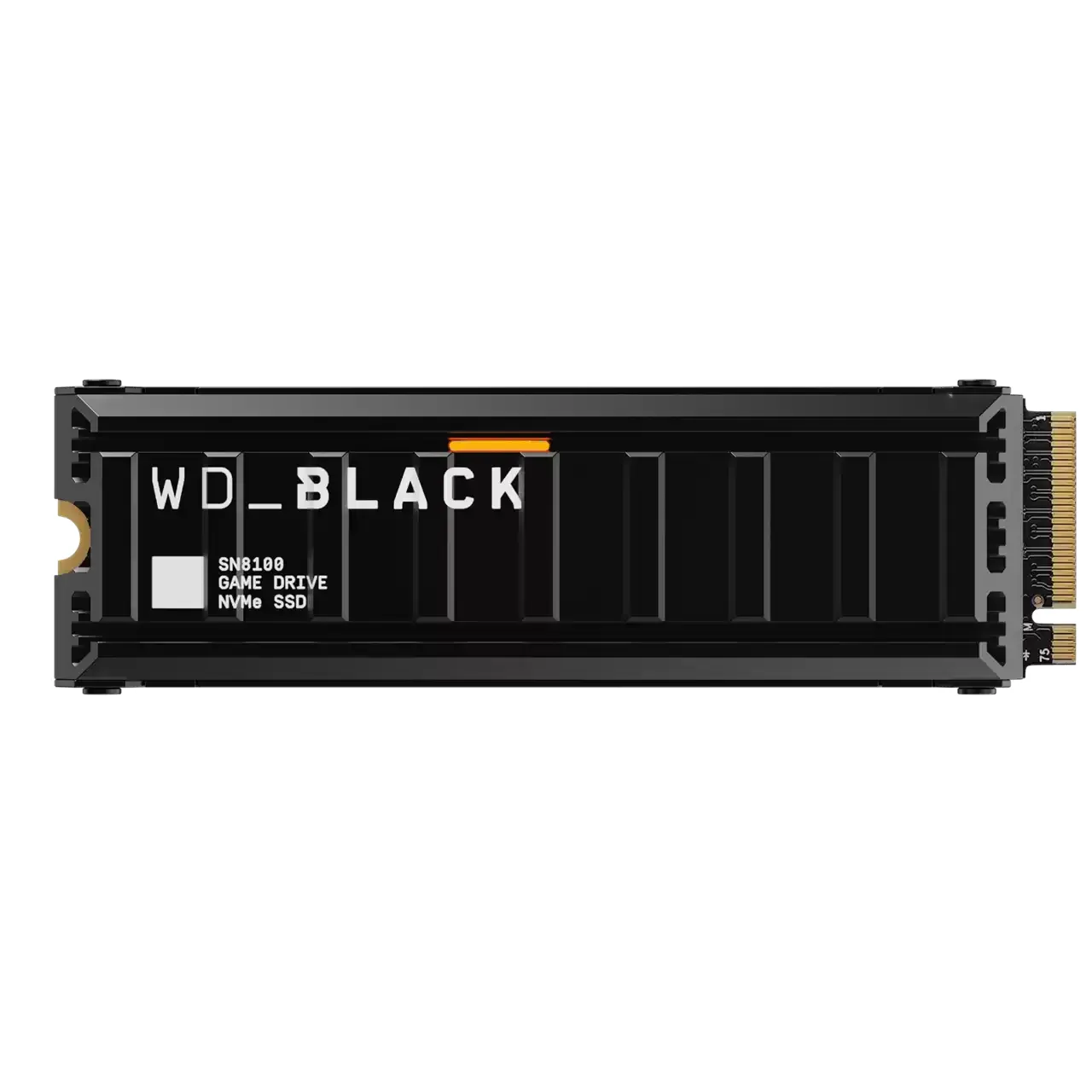

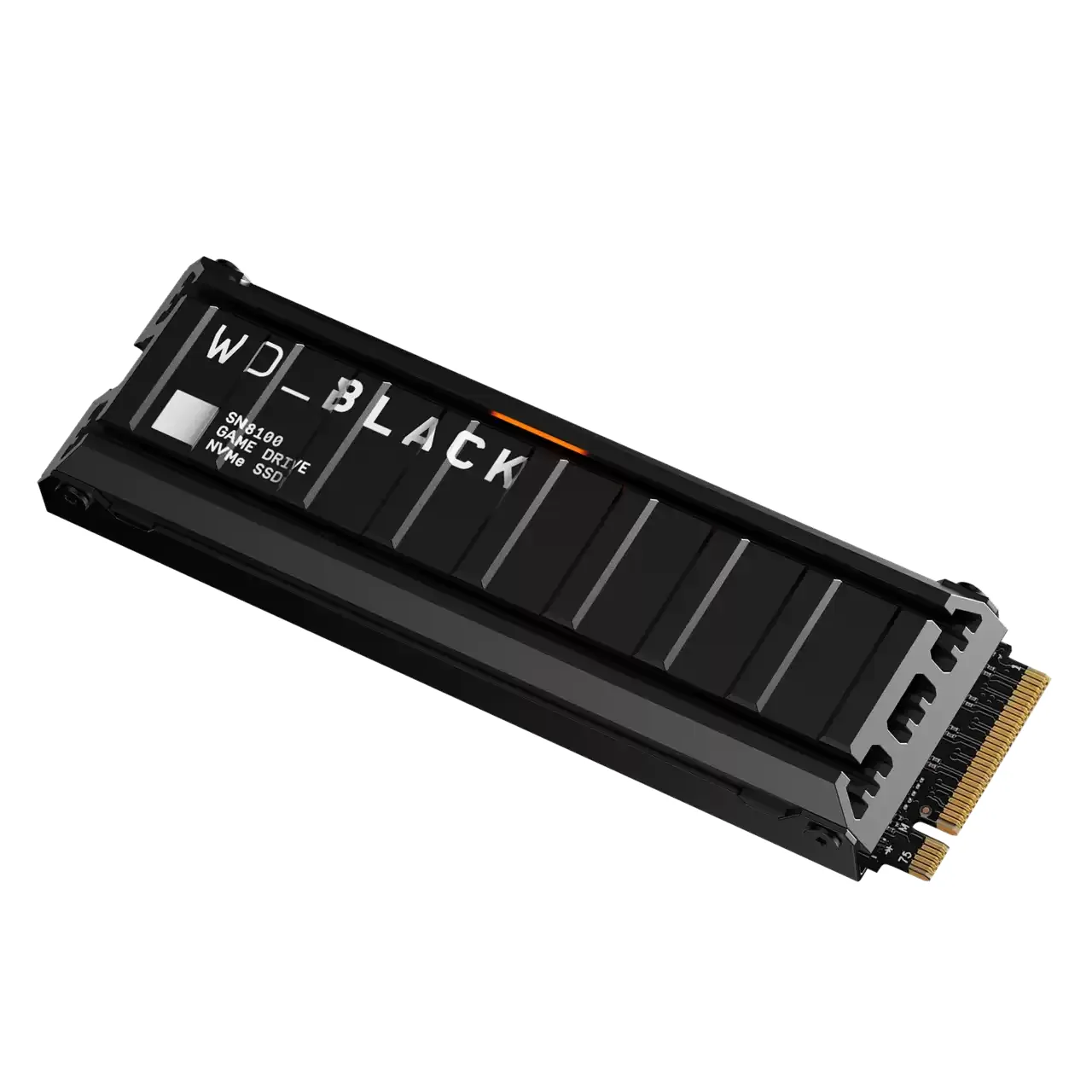

WD_BLACK SN8100 2TB M.2 PCIe 5.0 NVMe SSD with Heatsink

The WD_BLACK SN8100 is a 2TB internal solid-state drive engineered to utilize the high-speed PCIe Gen 5.0 x4 interface. This NVMe 2.0 specification enables sequential data transfer rates up to 14,900 MB/s for reading and 14,000 MB/s for writing operations. It employs TLC 3D NAND flash and the Silicon Motion SM2508 controller to manage extreme data loads, positioning the drive for demanding applications like high-frame-rate gaming and content creation workflows.

The M.2 2280 form factor includes an integrated heatsink designed for passive cooling, ensuring the drive maintains optimal performance metrics during sustained heavy use. The physical dimensions accommodate this thermal solution, measuring 11.1 mm in height. This model features an endurance rating of 2400 TBW and a Mean Time Between Failures (MTBF) of 1.75 million hours. Hardware-based encryption using TCG Opal standards is integrated for comprehensive data protection.

• Storage capacity: 2 TB
• Interface type: PCIe Gen 5.0 x4
• Sequential read speed: 14,900 MB/s
• Sequential write speed: 14,000 MB/s
• Random read IOPS: 2,300,000
• Random write IOPS: 2,400,000
• Form factor: M.2 2280
• Integrated heatsink for thermal management
• Endurance rating: 2400 TBW
• Hardware encryption support via TCG Opal
