Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Power connector | DC-in jack |
| Weight & dimensions | |
| Weight | 890 g |
| Height | 27 mm |
| Width | 286 mm |
| Depth | 102 mm |
| Energy management | |
| Number of power supply units | 1 |
| Power source | DC |
| Input current | 1.5 A |
| DC input voltage | 12 V |
| Power consumption (max) | 8.1 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 27.7 BTU/h |
| Networking | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Flow control support | ![]() |
| Auto MDI/MDI-X | ![]() |
| 10G support | ![]() |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-negotiation | ![]() |
| Data transmission | |
| MAC address table | 16000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | ![]() |
| Latency (1 Gbps) | 3.2 µs |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Jumbo frames | 9216 |
| Management features | |
| Switch layer | L2 |
| Quality of Service (QoS) support | ![]() |
| Switch type | Unmanaged |
| Design | |
| Rack mounting | ![]() |
| LED indicators | ![]() |
| Wall mountable | ![]() |
| Product colour | Black |
| Housing material | Metal |
| On/off switch | ![]() |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | ![]() |
| Performance | |
| Mean time between failures (MTBF) | 4160957 h |
| Plug and Play | ![]() |
| Buffer size | 512 KB |
| Fanless | ![]() |
| EAN | 0606449164251 |
| Warranty | 1 year |
| Source: Icecat.biz | |

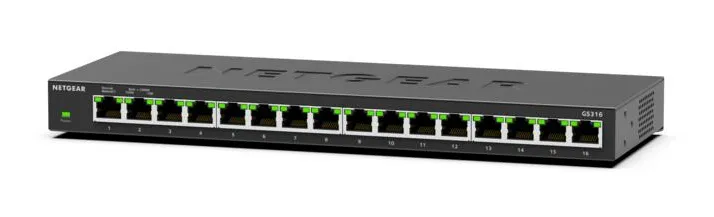

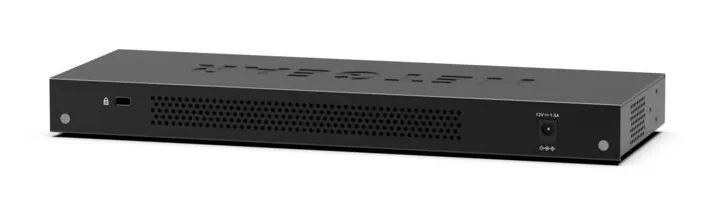

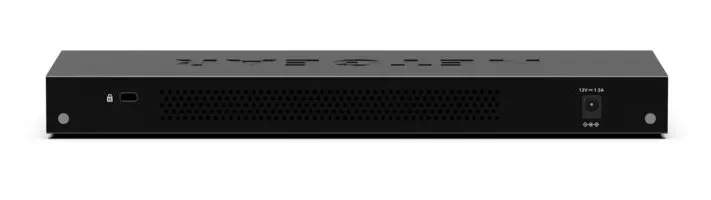

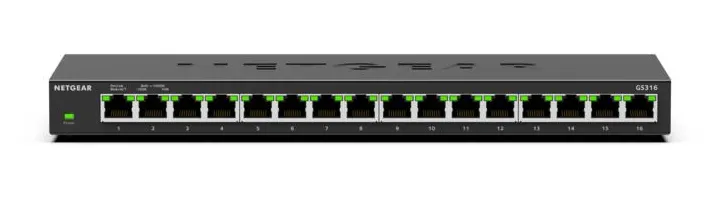

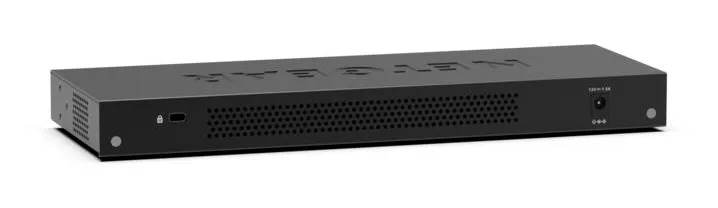

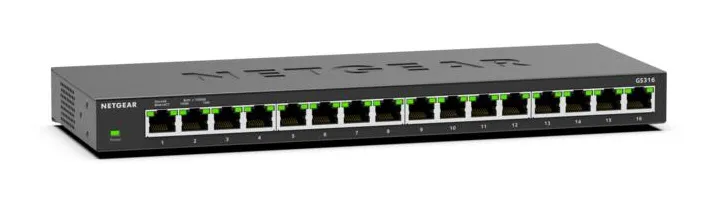

Experience seamless network connectivity with the 16-port unmanaged switch from a trusted brand, designed to meet the needs of small offices and home networks. The Netgear GS316 offers plug-and-play functionality, ensuring a hassle-free setup that requires no technical expertise. Effortlessly connect multiple devices such as computers, printers, and servers, allowing for high-speed data transfer and optimal performance across your network. Ideal for file sharing, streaming, and everyday computing tasks, this switch elevates your home or office networking capabilities.
Constructed with a fanless design, the GS316 operates quietly, making it suitable for any environment without disruptive noise distractions. With non-blocking switching architecture, you can expect maximum throughput at wire speed across all ports, enhancing your network's efficiency and reliability. Plus, its compact form factor and durable build provide both space-saving convenience and long-lasting quality, ensuring this switch remains a valuable part of your networking setup for years to come.
Key Features- 16 Gigabit Ethernet ports for high-speed connections.
- Plug-and-play installation with no software or configuration needed.
- Non-blocking switching architecture for maximum throughput.
- Fanless design for silent operation.
- Compact and durable design ideal for small spaces.
- Automatic MDI/MDI-X crossover detection for easy device connections.
- Built-in power-saving technology reduces energy consumption.
- Reliable performance for data-intensive applications.
- Netgear GS316 Unmanaged Switch
- Power adapter
- Mounting kit
- Quick start guide
- Warranty and support information
