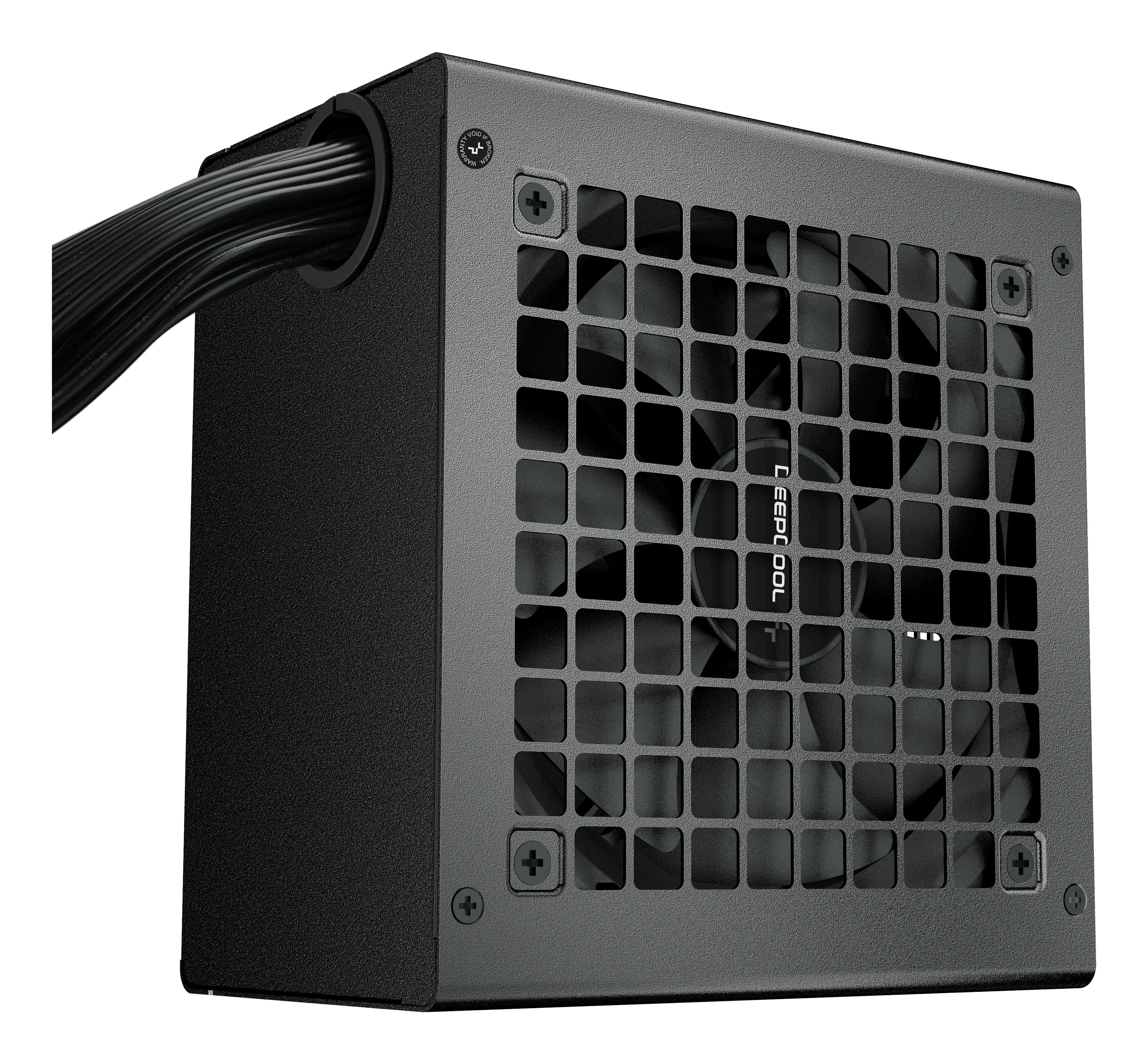

DeepCool GamerStorm PK650D 650W - power supply, 80 Plus Bronze
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 1 |
Peripheral (Molex) power connectors (4-pin) | 1 |
ATX power connector (20+4 pin) | ![]() |
PCI Express power connectors (6+2 pin) | 2 |
Cabling type | Non-Modular |
Motherboard power cable length | 50 cm |
SATA power cable length | 400,500,600 mm |
Peripheral (Molex) power cable length | 400,500,600,700 mm |
PCI Express power cable length | 62 cm |
EPS power connector (4+4 pin) | ![]() |
Weight & dimensions | |
Height | 86 mm |
Width | 150 mm |
Depth | 140 mm |
Energy management | |
Input current | 10 - 5 A |
Efficiency | 85% |
Hold time | 16 ms |
Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 110 W |
Combined power (+12V) | 648 W |
Combined power (+5V) | 110 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 12.5 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 54 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 2.5 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Total power | 650 W |
Power Good signal delay range | 100 - 150 ms |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Packaging data | |
Package type | Box |
Certificates | |
Certification | CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS/KC |
Packaging content | |

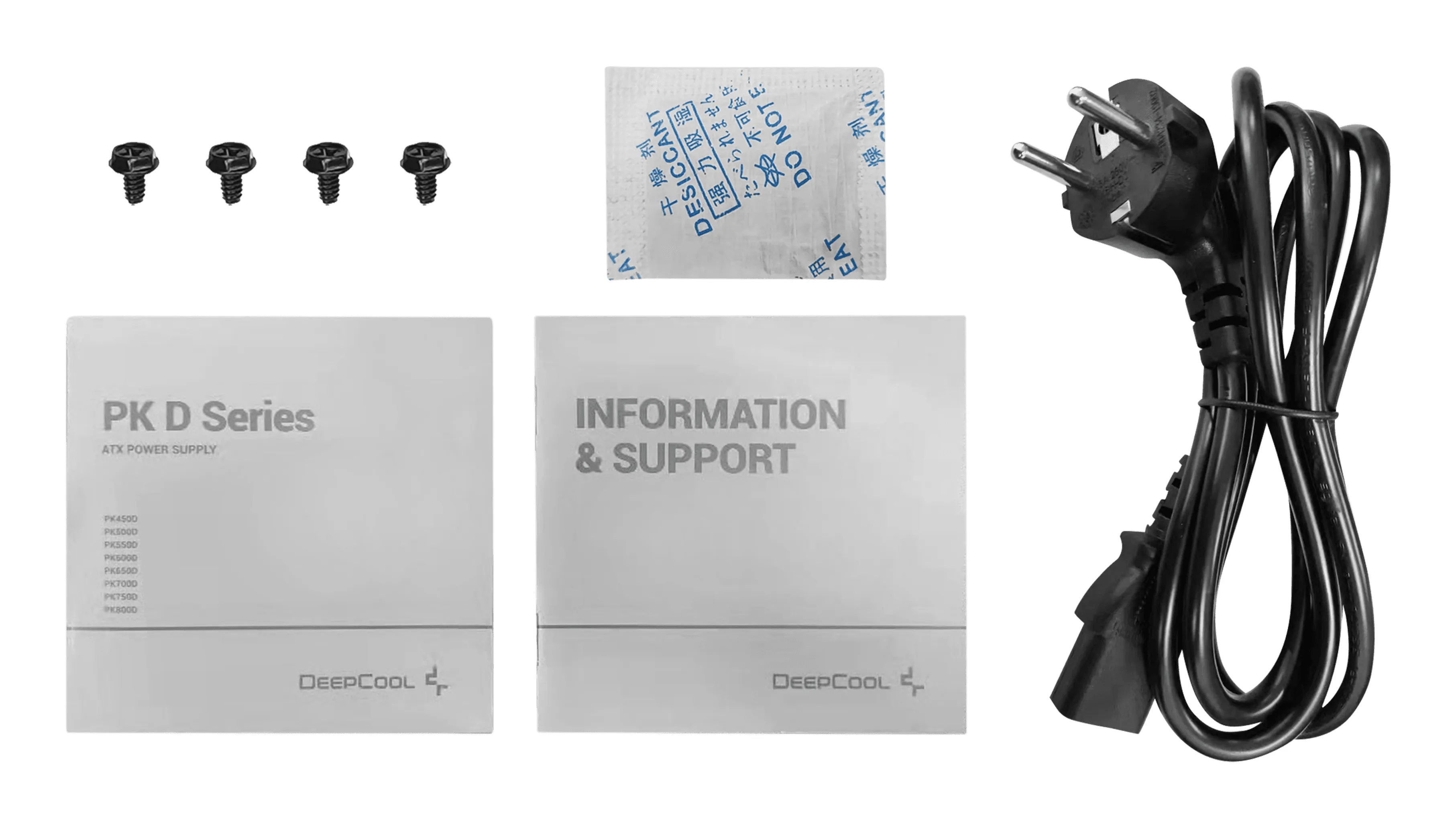

Cables included | AC |
Design | |
Product colour | Black |
Number of fans | 1 fan(s) |
On/off switch | ![]() |
Cooling type | Active |
Fan diameter | 12 cm |
Fan location | Top |
Performance | |
Mean time between failures (MTBF) | 100000 h |
Purpose | PC |
Bearing technology | Hypro Bearing |
ATX version | 2.4 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
EAN | 6933412740230 |
Source: Icecat.biz |
The DeepCool GamerStorm PK650D 650W power supply is engineered for optimal performance and reliability, making it an excellent choice for gamers and PC builders seeking stability without compromising on efficiency. With an impressive power output of 650 watts and an 80 PLUS Bronze certification, this power supply delivers up to 85% efficiency, ensuring that your systems run smoothly and economically while reducing excess heat and energy consumption. Its versatile design accommodates gaming PCs, workstations, and quiet computing needs, providing a stable power source tailored to your significant computing requirements.
This power supply is equipped with a robust 120mm hydraulic bearing fan that optimizes cooling and minimizes noise, promoting a quiet environment during demanding tasks. In addition to its effective heat management, the PK650D features non-modular cabling, simplifying the setup process while ensuring all connections are secure. Its construction incorporates high-quality components such as Japanese capacitors, enhancing durability and longevity. With built-in safety features including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), and Over Power Protection (OPP), users can rest assured that their systems are safeguarded against electrical hazards.
Key Features- Wattage: 650W
- Efficiency rating: 80 PLUS Bronze
- Modularity: Non-modular cabling
- Connectors: ATX 24-pin, EPS 8-pin, PCIe 6+2-pin, SATA, Peripheral (Molex)
- Cooling: 120mm fan with hydraulic bearing technology
- Protection features: OVP, UVP, SCP, OPP
- Build quality: 100% Japanese capacitors
- Input voltage range: 100–240V with active PFC
- Form factor: ATX
- Dimensions: 86mm (H) x 150mm (W) x 140mm (D)
