DeepCool PL650-D 650W ATX 3.1 - power supply, 80 Plus Bronze
Manufacturer: DEEPCOOL
ID: R-PL650D-FC0B-EU-V2
5890€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Sustainability compliance |  |
| Sustainability certificates | ErP, Triman |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | |
| CPU power connector (4+4 pin) | |
| PCI Express power connectors (6+2 pin) | 3 |
| Cabling type | Non-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 550,450,650 mm |
| PCI Express power connectors (16-pin) | 1 |
| Weight & dimensions | |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 140 mm |
| Energy management | |
| Input current | 9 - 4.5 A |
| Efficiency | 85% |
| Hold time | 16 ms |
| Power protection features | No load operation, Over current, Over power, Over voltage, Overheating, Surge & inrush protection (SIP), Surge protection, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 650 W |
| Power Good signal delay range | 100 - 150 ms |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
| Package type | Box |
| Certificates | |
| Certification | CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| Compliance certificates | RoHS, WEEE |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On/off switch | |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Fan location | Top |
| Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| Bearing technology | HYB |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Logistics data | |
| Country of origin | China |
| EAN | 6933412721154 |
| Source: Icecat.biz | |

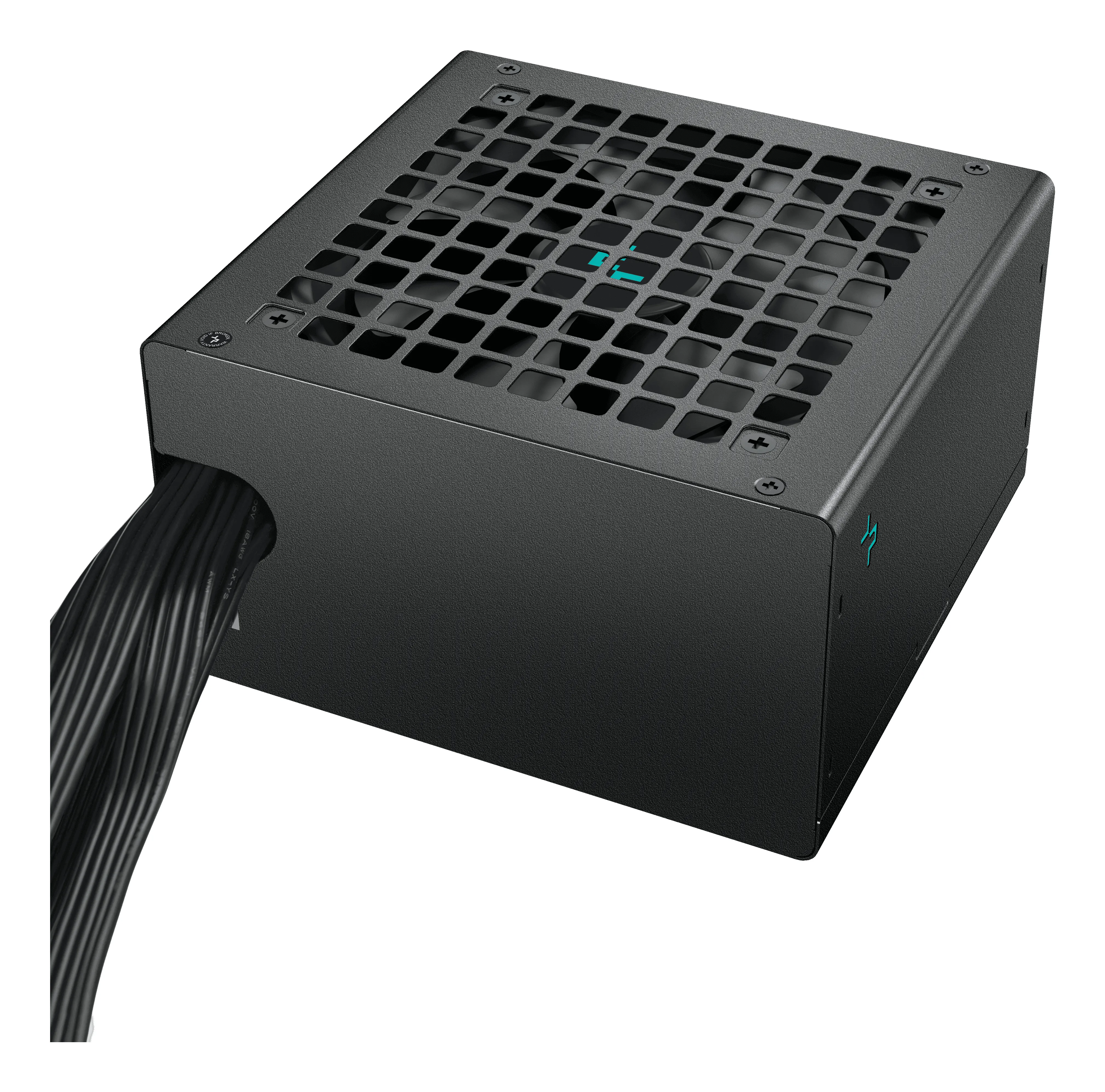

The DeepCool PL650-D 650W ATX 3.1 power supply is designed to offer reliable performance for gaming PCs and workstations alike. With a robust power output of 650W and an 80 PLUS Bronze certification, this PSU ensures efficient energy usage with up to 85% efficiency at a 50% load. Its ATX 3.1 form factor guarantees compatibility with the latest motherboards, while the high-quality hydraulic bearing fan helps maintain optimal cooling and low noise levels, providing a seamless experience during gaming or intense computing tasks.
Built with durability in mind, the PL650-D incorporates Japanese capacitors and essential protections against overvoltage (OVP), overheating (OTP), and short circuits (SCP). This power supply includes a variety of connectors including 1 x 24-pin ATX, 1 x 8-pin EPS, and multiple PCIe connectors, making it a versatile choice for high-performance builds. The non-modular design ensures straightforward setup while maintaining excellent cable management for a clean build.
