Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Floppy disk drive connector |  |
| PCI Express connector | |
| Motherboard power connector | 20+4 pin ATX |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| ATX power connector (20+4 pin) | |
| CPU power connector (4+4 pin) | |
| PCI Express power connectors (6+2 pin) | 6 |
| Cabling type | Fully-Modular |
| Weight & dimensions | |
| Weight | 1.38 kg |
| Height | 86 mm |
| Width | 140 mm |
| Depth | 150 mm |
| Energy management | |
| Input current | 10 A |
| Efficiency | 92% |
| Power protection features | Over power, Over voltage, Overcharge, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
| Package weight | 2.55 kg |
| Package type | Box |
| Certificates | |
| Certification | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / UKCA / ICES |
| Packaging content | |
| Cables included | PCIe, Peripheral (Molex), SATA |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On/off switch | |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Performance | |
| Purpose | PC |
| ATX version | 2.4 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Logistics data | |
| Warranty period | 7 year(s) |
| EAN | 0761345117630 |
| Source: Icecat.biz | |

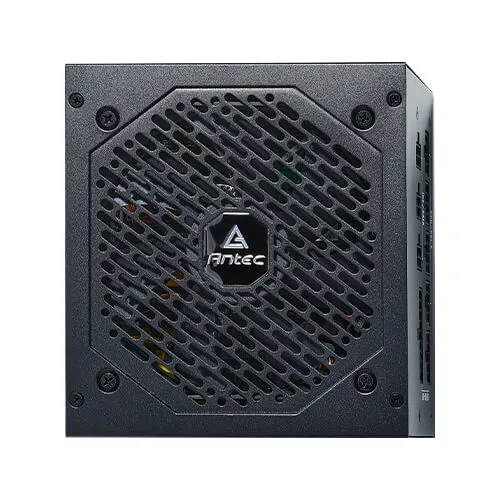

Antec's NE850G M EC 80+ is engineered for demanding gaming PCs, workstations, and silent computing builds, delivering an ultimate blend of performance, stability, and efficiency. With an output capacity of 850W and 80 PLUS Gold certification, this power supply ensures that high-demand components receive clean, reliable power, while the state-of-the-art PhaseWave™ design and DC-DC topology maximize efficiency through precise voltage regulation and minimal ripple. Its fully modular design allows for neat cable management and ease of installation, making it an excellent choice for builders who value both performance and aesthetics.
Designed with advanced thermal control, the unit features a 120mm FDB silent fan equipped with Zero RPM mode, ensuring efficient cooling and whisper-quiet operation when under low loads. Built with premium Japanese capacitors coupled with a comprehensive suite of industrial-grade protections including OVP, UVP, OCP, and SCP, the NE850G M EC 80+ is engineered to deliver a stable and long-lasting power supply. It offers excellent compatibility with ATX form factor systems and modern GPUs, including support for high-performance graphics cards, ensuring your setup remains both future-proof and resilient.
- Wattage: 850W
- Efficiency Rating: 80 PLUS Gold
- Modularity: Fully modular design
- Connectors: ATX 24-pin, PCIe 5.1 12V-2x6, 8-pin CPU connectors, multiple SATA and Molex connectors
- Cooling: 120mm FDB silent fan with Zero RPM mode
- Protection Features: OVP, UVP, OCP, SCP, and OTP
- Build Quality: Premium Japanese capacitors for tight voltage regulation
- Input Voltage: 100V-240V with active PFC
- Form Factor: ATX compatible
