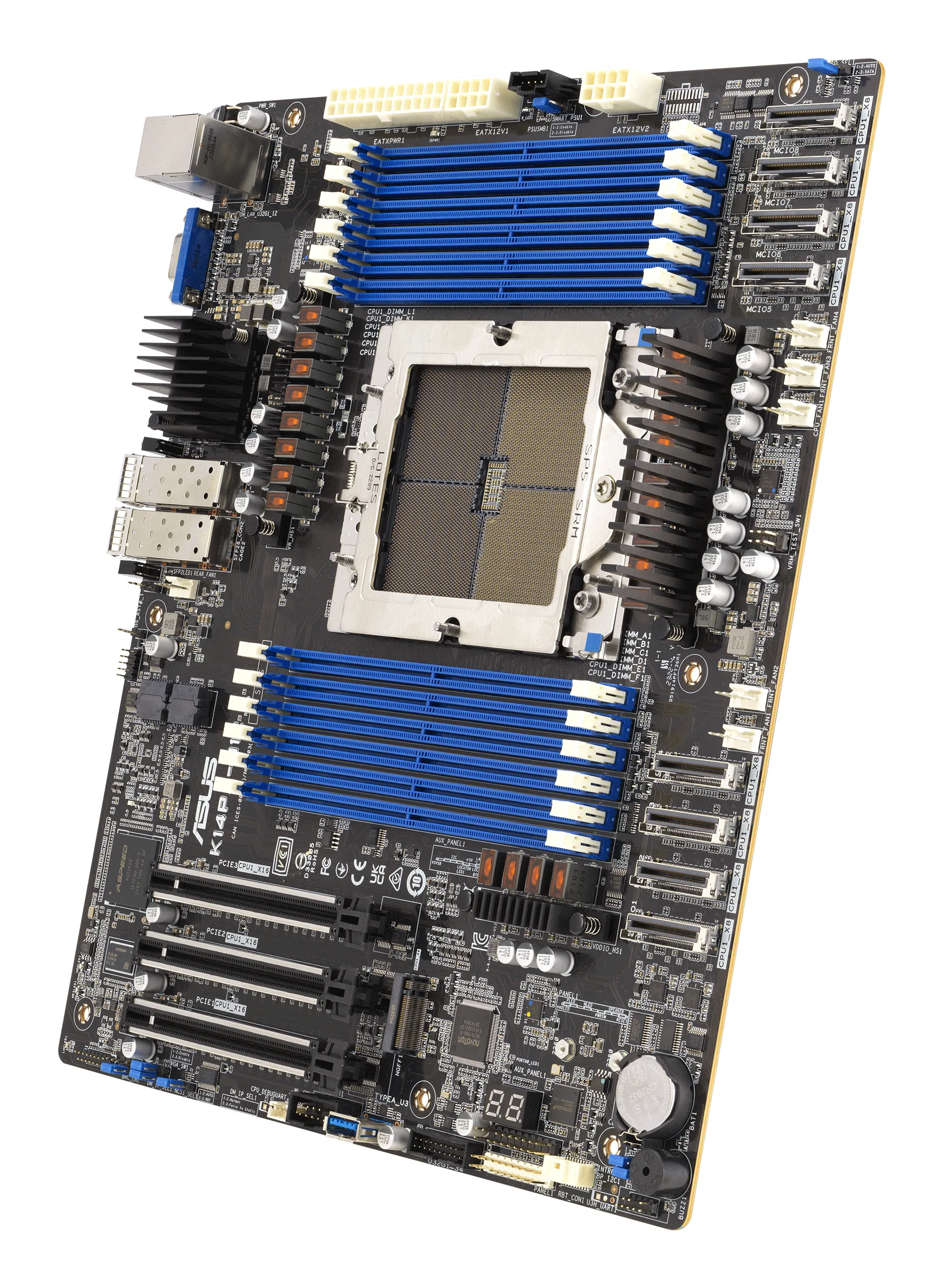

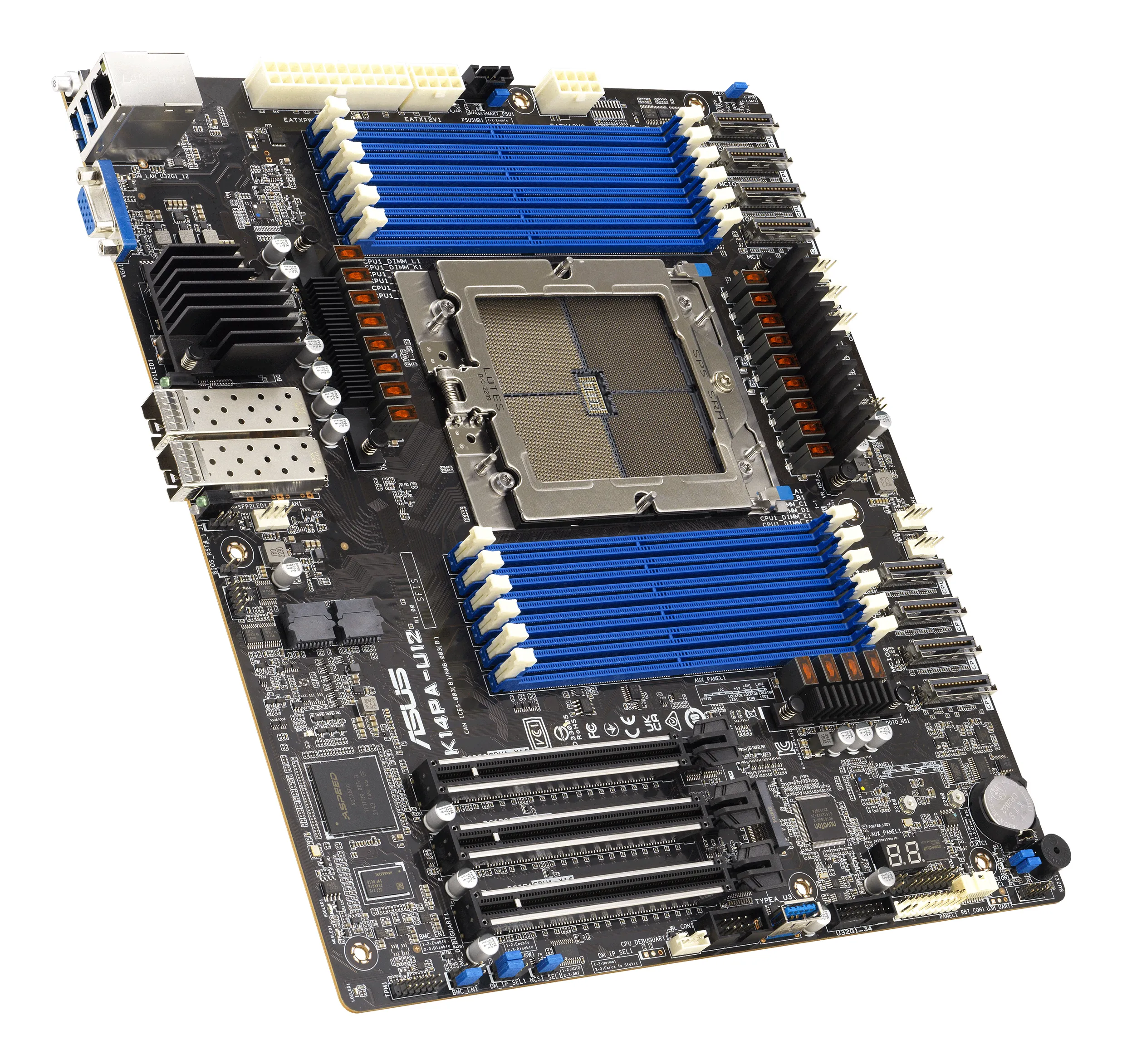

Asus K14PA-U12/ASMB11 SP5 SSI CEB Motherboard

The ASUS K14PA-U12/ASMB11 is a server motherboard built on the SSI CEB form factor, engineered for single-socket AMD EPYC 9004 series processors using the SP5 (LGA 6096) platform. It is equipped with 12 DDR5 DIMM slots, enabling a maximum memory capacity of 3072 GB with ECC support. The board is designed to handle memory-intensive applications, supporting memory clock speeds up to 4800 MHz. Its architecture provides a stable foundation for virtualization, data analytics, and other demanding enterprise workloads that require substantial memory resources.

For system expansion, the motherboard offers three PCIe 5.0 x16 slots, delivering high-bandwidth connectivity for add-on cards such as accelerators and network adapters. Storage options include one M.2 slot that accommodates both NVMe and SATA drive types. High-speed networking is facilitated by dual 25 Gigabit Ethernet SFP28 ports. The board integrates an ASMB11/iKVM module for comprehensive out-of-band remote management, and a TPM connector is included for enhanced platform security. Power is supplied through standard 24-pin ATX and 8-pin EPS connectors.

• Designed for the SSI CEB form factor
• Compatible with AMD EPYC 9004 series processors via Socket SP5
• Supports up to 3072 GB of ECC DDR5 memory across 12 DIMM slots
• Offers three PCIe 5.0 x16 slots for high-bandwidth expansion
• Includes one M.2 slot for NVMe or SATA storage drives

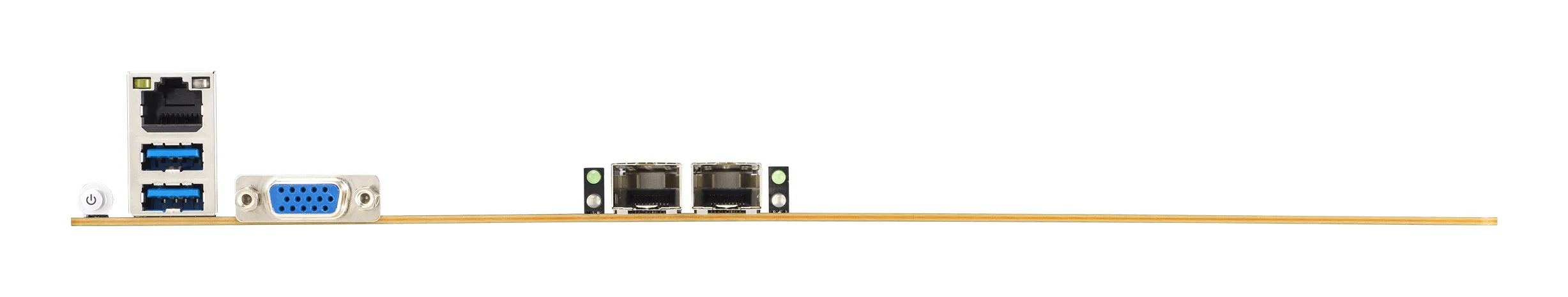

• Equipped with dual 25 Gigabit Ethernet SFP28 LAN ports
• Provides two rear USB 3.2 Gen 1 Type-A ports
• Features an integrated module for out-of-band server management
