Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Processor socket | LGA 1700 |
| Memory | |
| Maximum internal memory | 128 GB |
| ECC |  |
| Non-ECC |  |
| Supported memory clock speeds | 3600,4000,4400 MHz |
| Supported memory types | DDR5 |
| Memory channels | Dual-channel |
| Unbuffered memory | |
| Memory slots type | DIMM |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 4400 MHz |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Networking | |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Intel® I210-AT |
| Wi-Fi | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| CPU fan connector | |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | |
| Front panel audio connector | |
| TPM connector | |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |
| Serial port headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 3 |
| Front panel connector | |

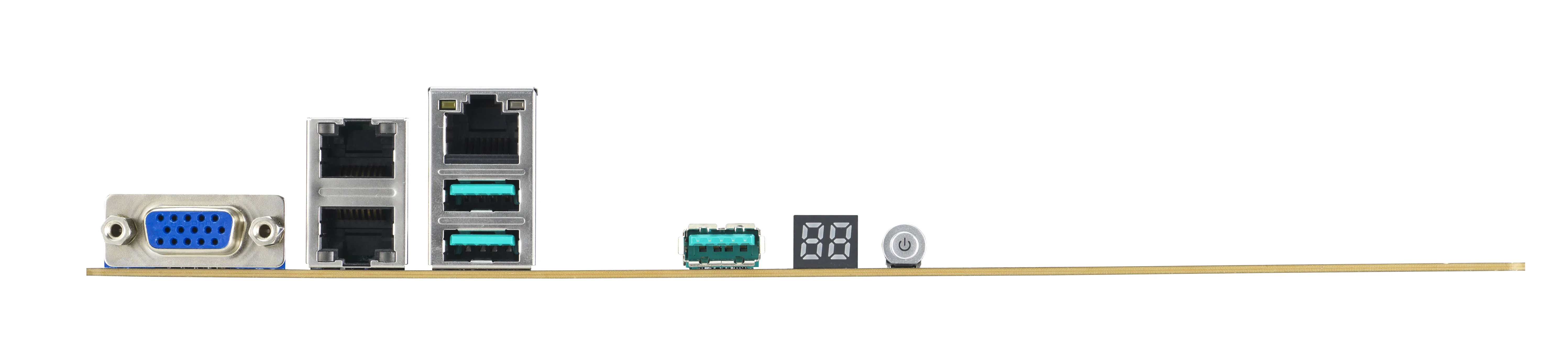

| Back panel I/O ports | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Storage controllers | |
| Number of HDDs supported | 8 |
| RAID support | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Packaging data | |
| Package weight | 1.3 kg |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package width | 341 mm |
| Packaging content | |
| Cables included | SATA |
| Expansion slots | |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| BIOS | |
| Clear CMOS button | |
| Other features | |
| Weight | 760 g |
| Graphics | |
| Graphics card | AST2600 |
| Graphics card family | ASPEED |
| Features | |
| Motherboard chipset | Intel C262 |
| Motherboard form factor | Micro ATX |
| Motherboard chipset family | Intel |
| Component for | Server |
| Product type | Server / Workstation Motherboard |
| EAN | 4711387204344 |
| Warranty | 1 year |

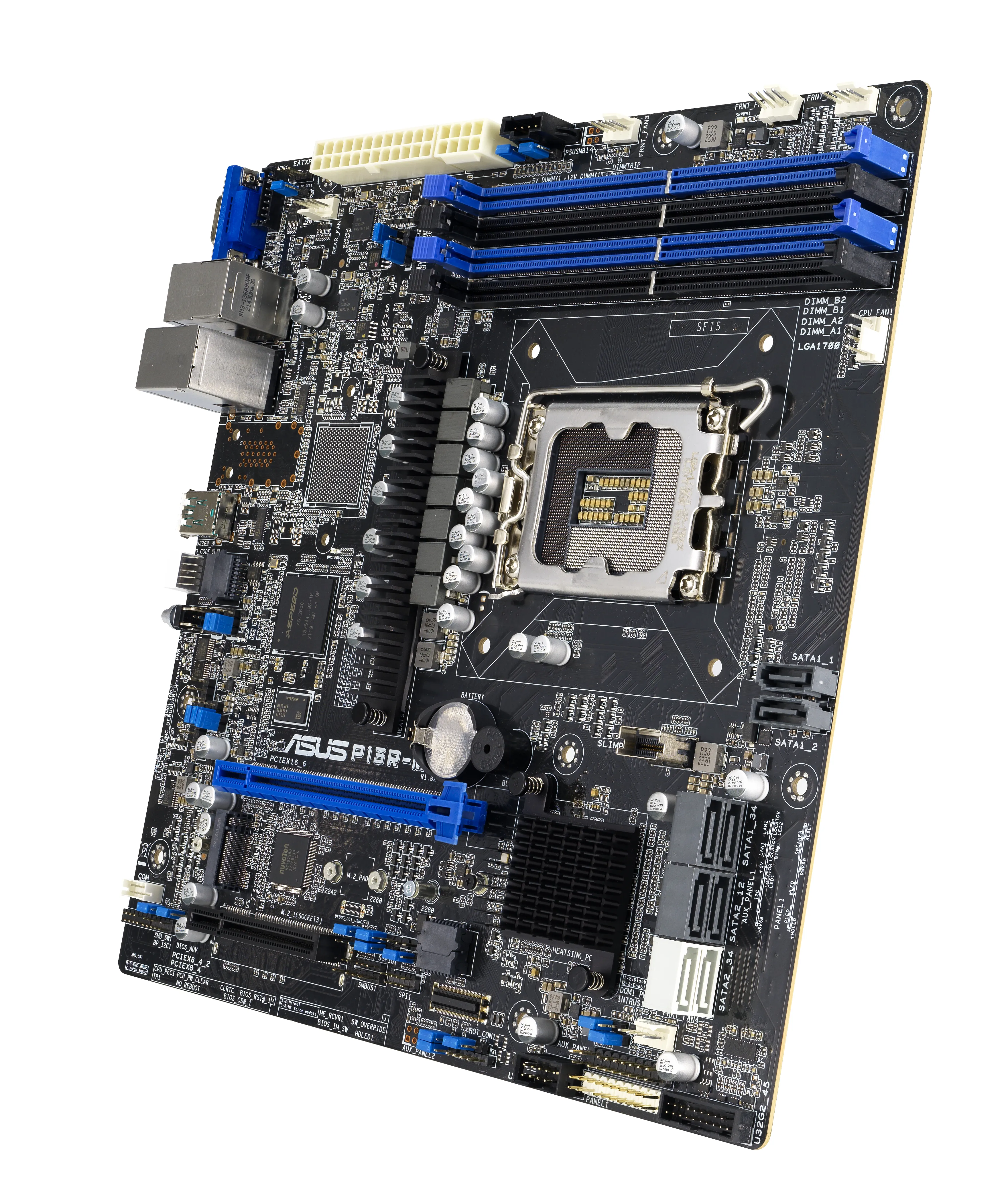

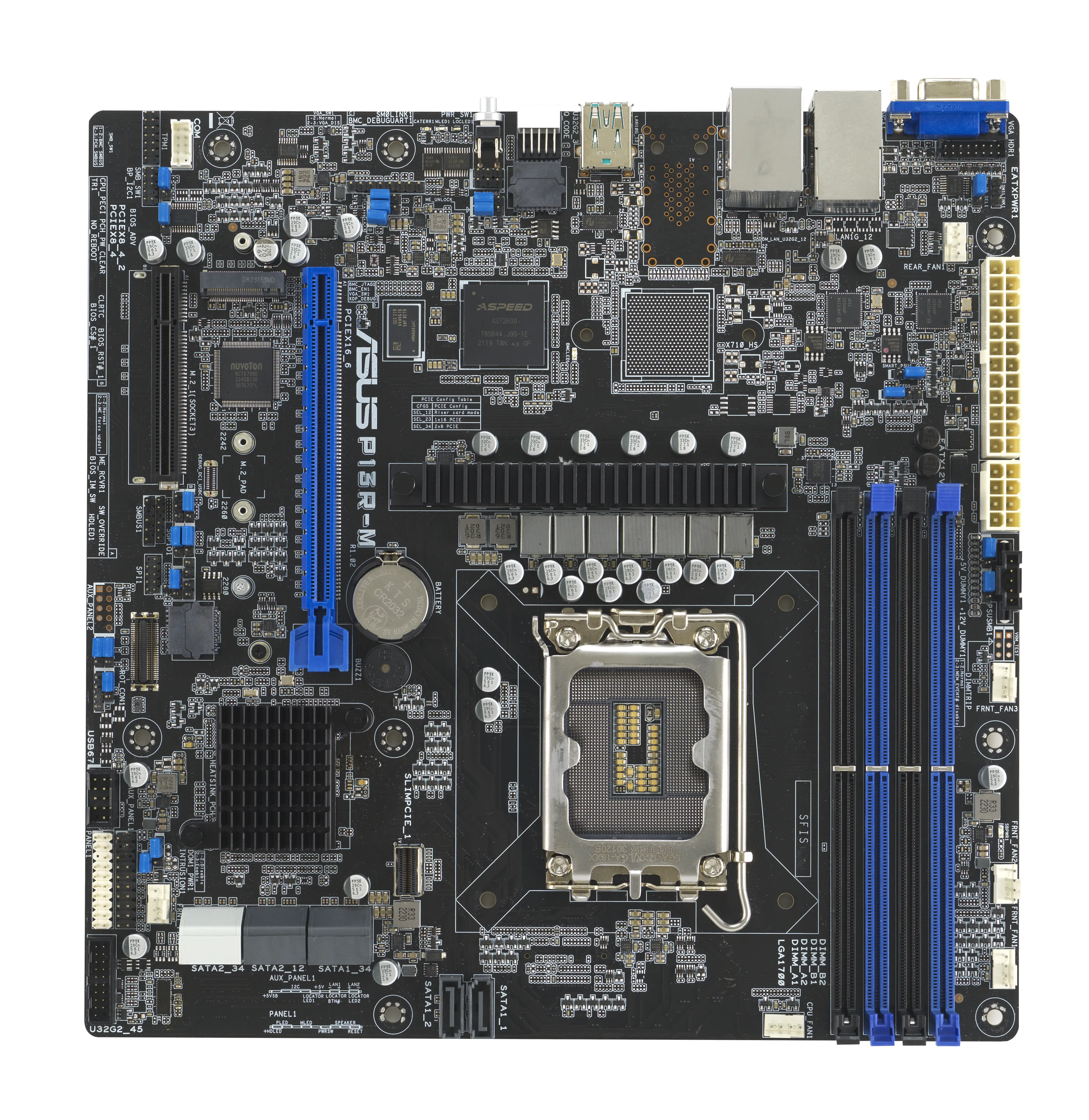

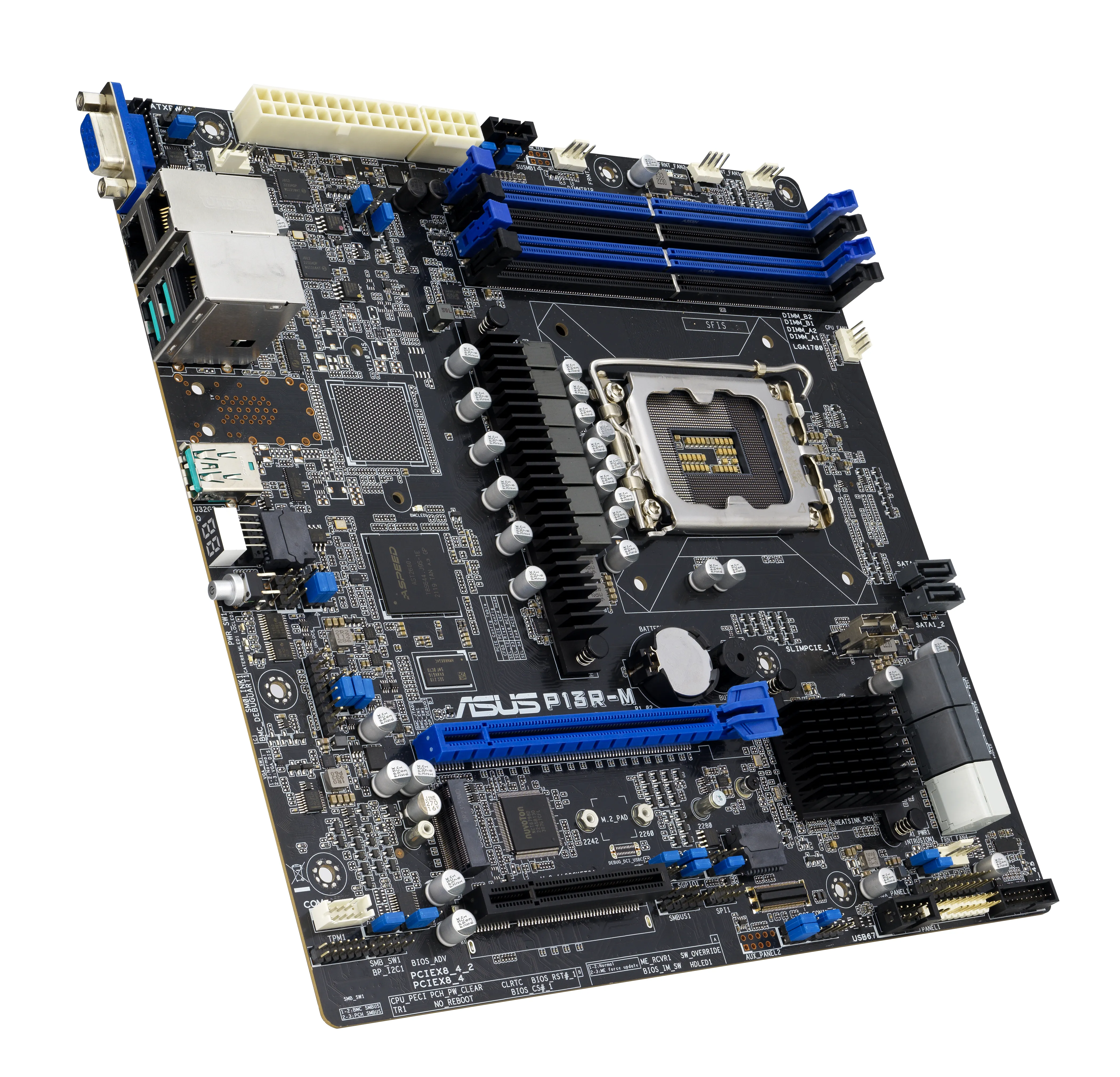

The ASUS P13R-M is a server motherboard in a micro-ATX form factor, built upon the Intel C262 chipset. It utilizes the LGA 1700 socket to accommodate Intel Xeon E and Pentium series processors, providing a stable platform for applications requiring continuous operation. The board is designed for deployment in edge servers or small to medium-sized data centers. Power is delivered through standard 24-pin ATX and 8-pin EPS connectors to maintain system stability under operational loads.
This motherboard is equipped with four DIMM slots that support up to 128 GB of dual-channel DDR5 ECC memory, which contributes to data integrity in critical workloads. For expansion, it includes a PCIe 5.0 x16 slot for high-bandwidth peripherals alongside a PCIe 4.0 slot. Storage options consist of eight SATA III ports and one M.2 slot, with RAID functionality enabled for data management and redundancy. Network connectivity is handled by dual Gigabit Ethernet ports, and an integrated ASPEED AST2600 controller facilitates remote server management.
Key Features:- Supports Intel Xeon E and Pentium processors with an LGA 1700 socket
- Features a compact Micro-ATX form factor
- Built on the Intel C262 server-grade chipset
- Provides four DIMM slots for up to 128 GB of DDR5 ECC memory
- Includes one PCIe 5.0 x16 and one PCIe 4.0 x16 expansion slot
- Offers eight SATA III ports and one M.2 slot for storage drives
- Equipped with dual Gigabit Ethernet LAN ports for network connectivity
- Contains a TPM connector for enhanced hardware-based security
