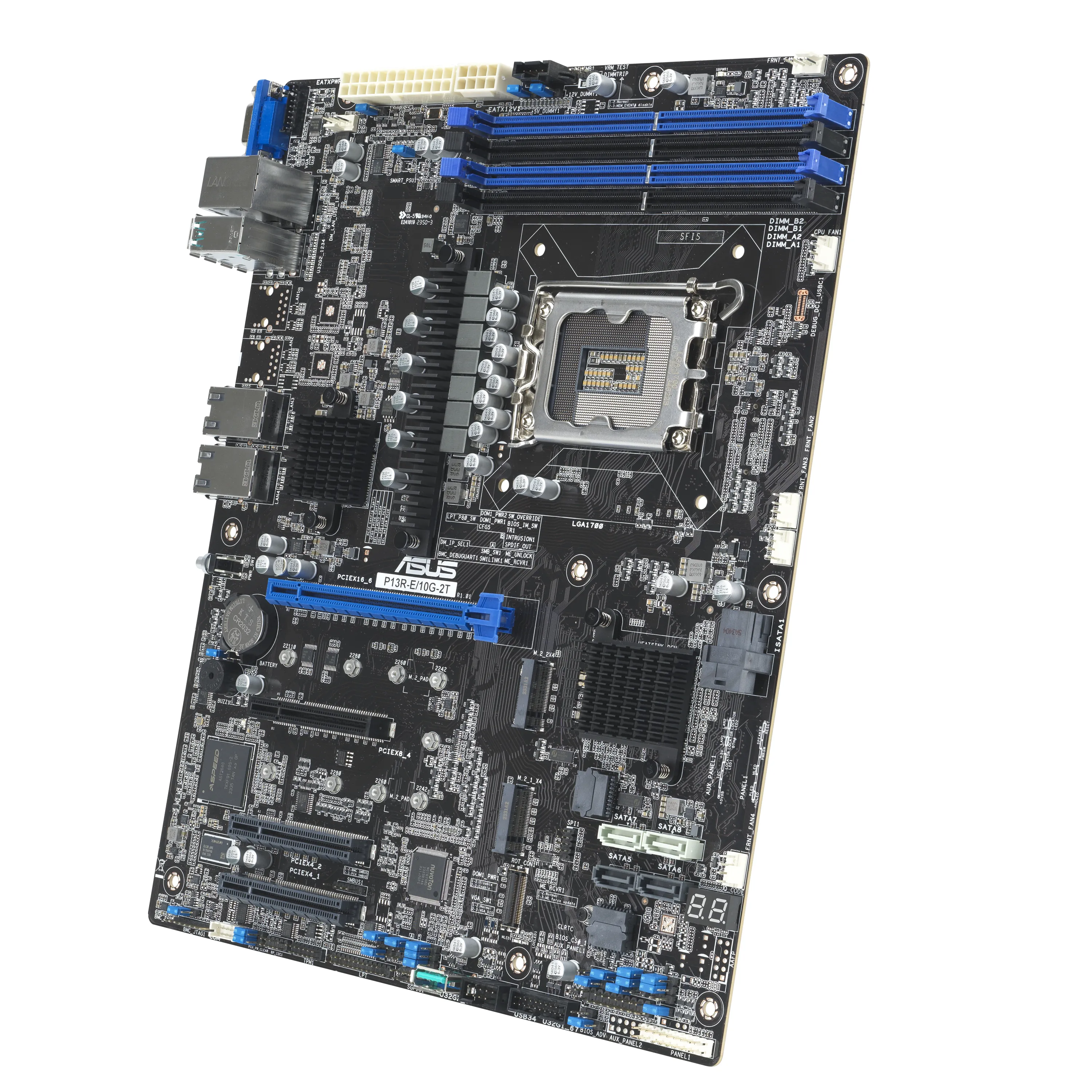

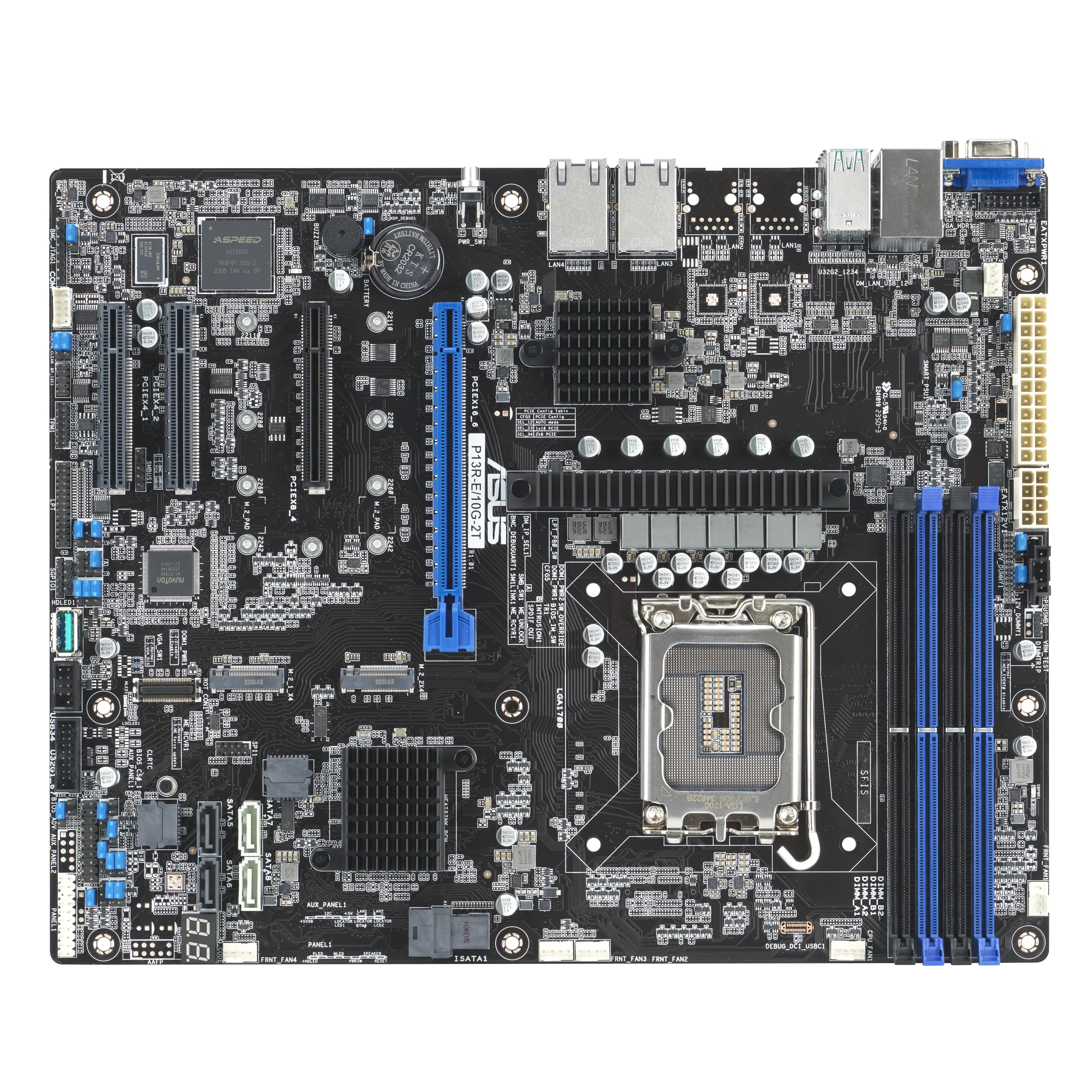

Asus P13R-E/10G-2T LGA1700 ATX Motherboard

The ASUS P13R-E/10G-2T is a server motherboard designed in the ATX form factor, built around the Intel C266 chipset. It features an LGA1700 socket, providing compatibility with Intel Xeon E and Intel Pentium series processors. The board is equipped with four DIMM slots that support up to 128 GB of dual-channel DDR5 memory. Support for ECC memory modules is included to ensure data integrity, a critical requirement for server environments and professional workstations.

For network connectivity, this motherboard incorporates dual 10 Gigabit Ethernet ports, enabling high-throughput data transfers suitable for demanding server applications. Storage options include eight SATA III connectors and two M.2 slots compatible with both PCI Express and SATA-based drives. Expansion is handled by a single PCI Express 5.0 x16 slot, allowing for the installation of high-bandwidth components. The board also provides a range of internal headers and external USB ports for peripheral connectivity.

• LGA1700 socket compatible with Intel Xeon E and Intel Pentium processors
• Four DIMM slots support up to 128 GB of DDR5 ECC memory
• Dual 10GbE LAN ports for high-speed network performance
• Eight SATA III connectors for conventional storage drives
• Two M.2 slots for high-speed solid-state drives
• One PCI Express 5.0 x16 expansion slot
• Intel C266 chipset for server-grade reliability
• Standard ATX form factor for broad chassis compatibility
• TPM connector for enhanced platform security
