CORSAIR iCUE LINK XH505i RX 360 RGB Custom Cooling Kit - Stealth Gray
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Technical details | |
| Radiator | ![]() |
| Weight & dimensions | |
| Cable length | 3 m |
| Fan thickness | 2.5 cm |
| Radiator width | 12 cm |
| Radiator depth | 3 cm |
| Energy management | |
| Thermal Design Power (TDP) | 250 W |
| Packaging content | |
| Mounting kit | ![]() |
| Screws included | ![]() |
| CPU bracket(s) | ![]() |
| RGB controller included | ![]() |
| Design | |
| Number of fans | 3 fan(s) |
| Radiator material | Copper |
| Illumination LED | ![]() |
| Fins material | Copper |
| Fan controller | ![]() |
| Performance | |
| Speed detection | ![]() |
| Fan diameter | 12 cm |
| Maximum airflow | 73.5 cfm |
| Maximum air pressure | 1.33 mmH2O |
| Noise level (low speed) | 10 dB |
| Noise level (high speed) | 36 dB |
| Rotational speed (max) | 2100 RPM |
| Pulse-width modulation (PWM) support | ![]() |
| Features | |
| Product type | Custom cooling kit |
| EAN | 0840440402077 |

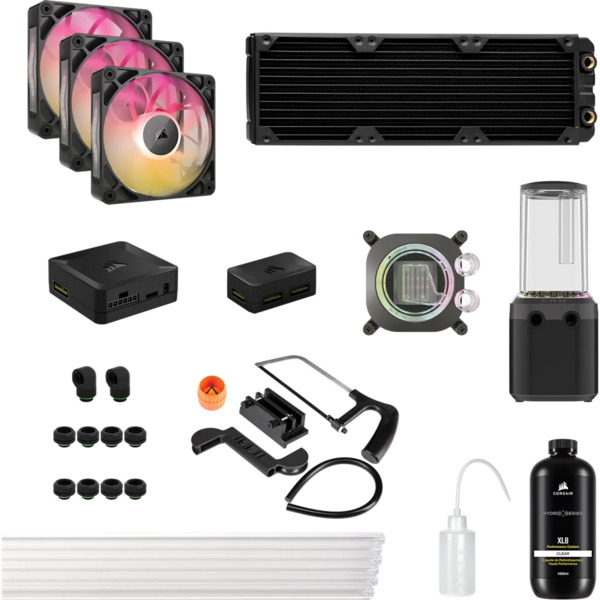

The CORSAIR iCUE LINK XH505i RX is a bundled kit containing the primary components required to build a custom liquid cooling loop for a CPU. It is designed around the iCUE LINK ecosystem, which utilizes a single-cable connection to simplify wiring and system management. The package includes an XC7 RGB ELITE CPU water block, an XD6 RGB ELITE pump/reservoir combination, and a 360mm XR5 copper radiator. This approach provides the core hardware for a custom loop without requiring individual component selection.
Heat dissipation is managed by the 360mm radiator, which is paired with three 120mm iCUE LINK RX120 RGB fans. The CPU water block features a nickel-plated copper base plate for thermal transfer from the processor. Coolant circulation is handled by the included pump/reservoir unit. The kit is compatible with Intel LGA 1700 and 1851 sockets, as well as AMD AM4 and AM5 sockets, and includes the necessary mounting hardware. All included iCUE LINK components, including fans and lighting, connect to a central System Hub for unified control.
Key Features:- Complete kit for a custom CPU liquid cooling loop
- Built on the iCUE LINK single-cable connection ecosystem
- Includes a CPU water block, pump/reservoir, and radiator
- Three 120mm RX Series RGB fans for airflow
- 360mm XR5 radiator constructed from copper
- Comes with XT Hardline tubing and all necessary fittings
- Supports Intel LGA 1700/1851 and AMD AM4/AM5 sockets
