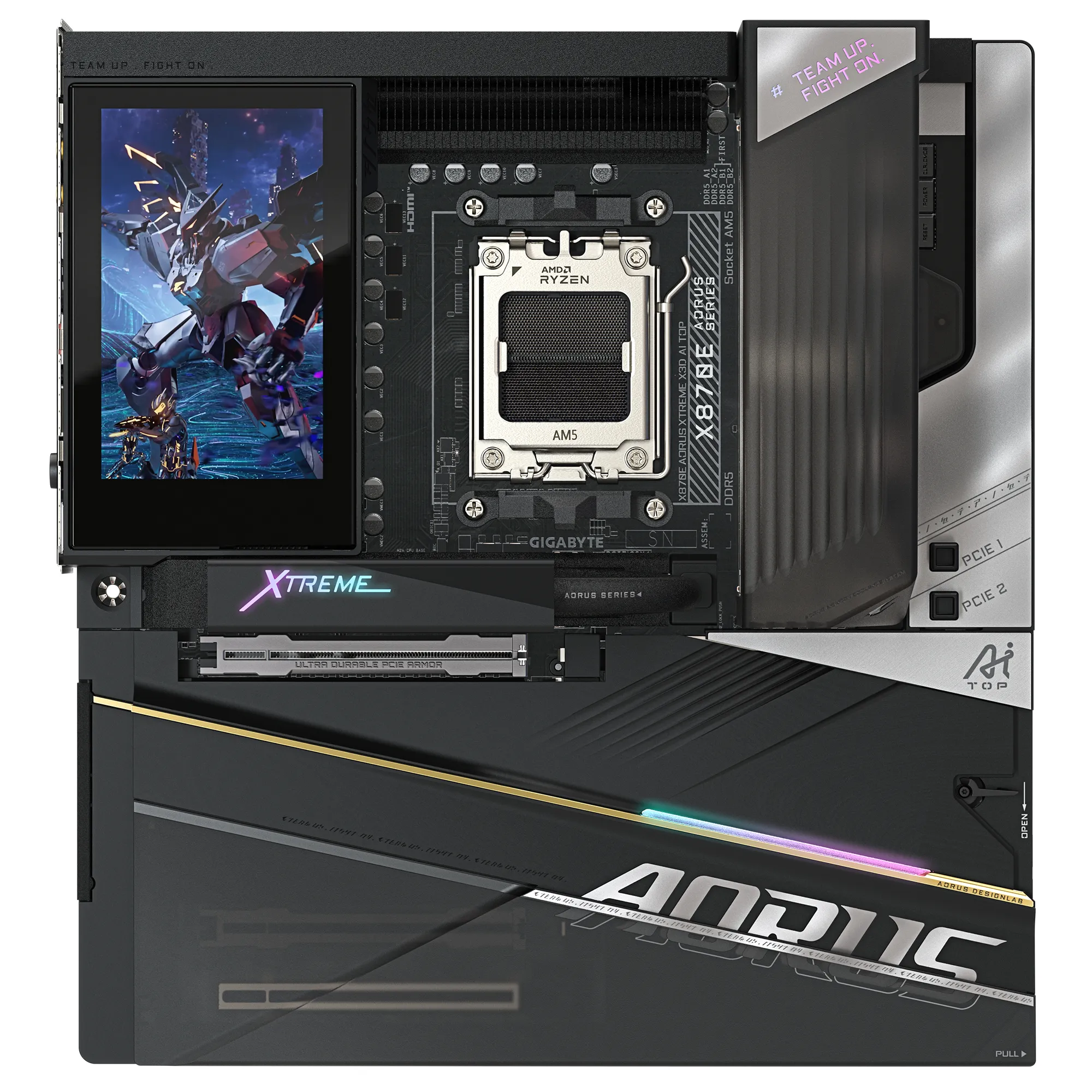

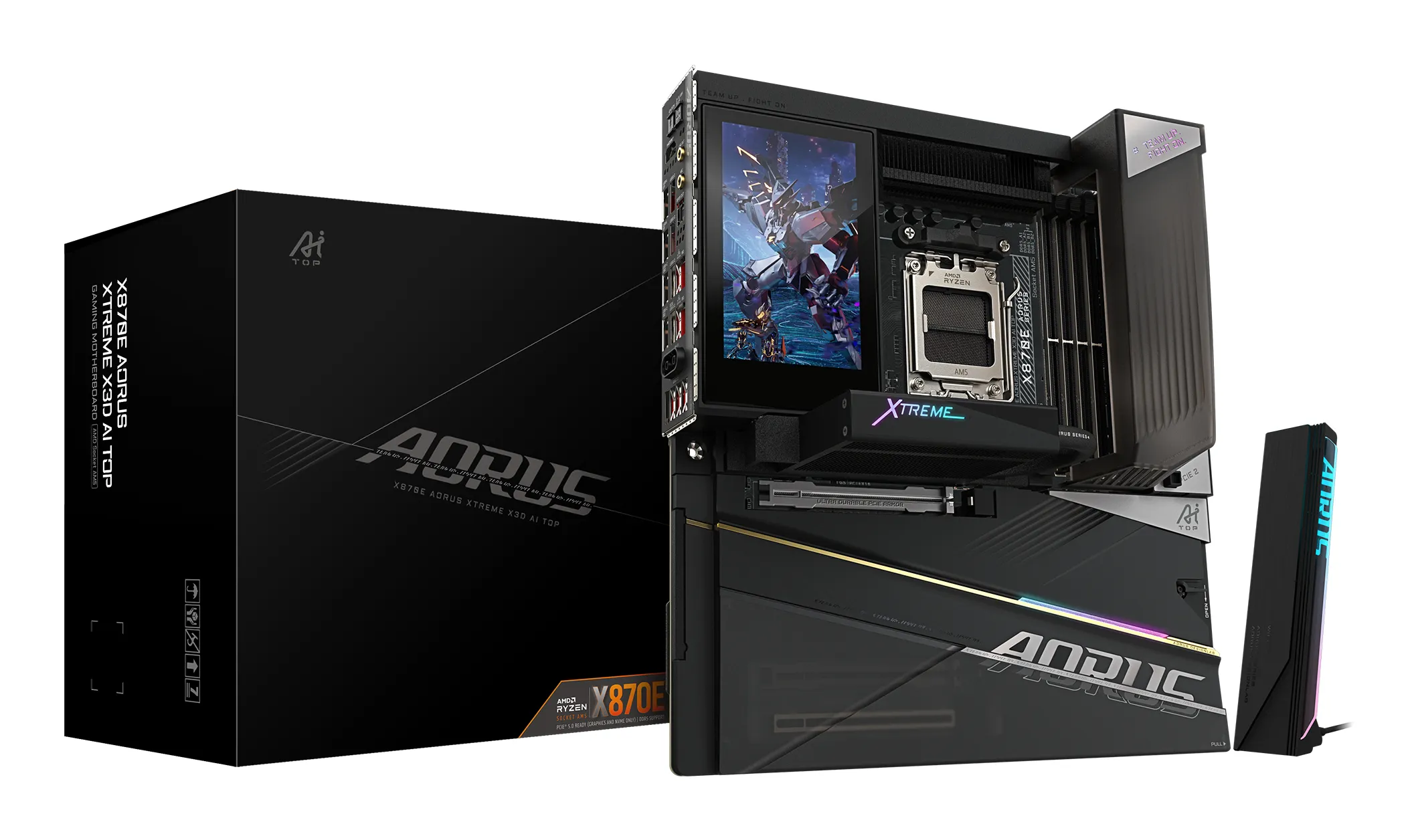

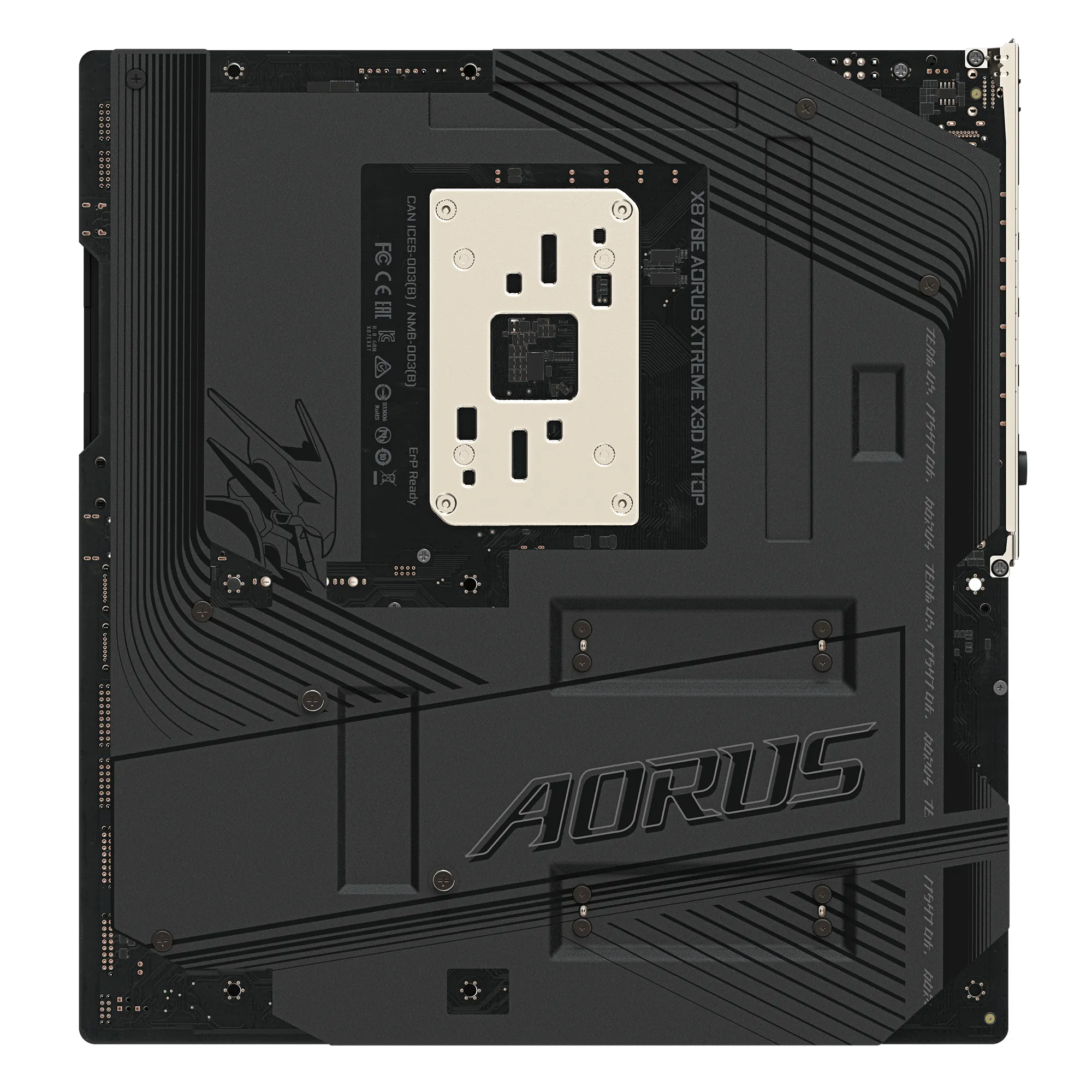

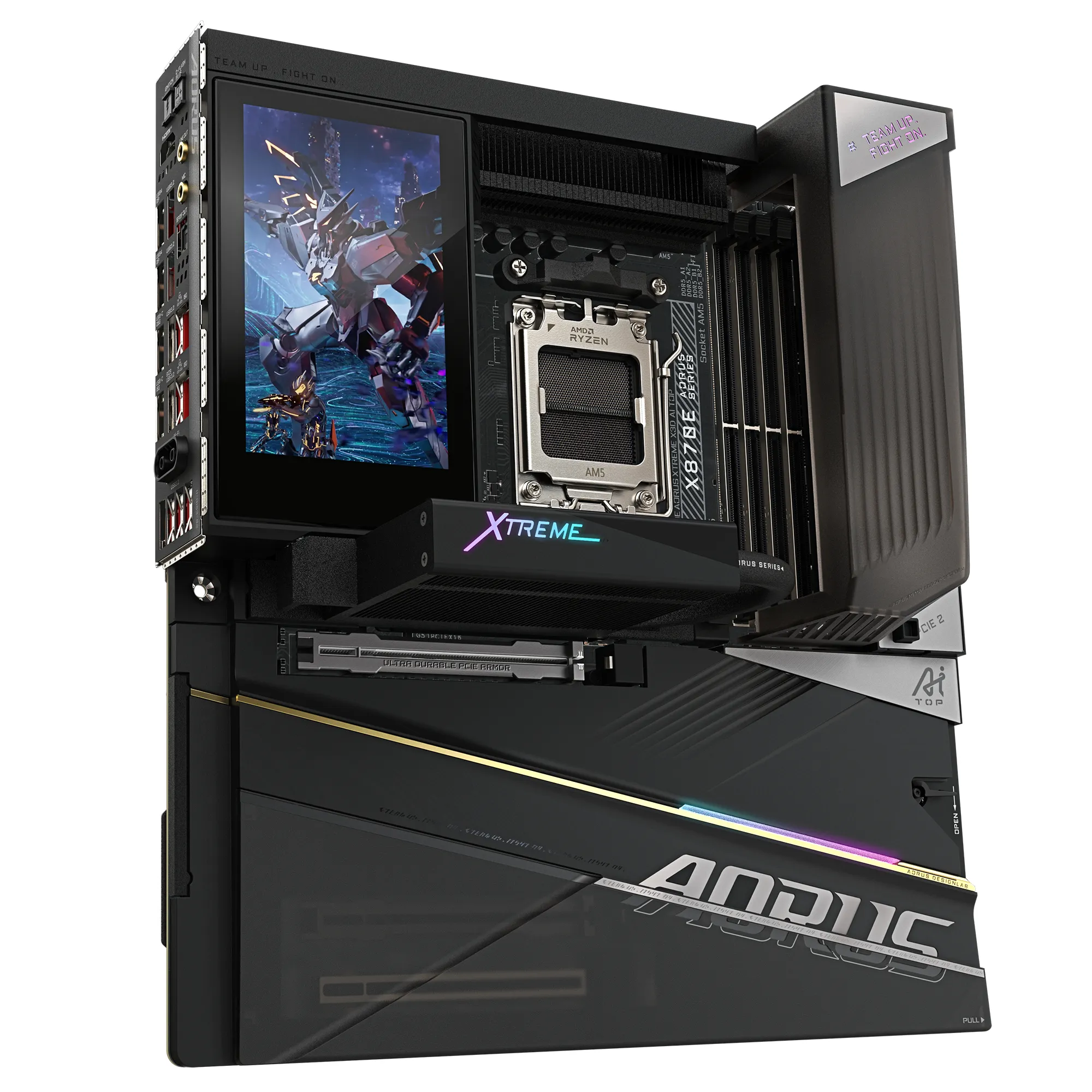

Gigabyte AORUS X870E XTREME AI TOP WiFi 7 AM5 E-ATX Motherboard
Manufacturer: GIGABYTE
ID: X870E A XTR X AI TOP
129390€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Warranty period | 3 year(s) |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Maximum internal memory | 256 GB |
| ECC |  |
| Non-ECC | |
| Supported memory clock speeds | 9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Supported memory types | DDR5 |
| Memory channels | Dual-channel |
| Unbuffered memory | |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8800 MHz |
| Maximum internal memory per slot | 64 GB |
| ECC сompatibility | Non-ECC |
| Weight & dimensions | |
| Height | 35 mm |
| Width | 305 mm |
| Depth | 285 mm |
| Networking | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Realtek RTL8127 |
| Wi-Fi | |
| Ethernet interface type | 10 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7927 |
| Internal I/O | |
| USB 2.0 connectors | 4 |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Number of EATX power connectors | 2 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | |
| TPM connector | |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | |
| 12V power connector | |
| RGB LED pin header | |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of RGB LED pin headers | 1 |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 3 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of temperature sensor headers | 2 |

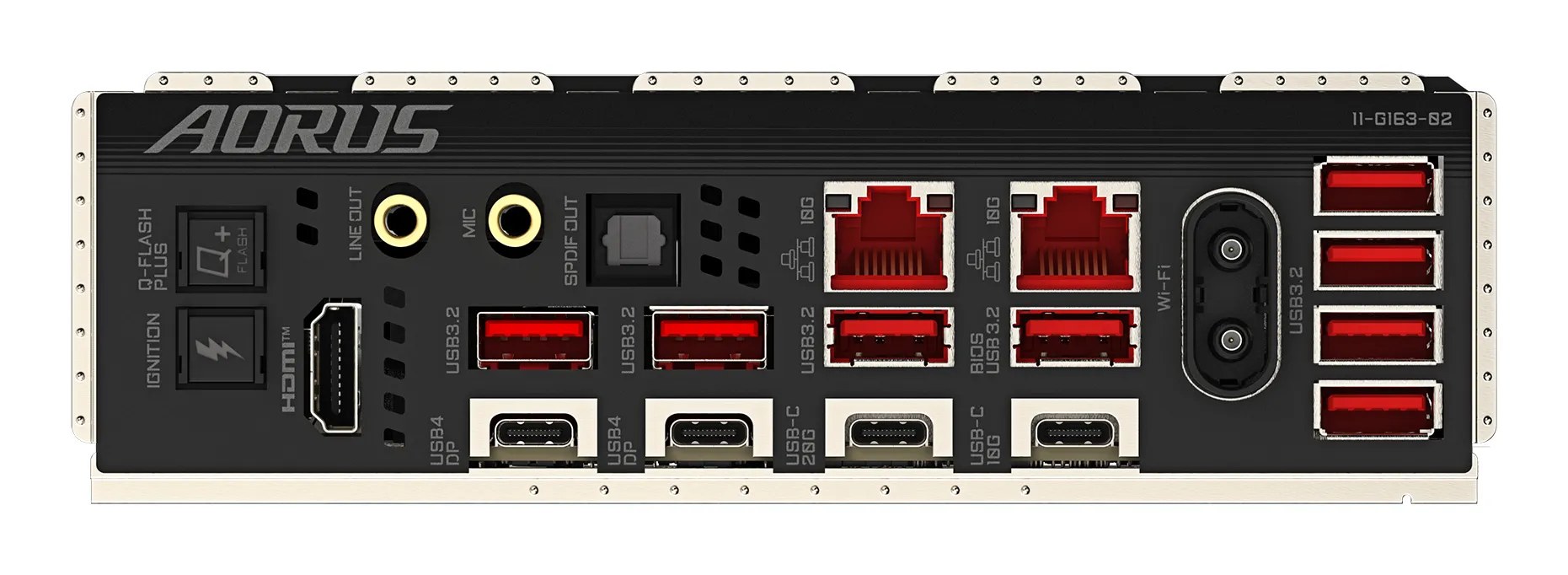

| Back panel I/O ports | |
| Line-in | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | |
| S/PDIF out port | |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Digital audio optical out | 1 |

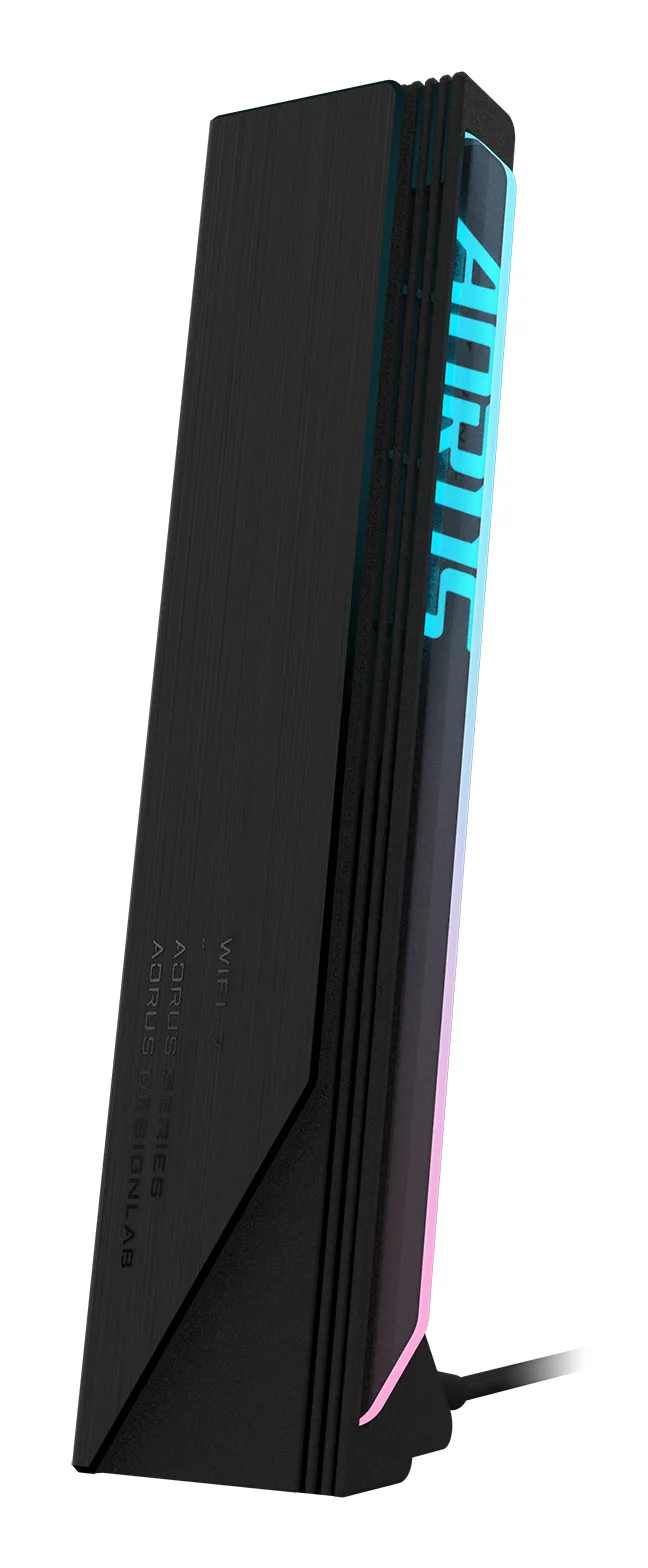

| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 2 |
| RAID support | |
| Number of storage drives supported | 7 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Packaging data | |
| Package weight | 11.2 kg |
| Package depth | 387 mm |
| Package height | 167 mm |
| Package width | 387 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | |
| Screws included | |
| Antenna included | |
| Expansion slots | |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2580 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 largest key size | 22110 |
| 5th M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS button | |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery capacity | 220 mAh |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Other features | |
| Weight | 8.02 kg |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | |
| HDCP version | 2.3 |
| Features | |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | Extended ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 11 x64 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Product type | Motherboard |
| Audio chip | Realtek ALC1220 |
| Logistics data | |
| Country of origin | Taiwan |
| Products per shipping (inner) case | 1 pc(s) |
| EAN | 4719331878061 |
| Warranty | 1 year |
The GIGABYTE X870E AORUS XTREME AI TOP is an E-ATX motherboard designed around the AMD X870E chipset and AM5 socket. It provides native support for AMD Ryzen 9000, 8000, and 7000 series processors, serving as a platform for high-performance computing builds. The extended form factor allows for comprehensive component layouts and advanced thermal solutions. Its power delivery system, featuring dual 8-pin EPS connectors, is engineered to supply stable power to high-core-count CPUs during demanding workloads.
Memory support includes four dual-channel DDR5 DIMM slots, accommodating up to 256 GB of RAM with clock speeds reaching 8800 MHz. For data storage, the board is equipped with four M.2 slots for high-speed NVMe SSDs and four SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations. Expansion is handled by a primary PCIe 5.0 x16 slot for graphics cards and an additional PCIe 4.0 x16 slot. The motherboard integrates comprehensive networking options, including dual 10GbE LAN ports and a Wi-Fi 7 module with Bluetooth 5.4.
Key Features:- Supports AMD Ryzen 9000, 8000, and 7000 series processors
- Features the AMD AM5 socket and X870E chipset
- E-ATX form factor for expanded build options
- Four DDR5 DIMM slots with 256 GB maximum capacity
- Supports memory speeds up to 8800 MHz
- Four M.2 slots and four SATA 6Gb/s storage ports
- One PCIe 5.0 x16 slot for graphics cards
- Dual 10GbE LAN ports for high-speed wired networking
- Integrated Wi-Fi 7 and Bluetooth 5.4 connectivity
- Realtek ALC1220 audio chip with front panel audio connector
- Multiple fan, water cooling pump, and RGB headers
