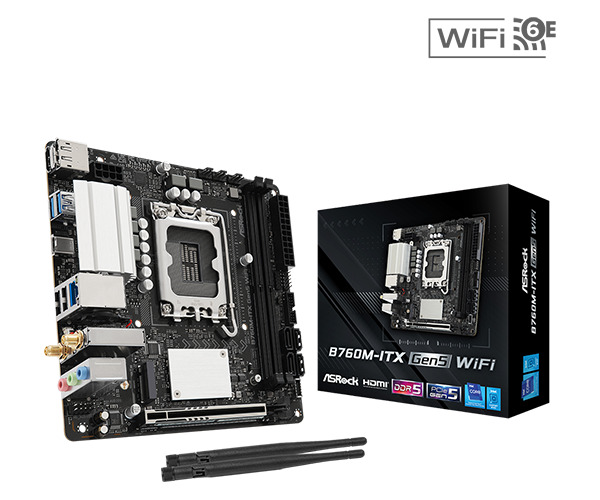

ASRock B760M-ITX Gen5 WiFi LGA1700 Mini-ITX Motherboard

This ASRock motherboard is constructed on the Mini-ITX form factor, utilizing the Intel B760 chipset for compact PC builds. It is compatible with 12th, 13th, and 14th generation Intel Core processors through its LGA1700 socket. The board includes two DIMM slots that support up to 128 GB of dual-channel DDR5 memory, accommodating overclocked speeds up to 7800 MHz. Its design incorporates Dr.MOS power stages to provide stable voltage regulation for the CPU during operation.

For expansion, the board provides a single PCIe 5.0 x16 slot for a graphics card. Storage is handled by two M.2 slots compatible with PCIe Gen4 drives and four SATA III 6.0 Gb/s ports, which support RAID 0, 1, 5, and 10 configurations. Networking options include a 2.5GbE LAN port for high-speed wired connections, as well as integrated Wi-Fi 6E and Bluetooth 5.3. Video output for integrated graphics is available via one HDMI 2.1 port and one DisplayPort 1.4, while the Realtek ALC897 codec manages onboard audio.

• Intel B760 chipset with an LGA1700 socket
• Supports 12th, 13th, and 14th Gen Intel Core processors
• Mini-ITX form factor for small-footprint systems
• Features two DDR5 DIMM slots for up to 128 GB of memory
• Includes one PCIe 5.0 x16 expansion slot
• Provides two M.2 slots and four SATA III storage connectors
• Equipped with 2.5GbE LAN, Wi-Fi 6E, and Bluetooth 5.3
• Offers HDMI 2.1 and DisplayPort 1.4 video outputs
