ASUS ROG Thor Platinum III White 1200W - PSU, 80 Plus Platinum
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| PCI Express connector | ![]() |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| EPS power connector (8-pin) | ![]() |
| ATX power connector (20+4 pin) | ![]() |
| PCI Express power connectors (8-pin) | 4 |
| CPU power connector (4+4 pin) | ![]() |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 400,120 mm |
| CPU power cable length | 100 cm |
| Peripheral (Molex) power cable length | 400,150 mm |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (16-pin) | 1 |
| Weight & dimensions | |
| Weight | 2.37 kg |
| Height | 86 mm |
| Width | 190 mm |
| Depth | 150 mm |
| Energy management | |
| Peak power | 1200 W |
| Nominal power | 1200 W |
| Efficiency | 80% |
| Power protection features | Overheating, Over current, Over power, Over voltage, Short circuit, Under power |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input voltage | 100 - 240 V |
| Total power | 1200 W |
| Packaging data | |
| Package weight | 5.21 kg |
| Package depth | 241 mm |
| Package height | 127 mm |
| Package width | 379 mm |
| Package type | Box |
| Certificates | |
| RoHS compliance | ![]() |
| 80 PLUS certification | 80 PLUS Platinum |
| Compliance certificates | RoHS |
| Packaging content | |
| Cables included | CPU, DC, PCIe, Peripheral (Molex), SATA |
| Design | |
| Product colour | White |
| Illumination | ![]() |
| Number of fans | 1 fan(s) |
| On/off switch | ![]() |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Performance | |
| Mean time between failures (MTBF) | 120000 h |
| Form factor | ATX |
| Purpose | PC |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Silent mode | ![]() |
| Power supply unit (PSU) form factor | ATX |
| EAN | 4711636125420 |
The ASUS ROG Thor 1200W Platinum III is a power supply unit designed to provide 1200 watts of continuous power for high-performance systems. It is built to the ATX 3.1 specification, ensuring support for modern hardware components that have high power demands. With an 80 Plus Platinum certification, this PSU operates at a high level of efficiency, which reduces waste heat and energy consumption under load. The unit is intended for demanding applications such as gaming rigs with multiple graphics cards or professional workstations.
This power supply features a fully modular design, allowing for the use of only necessary cables to facilitate cleaner system builds and improve internal airflow. Thermal management is handled by a 135 mm fan with an active cooling system, which includes a zero-decibel mode for silent operation at lower power draws. The chassis incorporates a comprehensive set of protection circuits, including safeguards against over-power, over-voltage, and short circuits, to protect connected components. The white enclosure and integrated illumination offer a specific aesthetic for customized builds.
Key Features:- Delivers 1200W of total continuous power
- Features 80 Plus Platinum efficiency certification
- Conforms to the ATX 3.1 standard
- Utilizes a fully-modular cabling system

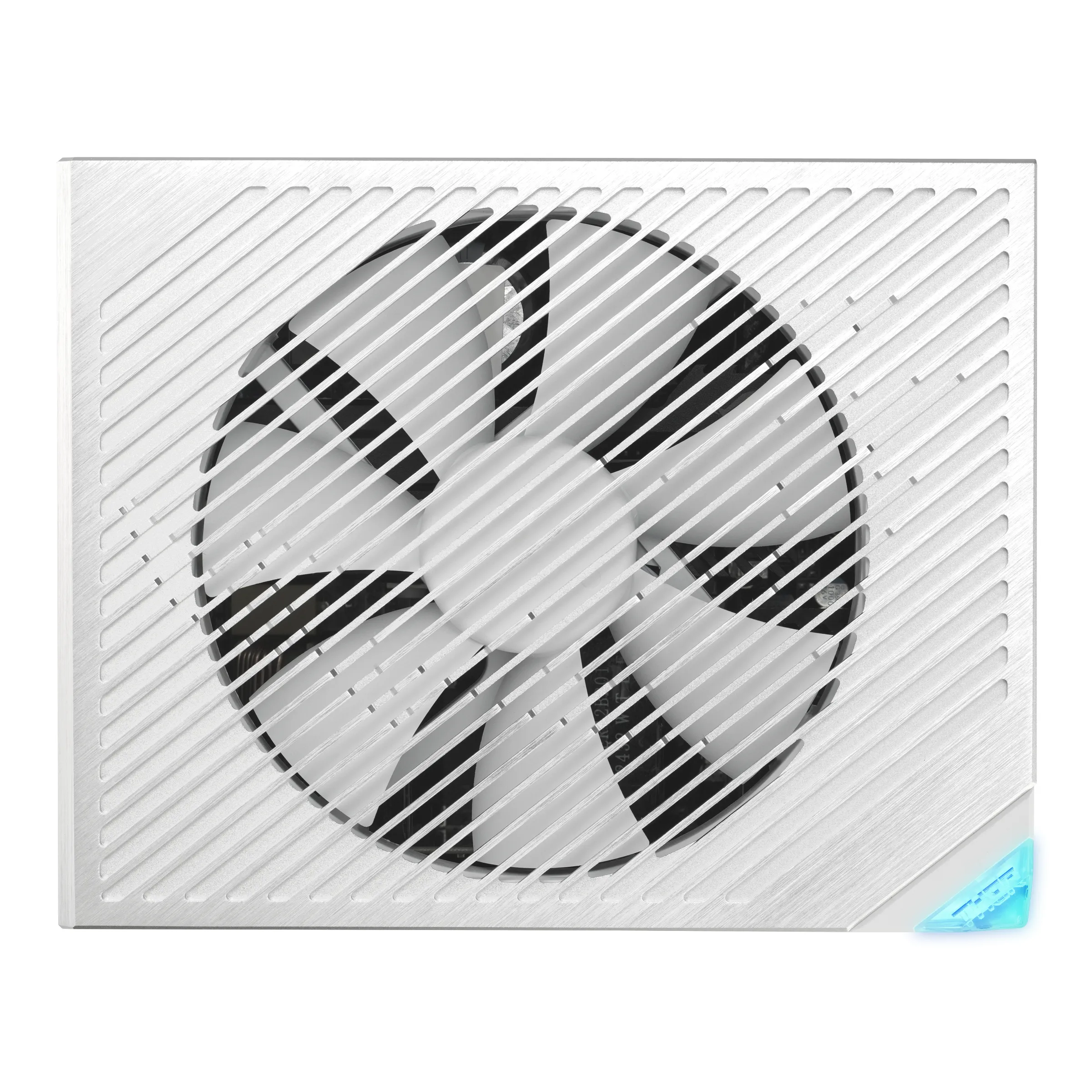

- Equipped with a 135 mm cooling fan
- Includes over-power, over-voltage, and short circuit protections
- Measures 190 mm x 150 mm x 86 mm

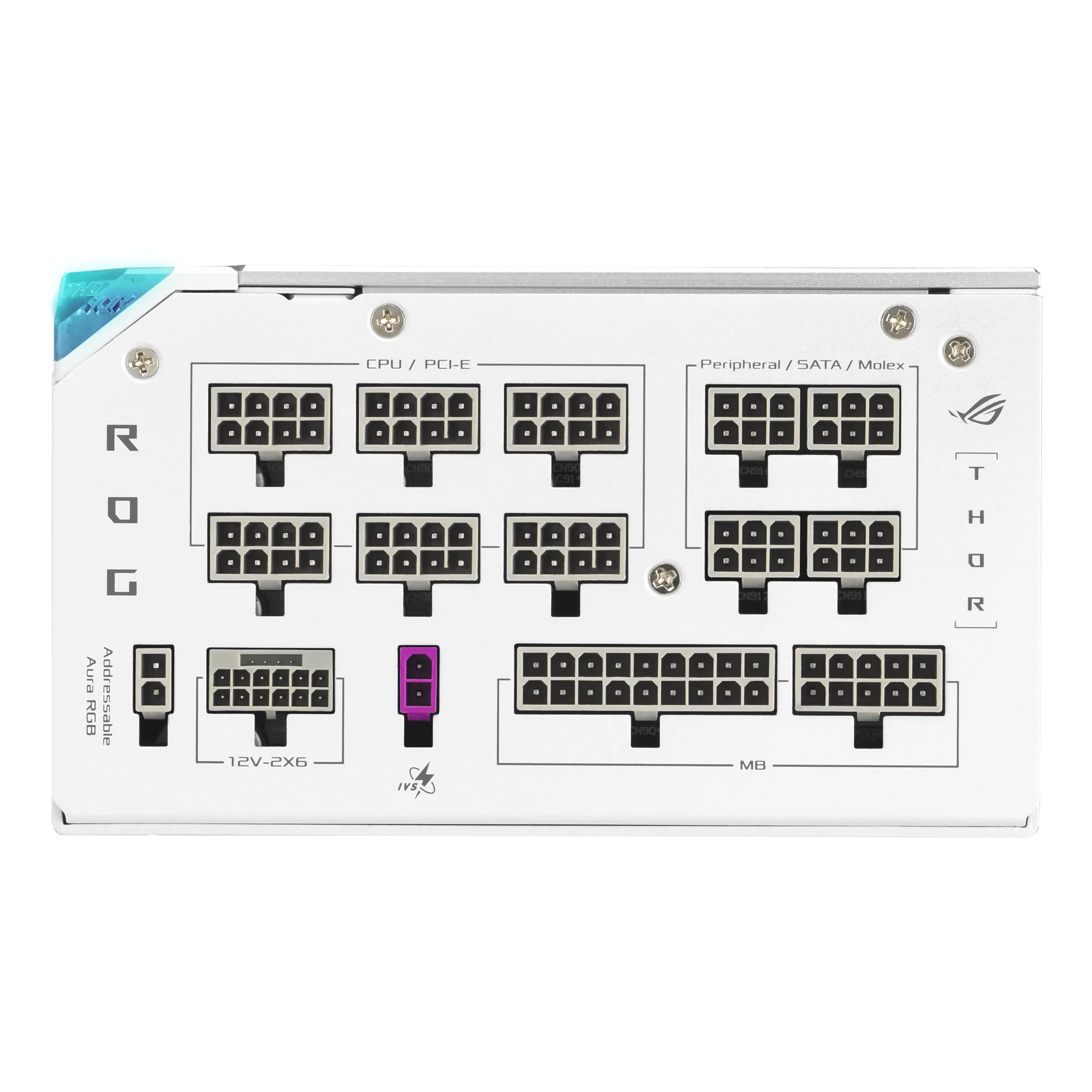

- Provides 4x 6+2 pin and 4x 8-pin PCIe connectors
