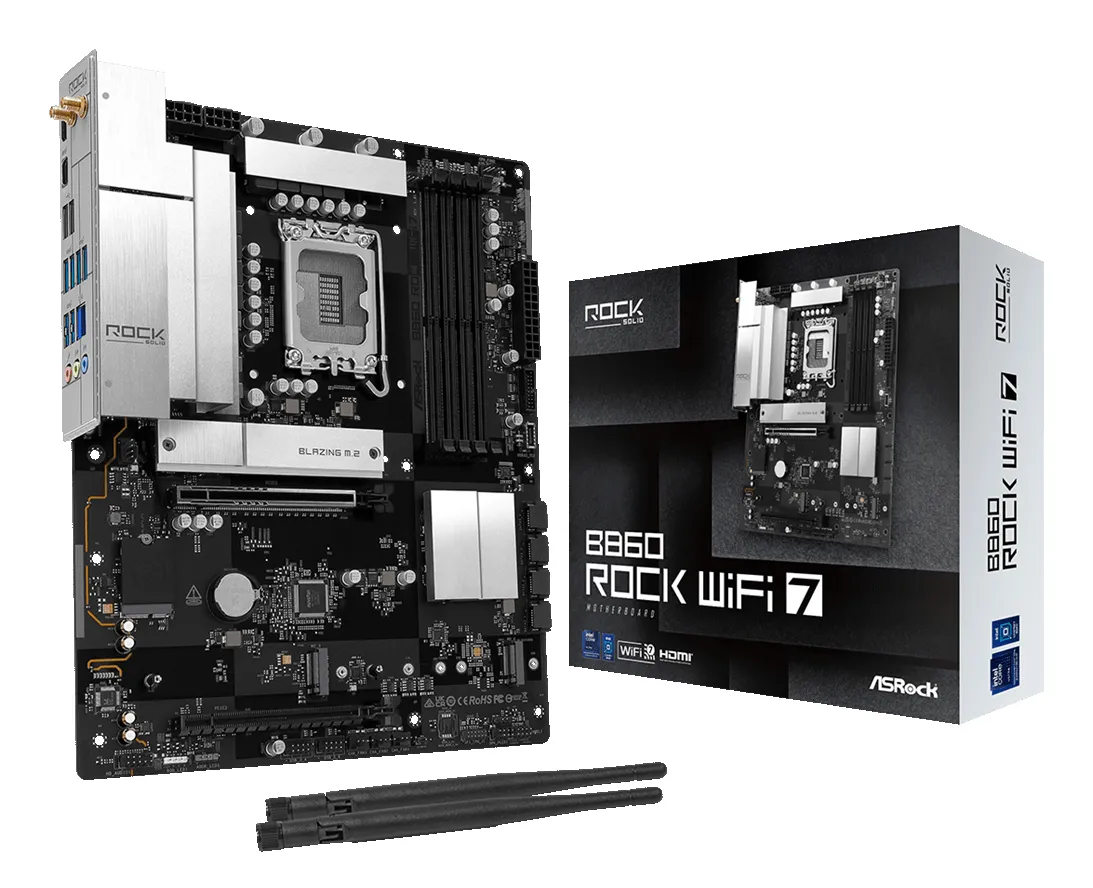

ASRock B860 Rock WiFi 7 LGA1851 ATX Motherboard

The ASRock B860 Rock WiFi 7 is an ATX motherboard built for the Intel LGA1851 socket, providing direct compatibility with Intel Core Ultra (Series 2) processors. It incorporates four DDR5 DIMM slots that support a total capacity of up to 256 GB in a dual-channel configuration. The board is designed for non-ECC, unbuffered memory modules and can accommodate speeds up to 8666 MHz, depending on the CPU and module pairing. This establishes a versatile foundation for contemporary PC builds focused on productivity or gaming.

For connectivity, the motherboard integrates Wi-Fi 7 and Bluetooth 5.4 for wireless networking, alongside a 2.5 Gigabit Ethernet port for a high-speed wired connection. Storage is handled by three M.2 slots for solid-state drives and four SATA III ports for additional devices, with support for RAID 0, 1, 5, and 10 configurations. Expansion capabilities include a primary PCIe 5.0 x16 slot for a graphics card and a secondary PCIe 4.0 x16 slot. The rear I/O panel and internal headers offer multiple USB ports and system fan connectors for a complete build.

• Supports Intel Core Ultra (Series 2) processors
• Features the Intel LGA1851 socket
• Utilizes the Intel B860 chipset
• Standard ATX form factor for mid- to full-tower cases
• Provides four DDR5 slots supporting up to 256 GB
• Includes one PCIe 5.0 x16 and one PCIe 4.0 x16 slot
• Offers three M.2 slots and four SATA III ports for storage
• Equipped with Wi-Fi 7 and Bluetooth 5.4
• Includes one 2.5 Gigabit Ethernet port
• Features the Realtek ALC897 audio chipset
• Provides one HDMI 2.1 port for video output
• Uses standard 24-pin ATX and 8-pin EPS power connectors
