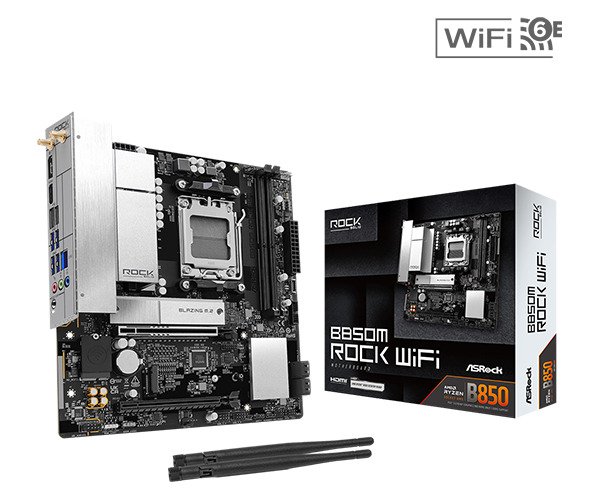

ASRock B850M Rock WiFi 6E AM5 mATX Motherboard

The ASRock B850M Rock WiFi is a motherboard built on the AMD B850 chipset in a Micro-ATX form factor. It is engineered for the AM5 socket, providing compatibility with AMD Ryzen 9000, 8000, and 7000 series processors. The board incorporates a 6+1+1 phase power design with Dr.MOS components to deliver consistent power for CPU stability under various workloads. Its compact dimensions make it a suitable foundation for space-conscious PC builds that require modern platform features.

This model is configured for dual-channel DDR5 memory, with support for overclocked speeds up to 8200 MHz. For storage and expansion, it includes high-speed M.2 interfaces for NVMe solid-state drives alongside traditional SATA ports, supporting RAID configurations 0, 1, and 10. The primary expansion slot operates on a PCIe 5.0 interface, providing maximum bandwidth for current-generation graphics cards. Onboard networking includes 2.5 Gigabit Ethernet, Wi-Fi 6E, and Bluetooth 5.3, offering a range of high-speed connectivity options.

• Micro-ATX motherboard form factor
• AMD AM5 processor socket
• Compatible with AMD Ryzen 9000, 8000, and 7000 series CPUs
• Two DDR5 UDIMM memory slots
• Supports a maximum of 128 GB internal memory
• Two M.2 and four SATA III storage connectors
• One PCIe 5.0 x16 primary expansion slot
• Features a 2.5 Gigabit Ethernet port
• Rear panel HDMI 2.1 and DisplayPort 1.4 video outputs
• Equipped with a Realtek ALC897 audio chipset
