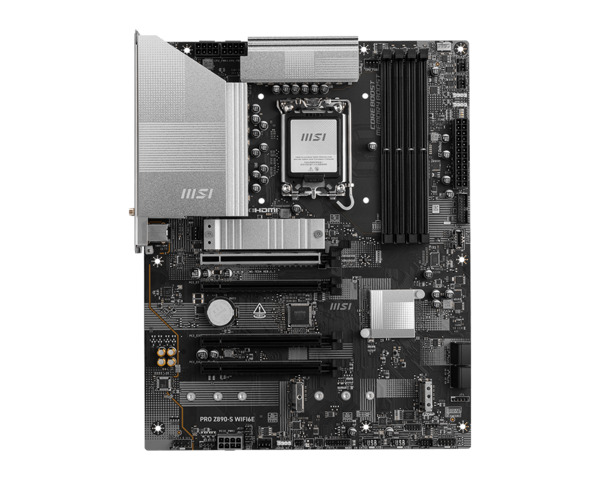

MSI PRO Z890-S WiFi 6E LGA 1851 ATX Motherboard

This ATX motherboard is designed for the Intel Z890 chipset and supports Intel Core Ultra Series 2 processors. The LGA 1851 socket connects directly to the CPU. It supports up to 256 GB of dual-channel DDR5 memory across four UDIMM slots. Users can configure non-ECC, unbuffered memory modules to reach speeds of up to 8800 MHz via supported overclocking profiles. A primary PCIe 5.0 x16 slot provides the bandwidth for modern graphics cards and expansion hardware.

Connectivity includes an integrated Wi-Fi 6E module and Bluetooth 5.3. Wired networking is managed by a 2.5GbE RJ-45 port. Video outputs include one HDMI 2.1 port and one DisplayPort 1.4 connection for use with processors featuring integrated graphics. Audio is managed by an onboard Realtek ALC897 chip. Cooling is supported by a dedicated CPU fan header and five additional headers for system fans.

• Three M.2 NVMe slots: Support for 2242, 2260, and 2280 drive sizes.
• Four SATA III 6Gb/s connectors: Standard interfaces for hard drives or SSDs.
• Hardware RAID: Supports RAID 0, 1, 5, and 10 for SATA, and 0, 1, and 5 for M.2 arrays.
• Rear I/O: Six USB 3.2 Gen 1 Type-A ports and two Type-C ports.
• Power: 24-pin main connector and 8-pin EPS connector.
• Internal USB headers: Connections for USB 2.0, 3.2 Gen 1, and 3.2 Gen 2 front-panel ports.
• RGB LED header: Supports addressable lighting strips.
