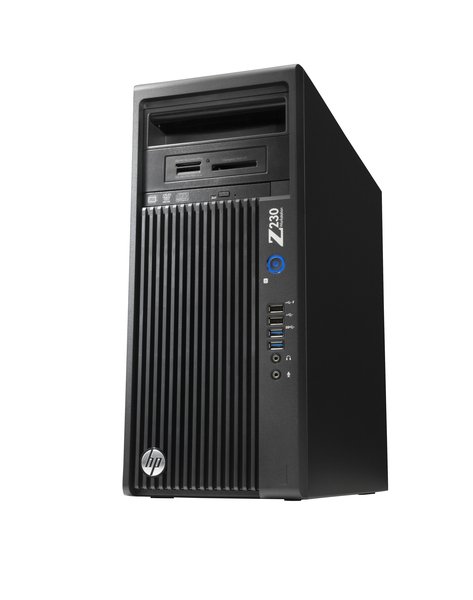

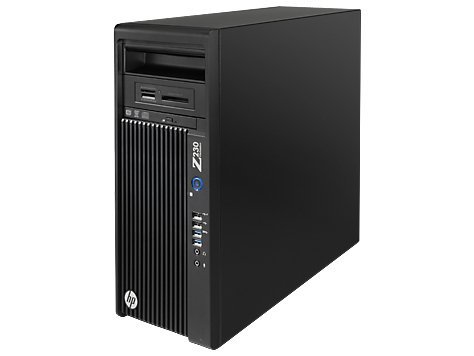

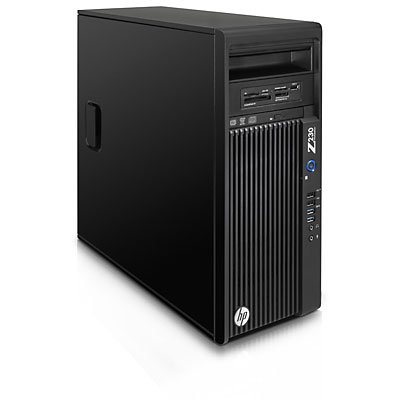

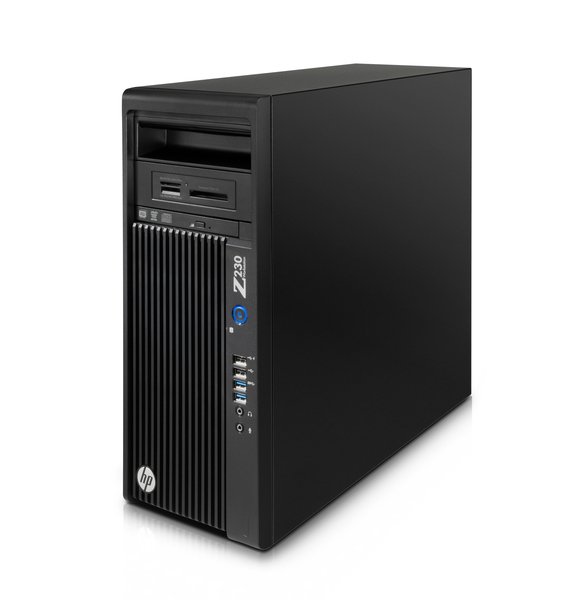

Z230T ZC3.4 256G 8G W8P64

Manufacturer: HEWLETT-PACKARD
ID: WM573EA#UUW
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Technical details
Device typeSSD
Processor
Processor modelE3-1245V3
Number of processors installed1
Processor manufacturerIntel
Processor lithography22 nm
Processor familyIntel Xeon
Processor socketLGA 1150
SteppingC0
Processor cores4
Processor threads8
PCI Express slots version3.0
Processor operating modes64-bit
Processor boost frequency3.8 GHz
Processor cache8 MB
FSB Paritycross
Bus typeQPI
Number of QPI links1
PCI Express configurations1x16, 2x8, 1x8+2x4
Processor frequency3.4 GHz
Thermal Design Power (TDP)84 W
Processor codenameHaswell
Maximum number of PCI Express lanes16
Processor cache typeSmart Cache
Processor seriesIntel Xeon E3-1200 v3
Maximum internal memory supported by processor32 GB
Memory types supported by processorDDR3-SDRAM
Memory clock speeds supported by processor1600 MHz
Memory bandwidth supported by processor (max)25.6 GB/s
ECC supported by processorcheckmark
Memory
Internal memory typeDDR3-SDRAM
Memory slots4x DIMM
Maximum internal memory32 GB
ECCcheckmark
Memory clock speed1600 MHz
Memory channelsDual-channel
Memory layout (slots x size)2 x 4 GB
Internal memory8 GB
Ports & interfaces
PS/2 ports quantity2
Line-incheckmark
Line-outcheckmark
USB 2.0 ports quantity6
Ethernet LAN (RJ-45) ports1
Headphone outputs1
Microphone incheckmark
DVI portcross
HDMI ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Weight & dimensions
Weight8.8 kg
Height399 mm
Width170 mm
Depth442 mm
Energy management
Power supply400 W
Networking
Cabling technology10/100/1000Base-T(X)
Ethernet LANcheckmark
Wi-Ficross
Ethernet LAN data rates10,100,1000 Mbit/s
Storage
Drive capacity256 GB
Optical drive typeDVD Super Multi
Total storage capacity256 GB
Card reader integratedcheckmark
SSD interfaceSATA
Number of SSDs installed1
Storage mediaSSD
Operating system/software
Operating system installedWindows 7
Operating system architecture64-bit
Recovery operating systemWindows 8 Pro
Packaging content
Display includedcross
Mouse includedcross
Keyboard includedcross
Expansion slots
PCI slots1
PCI Express x4 (Gen 2.x) slots1
PCI Express x1 (Gen 2.x) slots2
PCI Express x16 (Gen 3.x) slots1
Other features
BD interface typeSATA
Optical drives quantity1
Design
Chassis typeMini Tower
Product colourBlack
Country of originChina
Number of 3.5" bays2
Number of 2.5" bays1
Graphics
On-board graphics card modelIntel® HD Graphics P4600
Discrete graphics card modelNot available
On-board graphics cardcheckmark
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1200 MHz
Number of displays supported (on-board graphics)3
On-board graphics card familycheckmark
Processor special features
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Processor codeSR14T
Intel® My WiFi Technology (Intel® MWT)cross
Intel® Identity Protection Technology (Intel® IPT)checkmark
Intel® Anti-Theft Technology (Intel® AT)checkmark
Intel® Hyper Threading Technology (Intel® HT Technology)checkmark
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video Technologycheckmark
Intel® InTru™ 3D Technologycheckmark
Intel® Wireless Display (Intel® WiDi)cross
Intel FDI Technologycheckmark
Intel® Clear Video HD Technology (Intel® CVT HD)checkmark
Intel Dual Display Capable Technologycheckmark
Intel® Insider™cross
Intel Fast Memory Accesscheckmark
Intel Flex Memory Accesscheckmark
Intel® Smart Cachecheckmark
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescheckmark
Intel Trusted Execution Technologycheckmark
Scalability1S
CPU configuration (max)1
Intel Enhanced Halt Statecheckmark
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)cross
Intel VT-x with Extended Page Tables (EPT)checkmark
Embedded options availablecross
Intel Demand Based Switchingcross
Intel Rapid Storage Technologycross
Graphics & IMC lithography22 nm
Intel TSX-NIcheckmark
Intel® Secure Keycheckmark
Thermal solution specificationPCG 2013D
Intel 64checkmark
Intel Stable Image Platform Program (SIPP)checkmark
Intel® OS Guardcheckmark
Intel Virtualization Technology for Directed I/O (VT-d)checkmark
Intel Clear Video Technologycross
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Virtualization Technology (VT-x)checkmark
Intel Stable Image Platform Program (SIPP) version1.00
Intel TSX-NI version1.00
Processor package size37.5 x 37.5 mm
Conflict-Free processorcross
Processor ARK ID75462
Performance
Motherboard chipsetIntel® C226
Audio systemHD
Product typeWorkstation
EAN0888182045138
Warranty1 year
Source: Icecat.biz

Affordable performance and flexibility, re-defined. Create a totally immersive work environment for those who demand reliability and performance on a budget. Designed for heavy 24x7x365 workloads, the HP Z230 delivers next-generation processor and graphics technologies in a redesigned, compact yet impressively expandable tower.

Features

Windows 8 Pro or other operating systems available

Rock solid reliability, affordably priced
- Designed for heavy 24x7x365 workloads. The affordable HP Z230 Tower Workstation handles the demanding workloads of business applications.
- Gain peace of mind from our extreme test and validation processes with workstations designed for always-on environments.
- Control your environmental impact better than ever1 while lowering your total cost of ownership with a 92% efficient power supply and enhanced system reliability.
- Work smarter with your software tools. This HP workstation has earned a wide range of ISV certifications to deliver better, smarter performance.

Power for now, room to grow
- Grow along with your business. The HP Z230 Tower Workstation is designed to scale and expand, so you can add more storage and connectivity when you need it.
- Complete computing power in a new compact design. HP’s redesigned and more compact workstation is robust and flexible, while freeing up more space for work.
- Spend less time waiting. Speed up data transfers with six available drive bays including a 6,3 cm (2.5'') HD bay for high speed solid state drives.
- Boost your storage performance with RAID, solid state drives, or get the best of both worlds by combining large hard drives with an optional solid state drive as a cache device.
- Optimize this workstation for peak performance. HP Performance Advisor helps you easily configure your system with the best settings designed for specific applications.

Totally immersive. Perfectly productive.
- Power to spare—and share. The latest Intel® Xeon® processors and rich graphics keep up with your work. Plug in and work on up to six displays.
- Enjoy the latest in performance and energy efficiency from Intel’s next generation processor architecture.
- Keep more work front-and-center with support for up to six monitors. Choose between cost-effective integrated graphics and powerful 2D or 3D discrete graphics choices.
- Easily connect your peripherals and devices using the four PCIe slots, one PCI input/output slot, ten external USB ports and the fast charging USB port.
- With HP RGS you can take your graphics intensive workstation applications wherever you go. Collaborate with colleagues around the office or around the world, in real time.
