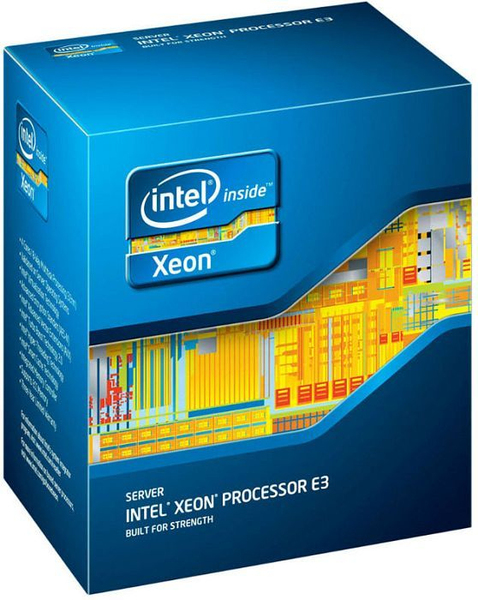

INTEL Xeon E3-1231V3 3,4GHz LGA1150 8MB Cache Quad Core Boxed CPU
This product is end of life or currently not available.
Technical details | |
Supported memory types | DDR3 |
Product type | Processor |
Processor cache | 8192 KB |
Status | Discontinued |
Launch date | Q2'14 |
Product name | Intel Xeon E3-1231 v3 (8M Cache, 3.40 GHz) |
Born on date | Q2'14 |
Bus type units | GT/s |
Bus bandwidth | 5 |
Maximum memory | 32 GB |
Processor brand name | Intel Xeon v2 |
Last change | 63903513 |
Product family | Intel Xeon Processor E3 v3 Family |
Processor | |
Processor model | E3-1231V3 |
Processor manufacturer | Intel |
Processor lithography | 22 nm |
Processor family | Intel Xeon |
Box | |
Processor socket | LGA 1150 |
Stepping | C0 |
Processor cores | 4 |
System bus rate | 5 GT/s |
Processor threads | 8 |
Processor operating modes | 64-bit |
Processor boost frequency | 3.8 GHz |
Component for | Server/workstation |
Processor cache | 8 MB |
Bus type | DMI2 |
Thermal Design Power (TDP) | 80 W |
Processor codename | Haswell |
Processor cache type | Smart Cache |
Processor series | Intel Xeon E3-1200 v3 |
Memory bandwidth supported by processor (max) | 25.6 GB/s |
Processor ARK ID | 80910 |
Cooler included | |
Memory | |
ECC | |
Memory channels | Dual-channel |
Maximum internal memory supported by processor | 32 GB |
Memory types supported by processor | DDR3-SDRAM,DDR3L-SDRAM |
Memory clock speeds supported by processor | 1333,1600 MHz |
Weight & dimensions | |
Processor package size | 37.5 x 37.5 mm |
Packaging data | |
Package weight | 373 g |
Package depth | 116 mm |
Package height | 101 mm |
Package width | 70 mm |
Package type | Retail box |
Other features | |
Maximum internal memory | 32 GB |
Intel® Virtualization Technology (Intel® VT) | VT-d,VT-x |
Cache memory | 8 MB |
Graphics | |
On-board graphics card model | Not available |
On-board graphics card | |
Processor special features | |
Intel® My WiFi Technology (Intel® MWT) | |
Intel® Identity Protection Technology (Intel® IPT) | |
Intel® Anti-Theft Technology (Intel® AT) | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | 2.0 |
Intel Fast Memory Access | |
Intel Flex Memory Access | |
Intel® Smart Cache | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Intel Trusted Execution Technology | |
Intel I/O Acceleration Technology | |
Intel Enhanced Halt State | |
Intel VT-x with Extended Page Tables (EPT) | |
Intel TSX-NI | |
Intel® Secure Key | |
Intel 64 | |
Intel Stable Image Platform Program (SIPP) | |
Intel® OS Guard | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Identity Protection Technology version | 1.00 |
Intel Secure Key Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | |
Intel Stable Image Platform Program (SIPP) version | 1.00 |
Intel TSX-NI version | 1.00 |
Conflict-Free processor | |
Features | |
Supported instruction sets | SSE4.1,SSE4.2,AVX 2.0 |
PCI Express slots version | 3.0 |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Scalability | 1S |
CPU configuration (max) | 1 |
Embedded options available | |
Graphics & IMC lithography | 22 nm |
PCI Express configurations | 1x16,2x8,1x8+2x4 |
Thermal solution specification | PCG 2013D |
Maximum number of PCI Express lanes | 16 |
Market segment | Server |
EAN | 5032037061797 |
Warranty | 1 year |
Source: Icecat.biz |
High Performance
Accelerate your business growth with up to 44% better energy efficient performance than the first generation of Intel® Xeon® processor E3 1200 family-based servers.
Faster Access
A number of technologies have been added or upgraded to improve I/O bandwidth, gain faster access to commonly used programs and files, allow applications to run faster, increase data throughput, and improve the performance of disc-intensive retrieval applications.
Advanced Data and System Security
Built-in, advanced security features help you deflect catastrophic security breaches, and redundant storage capabilities protect your business data in the event of a hard drive failure.
24/7 Reliability
The Intel® Xeon® processor platform is built for all day, every day reliability. Centralized data backup and critical security updates further help reduce the risk of costly downtime.
Built to Scale
The Platform based on Intel® Xeon® processor E3-1200 v3 product family, which supports 18 I/O ports, gives you the reliability you need today with plenty of room to grow for tomorrow. Increase your storage and networking capacity seamlessly.
