This product is end of life or currently not available.
System requirements | |
Mac compatibility | ![]() |
Compatible operating systems | Mac OS 10.4+, Presentation Server 4.5, Terminal Service, Windows 7, Windows 7 x64, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64, Windows server 2003 R2, XenApp 5.0, XenApp 6.0 |
Windows operating systems supported | ![]() |
Mac operating systems supported | ![]() |
Ports & interfaces | |
Standard interfaces | Ethernet |
Weight & dimensions | |
Weight | 14.8 kg |
Height | 156 mm |
Width | 640 mm |
Depth | 468 mm |
Scanning | |
Optical scanning resolution | 600 x 600 DPI |
Colour scanning | ![]() |
Film scanning | ![]() |
Input colour depth | 16 bit |
Output colour depth | 48 bit |
Flatbed scan speed (b/w, A3) | 4 sec/page |
Energy management | |
Power consumption (typical) | 28.5 W |
Power supply type | AC |
Input voltage | 100-240 V |
Power consumption (standby) | 4.1 W |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 80% |
Storage temperature (T-T) | -25 - 60 °C |
Operating temperature (T-T) | 5 - 35 °C |
Storage relative humidity (H-H) | 10 - 85% |
Networking | |
Ethernet LAN | ![]() |
Paper handling | |
Legal | ![]() |
Letter | ![]() |
ISO A-series sizes (A0...A9) | A3, A4, A5, A6 |
ISO B-series sizes (B0...B9) | B4, B5, B6 |
Maximum ISO A-series paper size | A3 |
Packaging data | |
Package weight | 19 kg |
Package depth | 844 mm |
Package height | 635 mm |
Package width | 360 mm |
Quantity per pack | 1 pc(s) |
Packaging content | |
Bundled software | ABBYY FineReader Sprint 8.0 (MacOS), ABBYY FineReader Sprint 9.0 (Windows), Epson Document Capture Pro, Epson Document Capture Pro Server (on free download), EpsonNet Config, Epson Event Manager (Mac Only), Epson Scan |
Other features | |
Standard media sizes | A3, A4, A5, A6, B4, B5, B6, Letter, Legal, Executive |
Network ready | ![]() |
Box contents | Epson Network Interface Panel, Main unit, Power cable, Setup guide, Software (CD), Warranty document |
Design | |
Display | Y |
Scanner type | Flatbed scanner |
Product colour | White |
Built-in display | ![]() |
Performance | |
Scan file formats | JPG, PDF, TIFF |
Scan to | E-mail, FTP |
Features | |
Country of origin | China |
Logistics data | |
Products per pallet | 5 pc(s) |
Pallet gross width | 80 cm |
Pallet gross length | 120 cm |
Pallet gross height | 162.5 cm |
EAN | 8715946510828 |
Warranty | 1 year |
Source: Icecat.biz |

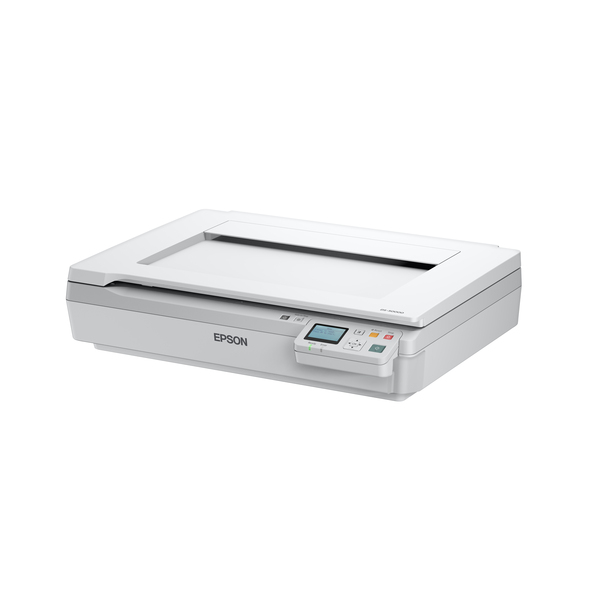

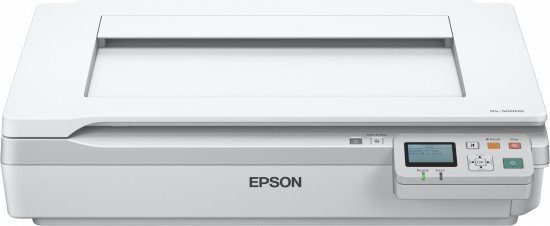

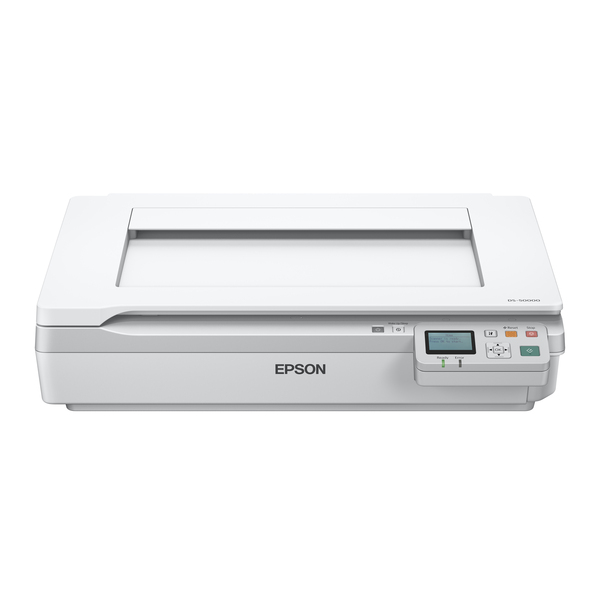

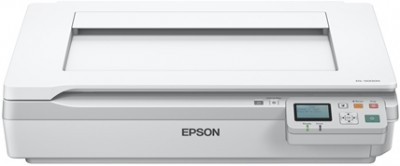

This device is specially designed to accommodate documents individually, and is ideal for users with specific capture needs, such as scanning bound materials and thick or fragile documents. This scanner can be easily integrated into vertical applications thanks to TWAIN, ISIS and WIA support, as well as Document Capture Pro connectors. High-quality scanning results are ensured by CCD technology, innovating imaging features, such as Book Spine Correction, and improved colour dropout/enhance powered by Epson Scan. In addition, Document Capture Pro makes it easy to treat scanned data before its conversion and distribution in virtually any document repository or document management system. This scanner and its features can be shared between multiple users with the built-in Network Interface Panel. Combined with Document Capture Pro solutions, the Network Interface Panel allows users to benefit from Push Scan features and customise ‘scan to’ job functions, such as ‘scan to email’ or ‘scan to Microsoft SharePoint’. These features enable complicated tasks to be carried out effortlessly, increasing users' acceptance and eliminating training requirements. Epson ReadyScan LED technology eradicates warm-up time, guarantees an absence of mercury, and lowers power consumption. These elements creates an environmentally friendly device.
A3 flatbed scanner - Scan documents up to A3 size
Quality results - High quality CCD technology
No warm-up time - ReadyScan LED for immediate scanning
Network-ready - Built-in Network Interface Panel
Push-Scan features - Simple one-touch scanning*1
