Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor model | E5506 |
| Motherboard chipset | Intel 5520 |
| Number of processors installed | 1 |
| Processor front side bus | 800 MHz |
| Processor lithography | 45 nm |
| Maximum number of SMP processors | 2 |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor socket | LGA 1366 |
| Stepping | D0 |
| Processor cores | 4 |
| Processor code | SLBF8 |
| CPU multiplier (bus/core ratio) | 16 |
| System bus rate | 4.8 GT/s |
| Processor threads | 4 |
| Processor operating modes | 64-bit |
| Processor cache | 4 MB |
| Execute Disable Bit |  |
| Idle States | |
| Thermal Monitoring Technologies |  |
| Physical Address Extension (PAE) | 40 bit |
| Tcase | 76 °C |
| FSB Parity | |
| Embedded options available | |
| Bus type | QPI |
| Number of QPI links | 2 |
| Processor frequency | 2.13 GHz |
| Thermal Design Power (TDP) | 80 W |
| Processor codename | Nehalem EP |
| Processor cache type | Smart Cache |
| Processor series | Intel Xeon 5500 series |
| Maximum internal memory supported by processor | 144 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800 MHz |
| Memory bandwidth supported by processor (max) | 19.2 GB/s |
| Memory channels supported by processor | Triple |
| ECC supported by processor | |
| Processor package size | 42.5 |
| Conflict-Free processor | |
| Processor system type | DP |
| Memory | |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 18 DIMM |
| Maximum internal memory | 192 GB |
| ECC | |
| Memory clock speed | 1333 MHz |
| Internal memory | 4 GB |
| Ports & interfaces | |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Weight & dimensions | |
| Weight | 16.8 kg |
| Height | 43.2 mm |
| Width | 448 mm |
| Depth | 682 mm |
| Energy management | |
| Power supply | 500 W |
| Redundant power supply (RPS) support | |
| Number of main power supplies | 1 |
| Networking | |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | |
| Storage | |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | |
| Design | |
| Chassis type | Rack (1U) |
| Processor special features | |
| Intel® My WiFi Technology (Intel® MWT) | |
| Intel® Anti-Theft Technology (Intel® AT) | |
| Intel® vPro™ Technology | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® Turbo Boost Technology | |
| Intel® Quick Sync Video Technology | |
| Intel® InTru™ 3D Technology | |
| Intel® Wireless Display (Intel® WiDi) | |
| Intel FDI Technology | |
| Intel® Clear Video HD Technology (Intel® CVT HD) | |
| Intel Dual Display Capable Technology | |
| Intel® Insider™ | |
| Intel Fast Memory Access | |
| Intel Flex Memory Access | |
| Intel® Smart Cache | |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Enhanced Intel SpeedStep Technology | |
| Intel Trusted Execution Technology | |
| CPU configuration (max) | 2 |
| Intel Enhanced Halt State | |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Intel Demand Based Switching | |
| Intel Rapid Storage Technology | |
| Intel 64 | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Clear Video Technology | |
| Intel Virtualization Technology (VT-x) | |
| Processor ARK ID | 37096 |
| Performance | |
| Compatible operating systems | Microsoft Windows Server Oracle Solaris Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) VMware Citrix Essentials for XenServer (Retail) |
| Operating system installed | |
| EAN | |
| Warranty | 1 year |
| Source: Icecat.biz | |

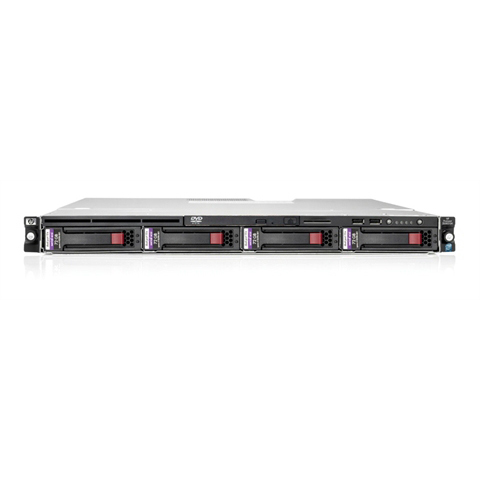

The HP ProLiant DL160 G6 is a high performance, low cost, ultra-dense rack server designed for memory intensive High Performance Computing (HPC) environments, web serving and memory intensive applications.
Easy to Own
• Affordable pricing for a well-featured dual processor system
Right-Sized Solution
• Choice of the latest 4 and 6 core Intel Xeon Processors
Support
• Global server support network to assist you with setup, installation and to provide reliable after sales support when you need it from a single point of contact
Energy Efficiency Leadership
• Introducing up to 94% efficiency power supply. Delivering the highest efficiency in the industry, as seen by meeting Climate Savers Computing Gold, 80PLUS Gold and setting the standards for Energy Star for Servers compliance.
Easy to Own
• Affordable pricing for a well-featured dual processor system
Right-Sized Solution
• Choice of the latest 4 and 6 core Intel Xeon Processors
Support
• Global server support network to assist you with setup, installation and to provide reliable after sales support when you need it from a single point of contact
Energy Efficiency Leadership
• Introducing up to 94% efficiency power supply. Delivering the highest efficiency in the industry, as seen by meeting Climate Savers Computing Gold, 80PLUS Gold and setting the standards for Energy Star for Servers compliance.
