Key Specifications
Choose one or multiple features to search for items that have the same specifications.Weight & dimensions | |
Height | 25 mm |
Width | 120 mm |
Depth | 120 mm |
Energy management | |
Power consumption (typical) | 1.08 W |
Maximum current | 0.09 A |
Voltage | 12 V |
Packaging content | |

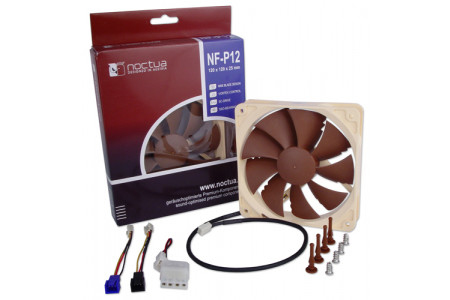

Cables included | Fan |
Package type | Hanging box |
Number of screws | 4 |
Screws included | |
Other features | |
Speed detection | |
Mean time to failure (MTTF) | 150000 h |
Design | |
Material | Thermoplastic |
Product colour | Beige, Brown |
Number of fans | 1 fan(s) |
Fan connector | 3-pin |
Performance | |
Type | Fan |
Airflow | 92.3 m³/h |
Fan diameter | 12 cm |
Suitable location | Processor |
Minimum air pressure | 1.21 mmH2O |
Maximum air pressure | 1.68 mmH2O |
Noise level (low speed) | 12.7 dB |
Noise level (high speed) | 19.8 dB |
Rotational speed (max) | 1300 RPM |
Rotational speed (min) | 900 RPM |
Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
Rotational speed with LNA (max) | 1100 RPM |
Airflow with LNA (max) | 78.5 m³/h |
Noise level with LNA (max) | 16.9 dB |
EAN | 4716123312666 |
Warranty | 1 year |
Source: Icecat.biz |
The NF-P12 has been specifically developed for applications such as CPU coolers that demand superior pressure and airflow performance. Thanks to psychoacoustic optimizations like the Vortex-Control Notches, the new SCD drive system and Noctua's premium-grade SSO-Bearing, the NF-P12 achieves exceptional quietness and long-term stability.
Pressure-optimised Nine-Blade Design
Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P12 provides superior pressure and airflow performance.
Vortex-Control Notches
Psychoacoustic optimizations like the staggered make the NF-P12 surprisingly quiet.
Smooth Commutation Drive
The NF-P12's new drive system reduces torque variations and thereby ensures improved running smoothness.
Self-stabilizing oil-pressure bearing
Noctua's well proven SSO-Bearing technology guarantees supremely quiet operation and exceptional long-term stability.
