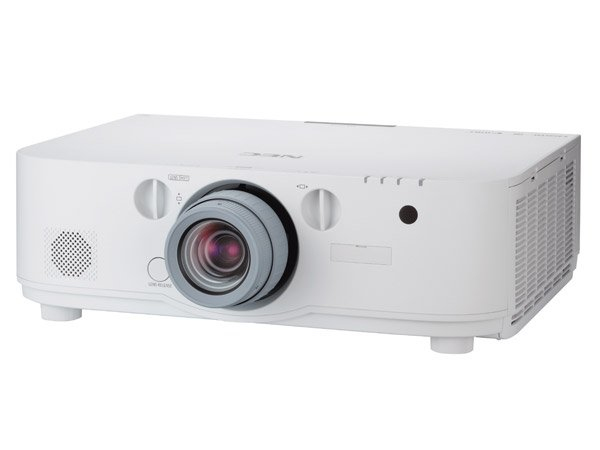

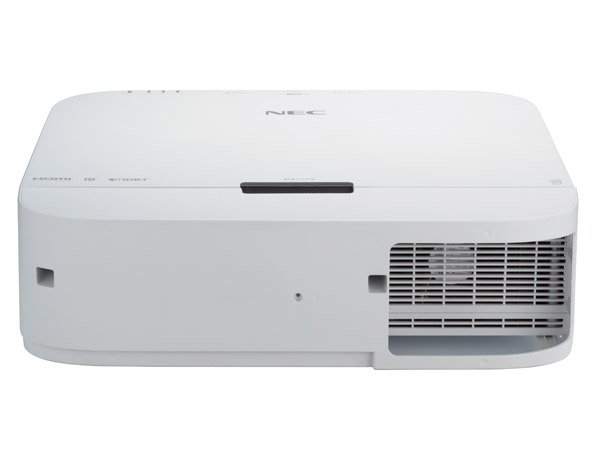

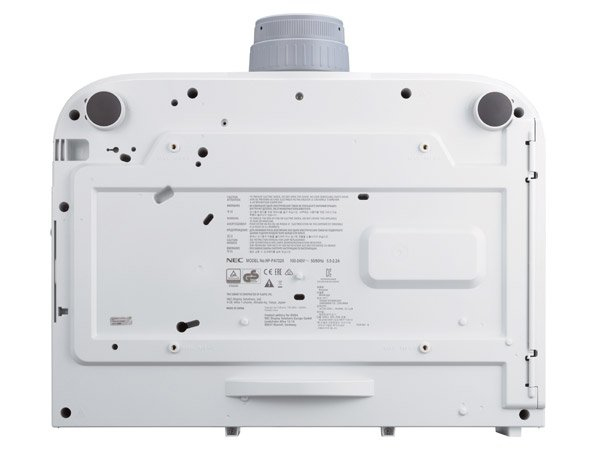

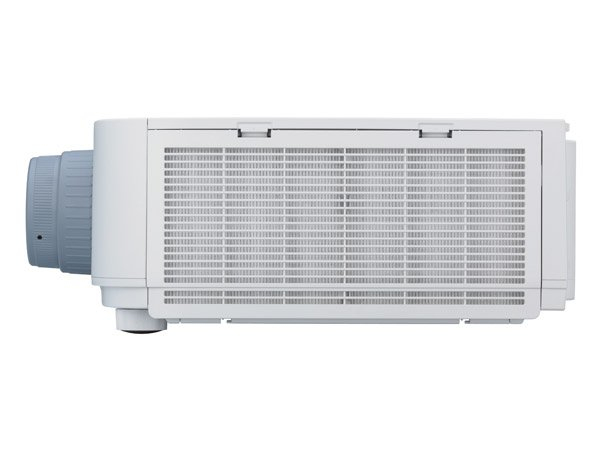

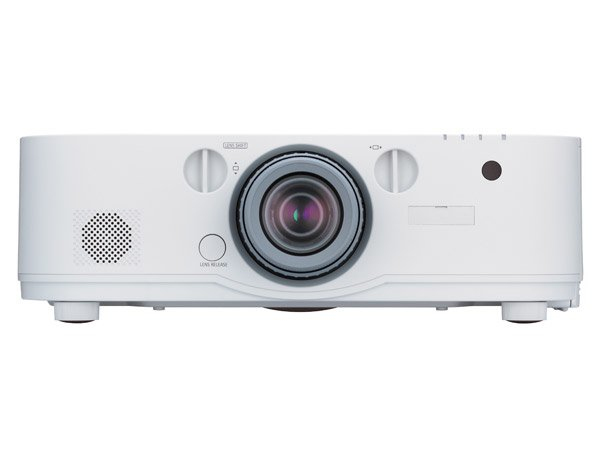

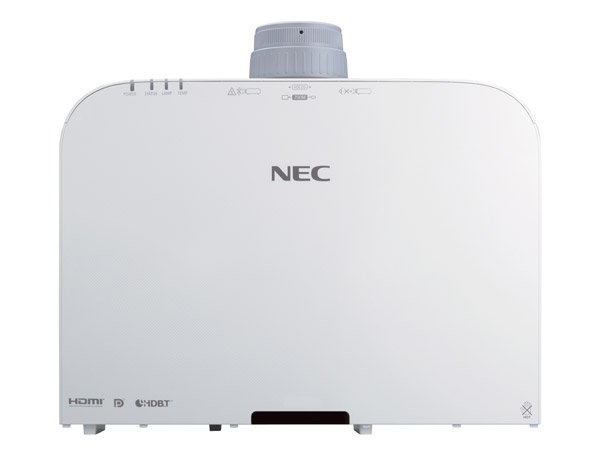

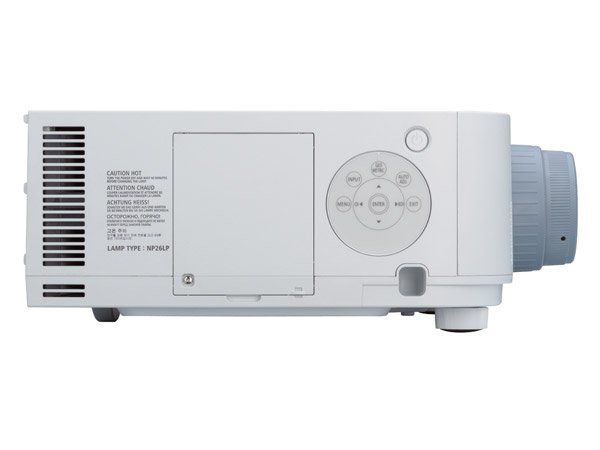

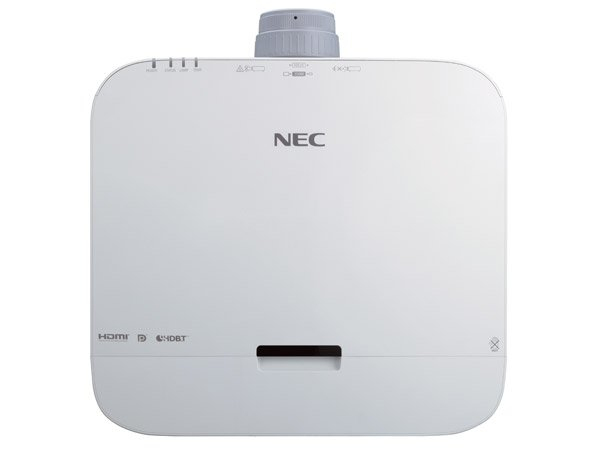

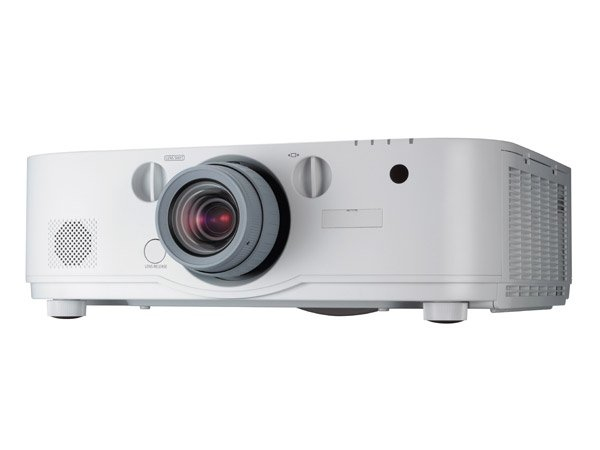

PA671W Projector - WXGA

Manufacturer: NEC
ID: 60003660
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Display
Built-in displaycross

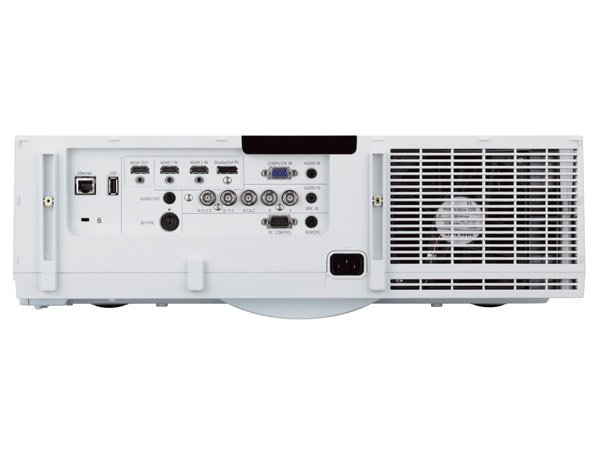

Ports & interfaces
Serial interface typeRS-232
USB connector typeUSB Type-A
USB 2.0 ports quantity1
Headphone outputs2
Microphone incheckmark
DC-in jackcross
DVI portcross
CardBus PCMCIA slot typecross
VGA (D-Sub) ports quantity1
S-Video inputs quantity1
PC Audio incheckmark
AC (power) incheckmark
HDMI ports quantity3
DisplayPorts quantity1
BNC input ports5
Lens system
Zoom capabilitycheckmark
FocusManual
Zoom typeManual
Number of optional lenses supported6
Weight & dimensions
Weight8.4 kg
Height142 mm
Width499 mm
Depth359 mm
Energy management
Power consumption (typical)460 W
Power sourceAC
Power consumption (PowerSave)4.9 W
Power consumption (standby)0.16 W
USB poweredcross
Power consumption (economy mode)362 W
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Networking
Ethernet LANcheckmark
Ethernet LAN (RJ-45) ports1
Projector
Contrast ratio (typical)6000:1
Horizontal scan range15 - 153 kHz
Vertical scan range24 - 120 Hz
Projection distance0.7 - 76.4 m
Projection technology3LCD
Projector brightness6700 ANSI lumens
Screen size compatibility762 - 12700 mm (30 - 500")
Keystone correction, vertical-40 - 40°
Keystone correction, horizontal-40 - 40°
Projector native resolutionWXGA (1280x800)
Video
Analog signal format systemNTSC,NTSC 4.43,PAL,PAL 60,PAL M,PAL N,SECAM
Full HDcheckmark
Supported graphics resolutions2048 x 1080,4096 x 2160,1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),640 x 480 (VGA)
Supported video modes1080i,1080p,480i,480p,576i,576p,720p
3Dcheckmark
Storage
Optical disc player typeNot included
Card reader integratedcross
Packaging content

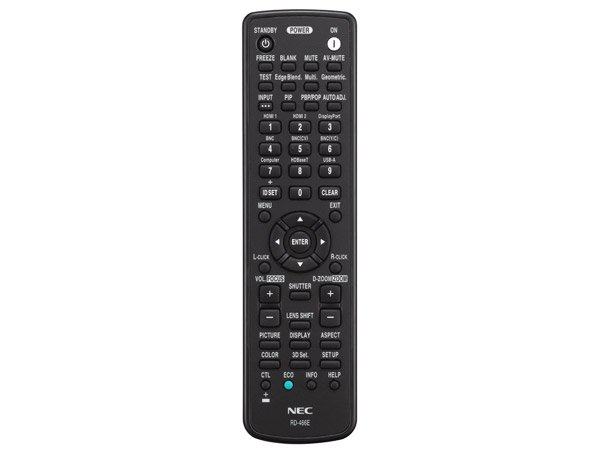

Remote control includedcheckmark
Cables includedAC
Remote control typeIR
Manualcheckmark
Quick start guidecheckmark
Other features
RS-232 ports1
Maximum digital resolution4096 x 2160 pixels
Design
Cable lock slotcheckmark
LED indicatorscheckmark
Product colourWhite
PlacementDesktop
Product typeLarge venue projector
Cable lock slot typeKensington
Features
CertificationCE, ErP, TÜV GS
Noise level39 dB
On Screen Display (OSD)checkmark
HDCPcheckmark
Noise level (economic mode)33 dB
Password protectioncheckmark
Multimedia
Number of built-in speakers1
RMS rated power10 W
Built-in speaker(s)checkmark
Light source
Lamp typeUHP
Lamps quantity1 lamp(s)
Lamp power (economic mode)264 W
EAN5028695610590
Warranty3 years
Source: Icecat.biz
Delivering many unique features, NEC’s new PA Series is the world’s first projector range to offer a 4K interface for multi-screen display capability. Outstanding picture quality is guaranteed with NEC’s 3rd generation Sweetvision®, high brightness levels and NEC’s unique scaler chip.

The new PA671W offers rich connectivity with a wide range of inputs and unrivalled installation capability making it ideal for corporates, higher education, museums and signage applications in large rooms and auditoriums.

BENEFITS

- Easy installation - selection of wide zoom bayonet lenses, wide vertical and horizontal lens shift and control code emulation guarantees hassle-free installation and replacement of old installation projectors.
- Easy way to a big picture - up to 4K interface, HDMI-out signal loop through, built-in signal splitter and edge blending capability enables large presentation pictures without any external devices. PiP function allows additional sources to be displayed.
- Flexible wireless content transmission - easy network connection for wireless transmission of PC, iOS (iPhone/iPad) or Android content with free software Apps.
- Cost Saving Device Management - save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.
- Very low cost of ownership - long lamp life of up to 4000 hours, inorganic long life panels, maintenance free filters and standby power of just 0.15W.
- Widest application support - portrait mode projection, 360 degree free tilt installation, unique geometric adjustment and 3D support offers unrivalled installation capability.
- Outstanding Picture Quality - whole new visualisation experience with high brightness, up to 4K input signal and unique picture & colour processing technology based on the latest NEC scaler chip.
- Special Characteristics - Digital 3D Reform™; 4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM Simulation; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Multi-Screen compensation mode; NaViSet Administrator 2; OSD with 27 languages; Optional User Logo; PIP/Side by Side, HDMI - Input; PJ LINK; Password Security System; Plug&Play W-LAN Option; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control; Manual Wall Color Correction; Less than 0.16W Stand-By power; Intelligent Power Management
