Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Technical details | |
Form factor | SSI ATX 12" X 9.6" |
USB version | 2.0 |
Intel Rapid Storage Technology | |

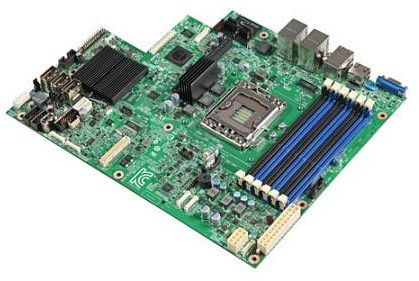

Packaging content | (1) Intel Server Board S1400EP4, (2) SATA cables, (1) DVD contains Intel Multi-Server Manager Software and Intel Deployment Assistant. Note: the OEM 10 Pack does not ship with included items. |
Halogen free | |
Thermal Design Power (TDP) | 95 W |
USB ports quantity | 6 |
Product type | 12 |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Clear Video Technology | |
Status | Launched |
Physical Address Extension (PAE) | 46 bit |
Maximum internal memory supported by processor | 96 GB |
Memory bandwidth supported by processor (max) | 38.4 GB/s |
ECC supported by processor | |
Total number of SATA connectors | 6 |
Processor | |
Processor manufacturer | Intel |
Processor socket | LGA 1356 |
Thermal power | 95 W |
Intel Xeon series | E5-2400 |
Number of processors supported | 1 |
Supported QPI | 6.4,7.2,8 GT/s |
Processor number of cores supported | 4, 6, 8 |
Lithography | 32 nm |
CPU configuration (max) | 1 |
Number of QPI links | 1 |
Memory | |
Memory slots | 6 |
Maximum internal memory | 96 GB |
ECC | |
Number of DIMM slots | 6 |
Supported memory clock speeds | 1066,1333,1600 MHz |
Supported memory types | DDR3 |
Memory channels | Triple |
Supported RDIMM clock speeds | 1066,1333,1600 MHz |
Supported UDIMM clock speeds | 1066,1333 MHz |
Maximum UDIMM memory | 96 GB |
Maximum RDIMM memory | 96 GB |
Number of memory slots | 6 |
Networking | |
Ethernet LAN | |
Wi-Fi | |
Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
Internal I/O | |
USB 2.0 connectors | 2 |
Integrated SAS ports | 8 |
Back panel I/O ports | |
Serial ports quantity | 2 |
USB 2.0 ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 4 |
VGA (D-Sub) ports quantity | 1 |
Storage controllers | |
HDD interface | Serial ATA, Serial ATA II, Serial Attached SCSI (SAS) |
RAID levels | 0, 1, 5, 10 |
Certificates | |
Energy Star certified | |
Packaging content | |
Quick installation guide | |
Expansion slots | |
PCI slots | 1 |
PCI Express x8 slots | 3 |
PCI Express slots version | 2.0, 3.0 |
PCI Express x8 (Gen 3.x) slots | 1 |
Other features | |
Quantity | 1 |
On-site support | |
Design | |
Chassis type | Rack |
Component for | Server |
Product family | Single-socket server board |
Product series | Intel S1400SP |
Product codename | Salmon Pass |
Graphics | |
On-board graphics card | |
Discrete graphics support | |
Processor special features | |
Intel® Anti-Theft Technology (Intel® AT) | |
Intel® vPro™ Technology | |
Intel® Clear Video HD Technology (Intel® CVT HD) | |
Intel Dual Display Capable Technology | |
Intel Fast Memory Access | |
Intel Flex Memory Access | |
Intel® AES New Instructions (Intel® AES-NI) | |
Intel® Virtualization Technology (Intel® VT) | VT-d |
Intel Trusted Execution Technology | |
Intel I/O Acceleration Technology | |
Intel Advanced Management Technology | |
Intel® Active Management Technology (Intel® AMT) | |
Intel AC'97 technology | |
Intel Client Initiated Remote Access (CIRA) technology | |
Intel Intelligent Power Node Manager | |
Intel® Matrix Storage Technology (Intel® MST) | |
Intel Remote Wake technology | |
Intel Remote PC Assist Technology (RPAT) | |
Intel Quiet System Technology (QST) | |
Intel Quick Resume Technology | |
Intel® High Definition Audio (Intel® HD Audio) | |
Intel Server Management Software | |
Intel Remote Management Module Support | Y |
Intel Server Customization Technology | |
Intel Build Assurance Technology | |
Intel Quiet Thermal Technology | |
Intel Efficient Power Technology | |
Intel Rapid Storage Technology enterprise | |
Performance | |
Trusted Platform Module (TPM) | |
Memory bandwidth (max) | 307.2 GB/s |
InfiniBand | |
Integrated systems available | |
Physical Address Extension (PAE) | |
Embedded options available | |
Rack-Friendly board | |
Trusted Platform Module (TPM) version | 1.2 |
Embedded USB (eUSB) SSD option | |
Integrated BMC with IPMI | |
Motherboard ARK ID | 61044 |
Features | |
Motherboard form factor | ATX |
EAN | 675900018761 |
Warranty | 1 year |
Intel® Server Board S2600COE, bundled with Intel® Integrated RAID Module RMS25KB080 card (6Gb SAS), supporting two E5-2600 CPUs up to 150W and 16 DIMMs with four 1Gb Ethernet ports and Firewire.
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.
