Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Audio input | Y |
Audio output | Y |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Weight & dimensions | |
Weight | 9 kg |
Height | 450 mm |
Width | 230 mm |
Depth | 400 mm |
Storage | |
Card reader integrated | |
Supported HDD sizes | 2.5,3.5" |
Packaging data | |
Package weight | 10 kg |
Package depth | 463 mm |
Package height | 540 mm |
Package width | 308 mm |
Cooling | |
Front fans installed | 1x 200 mm |
Number of front fans supported (max) | 2 |
Front fans diameters supported | 120,140,200 mm |
Rear fans diameters supported | 120,140 mm |
Top fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Number of top fans supported (max) | 2 |
Rear fans installed | 1x 140 mm |
Liquid cooling capability | |
Design | |
Type | PC |
Form factor | Micro Tower |
Material | Aluminum, Steel |
LED indicators | Power |
Product colour | Black |
Built-in speaker(s) | |
Cable management | |
Supported motherboard form factors | Mini-ITX,uATX |
Number of 5.25" bays | 1 |
Number of 3.5" bays | 3 |
Side window | |
Number of internal 3.5" bays | 3 |
Maximum CPU cooler height | 19.2 cm |
Maximum graphics card length | 31.8 cm |
Number of expansion slots | 4 |
Maximum PSU length | 21.6 cm |
Number of 2.5" bays | 5 |
Number of external 5.25" bays | 1 |
Power supply | |
Power supply included | |
EAN | 886523300281 |
Source: Icecat.biz |
The Enthoo EVOLV, a mATX/mITX chassis, sports a beautiful all aluminum exterior. The EVOLV’s unparalleled design features an all new tool free release system for the outer panels. The EVOLV supports many high end PC components while maintaining a minimalist design.
Features:
Enthoo Evolv includes 1 x 200mm fan in front and 1 x 140mm fan in the rear. Ability to upgrade to additional fans is possible. All fans included are Phanteks’ new redesigned and better performing SP series fans.
Appearance:
-Full aluminum exterior
-Available in: Satin Black / Glacier White
-Clean interior - Midplate hiding PSU cables and HDD’s
Cooling:
- Optimal airflow - Direct airflow to CPU / GPU
- Comes with 2 Phanteks premium fans
1x PH-F200SP in front (200mm)
1x PH-F140SP in rear (140mm)
-Phanteks’ PWM hub included
- 3 different installation areas for single or dual radiators
(120mm and 140mm form factor).
- Reservoir mounting points on the Side Bracket
- Pump Bracket with vibration dampers - Mounted on Side Bracket/ HDD base
Functionality:
- 1x Drop-N-Lock SSD brackets included
- Multifunctional Side Bracket (mounting for 2x SSD’s / 1x HDD)
- Removable HDD cage for installation of long PSU’s (>180mm) / waterpump

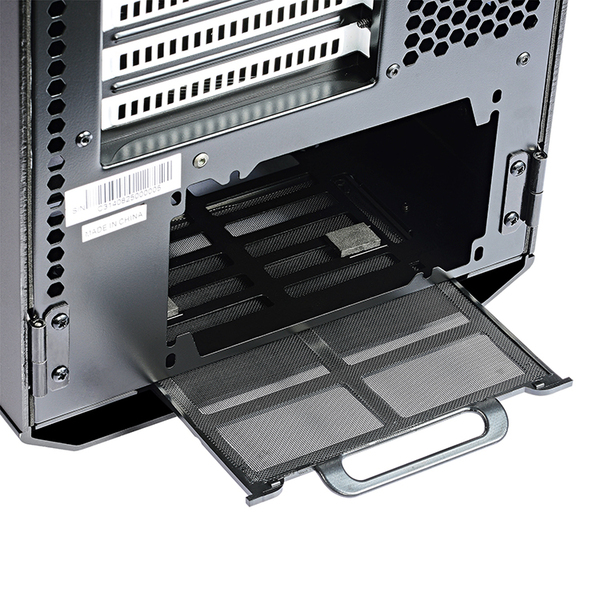

- Equiped with removable dustfilters (1x front, 1x bottom, top integrated)
- Clean cable management using Phanteks' preinstalled Hoop-N-Loop cable ties
- Quick release panels for easy acces to fans and dustfilters

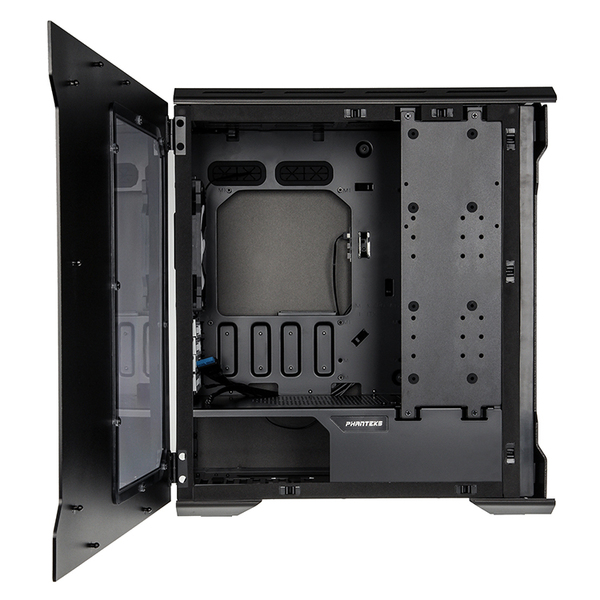

- Toolless sidepanel with swing door
