Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC, ST |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Power connector | DC-in jack |
| Weight & dimensions | |
| Weight | 380 g |
| Height | 30 mm |
| Width | 96 mm |
| Depth | 112 mm |
| Energy management | |
| Output voltage | 5 V |
| Output current | 2.5 A |
| Power consumption (max) | 6 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Networking | |
| Full duplex |  |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Auto MDI/MDI-X | |
| 10G support |  |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX |
| Cable types supported | Cat5 |
| Auto-negotiation | |
| Data transmission | |
| MAC address table | 1024 entries |
| Store-and-forward | |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packaging data | |
| Package weight | 540 g |
| AC adapter included | |
| Package depth | 250 mm |
| Package height | 55 mm |
| Package width | 140 mm |
| Rubber feet | |
| Certificates | |
| Certification | FCC Class B, CE |
| Packaging content | |
| Quick start guide | |
| Optical fiber | |
| Fiber type | Multi-mode |
| Fiber ethernet cabling technology | 100BASE-FX |
| Transmission distance (max) | 2 km |
| Design | |
| Rack mounting | |

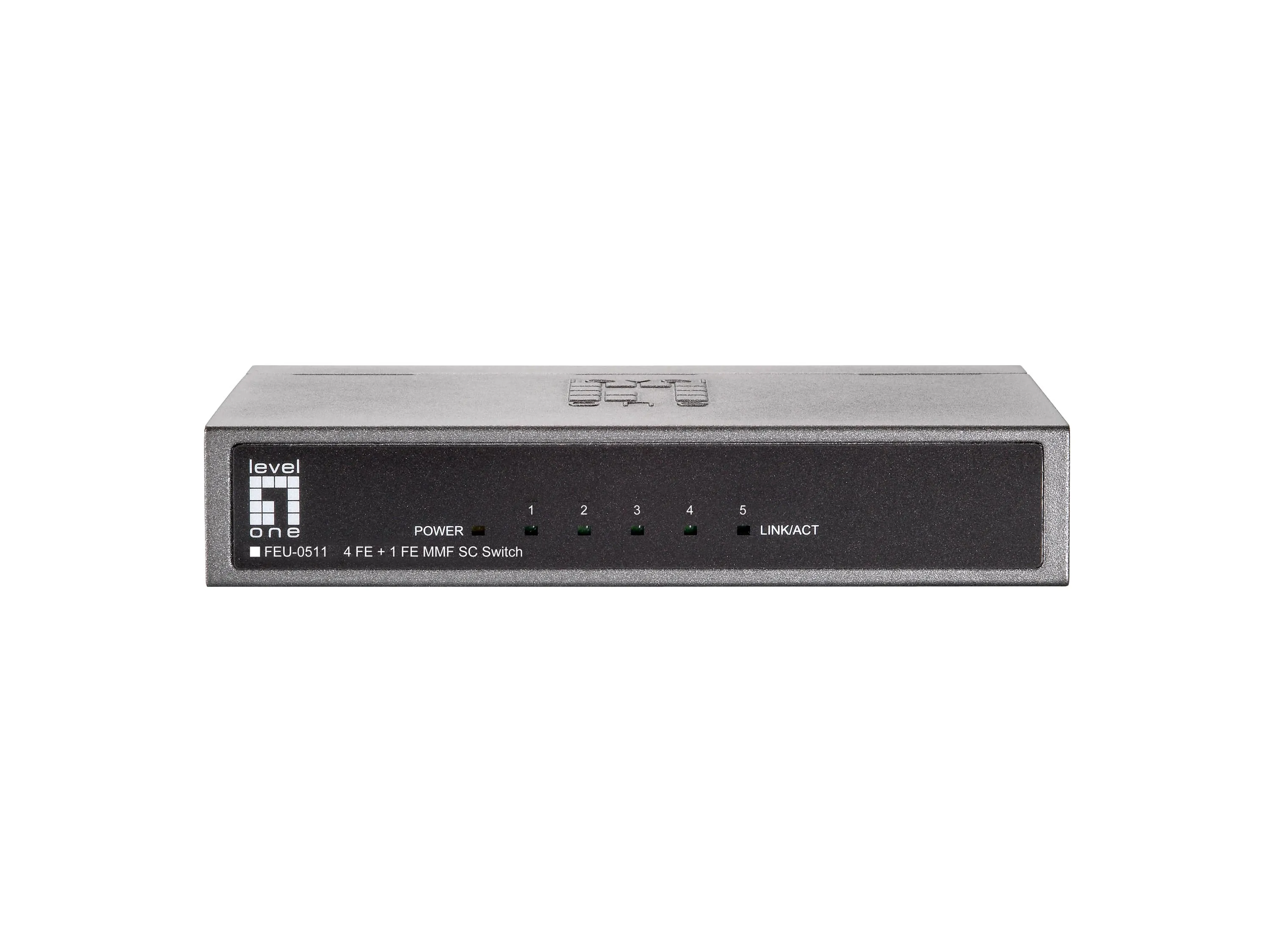

| LED indicators | Activity, Link, Power |
| Product colour | Black, Grey |
| Stackable | |
| Housing material | Metal |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Performance | |
| Plug and Play | |
| Maximum data transfer rate | 200 Mbit/s |
| Buffer size | 384 KB |
| Logistics data | |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
| EAN | 4015867174838 |
| Warranty | 2 years |
| Source: Icecat.biz | |

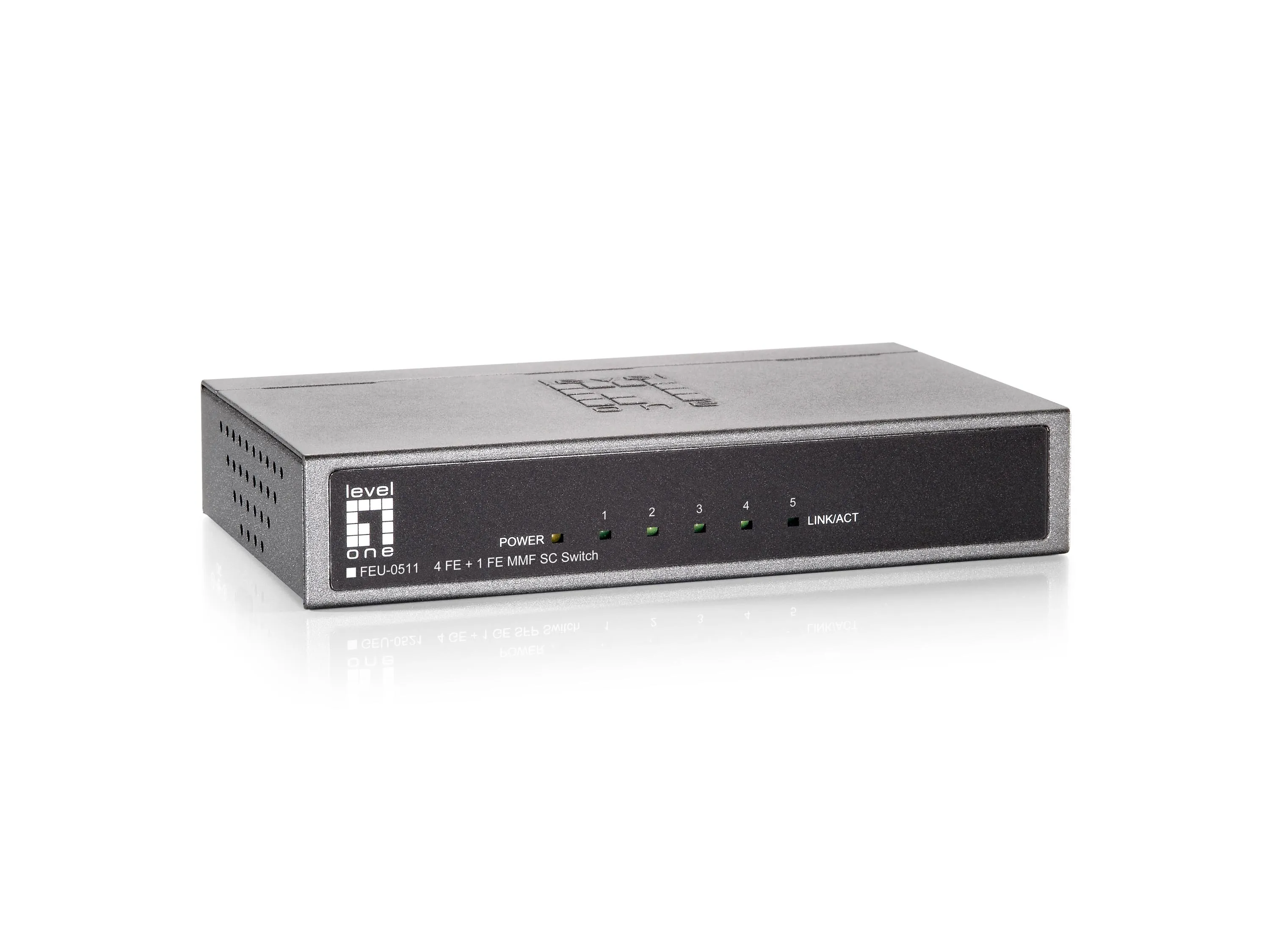

LevelOne FEU-0511 is 4-port 10/100Mbps + 1 100BaseFX Fast Ethernet Switch that is designed for small or medium network environment to strengthen its network connection. This product is compact in size, making it ideal for SMB users with limited space. It is a superb choice for expanding your network.
1-Port 100BaseFX (Multi-Mode, SC Connector)

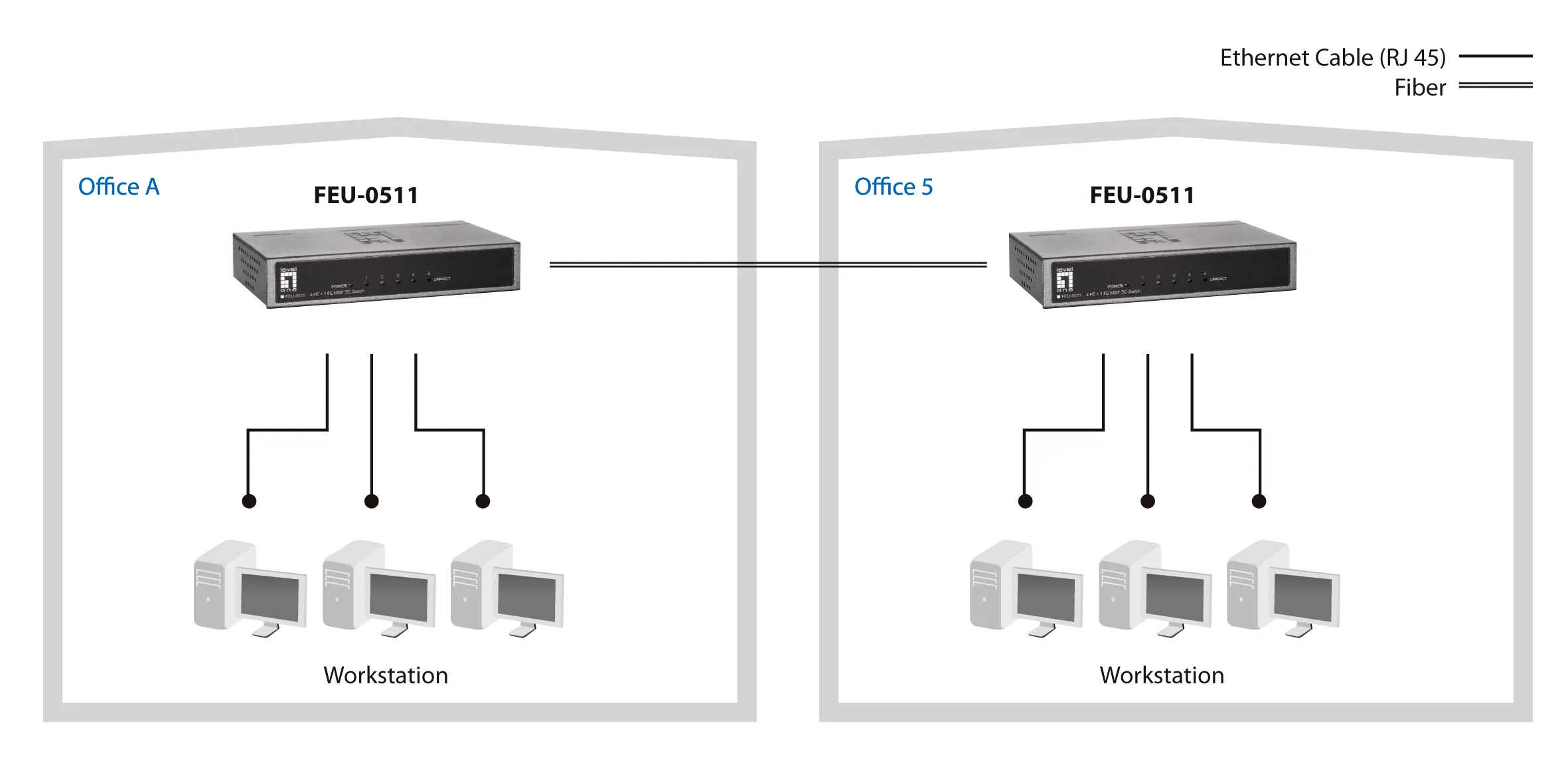

The fiber uplink can provide connectivity for a small group of users over a larger distance such as on a campus or between indoor classrooms.
Auto-MDI/MDI-X
Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.
Auto-Negotiation
Every port can automatically sense if the connected network devices are running at 10Mbps or 100Mbps and Half/Full-Duplex mode, and adjust accordingly.
Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.
Store-and-Forward
By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.

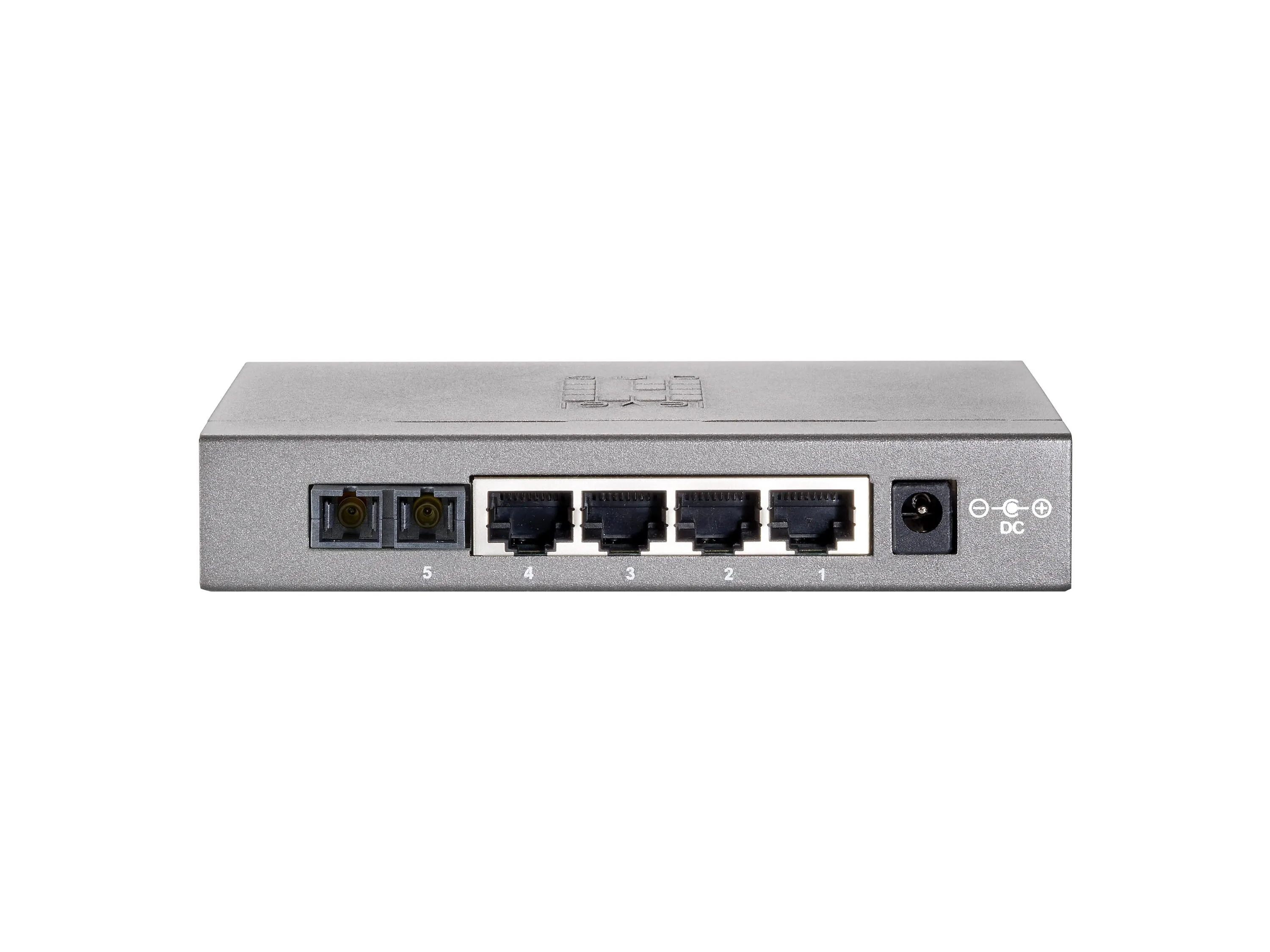

- Provides flexibility of 4 x 10/100BASE-TX ports
- 100Base-FX Multi-mode fiber for the link up to 2km
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

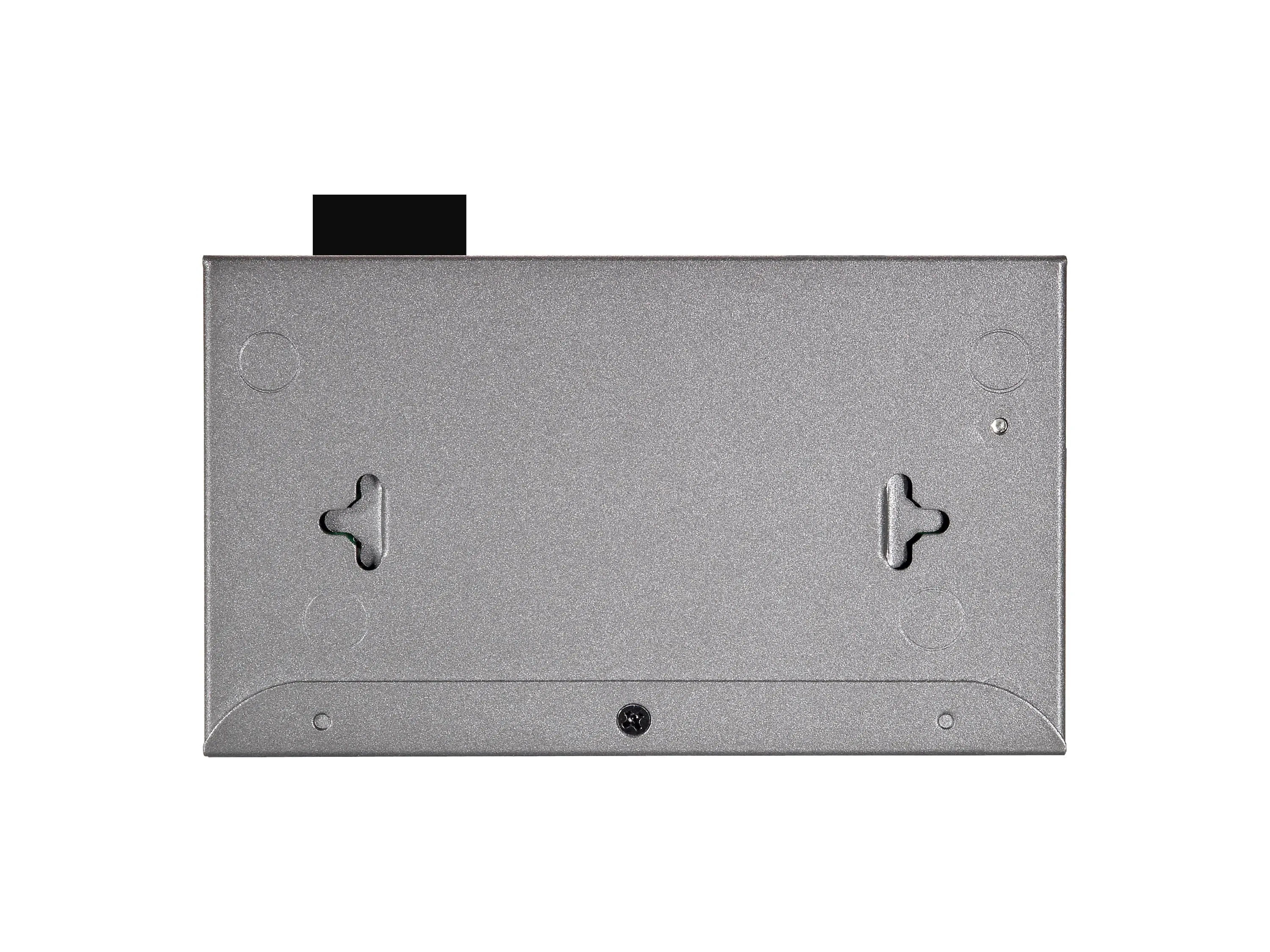

- Provides wall or desktop mounting
1-Port 100BaseFX (Multi-Mode, SC Connector)
The fiber uplink can provide connectivity for a small group of users over a larger distance such as on a campus or between indoor classrooms.
Auto-MDI/MDI-X
Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.
Auto-Negotiation
Every port can automatically sense if the connected network devices are running at 10Mbps or 100Mbps and Half/Full-Duplex mode, and adjust accordingly.
Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.
Store-and-Forward
By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.
- Provides flexibility of 4 x 10/100BASE-TX ports
- 100Base-FX Multi-mode fiber for the link up to 2km
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Provides wall or desktop mounting
