Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |

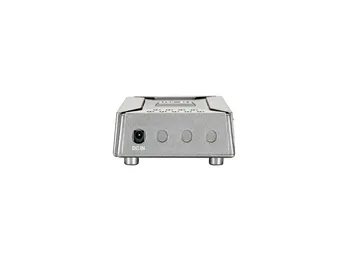

| Power connector | DC-in jack |
| Weight & dimensions | |
| Height | 30 mm |
| Width | 125 mm |
| Depth | 69 mm |
| Energy management | |
| Power consumption (typical) | 2.5 W |
| Output voltage | 5 V |
| Output current | 1 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Networking | |
| Full duplex |  |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Flow control support | |
| Auto MDI/MDI-X | |
| 10G support |  |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Auto-negotiation | |
| Data transmission | |
| MAC address table | 2048 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packaging data | |
| Package weight | 400 g |
| AC adapter included | |
| Package depth | 100 mm |
| Package height | 156 mm |
| Package width | 120 mm |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Management features | |
| Switch type | Unmanaged |
| Packaging content | |
| Quick start guide | |
| Design | |
| Rack mounting | |
| LED indicators | Activity, Link, Power |
| Product colour | Black, Grey |
| Stackable | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Performance | |
| Buffer size | 48 KB |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| EAN | 4015867109533 |
| Warranty | 2 years |
| Source: Icecat.biz | |
LevelOne’s FSW-0508TX 5-Port Fast Ethernet Switch combines efficient technology with a unique design. This switch is equipped with 5 10/100Mbps ports capable of reaching the highest bandwidths up to 200Mbps for each port to provide workstations with a congestion-free data pipe for simultaneous access to the server.

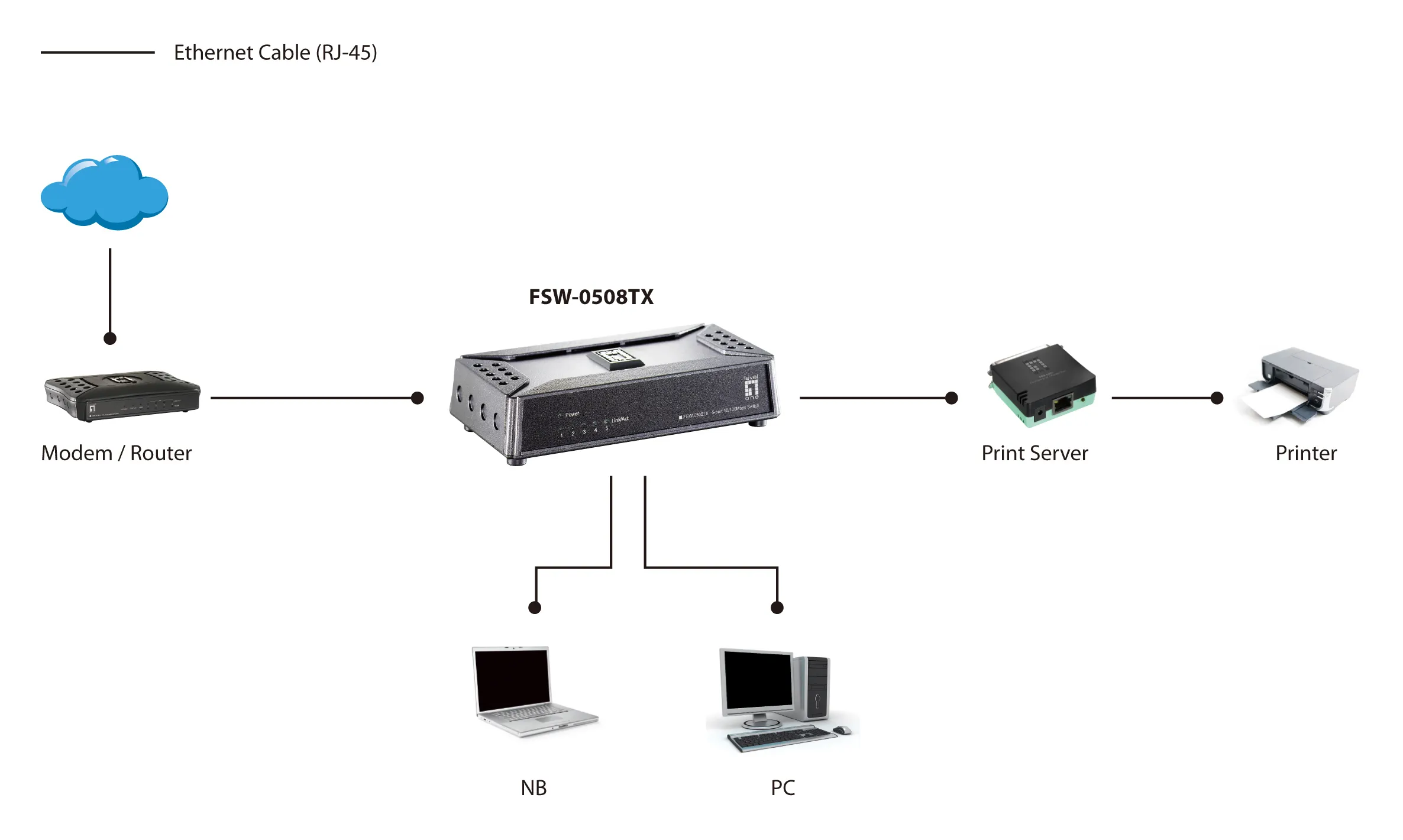

Each port of the FSW-0508TX supports an auto-negotiation function that can automatically set the best possible bandwidth when a connection is established with another network device. The store-and-forward switching mechanism ensures that no error packets occur and provide maximum efficiency and stability. With Auto-MDIX function, this switch is expandable by cascading two or more switches together by uplinking directly without cable selection hassle.
Its small and compact size is specially designed to fit in limited-space locations for SOHO or home usage. Users can immediately access any needed features simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.
- Provides flexibility of 5x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 2K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

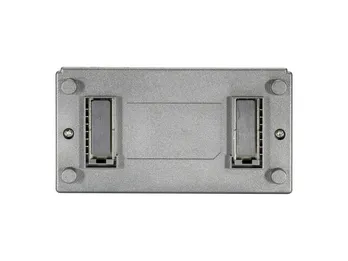

- Magnetic base for easy placement
- Compact, lightweight design
Each port of the FSW-0508TX supports an auto-negotiation function that can automatically set the best possible bandwidth when a connection is established with another network device. The store-and-forward switching mechanism ensures that no error packets occur and provide maximum efficiency and stability. With Auto-MDIX function, this switch is expandable by cascading two or more switches together by uplinking directly without cable selection hassle.
Its small and compact size is specially designed to fit in limited-space locations for SOHO or home usage. Users can immediately access any needed features simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.
- Provides flexibility of 5x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 2K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Magnetic base for easy placement
- Compact, lightweight design
