Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/Mini-USB |
| Basic switching RJ-45 Ethernet ports type | None |
| SFP+ module slots quantity | 48 |
| Power connector | AC-in jack |
| QSFP+ module slots quantity | 6 |
| Weight & dimensions | |
| Weight | 9.1 kg |
| Height | 44 mm |
| Width | 439 mm |
| Depth | 487 mm |
| Energy management | |
| Power consumption (typical) | 123 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support |  |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 240 W |
| Power supply included | |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Heat dissipation | 420 BTU/h |
| Protocols | |
| Management protocols | SNMP V1, V2, V3 |
| Routing protocols | BGP4, VRRP |
| Networking | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | |
| Link aggregation | |
| Number of VLANs | 4095 |
| VLAN support | |
| 10G support | |
| Data transmission | |
| MAC address table | 224000 entries |
| Packet buffer memory | 12.2 MB |
| Throughput | 1440000 Mpps |
| Number of static routes | 128 |
| Static route | |
| Security | |
| Security algorithms | SSH |
| Access Control List (ACL) | |
| IGMP snooping | |
| Password protection | |
| Management features | |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | |
| Switch type | Managed |
| Optical fiber | |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR, 40GBASE-LR4, 40GBASE-SR4 |
| Switching optical modules type | 40 Gigabit Ethernet |
| Design | |
| Certification | ROHS, UL60950-1, CAN/CSA 22.2 No.60950-1, TUV/GS to EN 60950-1, IEC60950-1, CNS 14336-1, Argentina Smark to IEC60950-1, GB4943.1-2011, EAC, NOM-019 |
| Rack mounting | |
| Electromagnetic compatibility | FCC 47CFR Part 15 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A, AS/NZS CISPR 22 Class A, CISPR 22 Class A, EN 55024, KC Class A, CE |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 4 fan(s) |
| Airflow direction | Back-to-front airflow |
| Performance | |
| Mean time between failures (MTBF) | 290023 h |
| Noise level | 72 dB |
| Multicast features | |
| Multicast support | |
| EAN | 889488024117 |
| Warranty | 1 year |
| Source: Icecat.biz | |
Highlights
- Optimized for applications requiring high bandwidth and low latency
- Create SDN with OpenFlow now and planned VXLAN support via software upgrade
- Support for 48 SFP+ ports with up to 72 10GbE SFP+ connections in a 1U form factor
Performance. Value.

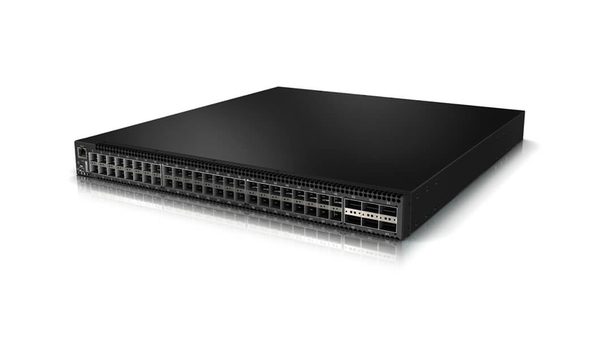

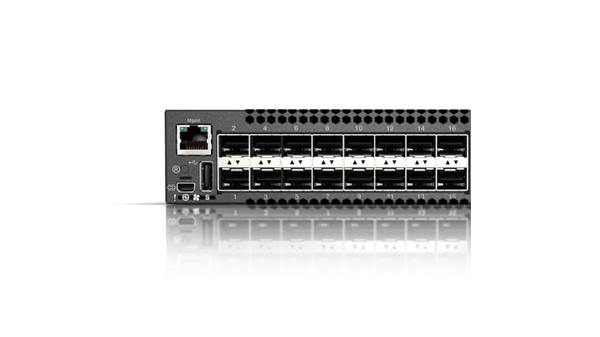

The feature-rich Lenovo RackSwitch G8272 includes 48 x SFP+ 10 Gigabit Ethernet (GbE) ports plus 6 x QSFP+ 40GbE ports in a flexible 1U switch. The SFP+ ports support SFP 1GbE if needed.

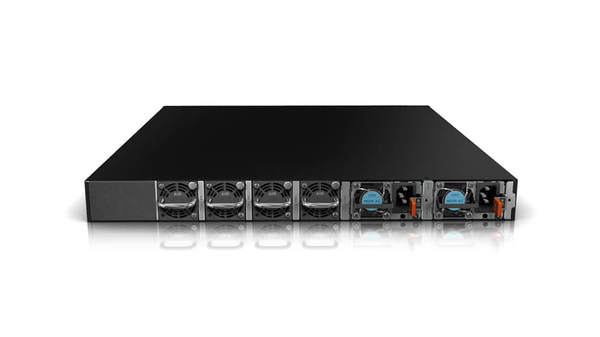

Using only 123W of power, the G8272 uses less power than comparable switches. Also, redundant power supplies and cooling fans come standard, adding to the reliability and efficiency.
Perfect for Cloud
The G8272 supports many value-added features for modern cloud deployments including unified fabric port (UFP) to help improve performance and availability when using virtual NICs. UFP allows a SFP+ 10GbE port to be carved into as many as 4 virtual ports with the throughput speed of each port controlled by the switch.
The G8272 supports OpenFlow which helps easily create software defined virtual networks (SDN) and enables a remote controller to modify the behavior of network devices.
Ethernet Efficiency
Take advantage of the economics and performance of lossless Ethernet, which can significantly improve performance, reliability and predictability. The G8272 can help your data center evolve to a higher level by helping you to consolidate server and storage networks into a single fabric. Converged enhanced Ethernet can help deliver value for your iSCSI, NAS and FCoE enterprise storage environments. You can achieve lower costs, simplify management, attain higher performance, improve bandwidth utilization, and gain the flexibility your business needs.
Why Lenovo?
Lenovo is the leading provider of x86 systems for the data center. The portfolio includes rack, tower, blade, dense and converged systems, and supports enterprise class performance, reliability and security. Lenovo also offers a full range of networking, storage, software and solutions, and comprehensive services supporting business needs throughout the IT lifecycle.
- Optimized for applications requiring high bandwidth and low latency
- Create SDN with OpenFlow now and planned VXLAN support via software upgrade
- Support for 48 SFP+ ports with up to 72 10GbE SFP+ connections in a 1U form factor
Performance. Value.
The feature-rich Lenovo RackSwitch G8272 includes 48 x SFP+ 10 Gigabit Ethernet (GbE) ports plus 6 x QSFP+ 40GbE ports in a flexible 1U switch. The SFP+ ports support SFP 1GbE if needed.
Using only 123W of power, the G8272 uses less power than comparable switches. Also, redundant power supplies and cooling fans come standard, adding to the reliability and efficiency.
Perfect for Cloud
The G8272 supports many value-added features for modern cloud deployments including unified fabric port (UFP) to help improve performance and availability when using virtual NICs. UFP allows a SFP+ 10GbE port to be carved into as many as 4 virtual ports with the throughput speed of each port controlled by the switch.
The G8272 supports OpenFlow which helps easily create software defined virtual networks (SDN) and enables a remote controller to modify the behavior of network devices.
Ethernet Efficiency
Take advantage of the economics and performance of lossless Ethernet, which can significantly improve performance, reliability and predictability. The G8272 can help your data center evolve to a higher level by helping you to consolidate server and storage networks into a single fabric. Converged enhanced Ethernet can help deliver value for your iSCSI, NAS and FCoE enterprise storage environments. You can achieve lower costs, simplify management, attain higher performance, improve bandwidth utilization, and gain the flexibility your business needs.
Why Lenovo?
Lenovo is the leading provider of x86 systems for the data center. The portfolio includes rack, tower, blade, dense and converged systems, and supports enterprise class performance, reliability and security. Lenovo also offers a full range of networking, storage, software and solutions, and comprehensive services supporting business needs throughout the IT lifecycle.
