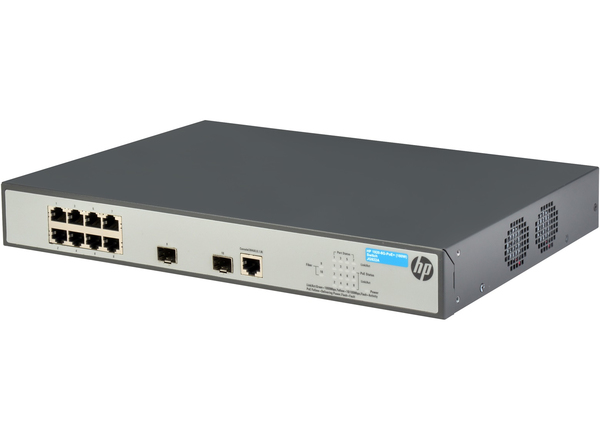

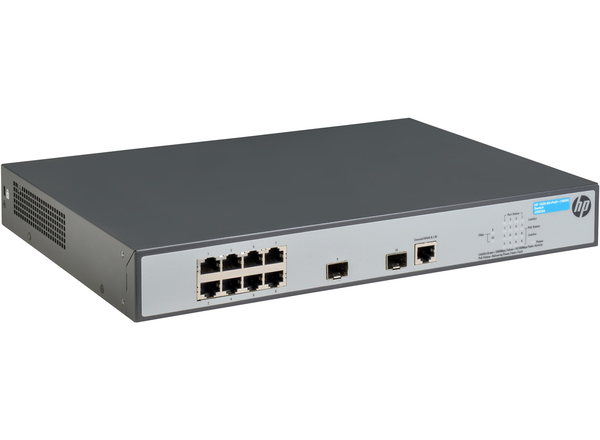

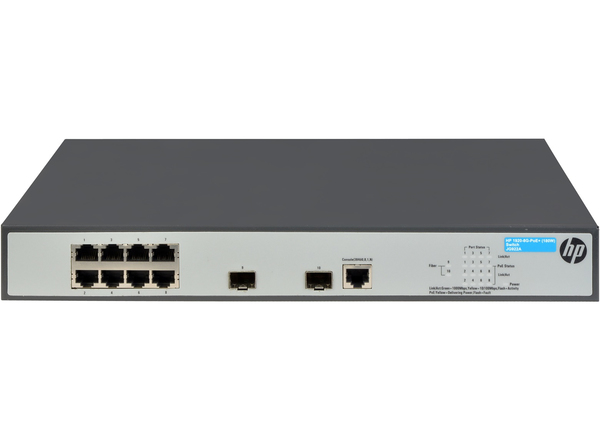

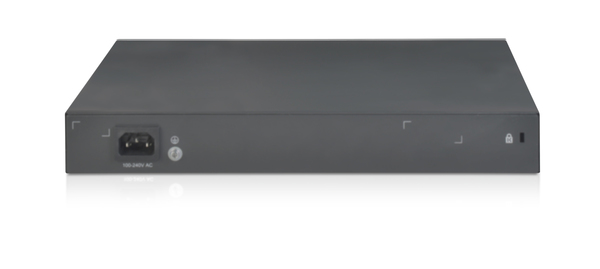

HPE 1920-8G-PoE+ 180W Switch

Manufacturer: HEWLETT-PACKARD
ID: JG922A#ABB
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Console portRJ-45
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Installed SFP modules quantity2
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8
SFP module slots quantity2
Weight & dimensions
Weight3.2 kg
Height4.4 cm
Width33 cm
Depth23 cm
Energy management
Power consumption (typical)235 W
AC input frequency50/60 Hz
AC input voltage100-250 V
Networking
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Flow control supportcheckmark
Port mirroringcheckmark
Link aggregationcheckmark
Broadcast storm controlcheckmark
Rate limitingcheckmark
DHCP clientcheckmark
IGMP snoopingcheckmark
Auto MDI/MDI-Xcheckmark
10G supportcross
Data transmission
MAC address table8192 entries
Switching capacity20 Gbit/s
Latency (10-100 Mbps)5 µs
Latency (1 Gbps)5 µs
Throughput14.8 Mpps
Security
Access Control List (ACL)checkmark
SSH/SSL supportcheckmark
Management features
Switch layerL3
Quality of Service (QoS) supportcheckmark
Web-based managementcheckmark
Switch typeManaged
Design
Rack mountingcheckmark
Form factor1U
Product colourGrey
Power over Ethernet (PoE)
Power over Ethernet (PoE)checkmark
Total Power over Ethernet (PoE) budget180 W
Performance
Processor frequency500 MHz
Internal memory128 MB
Flash memory32 MB
Memory typeSDRAM
Built-in processorMIPS
Packet buffer memory4.1 MB
EAN0888182476635
Warranty5 years
Source: Icecat.biz

The HP 1920 Switch Series, part of the HP OfficeConnect portfolio, is designed for smaller organizations dealing with bandwidth-demanding applications. The switches are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management.

The switches deliver advanced smart-managed fixed configuration Gigabit switches that build on the marketing-leading price/performance of the HP 1910 Switch Series. They feature a new 48-port PoE+ model, IPv6 support and advanced silicon technology.

Features

Simplifies Network Deployment and Management for Small Organizations
- The HP 1920 Switch Series, ideal for small organizations features easy-to-use, out of the box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased flexibility. It consists of nine rack-mountable models with internal power supplies including four non-Power over Ethernet (PoE) models: 8G-, 16G-, 24G- and 48G- port; five PoE+ models: (2) 8G-, (2) 24G- and 48G-port.
- These smart-managed switches use an intuitive Web management interface, based on our industry-leading HP 1910 Switch Series, to simplify deployment and management while offering you greater granularity of control of key features.

Keeps Your Business up and Running and Protected
- The HP 1920 Switch Series with upgraded models and options is built on the market-leading, proven reliability of the HP 1910 Switch Series with advanced silicon technology for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection and supports secure http (https).
- The switch series is covered by the HP Limited Lifetime Warranty 2.0 with next day advance hardware placement, 24x7 phone support for 3 years and business day phone and email support for as long as you own the product.

Delivers Improved Performance, While Lowering the Total Cost of Ownership
- The HP 1920 Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, IPv6 support, rate limiting, link aggregation and IGMP.
- Smaller enclosures facilitate flexible deployment.
- The switch series includes PoE+ options to power IP devices without the cost of additional cabling.
- Advanced silicon technology, green features like Port shutdown and EEE compliance for greater energy-efficiency and the Limited Lifetime Warranty significantly reduce TCO.
