No price development information for this product.

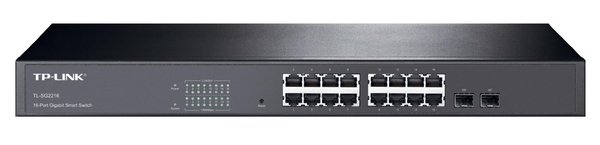

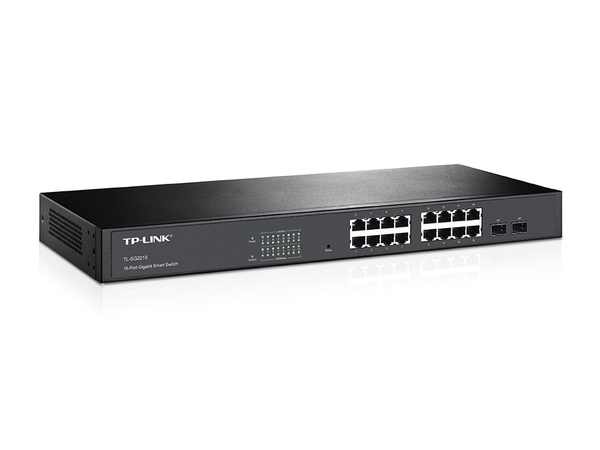

TP-LINK nätverksswitch, 16xGigabit Ethernet RJ45, 2xSFP, managed, web
This product is end of life or currently not available.
Ports & interfaces | |
SFP/SFP+ slots quantity | 2 |
Gigabit Ethernet (copper) ports quantity | 16 |
Combo SFP ports quantity | 2 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 16 |
Weight & dimensions | |
Height | 44 mm |
Width | 440 mm |
Depth | 180 mm |
Energy management | |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (max) | 14.4 W |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 32 - 104 °F |
Storage relative humidity (H-H) | 5 - 90% |
Protocols | |
Management protocols | SNMP, RMON, GUI, CLI |
Networking | |
Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
Flow control support | |
Port mirroring | |
Auto MDI/MDI-X | |
Number of VLANs | 512 |
Spanning tree protocol | |
VLAN support | |
10G support | |
Data transmission | |
MAC address table | 8000 entries |
Supported data transfer rates | 10/100/1000 Mb/s |
Switching capacity | 32 Gbit/s |
Maximum data transfer rate | 1 Gbit/s |
Jumbo frames support | |
Forwarding rate | 23.8 Mpps |
Jumbo frames | 10240 |
Security | |
Static port security | |
IGMP snooping | |
IP-MAC-Port binding | |
Management features | |
Switch layer | L2 |
Quality of Service (QoS) support | |
Web-based management | |
Switch type | Managed |
Other features | |
Cabling technology | 10BASE-T/100BASE-TX/1000Base-T |
Packet transfer speed | 23.8Mp/s |
Design | |
Certification | CE, FCC, RoHS |
Rack mounting | |
Form factor | 1U |
Product colour | Black |
Stackable | |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | |
Performance | |
Minimum system requirements | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
Firmware upgradeable | |
Multicast features | |
Multicast support | |
EAN | 6935364022167 |
Warranty | 5 years |
Source: Icecat.biz |
16-Port Gigabit Smart Switch with 2 Combo SFP Slots
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
What This Product Does
TP-LINK Gigabit Smart Switch TL-SG2216 is equipped with 16 gigabit RJ45 ports and 2 combo SFP slots. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.
TP-LINK Gigabit Smart Switch TL-SG2216 is a cost-effective product solution for the small and medium business. TL-SG2216 has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch and gigabit capability, TP-LINK Gigabit Smart Switch TL-SG2216 provides you the ideal access-edge solution.
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.
Abundant Layer 2 Features
For more application of layer 2 switches, TL-SG2216 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management Features
TL-SG2216 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
- Layer 2 Features
- LAG,Static LAG
- 4K VLAN
- STP/RSTP/MSTP
- IGMP Snooping
- Quality of Service
- 4 priority queues
- Support IEEE 802.1P Priority
- DSCP QoS
- Rate limit feature
- Security Strategies
- Port Security
- Storm Control
- Management
- Web-based GUI
- Command Line Interface
- SNMP v1/v2c/v3
- RMON (1,2,3,9 group)
