Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Console port | RJ-45 |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 4 |
| Weight & dimensions | |
| Weight | 2.41 kg |
| Height | 43.9 mm |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Energy management | |
| Power consumption (typical) | 19.5 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Power consumption (max) | 29.3 W |
| Power supply included |  |
| Operational conditions | |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Heat dissipation | 100 BTU/h |
| Protocols | |
| Routing protocols | IP |
| IPv4 FIB entries | 10000 |
| IPv6 FIB entries | 5000 |
| Networking | |
| Full duplex | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Flow control support | |
| Link aggregation | |
| Rate limiting | |
| IP routing | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| VLAN support | |
| Routing entries | 10000 |
| 10G support |  |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-sensing | |
| Data transmission | |
| MAC address table | 32768 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | |
| Latency (1 Gbps) | 3.8 µs |
| Throughput | 41.7 Mpps |
| Security | |
| Access Control List (ACL) | |
| SSH/SSL support | |
| IGMP snooping | |
| DHCP features | DHCP server |
| Management features | |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Switch type | Managed |
| Traffic classification | |
| Design | |
| Rack mounting | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Performance | |
| Processor frequency | 1016 MHz |
| Internal memory | 1024 MB |
| Processor model | ARM Cortex-A9 |
| Memory type | DDR3-SDRAM |
| Built-in processor | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Multicast features | |
| Multicast support | |
| EAN | 190017006017 |
| Warranty | 1 year |
| Source: Icecat.biz | |

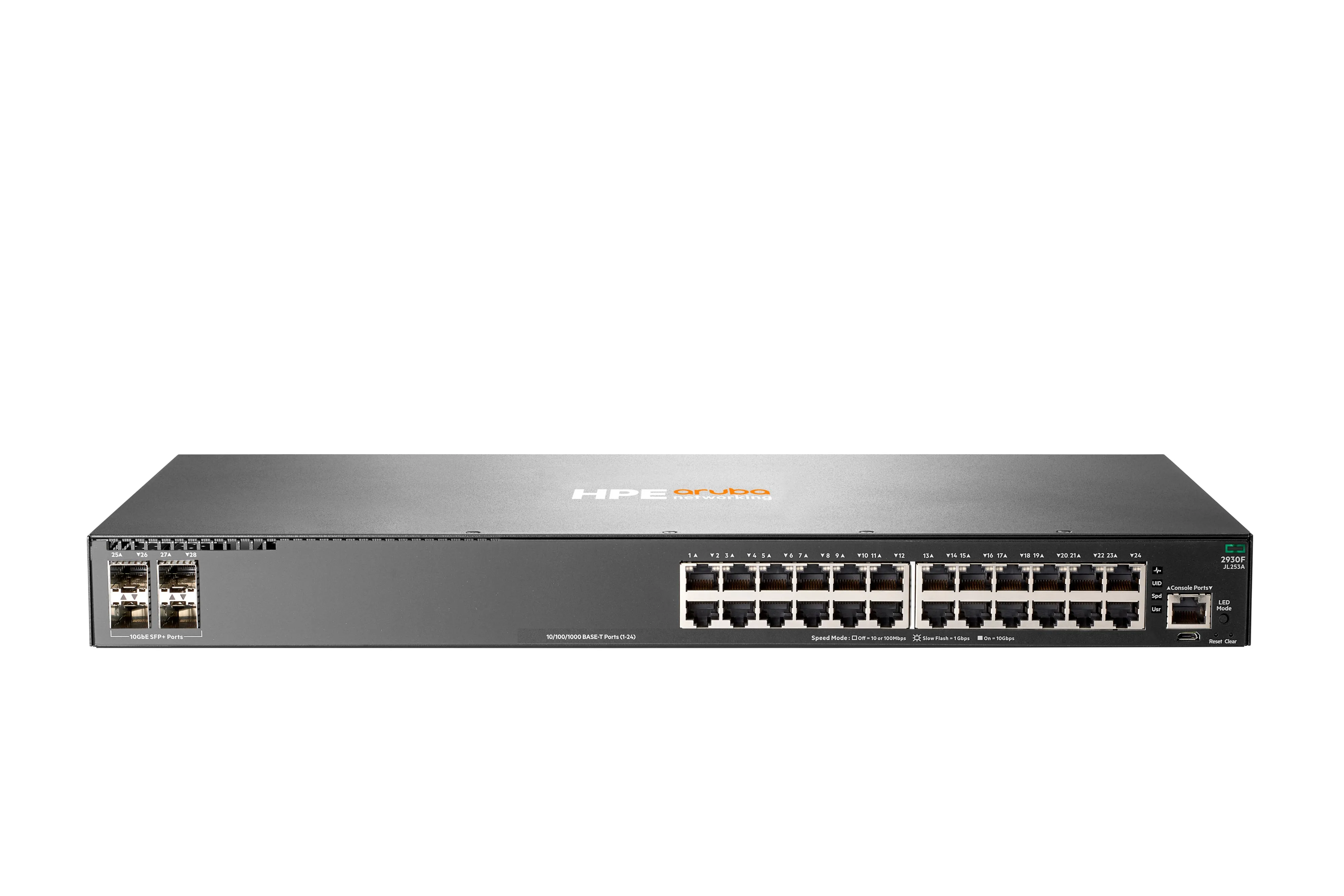

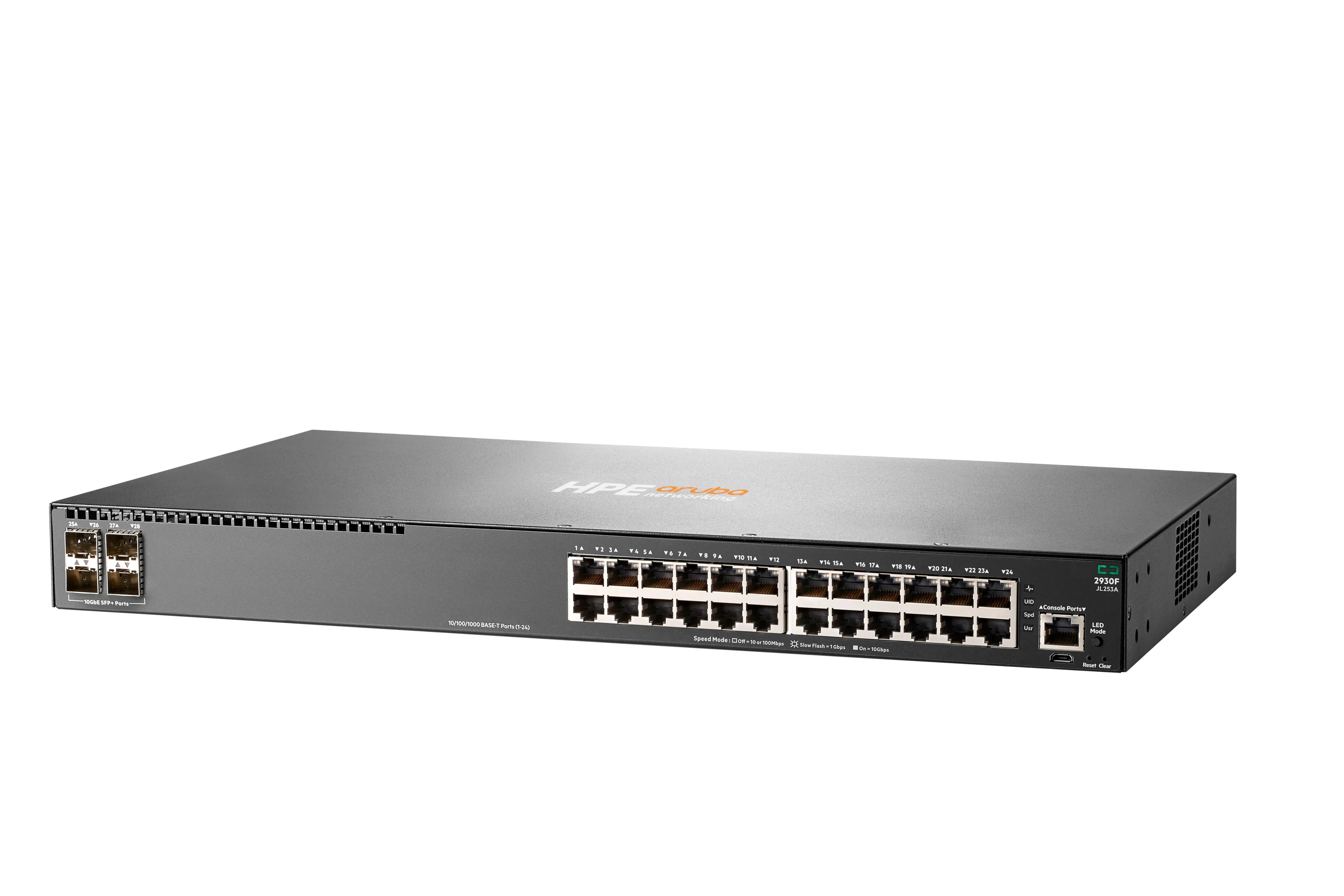

The HPE Aruba Networking 2930F Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. HPE Aruba Networking Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10 GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.
What is new supporting point:
Convenient built-in 1 GbE or 10 GbE uplinks and up to 740W PoE+.
Scale with 8-member stacking.
Simplify with Zero Touch Provisioning (ZTP) and cloud-based HPE Aruba Networking Central support.
The HPE Aruba Networking 2930F Switch Series is a family of Layer 3 stackable switches that are easy to deploy and manage, providing scale for enterprise, SMB and branch access networks.
