Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Ports & interfaces | |
| Combo SFP ports quantity | 4 |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 44 |
| Weight & dimensions | |
| Weight | 4.65 kg |
| Height | 324.3 mm |
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Energy management | |
| Power consumption (typical) | 470 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Power consumption note | 2 power supplies are supported: JL086A PSU (each): 470W JL087A PSU (each): 860W |
| Operational conditions | |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Heat dissipation | 355 BTU/h |
| Networking | |
| Full duplex |  |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Flow control support | |
| Link aggregation | |
| Rate limiting | |
| IP routing | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| VLAN support | |
| 10G support | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Auto-sensing | |
| Data transmission | |
| MAC address table | 32768 entries |
| Switching capacity | 176 Gbit/s |
| Packet buffer memory | 12.38 MB |
| Latency (10-100 Mbps) | 11.8 µs |
| Latency (1 Gbps) | 3.1 µs |
| Latency (10 Gbps) | 3.4 µs |
| Throughput | 112 Mpps |
| Security | |
| Access Control List (ACL) | |
| SSH/SSL support | |
| IGMP snooping | |
| Authentication | MAC-based authentication, Web-based authentication |
| DHCP features | DHCP server |
| Management features | |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Switch type | Managed |
| Other features | |
| I/O ports | (44) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (1) uplink module slot, (1) stacking module slot |
| Latency | 1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs |
| Memory and processor | Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5 MB Ingress, 7.785 Egress 4 GB eMMC |
| Performance management | HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 324.4 mm (1.73 x 17.4 x 12.8") |
| Weight (imperial) | 4.65 kg (10.2 lbs) |
| Design | |
| Rack mounting | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 1440 W |
| Performance | |
| Processor frequency | 1016 MHz |
| Internal memory | 1024 MB |
| Memory type | DDR3-SDRAM |
| Built-in processor | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Multicast features | |
| Multicast support | |
| EAN | 0190017071251 |
| Warranty | 5 years |
| Source: Icecat.biz | |

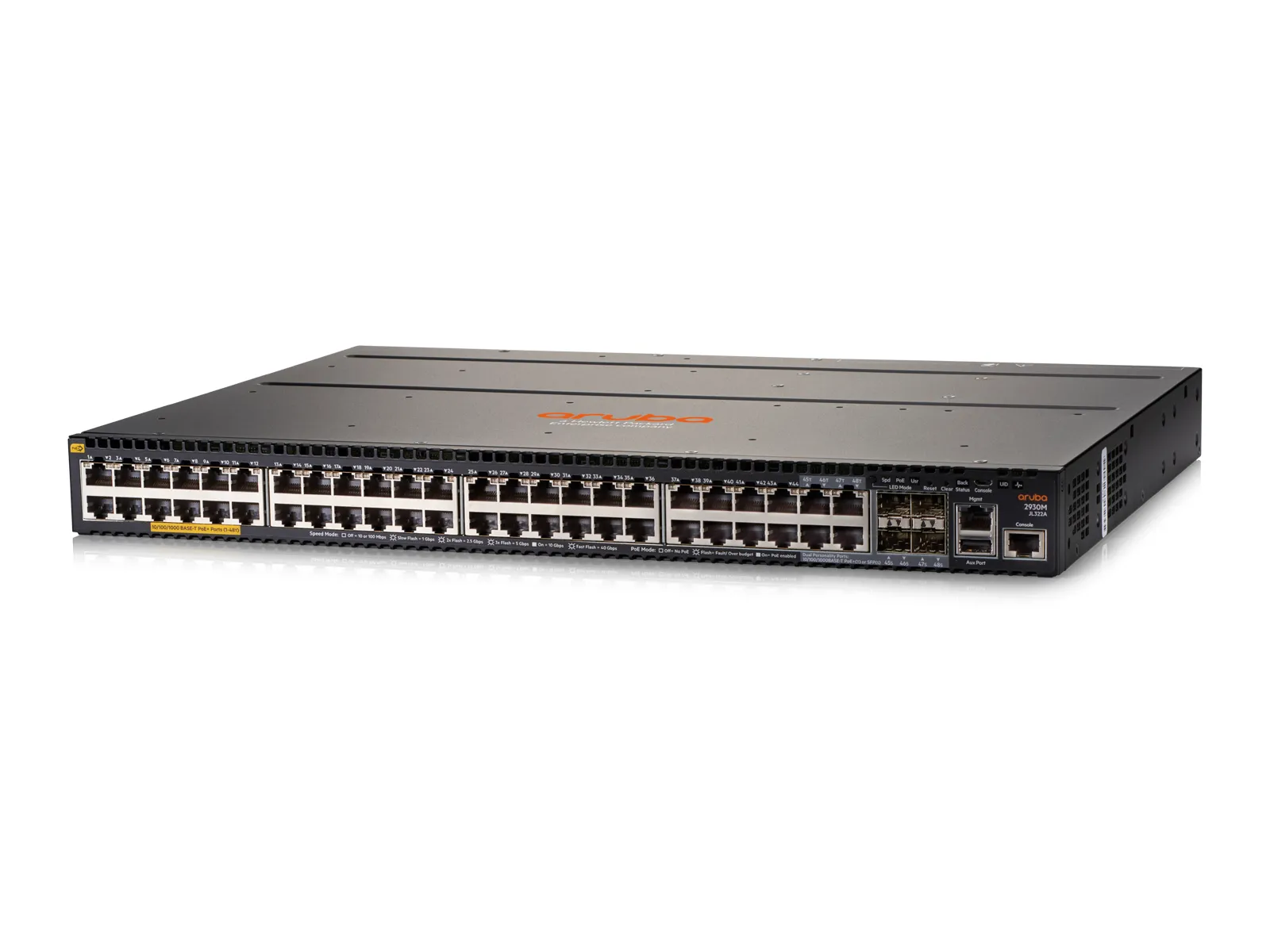

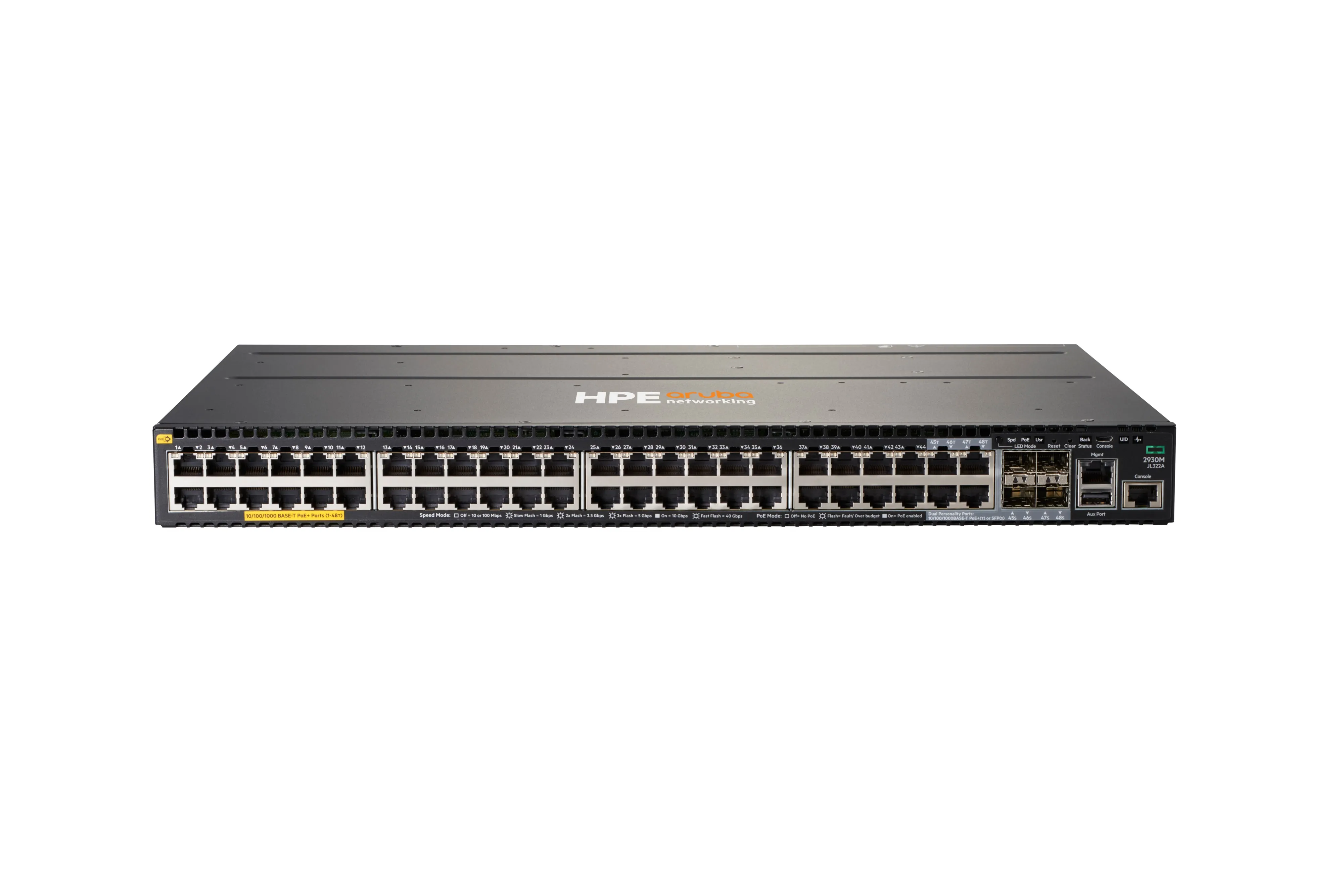

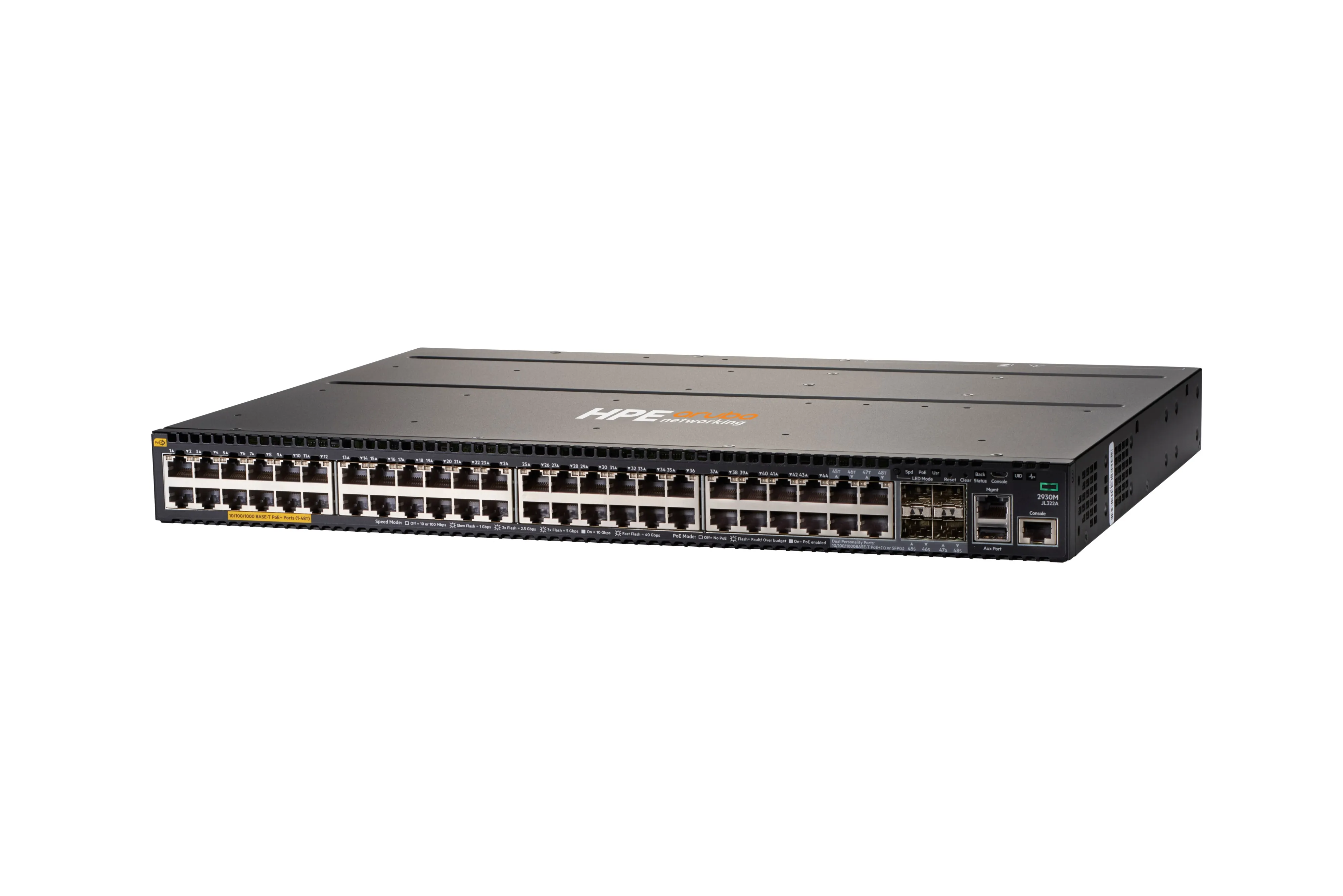

The HPE Aruba Networking 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The HPE Aruba Networking 2930M Switch Series delivers performance and value with support for static, RIP and Access OSPF routing, 10 GbE and 40 GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.
What is new supporting point:
Simplify with Zero Touch Provisioning and cloud-based HPE Aruba Networking Central support.
Scale with modular 10 chassis stacking and up to 1440W PoE.
Modular 10 GbE and 40 GbE uplinks and HPE Smart Rate multi-gigabit support.
Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.
The 2930M Series is a family of layer 3 stackable switches that are easy to deploy and manage, providing scale and modularity for enterprise, SMB and branch access networks.
High Power PoE models deliver up to 60W of PoE per port.
What is new supporting point:
Simplify with Zero Touch Provisioning and cloud-based HPE Aruba Networking Central support.
Scale with modular 10 chassis stacking and up to 1440W PoE.
Modular 10 GbE and 40 GbE uplinks and HPE Smart Rate multi-gigabit support.
Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.
The 2930M Series is a family of layer 3 stackable switches that are easy to deploy and manage, providing scale and modularity for enterprise, SMB and branch access networks.
High Power PoE models deliver up to 60W of PoE per port.
