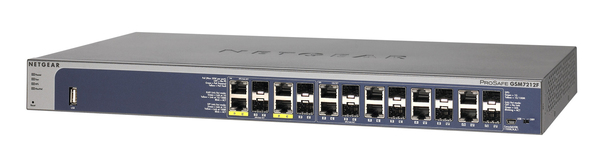

NETGEAR ProSAFE GSM7212F - Kytkin - L2+ - Hallinnoitu - 12 x combo Gigabit SFP + 4 x 10/100/1000 - työpöytä, räkkiin asennettava - PoE

Manufacturer: NETGEAR
ID: GSM7212F-100NES
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
USB 2.0 ports quantity1
SFP/SFP+ slots quantity12
Fiber ports quantity12
Console portRS-232
Fiber optic connectorSFP
Basic switching RJ-45 Ethernet ports quantity12
SFP module slots quantity12
Power connectorDC-in jack
Weight & dimensions
Weight3.67 kg
Energy management
Power consumption (typical)150 W
Operational conditions
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 50 °C
Storage relative humidity (H-H)0 - 95%
Non-operating altitude0 - 3000 m
Protocols
Data link protocolsLLDP
Management protocolsSNMP v1/2/3, SMI v1/2, HTTP 1.1
Supported network protocolsIP, IPv4, IPv6, TCP/UDP, TFTP, DoS, ICMP, ARP, BOOTP, SNTP, SFTP, BSD, Telnet
Networking
Networking standardsIEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control supportcheckmark
Port mirroringcheckmark
Link aggregationcheckmark
Broadcast storm controlcheckmark
Rate limitingcheckmark
IP routingcheckmark
Number of VLANs64
Spanning tree protocolcheckmark
10G supportcheckmark
Copper ethernet cabling technology1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
Data transmission
MAC address table16000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity24 Gbit/s
Maximum data transfer rate10 Gbit/s
Jumbo frames supportcheckmark
Number of trunks12
Number of queues8
Store-and-forwardcheckmark
Packet buffer memory12 MB
Throughput17.8 Mpps
Number of static routes16
Security
Security algorithms802.1x RADIUS, EAP, HTTPS, SSL/TLS, WPA-AES
MAC address filteringcheckmark
Static port securitycheckmark
Access Control List (ACL)checkmark
SSH/SSL supportcheckmark
IGMP snoopingcheckmark
Management features
MIB supportMIB-II, Bridge MIB, Etherlike-MIB, SMIv2, VLAN MIB, Client MIB, Entity MIB v2, RMON-MIB, PAE-MIB, LLDP MIB
Switch layerL2+
Quality of Service (QoS) supportcheckmark
Web-based managementcheckmark
System event logcheckmark
Switch typeManaged
Optical fiber
Fiber ethernet cabling technology1000BASE‑LX, 1000BASE‑SX, 100BASE-FX
Other features
Dimensions (WxDxH)440 x 257 x 44 mm
Latency3.1 - 9
Networking featuresGigabit Ethernet
Connectivity technologyWired
Design
CertificationCE, FCC, VCCI, EN (CISPR 22), C-Tick
Rack mountingcheckmark
SafetyCE, CSA, UL/cUL, EN
Product colourGrey
Stackablecheckmark
Power over Ethernet (PoE)
Power over Ethernet (PoE)checkmark
Power over Ethernet plus (PoE+) ports quantity4
Performance
Processor frequency600 MHz
Internal memory128 MB
Processor modelBroadcom BCM53003
Mean time between failures (MTBF)670956 h
Flash memory32 MB
Memory typeRAM
Noise level48 dB
Built-in processorcheckmark
Multicast features
Multicast supportcheckmark
EAN606449080926
Warranty1 year
Source: Icecat.biz

The NETGEAR ProSafe Gigabit L2+ Managed Switch GSM7212F for "Intelligent Edge" distribution consists of 12 ports combo, dual-speed SFP with fiber connectivity, including 4 ports with PoE+ connectivity. Intelligent Edge series deliver a secure and flexible access in campus, commercial and enterprise converged environments: Wireless access points, IP telephony and video-surveillance.

Intelligent Edge
Combining superior resiliency and advanced security, GSM7212F provides comprehensive Layer 2, Lite Layer 3 and Layer 4 switching, including 16K MAC table size, 64 routing interfaces and 16 static routes.

Unified Communications – Voice over IP
The NETGEAR ProSafe "Intelligent Edge" simplifies converged data deployments with state-of-the-art capabilities. CoS Layer 2 prioritization and DiffServ Layer 3 & 4 policies allow for 1Kbps ingress and egress TCP/UDP granularity. LLDP-MED (Media Endpoint Discovery) automatically configures IP phones QoS and VLAN settings.

Unified Communications – Video Streams
IGMP filtering and querier ensure multicast streams are only delivered to interested receivers, preventing flooding even without a dedicated multicast router. When receivers are in different VLANs, Multicast VLAN registration (MVR) uses a dedicated multicast VLAN to forward multicast streams and avoid duplication for clients in different VLANs.

Outstanding Value
With its high-value price point, industry-standard command line interface (CLI) and single-pane-of-glass NMS200 management platform (mass-configuration support), NETGEAR ProSafe "Intelligent Edge" yields a high return on investment. GSM7212F is backed by the NETGEAR ProSafe Lifetime Hardware Warranty+, ProSupport Lifetime 24x7 Advanced Technical Support, and 3-Year Next Business Day Onsite Hardware Replacement.
