Fractal Design Meshify C Midi-Tower Case with window, Black
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| USB 2.0 ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Weight & dimensions | |
| Weight | 6.5 kg |
| Height | 453 mm |
| Width | 217 mm |
| Depth | 409 mm |
| Storage | |
| Card reader integrated | ![]() |
| Number of HDDs supported | 2 |
| Supported HDD sizes | 2.5,3.5" |
| Storage drive interface | SATA |
| Number of storage drives supported | 5 |
| Supported storage drive types | HDD, SSD |
| Supported storage drive interfaces | SATA |
| HDD/SSD combo cage | ![]() |
| SSD form factor | 2.5" |
| Packaging data | |
| Package weight | 7.9 kg |
| Package depth | 543 mm |
| Package height | 484 mm |
| Package width | 295 mm |
| LED controller | ![]() |
| Packaging content | |
| Manual | ![]() |
| Cooling | |
| Cooling | ![]() |

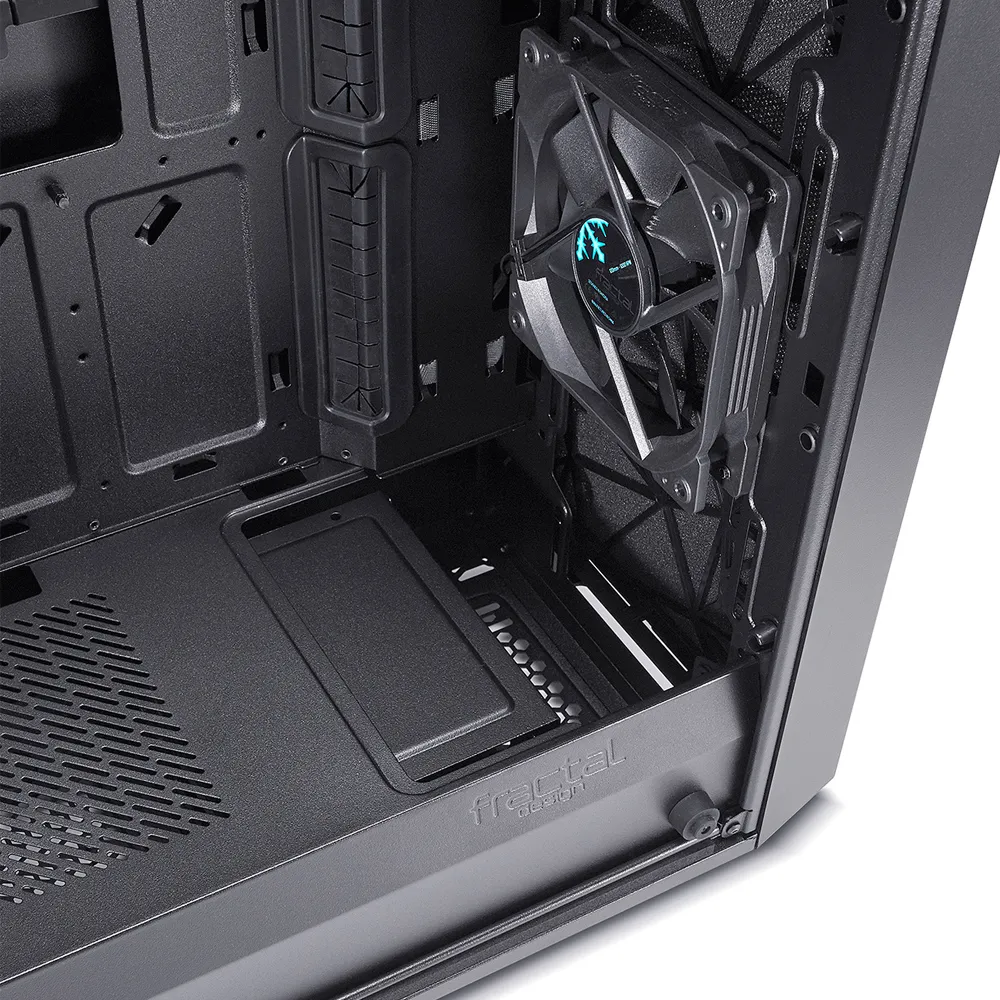

| Front fans installed | 1x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans diameters supported | 120 mm |
| Top fans diameters supported | 120,140 mm |
| Bottom fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Number of bottom fans supported (max) | 1 |
| Rear fans installed | 1x 120 mm |
| Liquid cooling capability | ![]() |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Top radiator sizes supported | 120,240 mm |
| Fan speed control | ![]() |
| Other features | |

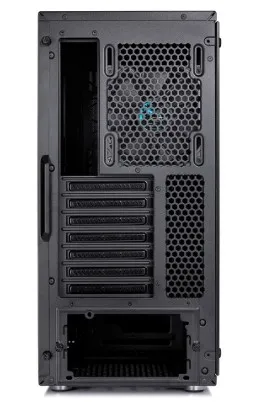

| Expansion slots | 7 |
| Power LED | ![]() |
| Volume | 36.5 L |
| On/off switch | ![]() |
| Screws included | ![]() |
| Easy to customize | ![]() |
| Design | |
| Type | PC |
| Rack mounting | ![]() |
| Form factor | Midi Tower |
| Material | Steel |
| Cable lock slot | ![]() |
| LED indicators | ![]() |
| Product colour | Black |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Anti-dust filter | ![]() |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 2 |
| Transport wheels | ![]() |
| Side window | ![]() |
| Number of internal 3.5" bays | 0 |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 31.5 cm |
| Number of expansion slots | 7 |
| Maximum PSU length | 17.5 cm |
| Number of 2.5" bays | 3 |
| Number of external 5.25" bays | 0 |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| RGB control button | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Power supply included | ![]() |
| Supported power supply form factors | ATX |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| EAN | 7350041084891 |
| Warranty | 2 years |

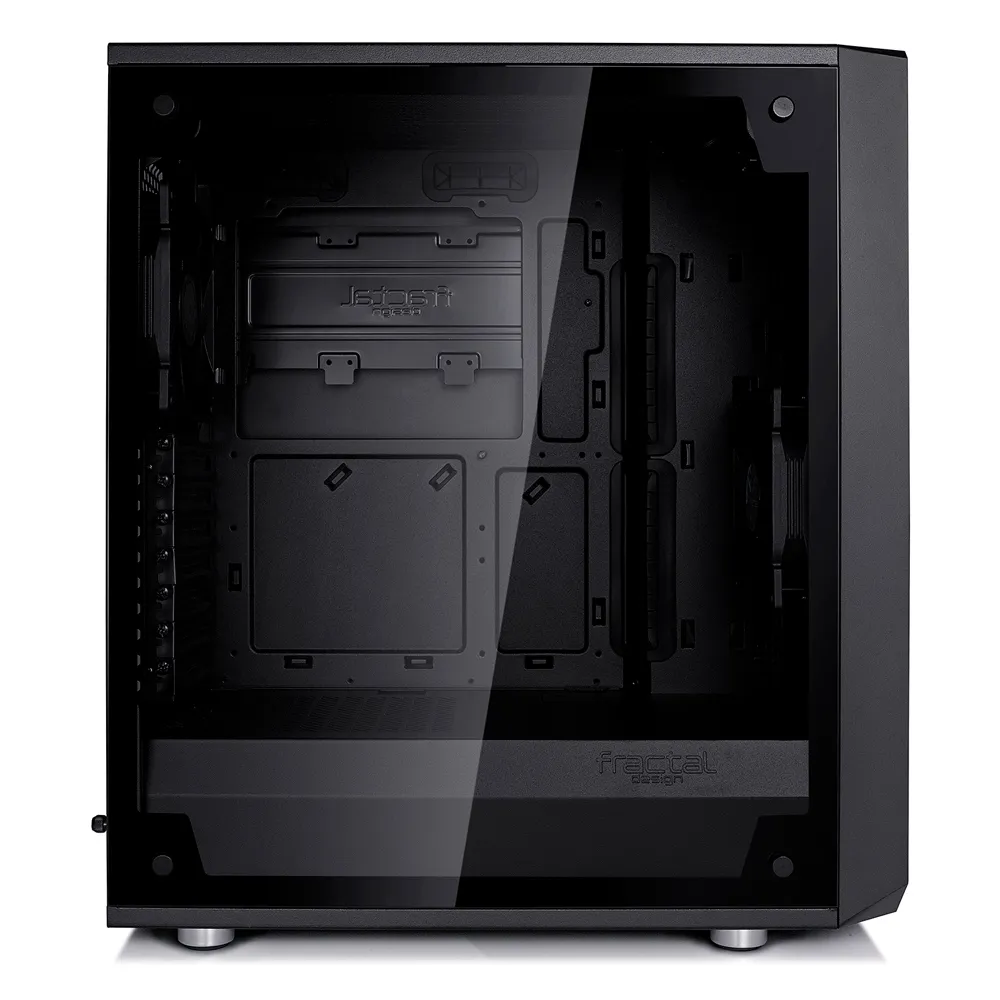

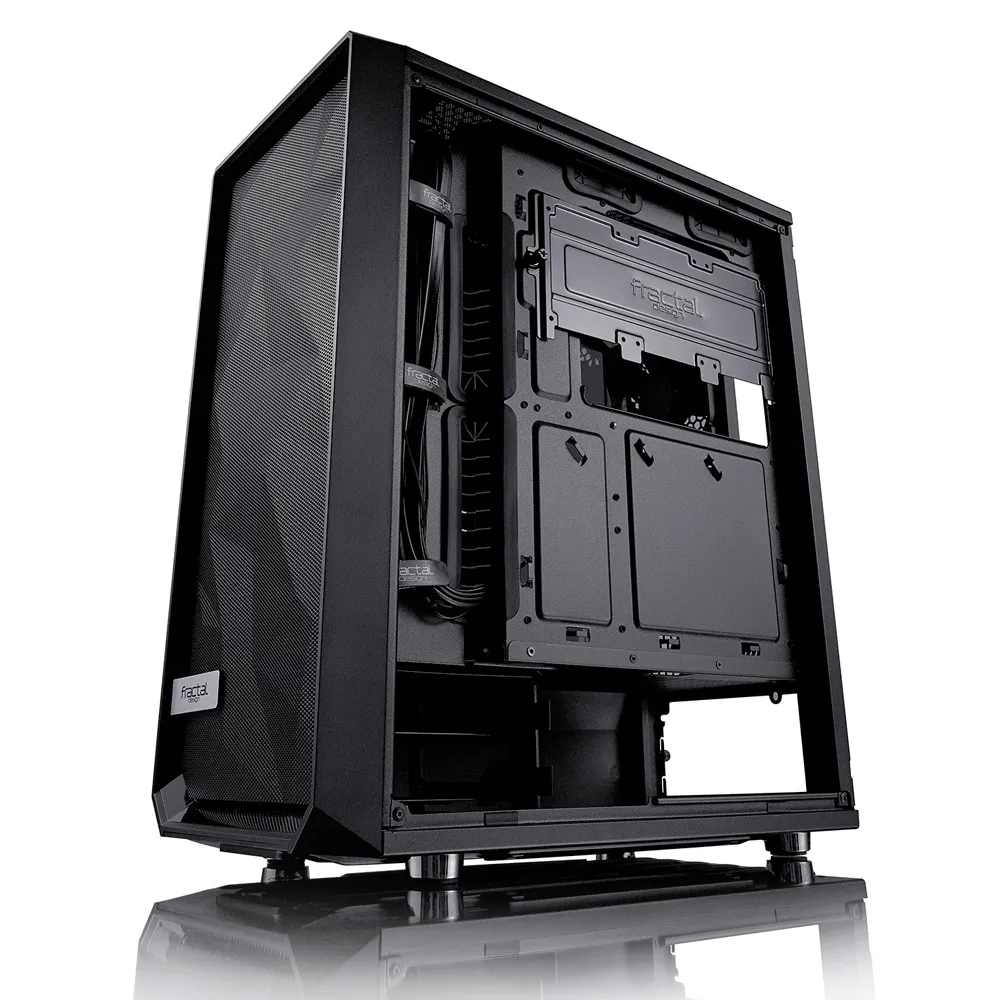

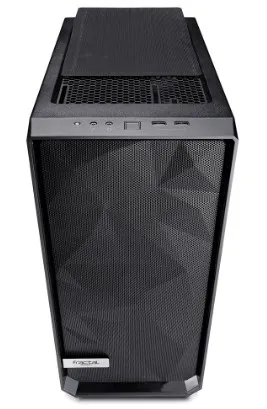

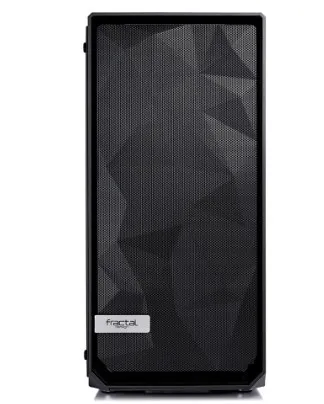

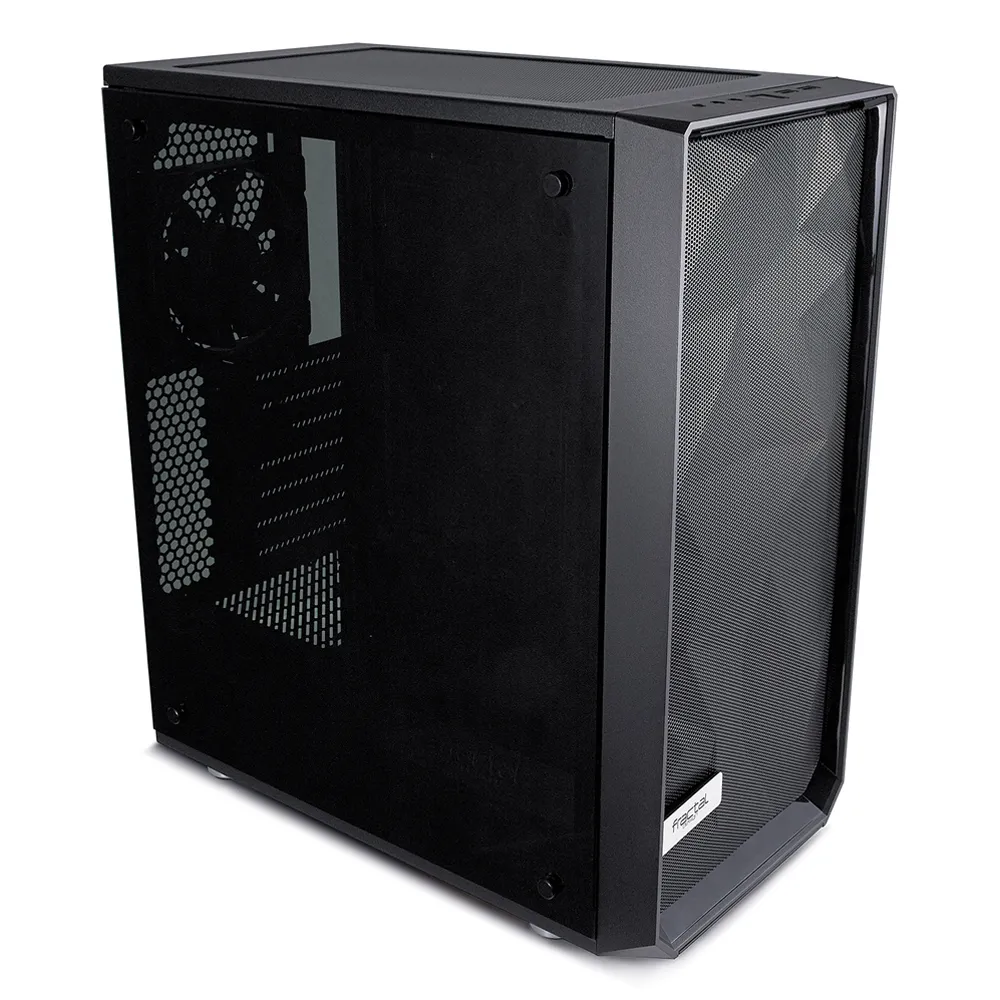

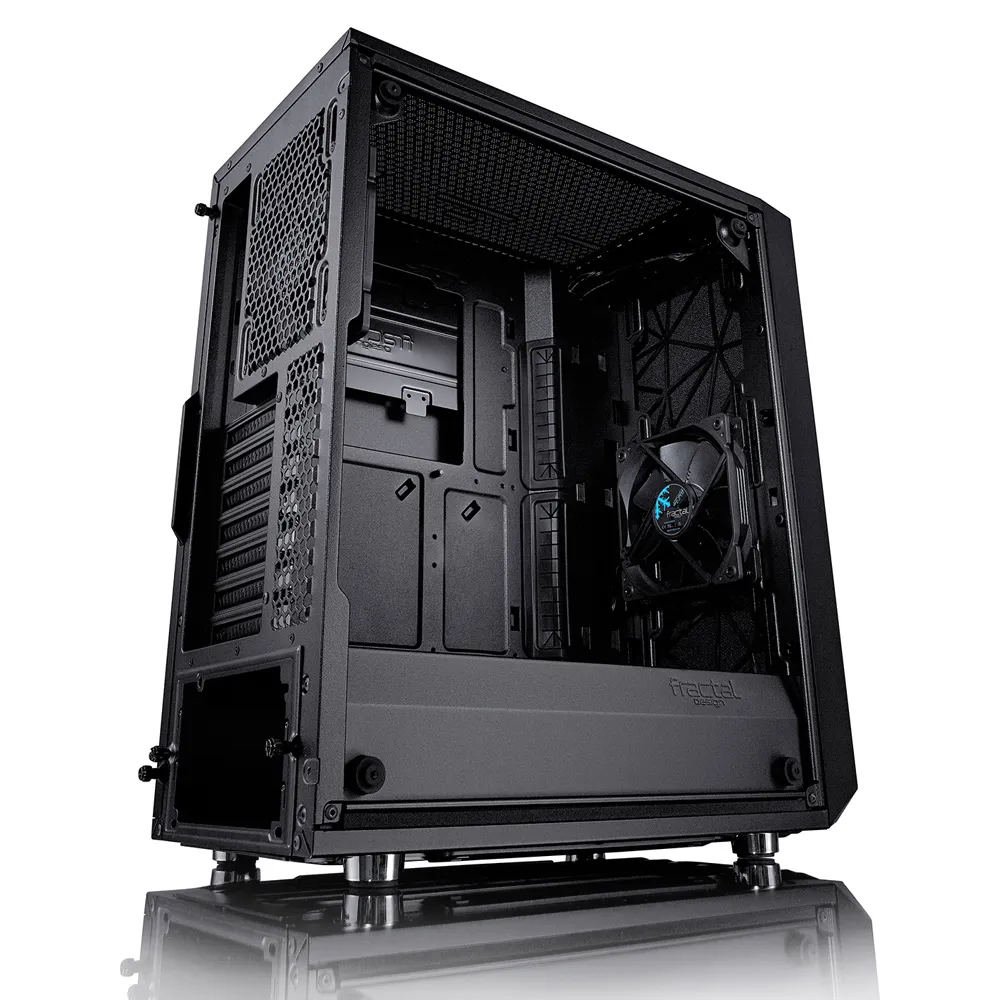

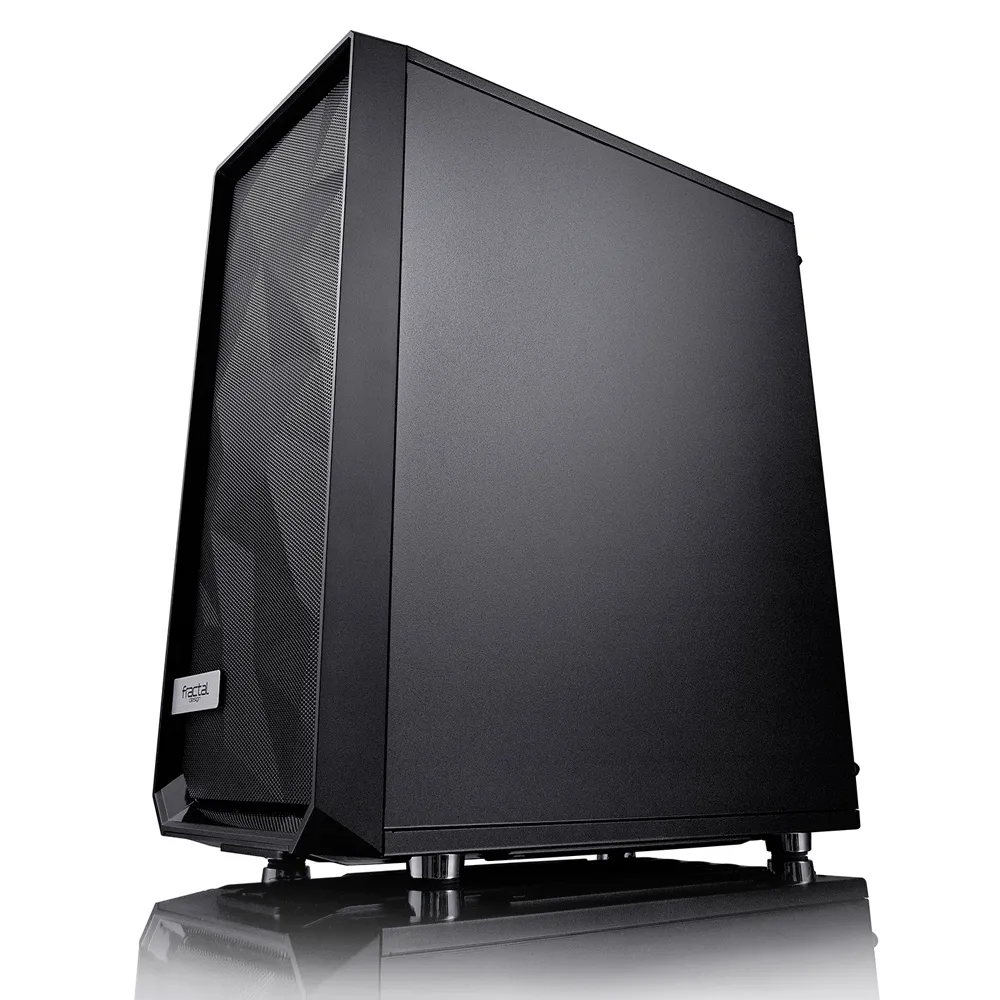

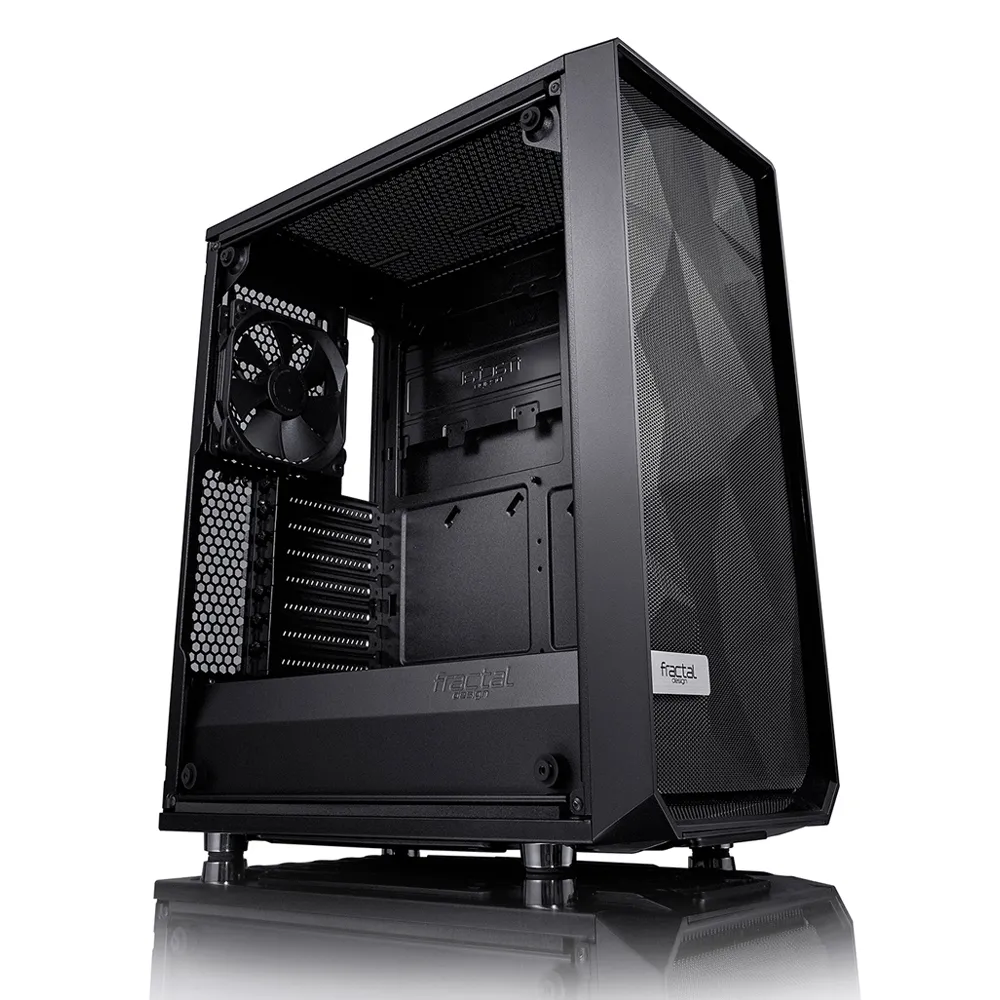

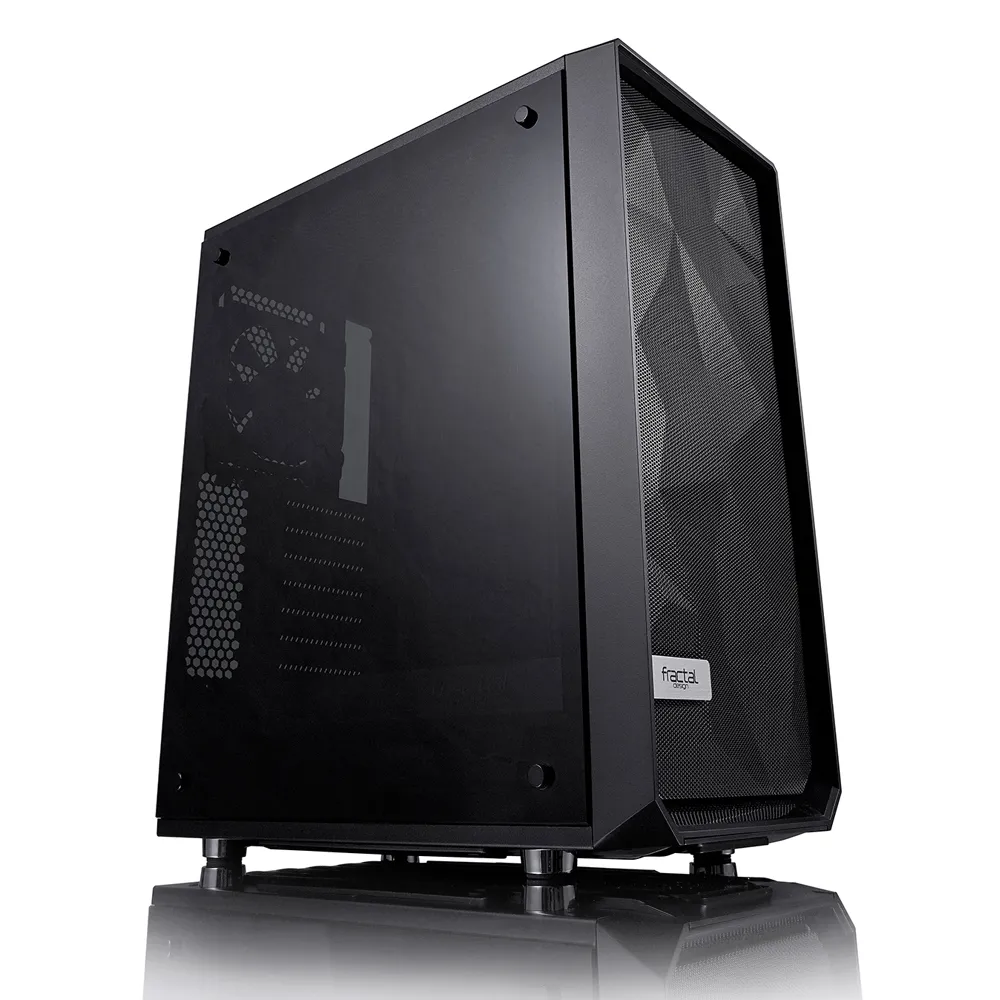

The Fractal Design Meshify C is a mid-tower ATX case engineered for high-airflow performance. Its primary design feature is the angular mesh front panel, which allows for direct and unrestricted airflow to internal components. The chassis is constructed from steel and includes a tempered glass side panel, providing a clear view of the system's interior. Despite its compact footprint, the open ATX layout is designed to maximize cooling potential without compromising on hardware compatibility for a streamlined build.

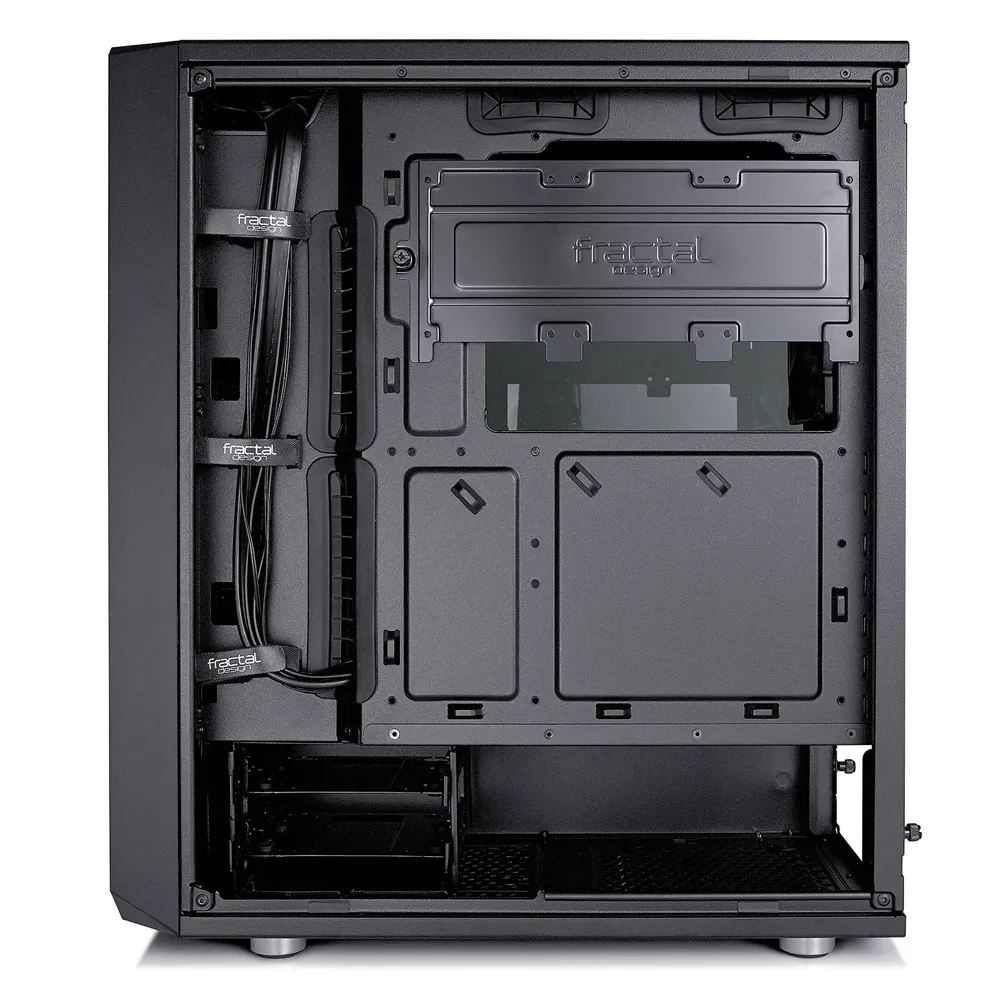

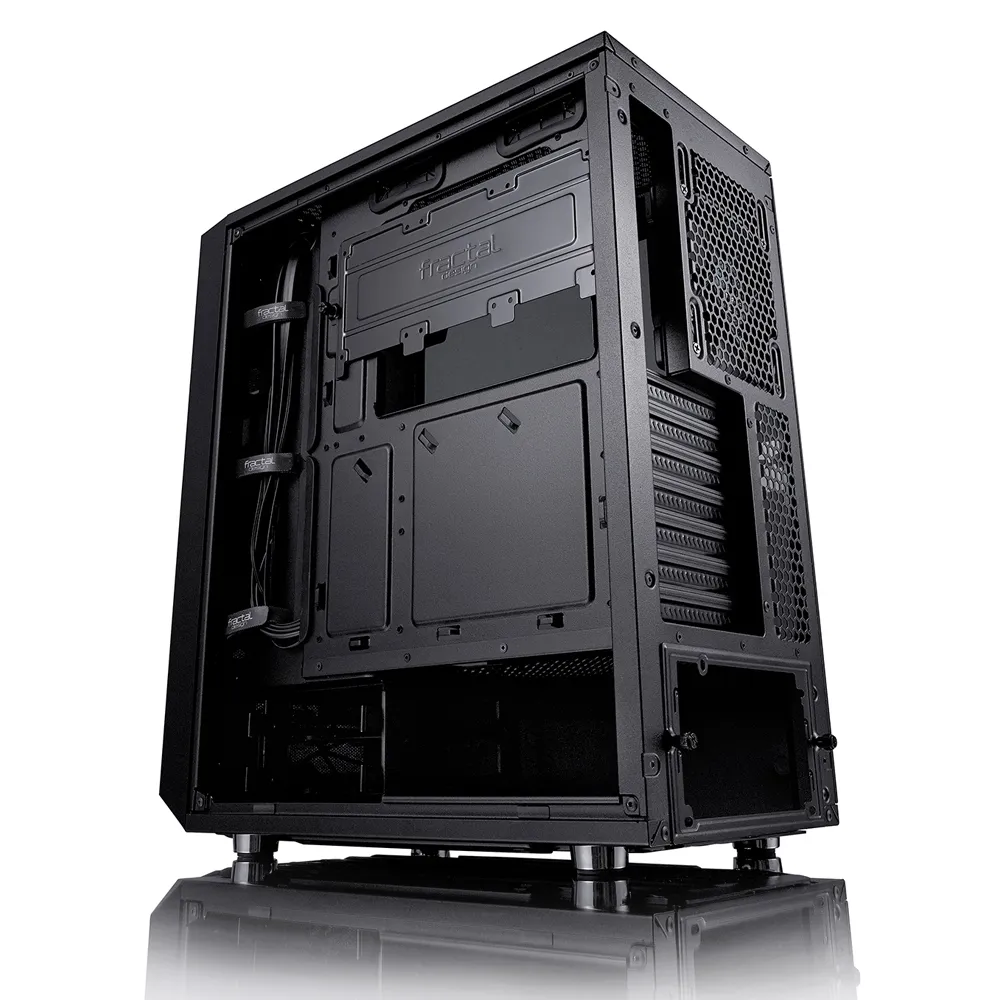

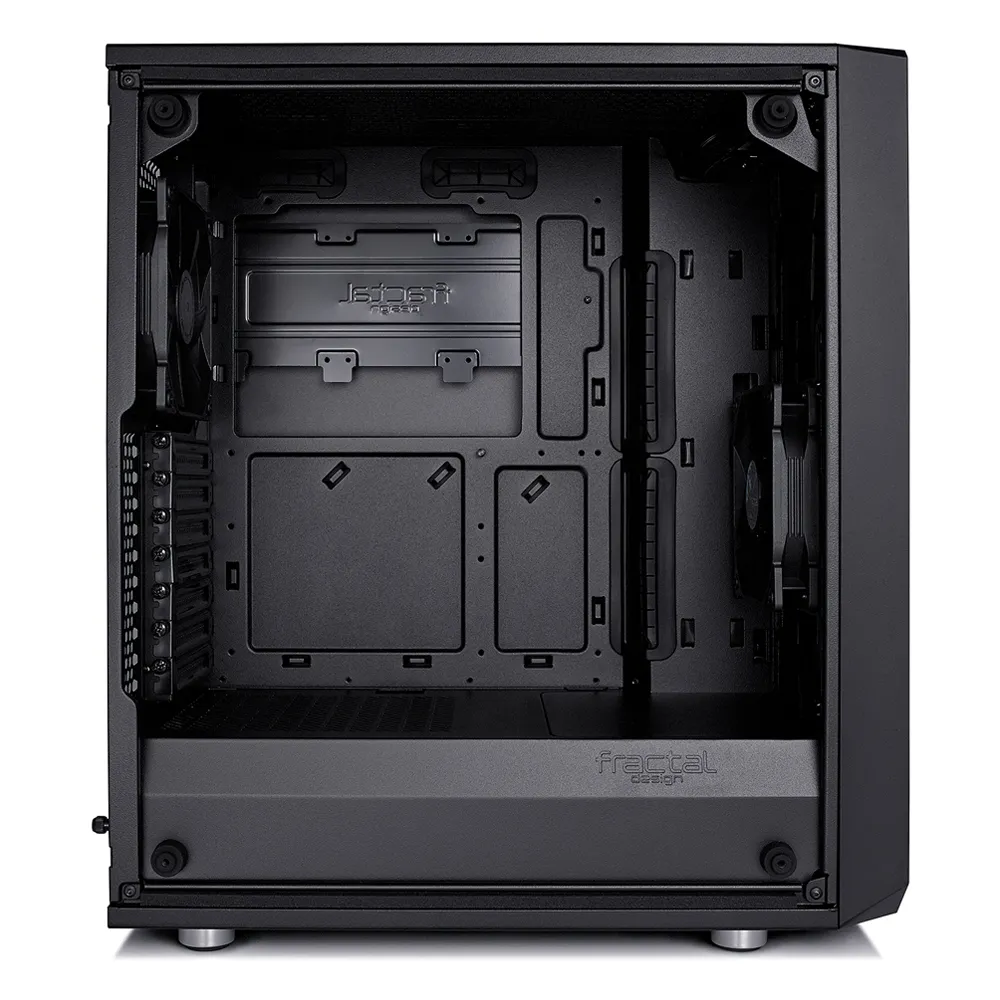

Internal component support is extensive, with clearance for CPU coolers up to 175 mm tall and standard ATX power supplies. The case offers flexible cooling configurations, accommodating up to a 360 mm radiator in the front and a 240 mm radiator on top. For storage, it provides two 3.5-inch drive bays and three dedicated mounts for 2.5-inch SSDs. Builder-focused features include integrated cable management routing paths and removable dust filters on the front, top, and bottom panels, which simplify both assembly and long-term maintenance.
Key Features:- Midi Tower case with a steel frame and tempered glass side panel
- Supports ATX, Micro-ATX, and ITX motherboards
- Provides clearance for CPU coolers up to 175 mm in height
- Fits standard ATX power supplies up to 175 mm in length
- Features seven expansion slots for component installation

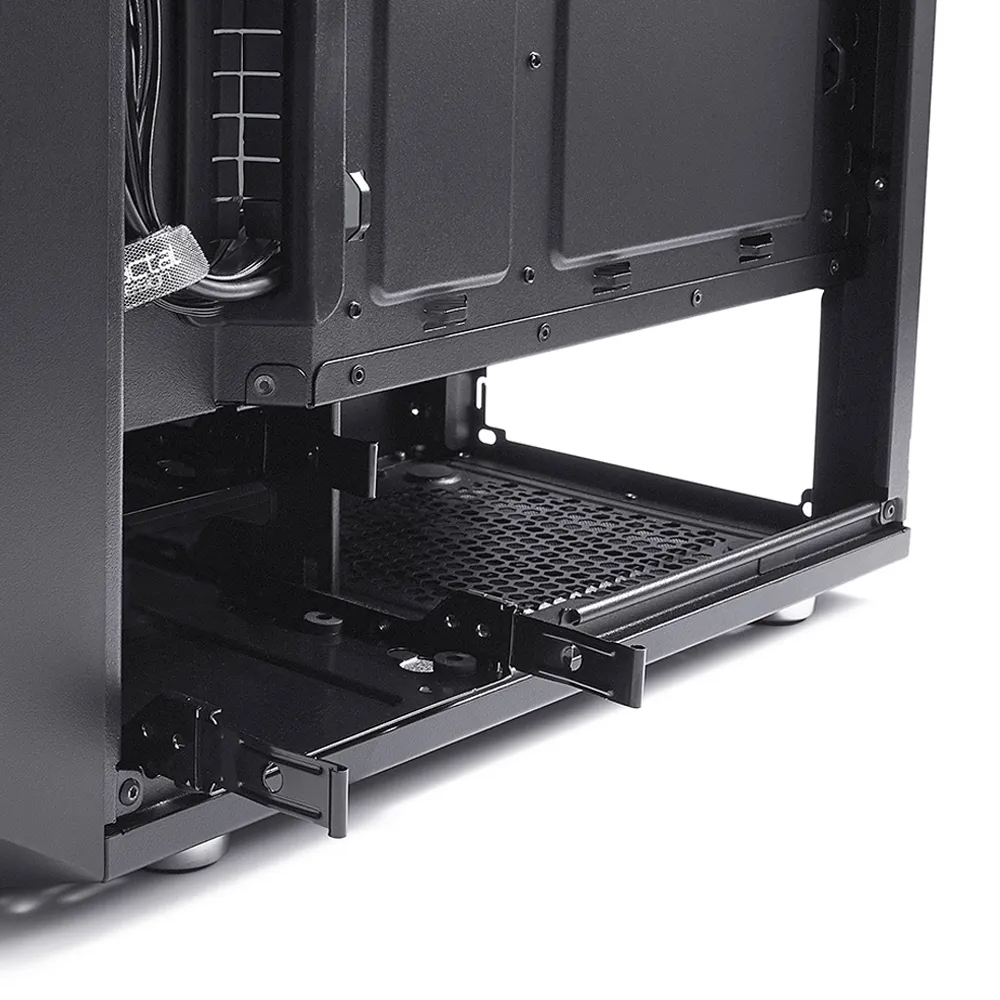

- Includes two 3.5" or 2.5" drive bays and three dedicated 2.5" drive mounts
- Accommodates up to seven cooling fans

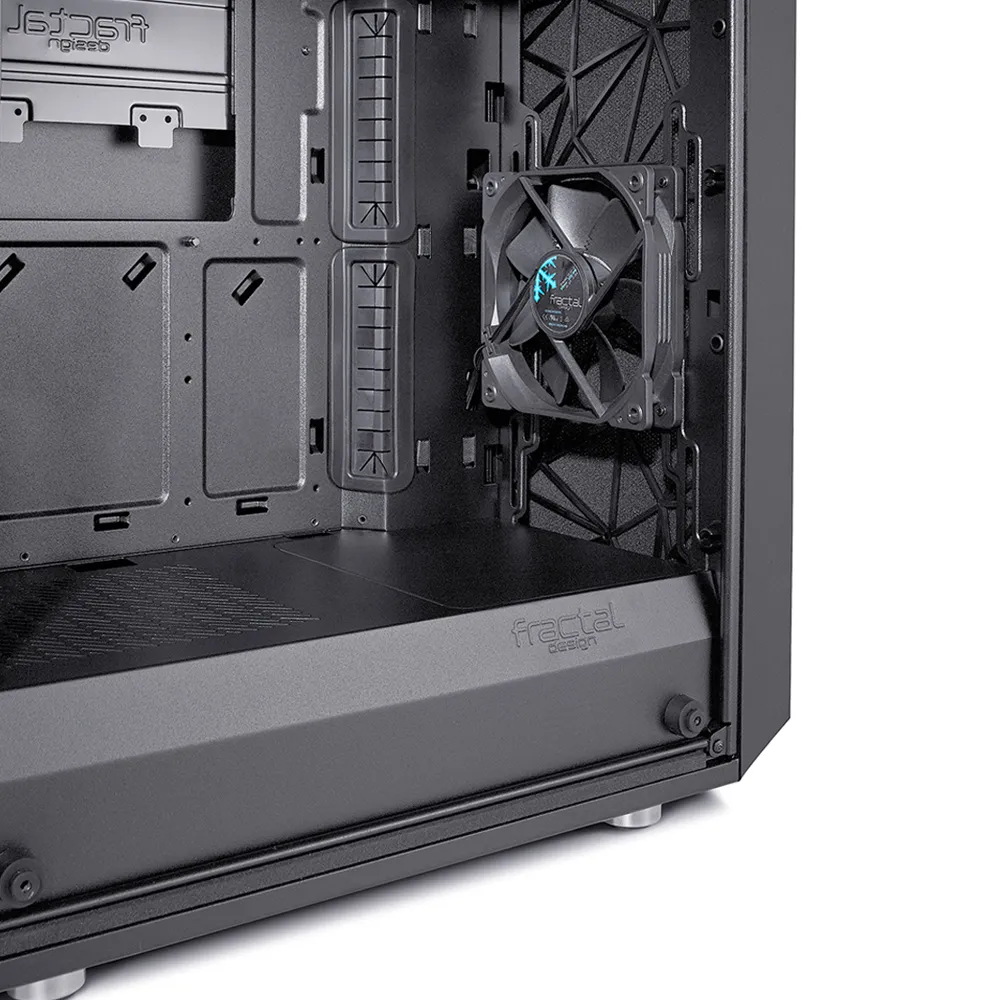

- Comes with two pre-installed 120 mm fans

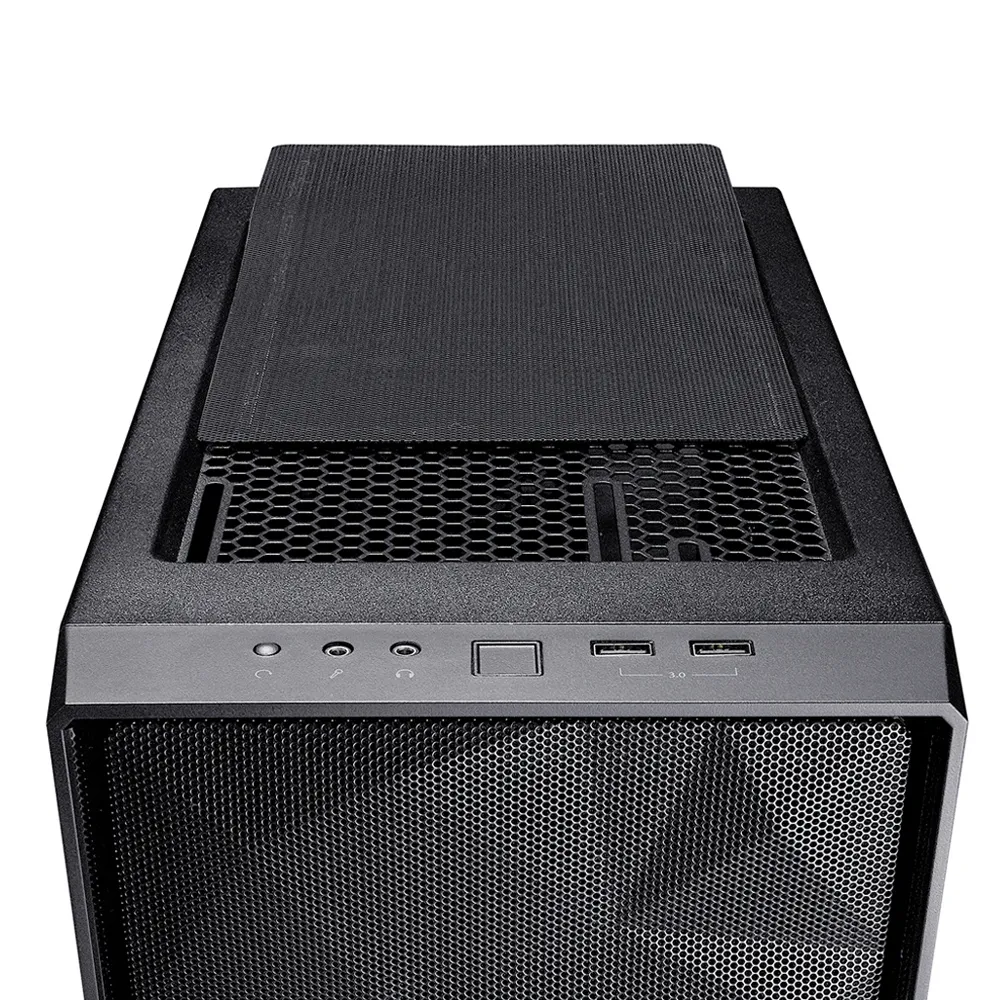

- Front I/O panel includes two USB 3.2 Gen 1 ports and audio jacks

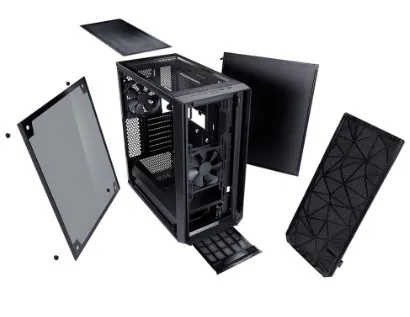

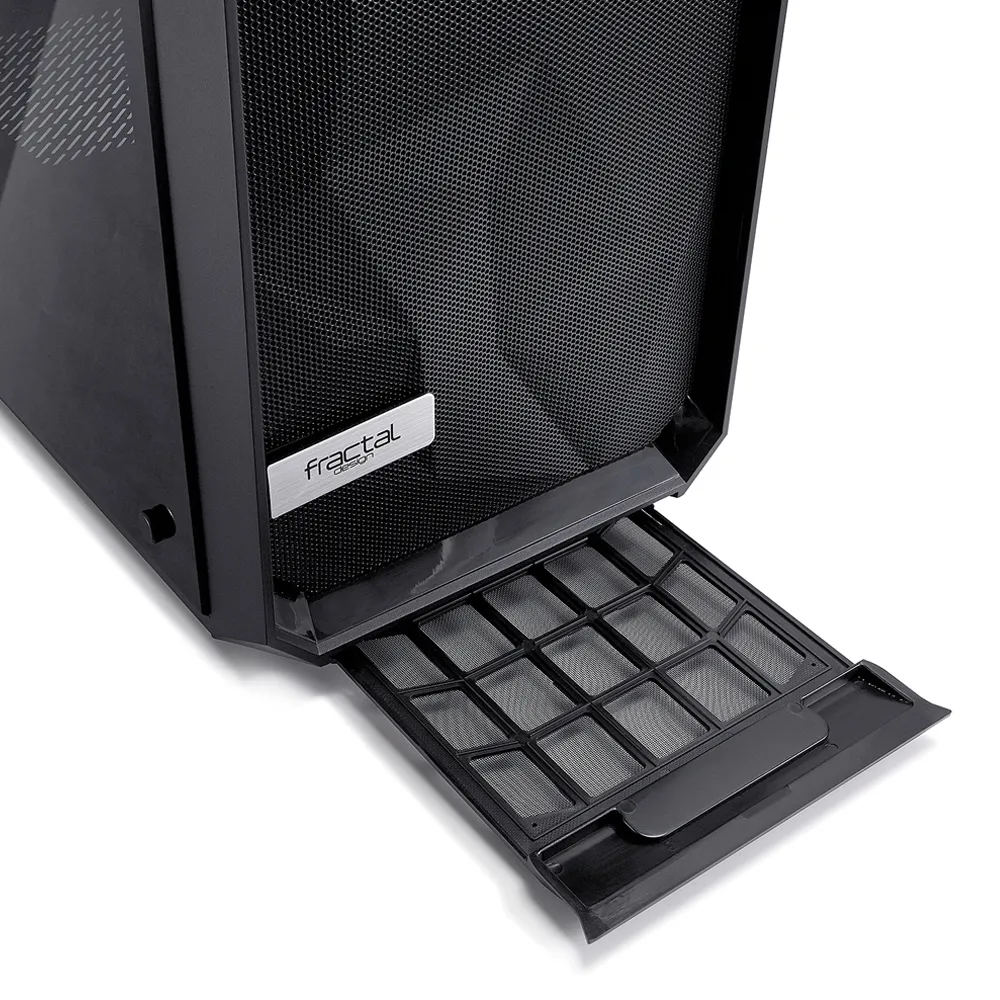

- Equipped with dust filters for front, top, and bottom air intakes
