Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 400,550,700 mm |
| Peripheral (Molex) power cable length | 400,550,700,850 mm |
| PCI Express power cable length | 55 cm |
| Weight & dimensions | |
| Weight | 1.14 kg |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 140 mm |
| Energy management | |
| Input current | 4 A |
| Nominal power | 500 W |
| Efficiency | 85% |
| Hold time | 14 ms |
| Power protection features | Over power,Over voltage,Short circuit,Overheating |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 38 A |
| Max output current (+5V) | 17 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| Total power | 500 W |
| Power Good signal delay range | 100 - 500 ms |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
| Package weight | 1.37 kg |
| Package depth | 266 mm |
| Package height | 112 mm |
| Package width | 194 mm |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan speed | 800 - 1744 RPM |
| Performance | |
| Certification | CE, TUV, EAC, RCM, CCC |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| ATX version | 2.31 |
| 80 PLUS certification | 80 PLUS White |
| Power supply unit (PSU) form factor | ATX |
| Logistics data | |
| Products per pallet | 24 pc(s) |
| Master (outer) case height | 21.7 cm |
| Master (outer) case width | 27.9 cm |
| Master (outer) case length | 58.2 cm |
| Products per master (outer) case | 5 pc(s) |
| EAN | 4719512060964 |
| Warranty | 3 years |
Reliable and Energy Efficient
The MWE delivers everything you expect from top tier power supply at a budget price. This unit also comes with a circuit design that will protect your system at all times. The 120mm fan keeps your system cool with little noise. This tough little box is the perfect solution for all your power needs.
High Efficiency and Low Noise
with Active Power Factor Correction design and forward topology. Meeting the 80 PLUS certification for 230V, the MWE will guarantee a typical efficiency of at least 85% during normal use.
ErP 2013 Lot 6 Compliant
The MWE is designed to the latest envirmental regulations and standards, meeting the ErP 2013 mandates. The MWE consumes less then 0.5 Watt when your system is in standby mode, which not only reduces strain on the environment but also your energy bill
Proven Thermal Resistance
The MWE is engineered to operate normally at up to 40°C, providing added security and reliability to systems operating in warmer environments.
Quiet and Durable

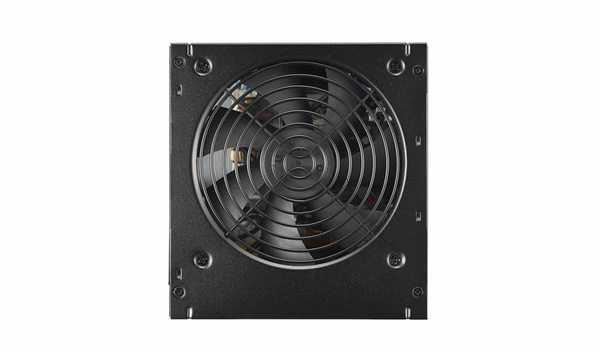

The thermally controlled 120mm HDB fan operates smoothly without friction. Enjoy your system with a durable fan in a quiet environment.
Damage Resistant
The MWE provides you full standard protection (OVP/SCP/OPP) plus built-in Over Temperature Protection (OTP). These extra security measures minimize the risk of damage to your system from power outages.
The MWE delivers everything you expect from top tier power supply at a budget price. This unit also comes with a circuit design that will protect your system at all times. The 120mm fan keeps your system cool with little noise. This tough little box is the perfect solution for all your power needs.
High Efficiency and Low Noise
with Active Power Factor Correction design and forward topology. Meeting the 80 PLUS certification for 230V, the MWE will guarantee a typical efficiency of at least 85% during normal use.
ErP 2013 Lot 6 Compliant
The MWE is designed to the latest envirmental regulations and standards, meeting the ErP 2013 mandates. The MWE consumes less then 0.5 Watt when your system is in standby mode, which not only reduces strain on the environment but also your energy bill
Proven Thermal Resistance
The MWE is engineered to operate normally at up to 40°C, providing added security and reliability to systems operating in warmer environments.
Quiet and Durable
The thermally controlled 120mm HDB fan operates smoothly without friction. Enjoy your system with a durable fan in a quiet environment.
Damage Resistant
The MWE provides you full standard protection (OVP/SCP/OPP) plus built-in Over Temperature Protection (OTP). These extra security measures minimize the risk of damage to your system from power outages.
