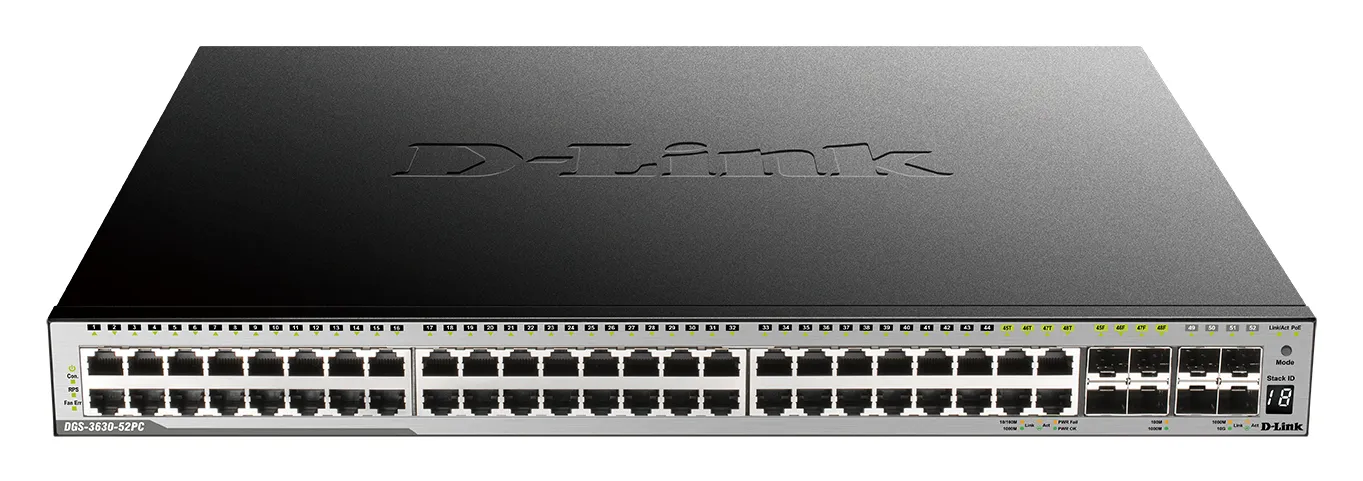

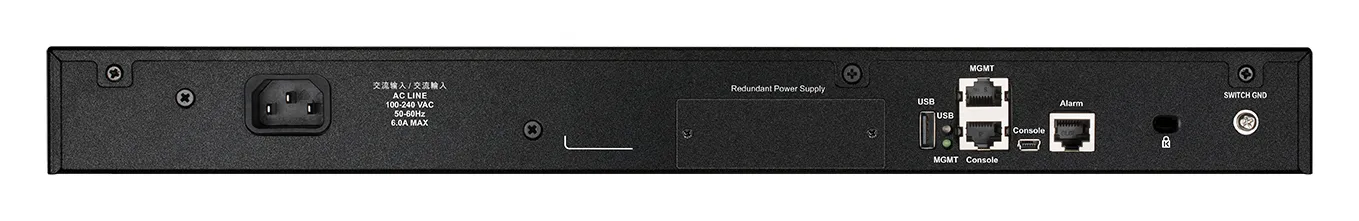

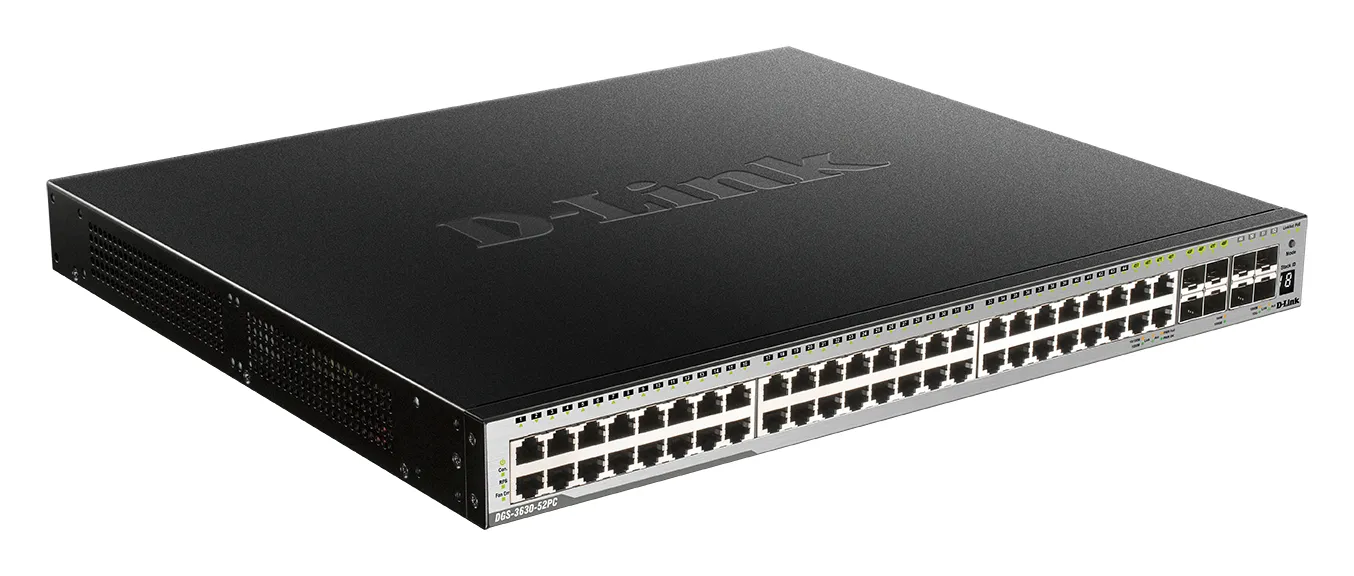

D-Link 44-port GE PoE 370W Layer 3 Stackable Managed Gigabit Switch in

Manufacturer: D-LINK
ID: DGS-3630-52PC/SI
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
Technical details
Pallet gross width120 cm
Pallet gross length110 cm
Shipping (inner) case width36.2 cm
Shipping (inner) case length57.9 cm
Shipping (inner) case height57.2 cm
Shipping (inner) case gross weight18.7 kg
Products per shipping (inner) case2 pc(s)
Shipping (inner) case net weight13.7 kg
Pallet gross weight (air)355.5 kg
Master (outer) cases per pallet (air)18 pc(s)
Products per pallet (air)36 pc(s)
Pallet height (air)185.1 cm
Pallet gross weight (sea)355.5 kg
Master (outer) cases per pallet (sea)18 pc(s)
Products per pallet (sea)36 pc(s)
Pallet height (sea)185.1 cm
Ports & interfaces
USB 2.0 ports quantity1
Console portRJ-45/Mini-USB
Fiber optic connectorSFP+
Installed SFP+ modules quantity0
Installed SFP modules quantity0
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity48
SFP+ module slots quantity4
Weight & dimensions
Weight6.3 kg
Height44 mm
Width441 mm
Depth380 mm
Energy management
Redundant power supply (RPS) supportcheckmark
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Operational conditions
Operating relative humidity (H-H)10 - 95%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-5 - 50 °C
Storage relative humidity (H-H)5 - 95%
Networking
Full duplexcheckmark
Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at
Flow control supportcheckmark
Port mirroringcheckmark
Link aggregationcheckmark
IP routingcheckmark
Number of VLANs4000
Head-of-line (HOL) blockingcheckmark
VLAN supportcheckmark
Routing entries16000
10G supportcheckmark
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiationcheckmark
Ethernet Ring Protection Switching (ERPS)checkmark
Virtual LAN featuresPrivate VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN
Data transmission
MAC address table68000 entries
Switching capacity176 Gbit/s
Jumbo frames supportcheckmark
Store-and-forwardcheckmark
Forwarding rate130.95 Mpps
Number of static routes512
Jumbo frames12000
Static routecheckmark
Packaging data
Package weight8.6 kg
Package depth560 mm
Package height170 mm
Package width538 mm
Security
Security algorithms802.1x RADIUS, SNMP, SNMPv3, SSH, SSL/TLS
Access Control List (ACL)checkmark
SSH/SSL supportcheckmark
IGMP snoopingcheckmark
Loop protectioncheckmark
BPDU filtering/protectioncheckmark
IP-MAC-Port bindingcheckmark
DHCP featuresDHCP server, DHCP client
Management features
Switch layerL3
Quality of Service (QoS) supportcheckmark
Web-based managementcheckmark
Switch typeManaged
Design
Rack mountingcheckmark
SafetycUL, CB, CE, CCC, BSMI
Electromagnetic compatibilityCE, FCC A, C-Tick, VCCI, BSMI, CCC
Product colourBlack, Grey
Stackablecheckmark
Number of fans4 fan(s)
Power over Ethernet (PoE)
Power over Ethernet (PoE)checkmark
Power over Ethernet plus (PoE+) ports quantity48
Total Power over Ethernet (PoE) budget370 W
Power over Ethernet (PoE) power per port30 W
Performance
Built-in processorcheckmark
Virtual stacking (units)32
Physical stacking (units)9
Logistics data
Harmonized System (HS) code85176990
Multicast features
Multicast supportcheckmark
Multicast Listener Discovery (MLD) snoopingMLD v1, MLD v2
EAN0790069435027
Warranty5 years
Source: Icecat.biz
Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.

Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.

High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.

Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
