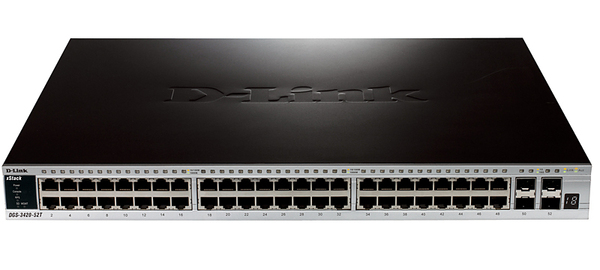

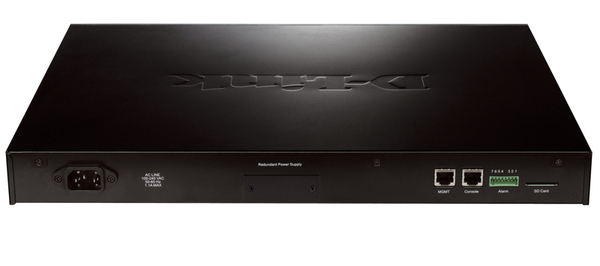

D-Link DGS-3420-52P xStack 48-port 10/100/1000Base-T PoE with four 10 GbE SFP+ combo ports Layer 2+ Stackable Managed PoE Gigabit Switch. Up to 12 units per sta
Manufacturer: D-LINK
ID: DGS-3420-52P
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Shipping (inner) case width | 33.6 cm |
| Shipping (inner) case length | 55 cm |
| Shipping (inner) case height | 60.3 cm |
| Shipping (inner) case gross weight | 17.4 kg |
| Products per shipping (inner) case | 2 pc(s) |
| Ports & interfaces | |
| SFP/SFP+ slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| SFP+ module slots quantity | 4 |
| Weight & dimensions | |
| Weight | 5.07 kg |
| Energy management | |
| Power consumption (typical) | 81 W |
| Power source | AC |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 276.2 BTU/h |
| Protocols | |
| Management protocols | SNMP |
| Supported network protocols | IPv4/IPv6 |
| Networking | |
| Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3x |
| Flow control support |  |
| Port mirroring | |
| Link aggregation | |
| Spanning tree protocol | |
| Copper ethernet cabling technology | 1000BASE-T,100BASE-T,10BASE-T |
| Data transmission | |
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 176 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | |
| Packet buffer memory | 2 MB |
| Packaging data | |
| Package weight | 7.95 kg |
| Package depth | 568 mm |
| Package height | 157 mm |
| Package width | 530 mm |
| Security | |
| MAC address filtering | |
| Access Control List (ACL) | |
| IGMP snooping | |
| Management features | |
| MIB support | Y |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Switch type | Managed |
| Other features | |
| Dimensions (WxDxH) | 441 x 310 x 44 mm |
| Management platform | CLI |
| Networking features | Gigabit Ethernet |
| Connectivity technology | Wired |
| Data transfer rate | 1000 Mbit/s |
| Packet transfer speed | 130.95 |
| Design | |
| Safety | CB, cUL, LVD |
| LED indicators | |
| Product colour | Black |
| Stackable | |
| Performance | |
| Mean time between failures (MTBF) | 255608 h |
| Noise level | 51.1 dB |
| EAN | 0790069361715 |
| Warranty | 1 year |
| Source: Icecat.biz | |
