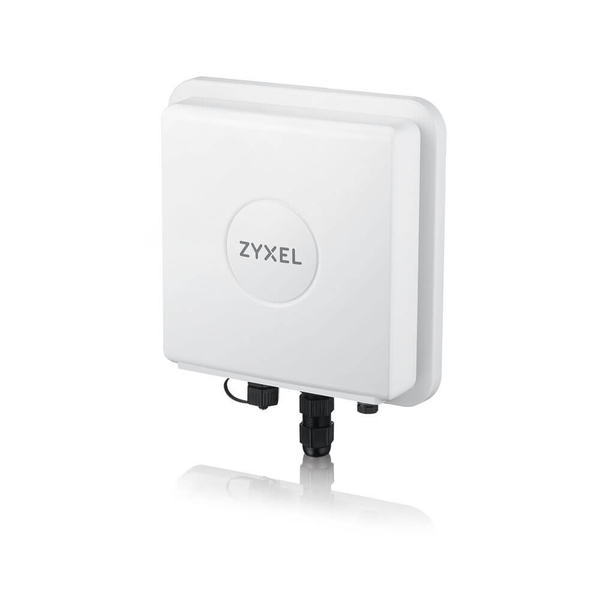

Zyxel WAC6552D-S 802.11ac 2x2 Outdoor AP with integrated Smart Antenna (no PSU)

Manufacturer: ZYXEL
ID: WAC6552D-S-EU0101F
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Weight & dimensions
Weight1.59 kg
Height66 mm
Width255 mm
Depth256 mm
Energy management
Power over Ethernet (PoE)checkmark
Operational conditions
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 60 °C
Storage relative humidity (H-H)10 - 90%
Protocols
Supported network protocolsIPv6, SNMP
Security
Security algorithms802.1x RADIUS, EAP, WEP, WPA, WPA2-Enterprise, WPA2-PSK
MAC address filteringcheckmark
Auto Wireless Distribution System (WDS)checkmark
Management features
Web-based managementcheckmark
Packaging content
Mounting kitcheckmark
Antenna
Antenna gain level (max)10 dBi
Design
Internalcross
CertificationFCC 15C, FCC 15E, ETSI EN 300 328, EN 301 893, LP0002, FCC 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438, EN 60950-1, IEC 60950-1, BSMI CNS14336-1
Product colourWhite
International Protection (IP) codeIP67
PlacementPole
Features
Channel bandwidth80 MHz
Receiver sensitivity-101 dBm
Frequency band2.412-2.462 (USA FCC); 2.412-2.472 (ETSI); 5.15-5.35, 5.725-585 (USA FCC); 5.15-5.35, 5.47-5.725 (ETSI)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at
Ethernet LAN data rates10,100,1000 Mbit/s
VLAN supportcheckmark
Transmitting power28 dBmW
2.4 GHzcheckmark
5 GHzcheckmark
Wi-Fi Multimedia (WMM)/(WME)checkmark
MIMOcheckmark
Fast roamingcheckmark
EAN4718937599424
Warranty5 years
Source: Icecat.biz

Extend WiFi to crowded outdoor environments
Designed for crowded public outdoor venues, the Zyxel WAC6550 Series access points provide Gigabit wireless connectivity to hundreds of users. With Zyxel’s commitment to RF First, the WAC6550 Series is able to improve both performance and user satisfaction in public environments.

Optimized wireless experience for mobile clients
The WAC6552D-S features Zyxel’s field-proven smart antenna that dynamically changes signal pattern and mitigate interference to extend coverage and provide greater reliability to mobile clients.

Ideal for harsh outdoor environments
The WAC6550 Series offers up to IP67 industry-grade weather proofing and the capability to work in extremely high- or low-temperature conditions.

Built for superior performance
As Zyxel’s commit to RF First, the WAC6552D-S is built with smart antenna and low-noise elements to delivering superior wireless performance. In addition, the built-in surge protector of WAC6552D-S provides an extra layer of protection for your investments against surges caused by lightning.

Unified access point - Fits all businesses
To meet various deployment and environment requirements, the WAC6550 Series can be managed in two ways: you can build a simple network with free ZON Utility. And for complex network, you can manage with physical wireless controllers that offer more advanced features.
