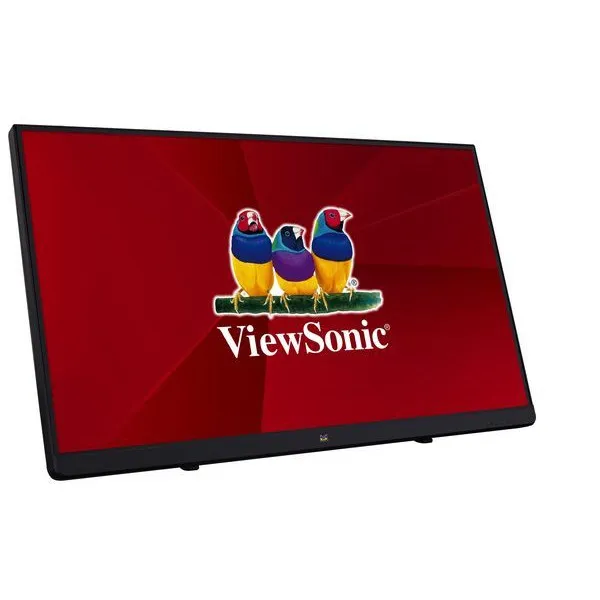

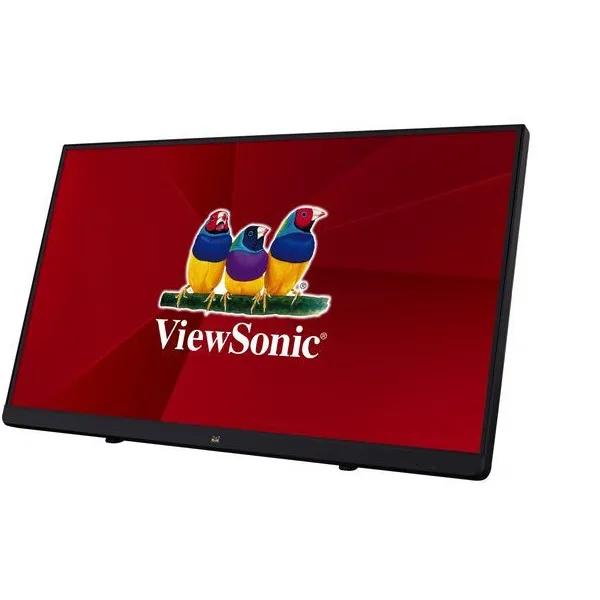

ViewSonic 22" Touch TD2230, Full HD, IPS - monitor

Manufacturer: VIEWSONIC
ID: TD2230
18990€ Show VAT 0% Show VAT 24%
Estimated delivery: 30.04 - 01.05
1pcs available at remote stock
Select your store
Order and pick up in 3-5 days Open today: 10:00 - 18:00 About this store
Order and pick up in 3-5 days Open today: 09:00 - 17:00 About this store
Order and pick up in 3-5 days Open today: 10:00 - 18:00 About this store
Order and pick up in 3-5 days Open today: 10:00 - 17:00 About this store
Order and pick up in 3-5 days Open today: 10:00 - 18:00 About this store
Order and pick up in 3-5 days Open today: 10:00 - 17:00 About this store
Order and pick up in 3-5 days Open today: 10:00 - 18:00 About this store
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Display
Pixel pitch0.24825 x 0.24825 mm
Contrast ratio (typical)1000:1
Horizontal scan range24 - 82 kHz
Viewing angle, horizontal178°
Viewing angle, vertical178°
Vertical scan range50 - 76 Hz
Display diagonal54.6 cm (21.5")
Display brightness250 cd/m²
Response time5 ms
Display resolution1920 x 1080 pixels
Display diagonal (metric)54.6 cm
Supported graphics resolutions640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Touchscreencheckmark
Contrast ratio (dynamic)50000000:1
Maximum refresh rate76 Hz
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Touchscreen typeMulti-user
Display technologyLCD
Number of simultaneous touchpoints10
HD typeFull HD
Panel typeIPS
Screen shapeFlat

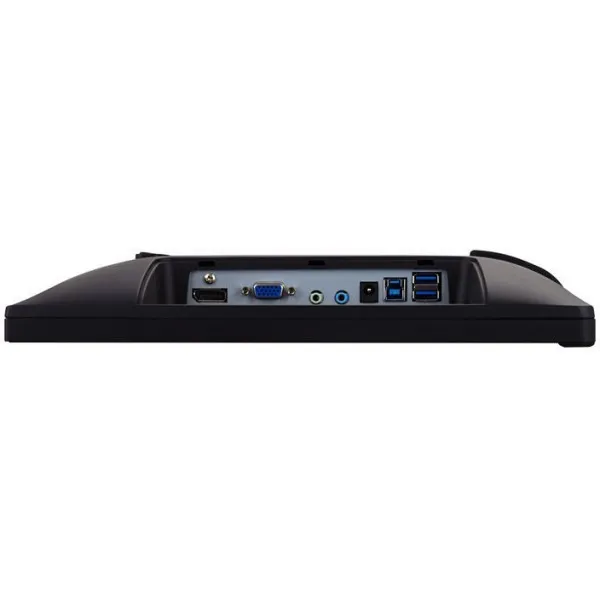

Ports & interfaces
Audio input1
Audio output1
HDMI ports quantity1
HDMI version1.4
HDMIcheckmark
DisplayPorts quantity1
DisplayPort version1.2
Built-in USB hubcheckmark
USB hub version3.2 Gen 1 (3.1 Gen 1)
USB upstream port typeUSB Type-B
Number of upstream ports1
USB Type-A downstream ports quantity2
Number of USB Type-B upstream ports quantity1
Weight & dimensions
Width (with stand)490 mm
Height (with stand)299 mm
Depth (with stand)47 mm
Weight (with stand)3.58 kg
Energy management
Power consumption (typical)25 W
Power supply typeAC
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours19 kWh
Operational conditions
Operating relative humidity (H-H)20 - 90%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 90%
Packaging data
Package weight4.7 kg
Package depth114 mm
Package height371 mm
Package width550 mm
Ergonomics
Wall mountablecheckmark
Tilt angle range20 - 70°
On Screen Display (OSD)checkmark
Panel mounting interface100 x 100 mm
Number of OSD languages12
Tilt adjustmentcheckmark
VESA mountingcheckmark
Packaging content
Cables includedAC, Audio (3.5mm), HDMI, USB
Other features
Display viewable area (HxV)476.64 x 268.11 mm
Design
CertificationcULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP
Product colourBlack
Performance
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supportedcheckmark
Linux operating systems supportedcheckmark
Other operating systems supportedAndroid
NVIDIA G-SYNCcross
AMD FreeSynccross
Multimedia
Built-in microphonecross
RMS rated power6 W
Built-in speaker(s)checkmark
Built-in cameracross
Number of speakers2
Logistics data
Harmonized System (HS) code85285210
Sustainability
Sustainability certificatesCE, EPEAT Bronze, ErP, REACH, RoHS
European Product Registry for Energy Labelling (EPREL) code389769
EAN766907842418
Warranty3 years

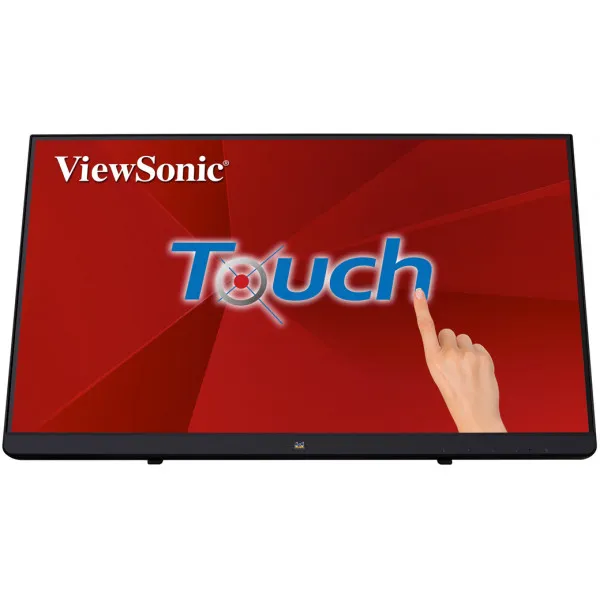

10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.

SuperClear IPS Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

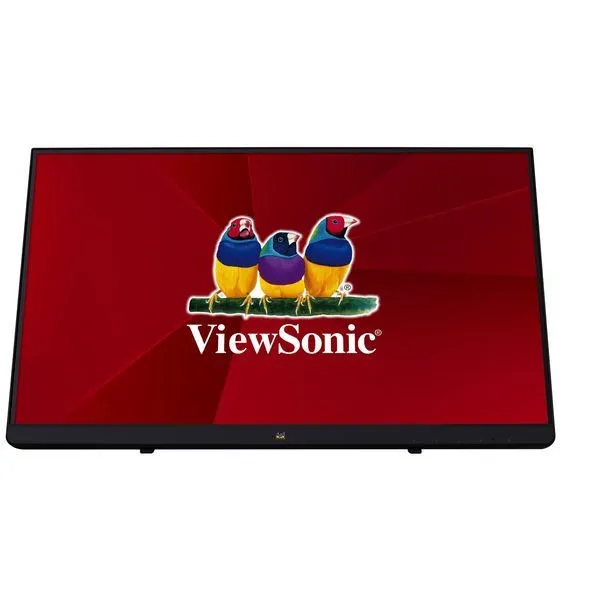

Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.

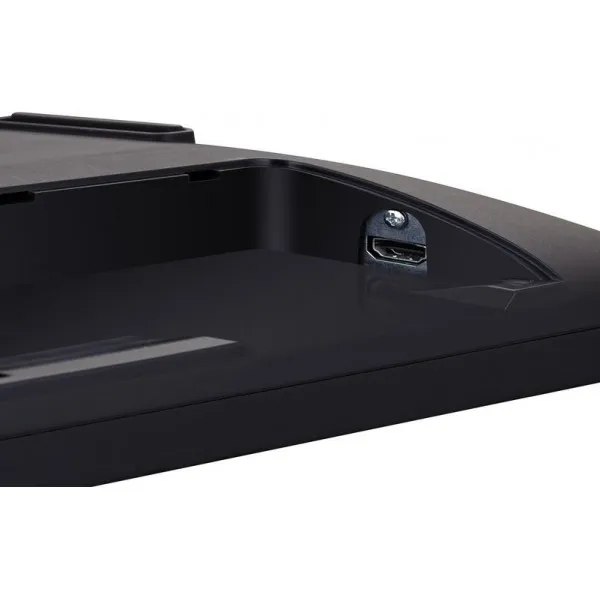

Versatile Connectivity
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.

Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.

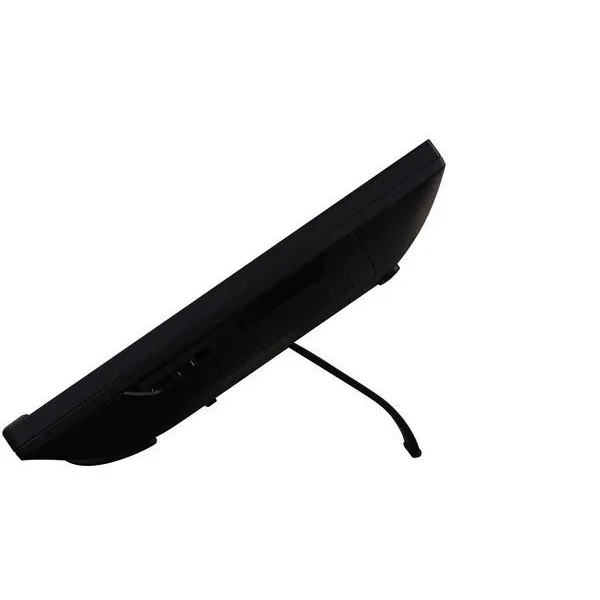

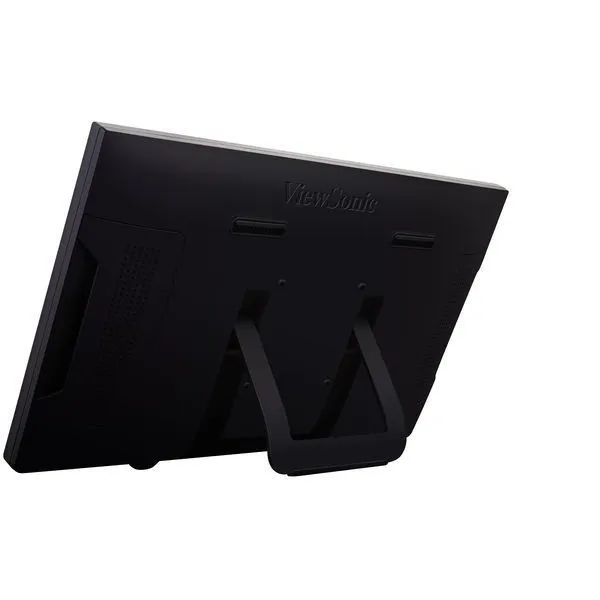

Stable Bookstand Design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilted or laid completely flat on a tabletop for a more comfortable work environment.

Enhanced ViewingComfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.

Cross-platform Compatibility
Cross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions.

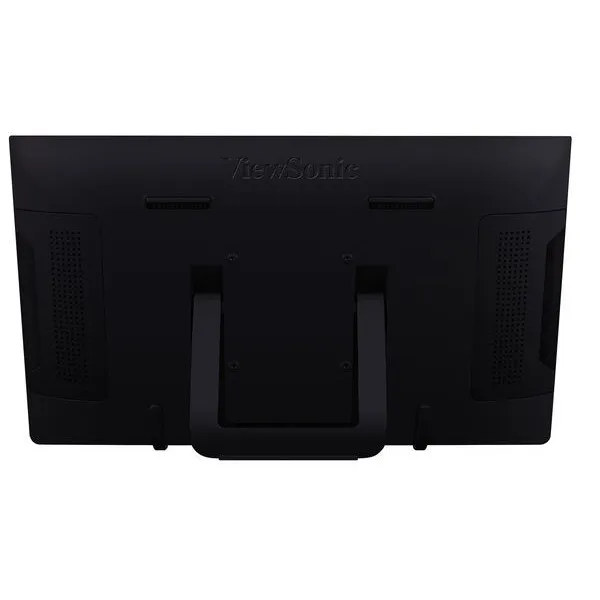

VESA-CompatibleMount
Mount the monitor as you see fit using its convenient VESA-compatible mount design.

3-year LimitedWarranty
Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry’s best pixel performance policies and a 3-year limited warranty.
