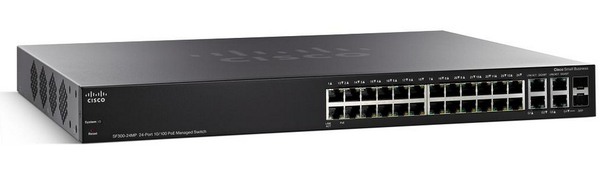

Switch/SF300-24MP 24p 10/100 max PoE UK

Manufacturer: CISCO
ID: SF300-24MP-K9-UK
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Copper ethernet cabling technology1000BASE-T,100BASE-TX,10BASE-T
Combo SFP ports quantity2
Basic switching RJ-45 Ethernet ports quantity28
Weight & dimensions
Weight5.08 kg
Height350 mm
Width440 mm
Depth44.5 mm
Energy management
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Operational conditions
Heat dissipation1504.69 BTU/h
Protocols
Management protocolsLACP, IGMP v1, 2, SNMP 1, 2c, 3
Supported network protocolsTCP/IP, IPv4/v6, HTTP/HTTPS, UDP, SSH, BPDU, IPSG, SNTP, TFTP, Bonjour
Switching protocolsGVRP, GARP, DHCP
Networking
Networking standardsIEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Flow control supportcheckmark
Port mirroringcheckmark
Link aggregationcheckmark
Broadcast storm controlcheckmark
Rate limitingcheckmark
IP routingcheckmark
Spanning tree protocolcheckmark
Head-of-line (HOL) blockingcheckmark
10G supportcheckmark
Data transmission
MAC address table16384 entries
Switching capacity12.9 Gbit/s
Jumbo frames supportcheckmark
Number of queues4
Throughput9.52 Mpps
Number of static routes512
Security
Security algorithmsSSH,SSH-2,SSL/TLS
MAC address filteringcheckmark
Access Control List (ACL)checkmark
SSH/SSL supportcheckmark
IGMP snoopingcheckmark
Management features
MIB supportY
Switch layerL3
Quality of Service (QoS) supportcheckmark
Web-based managementcheckmark
Switch typeManaged
Packaging content
Cables includedAC,Serial
Quick start guidecheckmark
Design
CertificationCSA, CE, FCC
Rack mountingcheckmark
SafetyUL
LED indicatorscheckmark
Product colourBlack
Number of fans4 fan(s)
Power over Ethernet (PoE)
Power over Ethernet (PoE)checkmark
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget375 W
Performance
Internal memory128 MB
Mean time between failures (MTBF)135669.9 h
Flash memory16 MB
Noise level53.9 dB
Firmware upgradeablecheckmark
Packet buffer memory8 MB
Virtual LAN features
Number of VLANs4096
VLAN supportcheckmark
Multicast features
Multicast supportcheckmark
EAN882658507304
Source: Icecat.biz

Easy-to-Use Managed Switches that Provide the Ideal Combination of Features and Affordability
To stay ahead in a competitive marketplace, small businesses need to make every dollar count. That means getting the most value from your technology investments, but it also means making sure that employees have fast, reliable access to the business tools and information they need. Every minute an employee waits for an unresponsive application - and every minute your network is down - has an impact on your bottom line. The importance of maintaining a strong and dependable business network only grows as your business adds more employees, applications, and network complexity.

When your business needs advanced security and features but value is still a top consideration, you're ready for the new generation of Cisco® Small Business managed switches: the Cisco 300 Series.

Cisco 300 Series Switches
The Cisco 300 Series, part of the Cisco Small Business line of network solutions, is a portfolio of affordable managed switches that provides a reliable foundation for your business network. These switches deliver the features you need to improve the availability of your critical business applications, protect your sensitive information, and optimize your network bandwidth to deliver information and applications more effectively. Easy to set up and use, the Cisco 300 Series provides the ideal combination of affordability and capabilities for small businesses, and helps you create a more efficient, better-connected workforce.

The Cisco 300 Series is broad portfolio of fixed-configuration managed Ethernet switches. Models are available with 8 to 48 ports of Fast Ethernet and 10 to 52 ports of Gigabit Ethernet connectivity, providing optimal flexibility to create exactly the right network foundation for your business. However, unlike other small business switching solutions that provide managed network capabilities only in the costliest models, all Cisco 300 Series Switches support the advanced security management capabilities and network features you need to support business-class data, voice, security, and wireless technologies. At the same time, these switches are simple to deploy and configure, allowing you to take advantage of the managed network services your business needs.

Business Applications
Whether you need a basic high-performance network to connect employee computers or a solution to deliver data, voice, and video services, the Cisco 300 Series offers a solution to meet your needs. Possible deployment scenarios include:
- Secure desktop connectivity: Cisco 300 Series Switches can simply and securely connect employees working in small offices with each other and with all of the servers, printers, and other devices they use. High performance and reliable connectivity helps speed file transfers and data processing, improves network uptime, and keeps your employees connected and productive.
- Secure Wireless connectivity: With its advanced Security features, Power over Ethernet, Auto Smartports, QoS, VLAN and Access Control features, the Cisco 300 Series Switches are the perfect foundation to add Business Grade wireless to an SMB network.
- Unified communications: As a managed network solution, the Cisco 300 Series provides the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses. Cisco 300 Series Switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products, providing a complete small business solution.
- Highly secure guest connectivity. Cisco 300 Series Switches let you extend highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests' network sessions private from each other.
