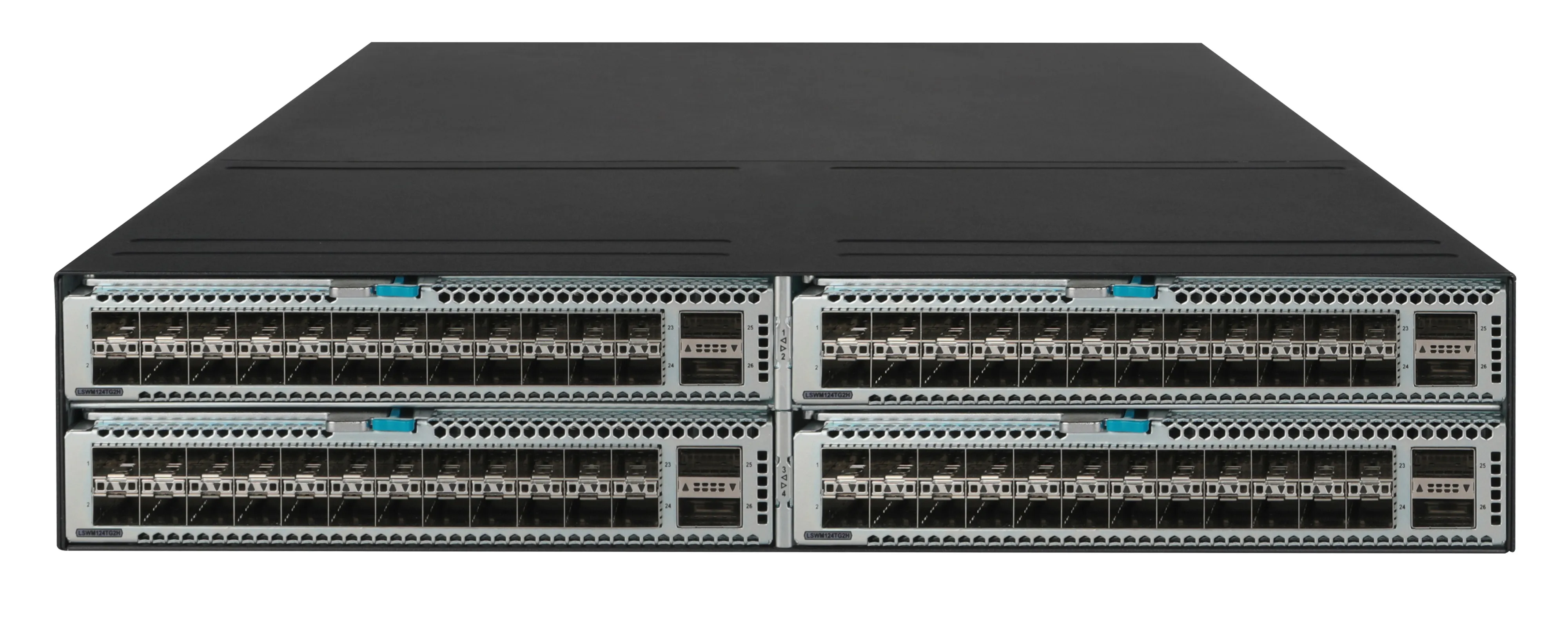

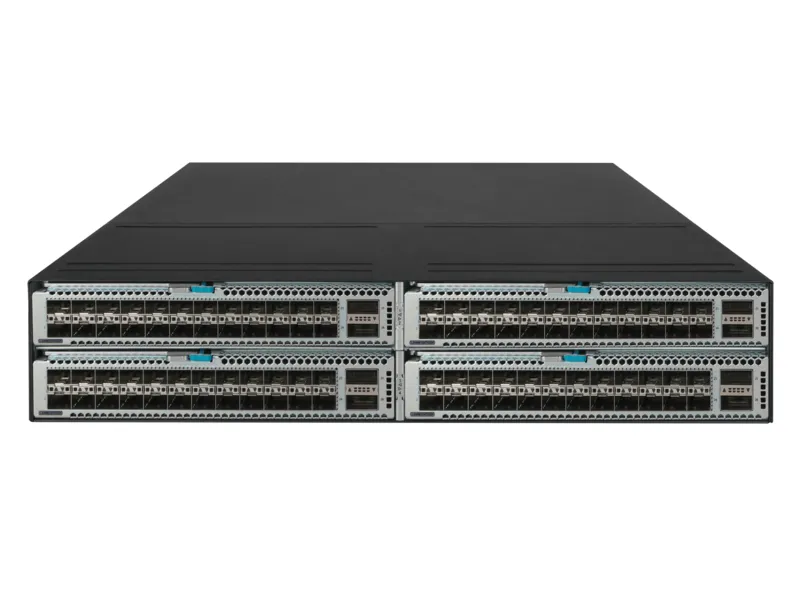

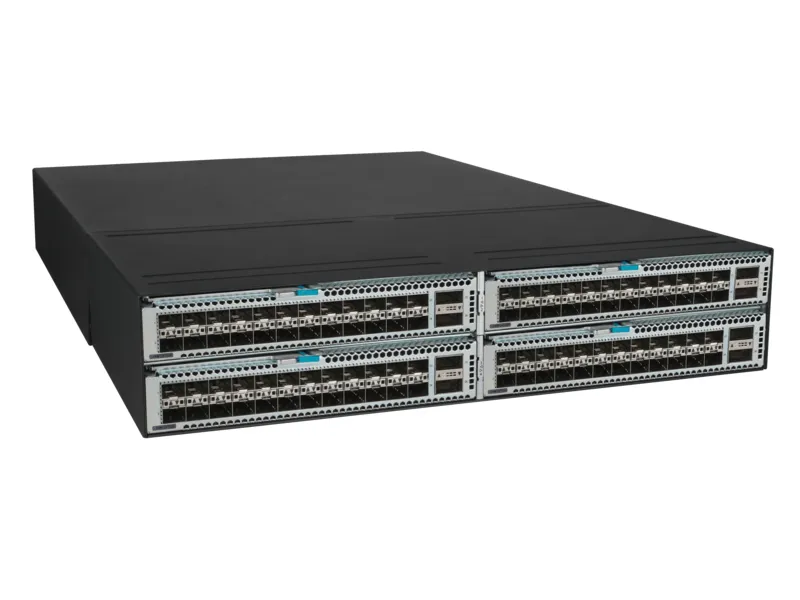

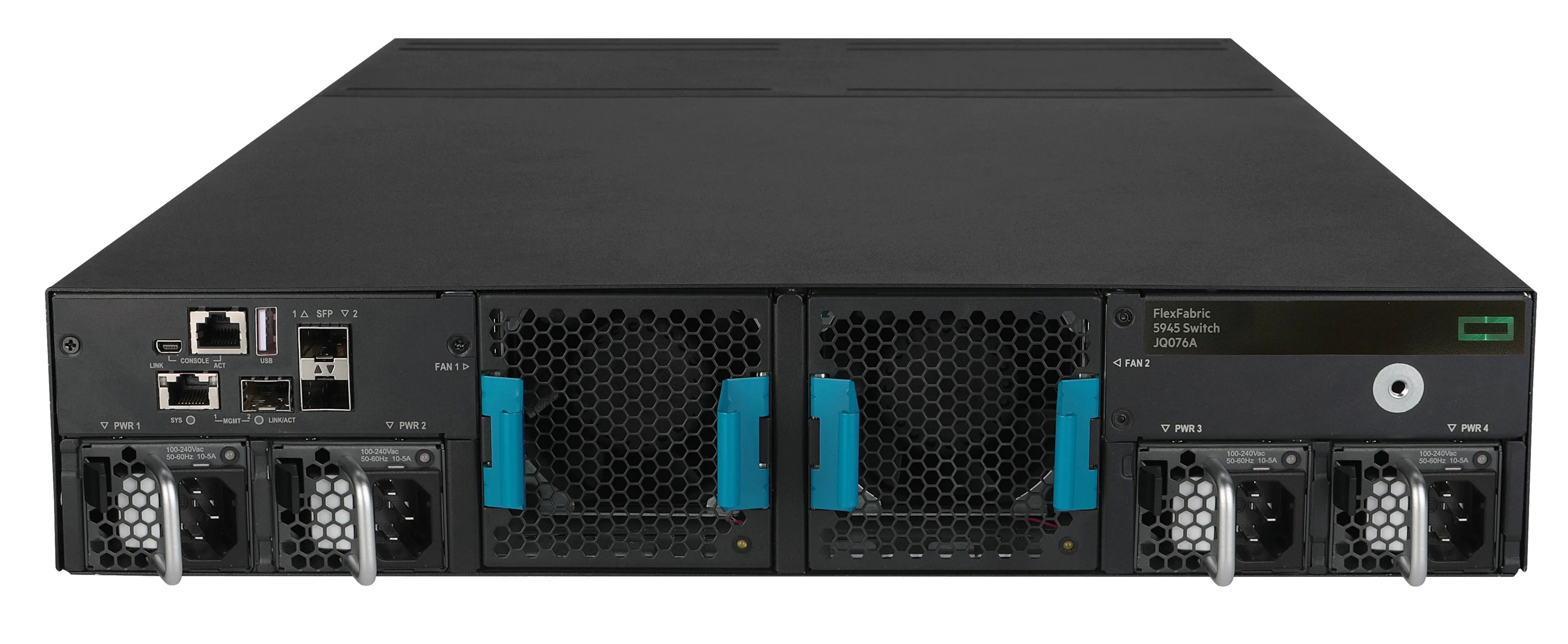

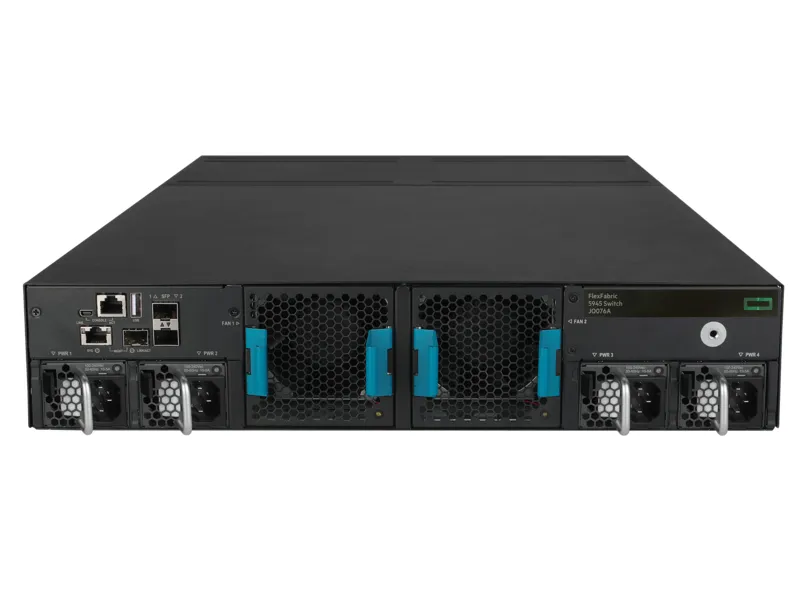

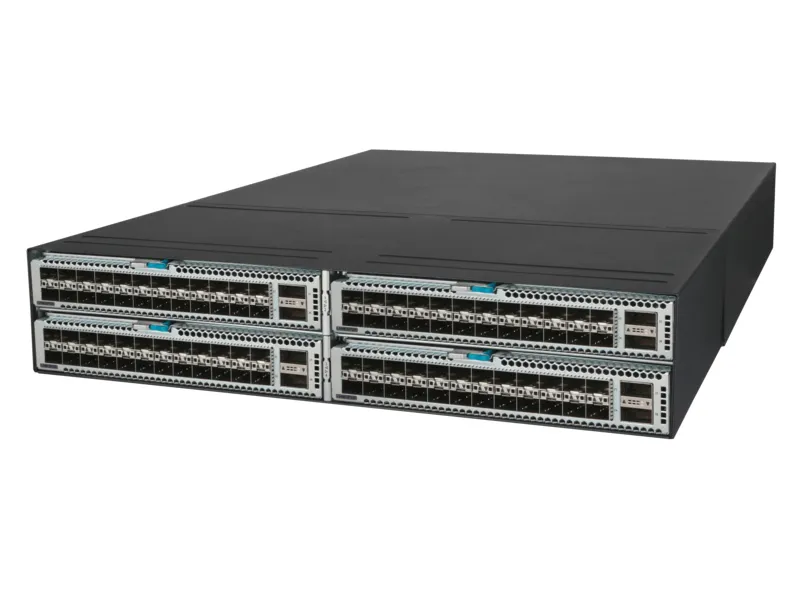

HPE HPN FlexFabric 5945 Switch 4 Slots VXLAN VTEP OVSDB Support IPv6

ID: JQ076A
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
SFP module slots quantity4
Weight & dimensions
Weight18.1 kg
Height88.1 mm
Width440 mm
Depth660 mm
Energy management
Power consumption (typical)650 W
AC input voltage100 - 240 V
DC input voltage48 - 60 V
Power consumption (max)650 W
Operational conditions
Heat dissipation2348 BTU/h
Data transmission
Switching capacity6400 Gbit/s
Management features
Switch typeManaged
Design
Rack mountingcheckmark
Product colourBlack
Stackablecheckmark
Performance
Internal memory4096 MB
Flash memory1024 MB
Physical stacking (units)10
Logistics data
Harmonized System (HS) code85176990
EAN0190017209685
Warranty5 years
Source: Icecat.biz

The HPE Networking Comware Switch Series 5945 are high-density, ultra-low-latency, and top-of-rack (ToR) switches ideally suited for deployment at the aggregation or server access layer of large enterprise data centers. The HPE 5945 Series is also powerful enough for deployment at the core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers require spine and ToR switches that can meet their throughput requirements. With the HPE 5945 Series, data centers can now support up to 100GbE per port, allowing high performance server connectivity and the capabilities to handle virtual environments. The HPE Networking Comware Switch Series 5945 provides choices that fit your budget and IT environment by cut-through with ultra-low-latency and wire speed, offering different port density and speeds of 100GbE/40GbE/25GbE/10GbE spine/ToR connectivity.

What is new supporting point:
Greater flexibility with two/four slot options for varying use cases such as MACsec 256-bit encryption, high-performance DC leaf, storage networking and NVMe storage.
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about "made in China" products.
High-density 100GbE/40GbE/25GbE/10GbE spine/top-of-rack (ToR) connectivity and Cut-through switching with low-latency and wire speed performance.
New 32G/16G support for storage networking and ROCE V1/V2 for RDMA High-Performance computing.VXLAN, EVPN, and MPLS support for virtualized environments.
IPv4 and IPv6 support with full L2/L3 features and PTP 1588V2 for Boundary Clock, Transparent Clock, End to End/Peer to Peer Transparent Clock.
HPE Aruba Networking IMC Orchestrator and Analyzer for enhanced network operations with orchestration, automation, and analytical capabilities.

Multitronic Vaasa: 0 pcs
Estimated delivery: 27.08 - 30.08
Multitronic Pietarsaari: 0 pcs
Estimated delivery: 27.08 - 30.08
Multitronic Jyväskylä: 0 pcs
Estimated delivery: 27.08 - 30.08
Multitronic Lappeenranta: 0 pcs
Estimated delivery: 27.08 - 30.08
Multitronic Mariehamn: 0 pcs
Estimated delivery: 27.08 - 30.08
The above technical details are for reference only and may change without notice. We reserve the right to correct printing errors and use illustrations for guidance. Some text may be auto-generated or machine-translated, which could lead to inaccuracies.
