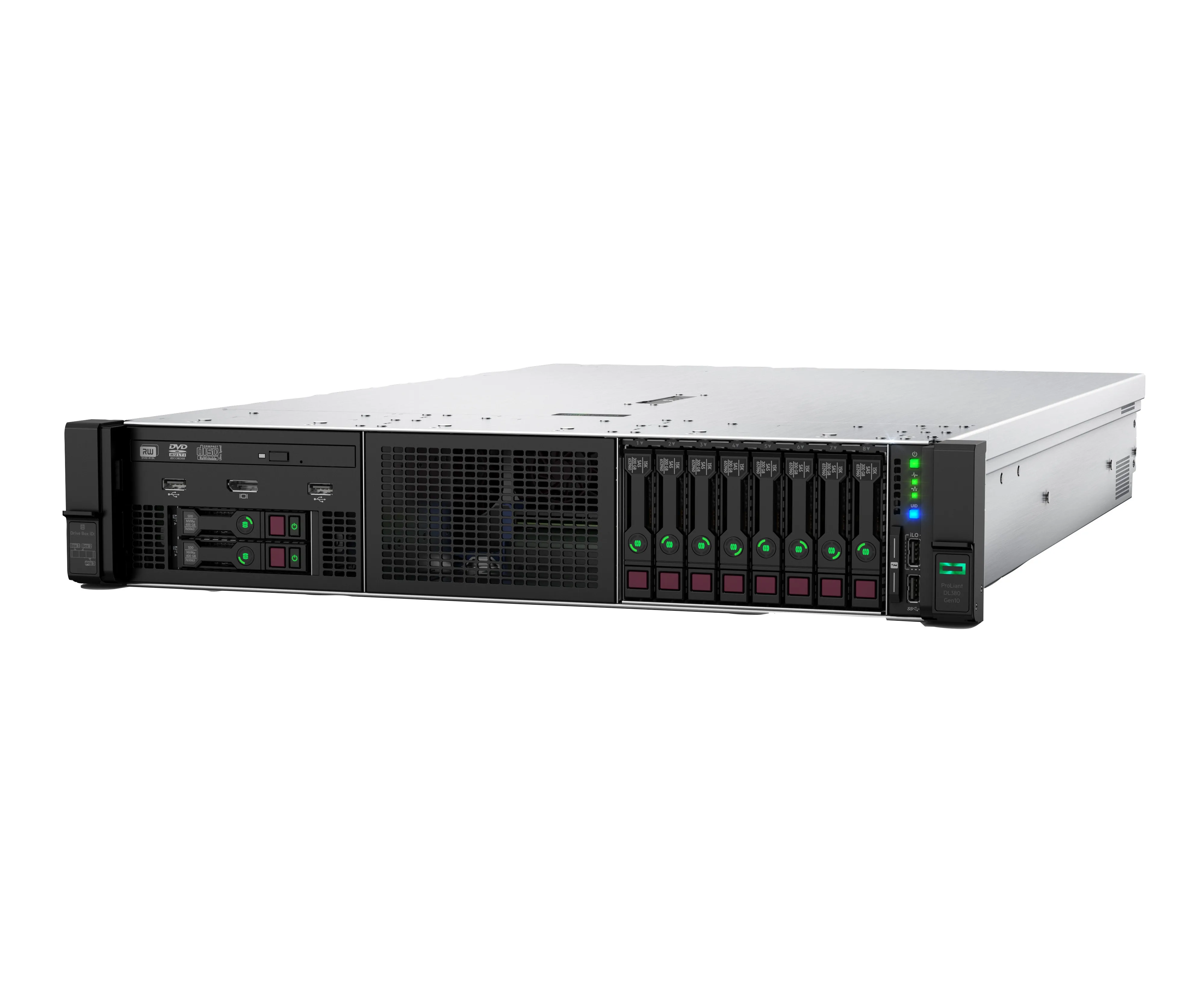

HPE ProLiant DL380 Gen10 SMB Networking Choice - Palvelin - telineasennettava - 2U - 2-teinen - 1 x Xeon Gold 5218R / 2.1 GHz - RAM 32 GB - SATA - pikavaihto 2.
Processor | |
Processor model | 5218R |
Motherboard chipset | Intel C621 |
Number of processors installed | 1 |
Processor manufacturer | Intel |
Processor lithography | 14 nm |
Maximum number of SMP processors | 2 |
Processor family | Intel Xeon |
Processor socket | P |
Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
Processor cores | 20 |
Processor threads | 40 |
Processor operating modes | 64-bit |
Processor boost frequency | 4 GHz |
Processor cache | 27.5 MB |
Execute Disable Bit | ![]() |
Scalability | 2S |
Tcase | 87 °C |
Embedded options available | ![]() |
Processor frequency | 2.1 GHz |
Thermal Design Power (TDP) | 125 W |
Processor codename | Cascade Lake |
Maximum number of PCI Express lanes | 48 |
Maximum internal memory supported by processor | 1.02 TB |
Memory types supported by processor | DDR4-SDRAM |
Memory clock speeds supported by processor | 2667 MHz |
Processor package size | 76.0 x 56.5 mm |
Processor generation | 1st Generation Intel® Xeon® Scalable |
Memory | |
Internal memory type | DDR4-SDRAM |
Memory slots | 24x DIMM |
Maximum internal memory | 1.54 TB |
Memory clock speed | 2933 MHz |
Memory layout (slots x size) | 1 x 32 GB |
Internal memory | 32 GB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |
Weight & dimensions | |
Weight | 14.8 kg |
Height | 87.4 mm |
Width | 445.5 mm |
Depth | 730.3 mm |
Energy management | |
Power supply | 800 W |
Redundant power supply (RPS) support | ![]() |
Number of main power supplies | 1 |
Networking | |
Ethernet LAN | ![]() |
Ethernet interface type | 10 Gigabit Ethernet |
Storage | |
HDD interface | SATA |
Optical drive type | No |
RAID levels | 0, 1, 5, 10 |
Hot-Plug support | ![]() |
Total storage capacity | 0 GB |
Number of HDDs supported | 8 |
SSD interface | PCI Express 4.0 |
Maximum storage capacity | 60 TB |
Supported HDD sizes | 2.5" |
RAID support | ![]() |
Supported RAID controllers | None |
Operating system/software | |
Compatible operating systems | Windows Server 2019: Essentials, Standard, Datacenter Windows Server 2016: Essentials, Standard, Datacenter Windows Server 2012 R2: Essentials, Standard, Datacenter Microsoft Hyper-V Server: 2012 R2, 2016 & 2019 VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1 ClearVM: 7.6 & 8.0 Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase SUSE Linux Enterprise Server (SLES) 12 SP4 and 15 SP1 (incl. Xen) |
Operating system installed | ![]() |
Expansion slots | |
PCI Express slots version | 3.0 |
Design | |
Rack mounting | ![]() |
Chassis type | Rack (2U) |
Product colour | Black, Metallic |
Graphics | |
Maximum graphics card memory | 16 MB |
On-board graphics card | ![]() |
Processor special features | |
Intel® Hyper Threading Technology (Intel® HT Technology) | ![]() |
Intel® Turbo Boost Technology | 2.0 |
Intel® AES New Instructions (Intel® AES-NI) | ![]() |
Enhanced Intel SpeedStep Technology | ![]() |
Intel Trusted Execution Technology | ![]() |
Intel VT-x with Extended Page Tables (EPT) | ![]() |
Intel 64 | ![]() |
Intel Virtualization Technology for Directed I/O (VT-d) | ![]() |
Intel Virtualization Technology (VT-x) | ![]() |
Processor ARK ID | 199342 |
Performance | |
Remote administration | iLO 5 ASIC |
Trusted Platform Module (TPM) | ![]() |
Trusted Platform Module (TPM) version | 2.0 |
Logistics data | |
Harmonized System (HS) code | 84714100 |
Sustainability | |
Sustainability certificates | ENERGY STAR |
EAN | 0190017446516 |
Warranty | 3 years |
Source: Icecat.biz |
Where is your server bottlenecked...storage, compute, expansion? The HPE ProLiant DL380 Gen10 server delivers the latest in security, performance and expandability, backed by a comprehensive warranty. Standardize on the industry's most trusted compute platform. The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel Xeon Processor Scalable Family with up to a 60% performance gain [1] and 27% increase in cores [2], plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. Intel Optane™ persistent memory 100 series for HPE offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.
What is new supporting point:
iLO 5 security enhancements: Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor. HPE InfoSight provides cloud-based analytics to predict and prevent issues proactively.
Defend applications and data before your server is built with the new HPE Trusted Supply Chain offering.
Supporting additional second generation Intel Xeon Scalable processor family offerings.
Increased Single-Width GPU Density with up to 7 NVIDIA Tesla T4 16GB Computational Accelerators or 7 Xilinx Alveo U50 Accelerators supported in a standard-depth 2U rack form factor
Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
Intel Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage and enables per-socket memory capacity of up to 3.0 TB. [3]
