Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Weight & dimensions | |
| Weight | 590 g |
| Height | 108.5 mm |
| Width | 217.6 mm |
| Depth | 27.8 mm |
| Energy management | |
| Input current | 2.22 A |
| DC input voltage | 54 V |
| Power consumption (max) | 120 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -10 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Networking | |
| Full duplex |  |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support |  |
| Data transmission | |
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | |
| Forwarding rate | 14.88 Mpps |
| Management features | |
| Switch type | Unmanaged |
| Design | |
| Certification | FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) 1907/2006) |
| Rack mounting | |
| Product colour | Blue |
| Housing material | Metal |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 6 |
| Total Power over Ethernet (PoE) budget | 110 W |
| EAN | 6941264031611 |
| Warranty | 3 years |
| Source: Icecat.biz | |

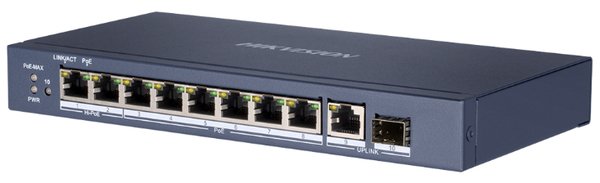

DS-3E0510HP-E switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and Gigabit networks design on the basis of highperformance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.
