No price development information for this product.
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Processor socket | LGA 1200 |
| Memory | |
| Maximum internal memory | 64 GB |
| Non-ECC |  |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5333 MHz |
| Supported memory types | DDR4 |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Networking | |
| Ethernet LAN | |
| Wi-Fi | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Internal I/O | |
| Number of SATA connectors | 4 |
| USB 2.0 connectors | 1 |
| S/PDIF out connector | |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Number of EATX power connectors | 1 |
| Chassis intrusion connector | |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| 12V power connector | |
| Back panel I/O ports | |
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | |
| S/PDIF out port | |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Storage controllers | |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Packaging content | |
| Cables included | SATA |
| Drivers included | |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| BIOS | |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | |
| Graphics | |
| Maximum resolution | 5120 x 2880 pixels |
| Number of displays supported | 2 |
| Features | |
| Motherboard chipset | Intel B560 |
| Motherboard form factor | Mini ITX |
| Audio output channels | 7.1 channels |
| Number of mounting holes | 4 |
| Windows operating systems supported | Windows 10 x64 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
| Audio chip | SupremeFX S1220A |
| EAN | 4711081123224 |
| Warranty | 1 year |
| Source: Icecat.biz | |

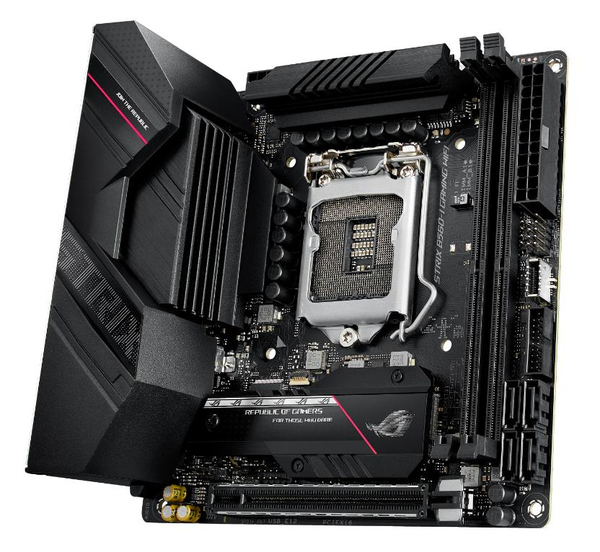

ntel® B560 LGA 1200 Mini-ITX motherboard with PCIe 4.0, 8 teamed power stages, WiFi 6 (802.11ax), Realtek 2.5 Gb Ethernet, Two M.2 slots with one slot having a heatsink and M.2 backplate, Two-Way AI Noise Cancelation, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync RGB lighting
