This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
SFP module slots quantity | 3 |
QSFP28 ports quantity | 32 |
Weight & dimensions | |
Weight | 1.31 kg |
Height | 460 mm |
Width | 43.6 mm |
Depth | 440 mm |
Energy management | |
Power consumption (typical) | 650 W |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
DC input voltage | 48 - 60 V |
Power consumption (max) | 650 W |
Operational conditions | |
Heat dissipation | 1283 BTU/h |
Networking | |
10G support | ![]() |
Cable types supported | Fiber |
Data transmission | |
Packet buffer memory | 32 MB |
Throughput | 2024 Mpps |
Security | |
IGMP snooping | ![]() |
Authentication type | RADIUS |
Management features | |
Switch type | Managed |
Configuring Location Settings (CLI) | ![]() |
Design | |
Rack mounting | ![]() |
Product colour | Black |
Stackable | ![]() |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | ![]() |
Performance | |
Internal memory | 8000 MB |
Flash memory | 1024 MB |
Memory type | RDRAM |
Physical stacking (units) | 10 |
Logistics data | |
Harmonized System (HS) code | 85176990 |
EAN | 0190017209920 |
Warranty | 1 year |
Source: Icecat.biz |

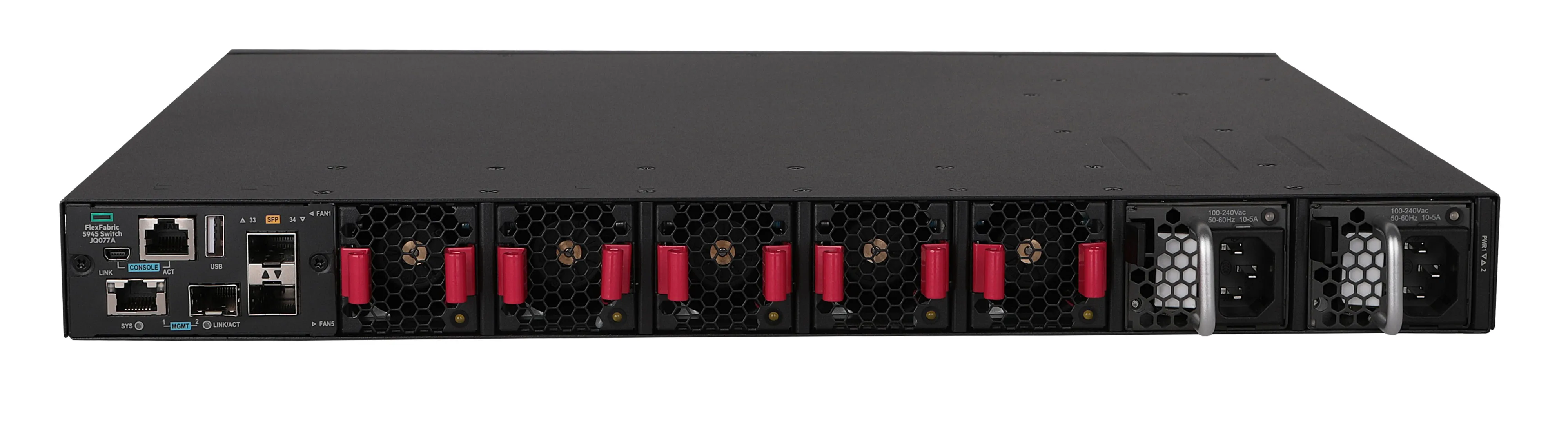

The HPE Networking Comware Switch Series 5945 are high-density, ultra-low-latency, and top-of-rack (ToR) switches ideally suited for deployment at the aggregation or server access layer of large enterprise data centers. The HPE 5945 Series is also powerful enough for deployment at the core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers require spine and ToR switches that can meet their throughput requirements. With the HPE 5945 Series, data centers can now support up to 100GbE per port, allowing high performance server connectivity and the capabilities to handle virtual environments. The HPE Networking Comware Switch Series 5945 provides choices that fit your budget and IT environment by cut-through with ultra-low-latency and wire speed, offering different port density and speeds of 100GbE/40GbE/25GbE/10GbE spine/ToR connectivity.
What is new supporting point:
New made in USA TAA-compliant SKUs offer heightened security via manual and automated source code analysis to address common programming issues, easing concerns about "made in China" products.
Greater flexibility with two/four slot options for varying use cases such as MACsec 256-bit encryption, high-performance DC leaf, storage networking and NVMe storage.
IPv4 and IPv6 support with full L2/L3 features and PTP 1588V2 for Boundary Clock, Transparent Clock, End to End/Peer to Peer Transparent Clock.
HPE Aruba Networking IMC Orchestrator and Analyzer for enhanced network operations with orchestration, automation, and analytical capabilities.
High-density 100GbE/40GbE/25GbE/10GbE spine/top-of-rack (ToR) connectivity and Cut-through switching with low-latency and wire speed performance.
New 32G/16G support for storage networking and ROCE V1/V2 for RDMA High-Performance computing.VXLAN, EVPN, and MPLS support for virtualized environments.
